Product Description
Product Details
| Manufacturer |
Bently Nevada |
| Model/Part Number |
136711-02 |
| Description |

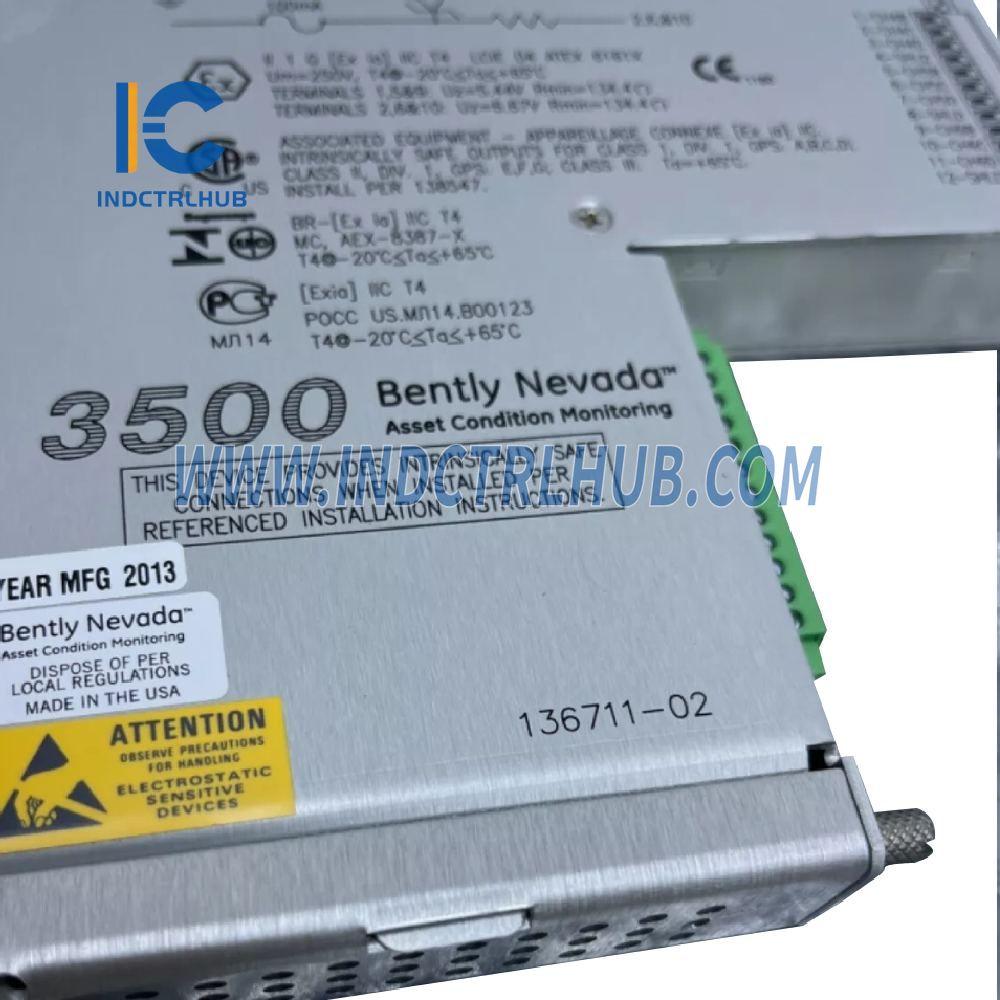

3500/61 I/O Module with Internal Barriers |
Description
The 3500/60 and 3500/61 Temperature Modules provide six channels of temperature monitoring, supporting both Resistance Temperature Detector (RTD) and Thermocouple (TC) inputs. These modules condition the input signals and compare them against user-configured alarm setpoints.
- The 3500/61 offers recorder outputs for each channel, while the 3500/60 does not.
- The module is programmed via the 3500 Rack Configuration Software to perform RTD or TC measurements.
- Isolated I/O versions provide 250 Vdc channel-to-channel isolation for protection against external interference.
Specifications
Environmental Limits
| Parameter |
Value |
| Operating Temperature |
-30°C to +65°C (-22°F to +150°F) (Standard Modules) |
|
0°C to +65°C (+32°F to +150°F) (Barrier Modules) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
I/O Module Dimensions
| Type |
Dimensions (H x W x D) |
Weight |
| Non-barrier Module |
241.3 mm x 24.4 mm x 99.1 mm |
0.45 kg (1.0 lb) |
| Internal Barrier Module |
241.3 mm x 24.4 mm x 163.1 mm |
0.46 kg (1.01 lb) |
Isolation
| Parameter |
Value |
| System Isolation |
500 Vdc |
| Channel-to-Channel Isolation |
250 Vdc |
Ordering Information
| 3500/61-AA-BB |
Details |
| A: I/O Module Type |
|
| 01: RTD/TC Non-isolated I/O Module with Internal Terminations |
|
| 02: RTD/TC Non-isolated I/O Module with External Terminations |
|
| 03: TC Isolated I/O Module with Internal Terminations |
|
| 04: TC Isolated I/O Module with External Terminations |
|
| 05: RTD/TC Non-isolated I/O Module with Internal Barriers |
|
| B: Agency Approval Option |
|
| 00: None |
|
| 01: CSA/NRTL/C (Class 1, Div 2) |
|
| 02: ATEX/IECEx/CSA (Class 1, Zone 2) |
Download PDF file here:
Click to Download PDF
