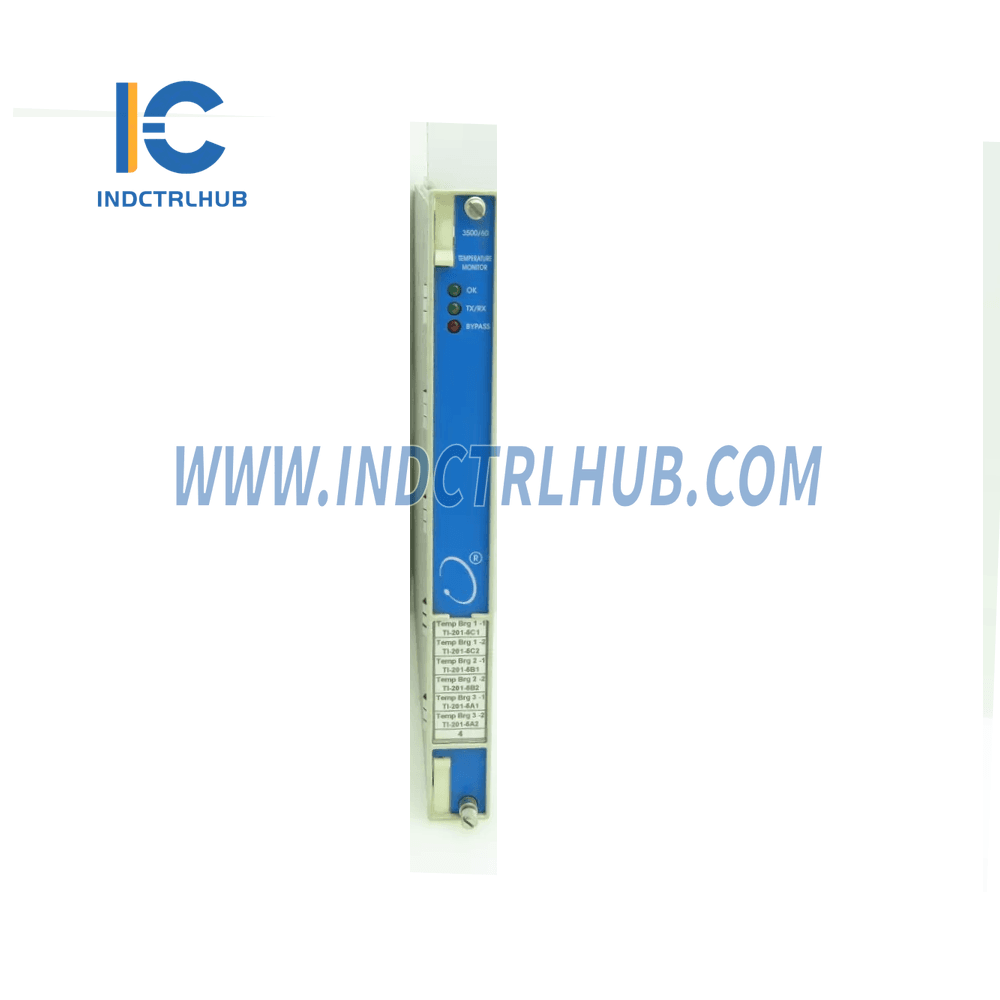

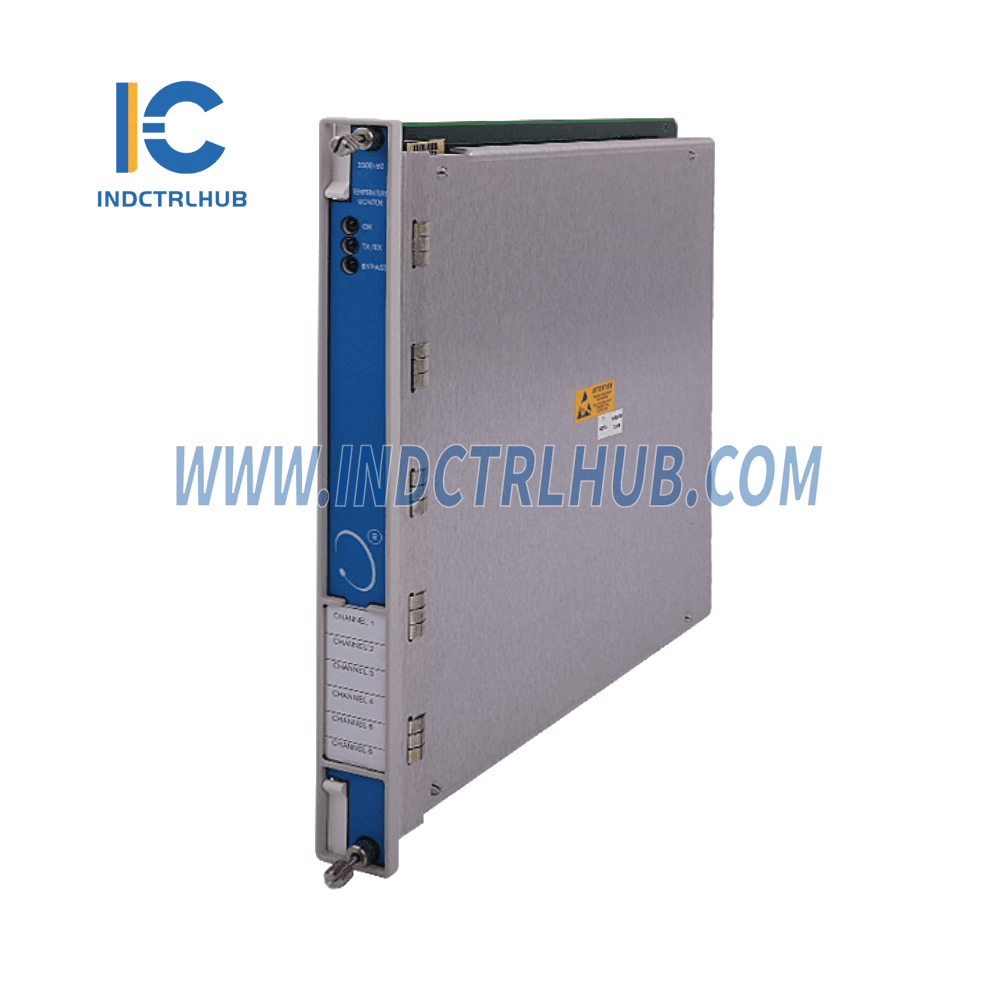

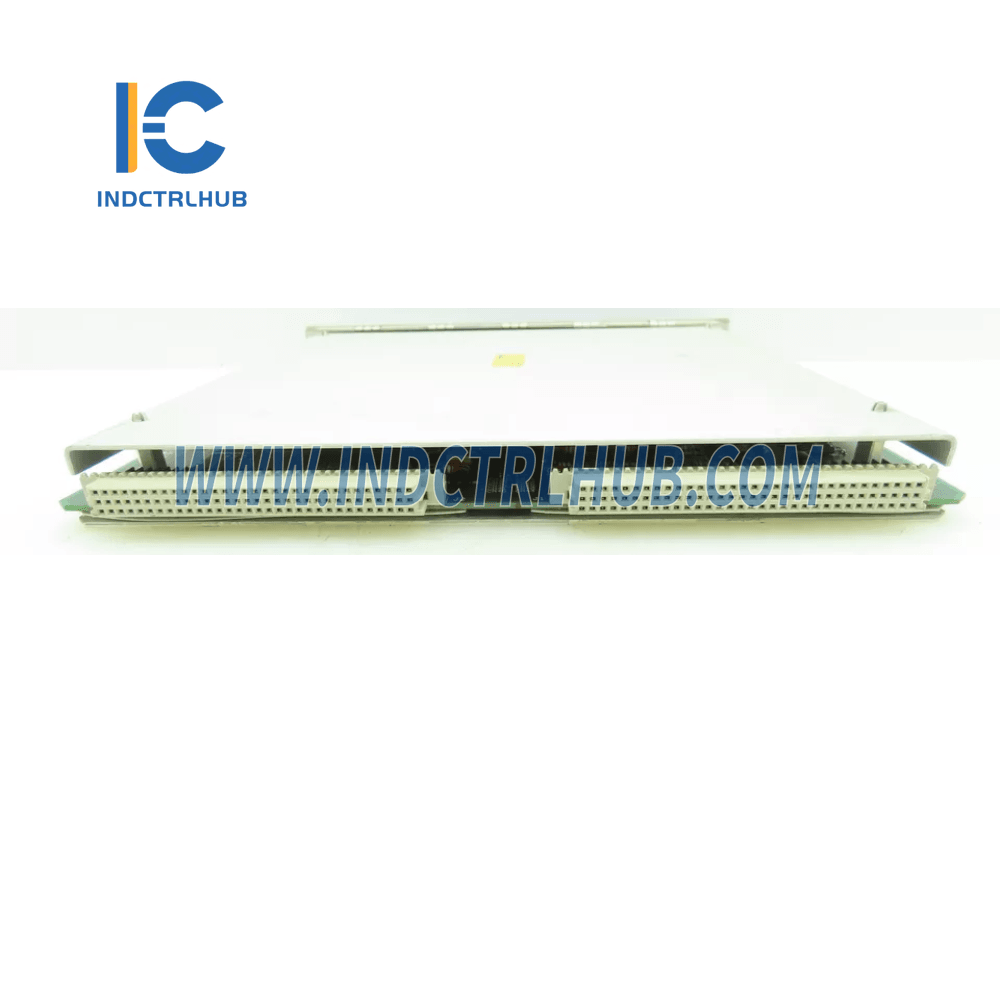

BENTLY NEVADA 3500/60 190085-01L Temperature Monitor

BENTLY NEVADA 3500/60 190085-01L Temperature Monitor

  • Manufacturer: Bently Nevada

  • Product No.: 190085-01L

  • Condition:1000 in stock

  • Product Type: Temperature Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

  • Manufacturer: Bently Nevada
  • Series: 3500/60
  • Model/Part Number: 190085-01L
  • Type: Temperature Monitor
  • Description:
    • The 3500/60 and 3500/61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs.
    • The modules condition these inputs and compare them against user-programmable alarm setpoints.
    • The 3500/60 and 3500/61 offer identical functionality, except that the 3500/61 includes recorder outputs for each of its six channels, while the 3500/60 does not.
    • I/O Module Isolation:
      • System Isolation: 500 Vdc
      • Channel-to-Channel Isolation: 250 Vdc
      • Note: Isolation is required for fault scenarios and does not occur under normal operating conditions.

Specifications

I/O Modules

  • Isolated I/O Module: Designed for situations requiring isolation, with system isolation up to 500 Vdc and channel-to-channel isolation of 250 Vdc.

Outputs

  • Front Panel LEDs:
    • OK LED: Indicates proper operation.
    • TX/RX LED: Flashes during communication with other modules in the 3500 rack.
    • Bypass LED: Illuminates when the monitor is in bypass mode.

Environmental Limits

  • Operating Temperature:
    • With Internal/External Termination I/O Modules: -30°C to +65°C (-22°F to +150°F).
    • With Internal Barrier I/O Modules: 0°C to +65°C (32°F to +150°F).
  • Storage Temperature:
    • -40°C to +85°C (-40°F to +185°F).

Physical Specifications

Component Dimensions (H x W x D) Weight
Monitor Module 241.3 mm x 24.4 mm x 241.8 mm (9.50 x 0.96 x 9.52 in) 0.91 kg (2.0 lb)
I/O Modules 241.3 mm x 24.4 mm x 99.1 mm (9.50 x 0.96 x 3.90 in) 0.45 kg (1.0 lb)

Ordering Information

The part number format is 3500/60-AA-BB, with the following options:

Option A: I/O Module Type

Option Description
01 RTD/TC Non-isolated I/O Module with Internal Terminations.
02 RTD/TC Non-isolated I/O Module with External Terminations.
03 TC Isolated I/O Module with Internal Terminations.
04 TC Isolated I/O Module with External Terminations.
05 RTD/TC Non-isolated I/O Module with Internal Barriers.

Option B: Agency Approval

Option Description
00 None.
01 CSA/NRTL/C (Class 1, Division 2).
02 ATEX/IECEx/CSA (Class 1, Zone 2).

Applications

  1. Temperature Monitoring:

    • Ideal for applications requiring accurate temperature measurement and alarm management.
  2. Machinery Protection

    • Protects machinery from overheating or other temperature-related issues by monitoring temperatures and triggering alarms.
  3. Versatile Compatibility:

    • Supports both RTDs and thermocouples, offering flexibility for a wide range of industrial applications.
