Product Description
Product Details

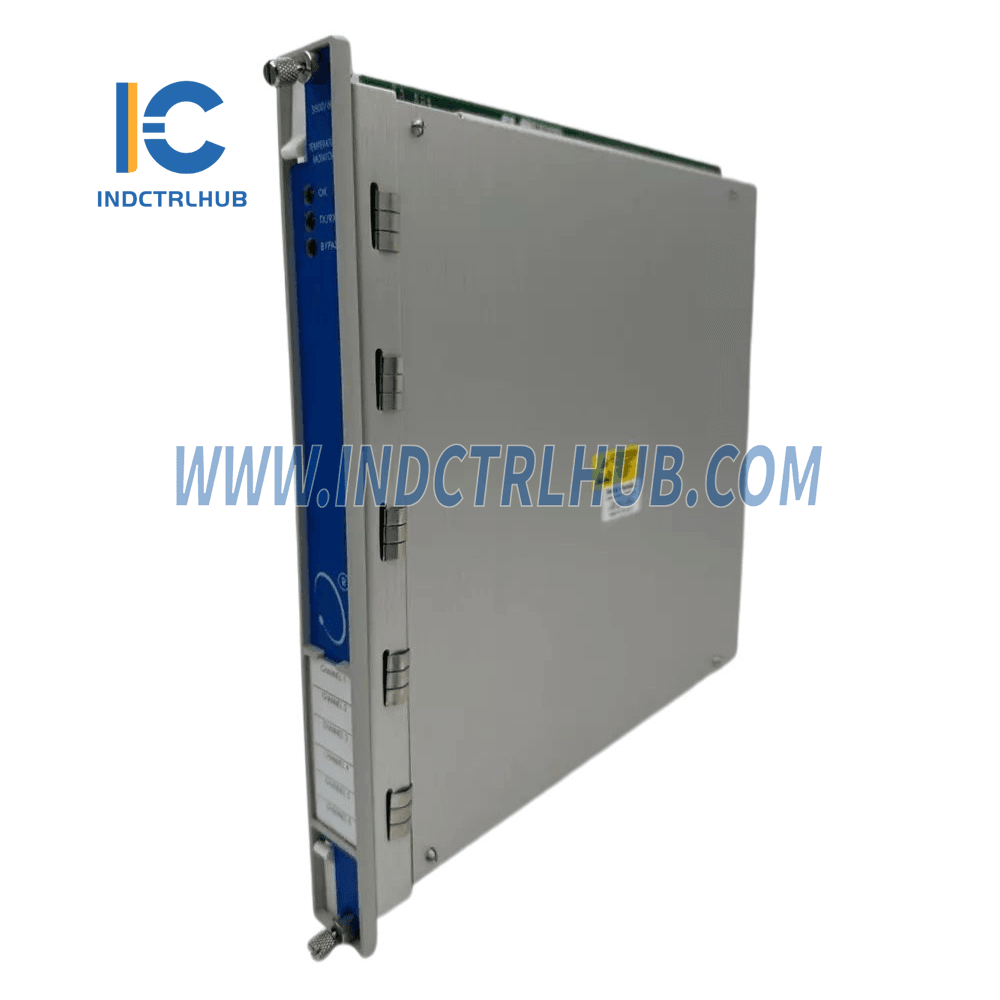

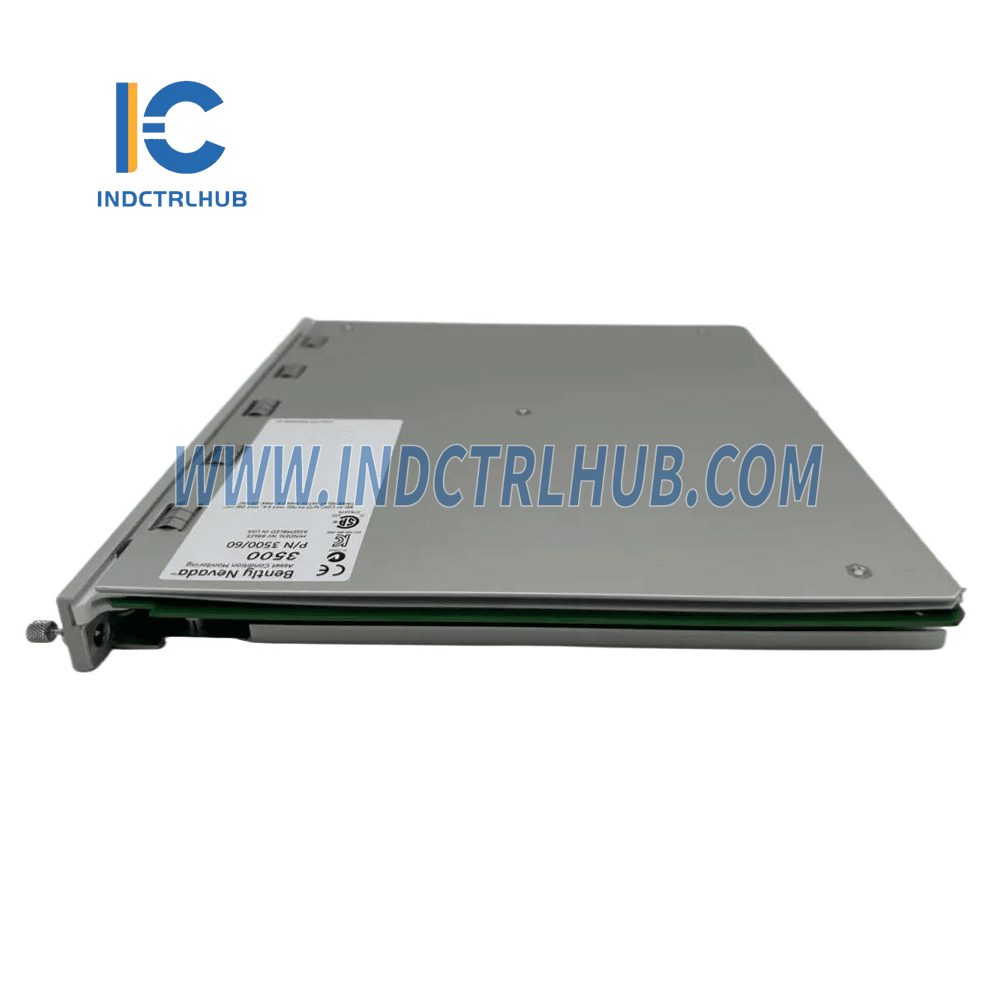

| Manufacturer | Bently Nevada |
|---|---|
| Series | 3500/60 |

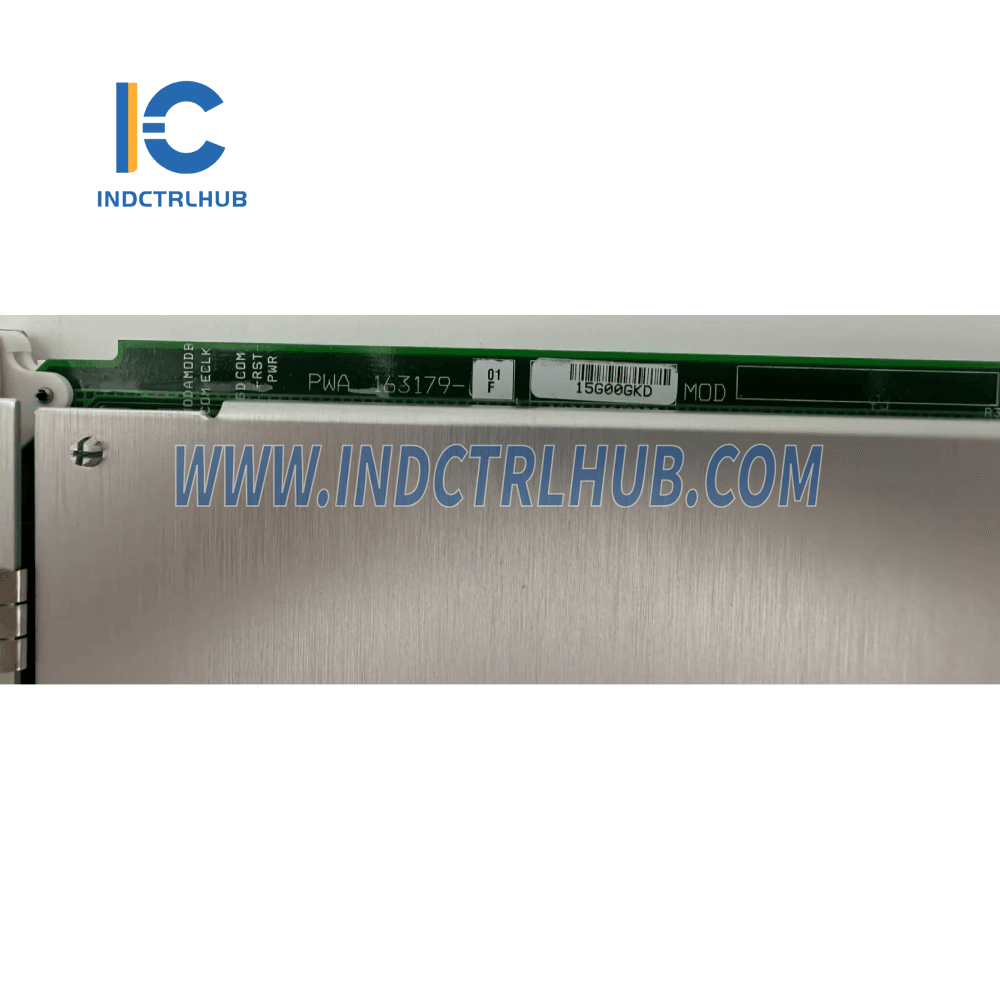

| Model/Part Number | 163179-01F |
| Model Type | Temperature Modules |
Description
The 3500/60 (and 3500/61) modules provide six channels of temperature monitoring. These modules are designed to accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs, which are then conditioned and compared against user-programmable alarm setpoints.
- Key Difference: The 3500/60 does not provide recorder outputs for its six channels, whereas the 3500/61 does.
Transducer Types
Thermocouples (TC)
- Type E: -100 °C to +1000 °C (-148 °F to +1832 °F)
- Type J: -18 °C to +760 °C (0 °F to +1400 °F)
- Type K: -18 °C to +1370 °C (0 °F to +2498 °F)
- Type T: -160 °C to +400 °C (-256 °F to +752 °F)
Resistance Temperature Detectors (RTDs)
-
100Ω 3-wire & 4-wire Platinum RTD (α = 0.00385)
- Range: -200 °C to +850 °C (-328 °F to +1562 °F)
- With external barriers: -50 °C to +850 °C (-122 °F to +1562 °F)
-
100Ω 3-wire & 4-wire Platinum RTD (α = 0.00392)
- Range: -200 °C to +700 °C (-328 °F to +1292 °F)
- With external barriers: -50 °C to +260 °C (-122 °F to +1292 °F)
-
120Ω 3-wire & 4-wire Nickel RTD
- Range: -80 °C to +260 °C (-112 °F to +500 °F)
- With external barriers: -50 °C to +260 °C (-122 °F to +500 °F)
-
10Ω 3-wire & 4-wire Copper RTD
- Range: -100 °C to +260 °C (-148 °F to +500 °F)
- With external barriers: -50 °C to +260 °C (-122 °F to +500 °F)
Environmental Limits
| Condition | Temperature Range |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) with Internal/External Termination I/O Modules 0°C to +65°C (32°F to +150°F) with Internal Barrier I/O Modules |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
Physical Specifications
| Component | Dimensions (H x W x D) | Weight |
|---|---|---|
| Monitor Module | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) | 0.91 kg (2.0 lb) |
Ordering Information
| Model Format | 3500/60-AA-BB |
|---|---|
| A: I/O Module Type |
01: RTD/TC Non-isolated I/O Module with Internal Terminations 02: RTD/TC Non-isolated I/O Module with External Terminations 03: TC Isolated I/O Module with Internal Terminations 04: TC Isolated I/O Module with External Terminations 05: RTD/TC Non-isolated I/O Module with Internal Barriers |
| B: Agency Approval |
00: None 01: CSA/NRTL/C (Class 1, Division 2) 02: ATEX/IECEx/CSA (Class 1, Zone 2) |
