Product Description
Product Overview

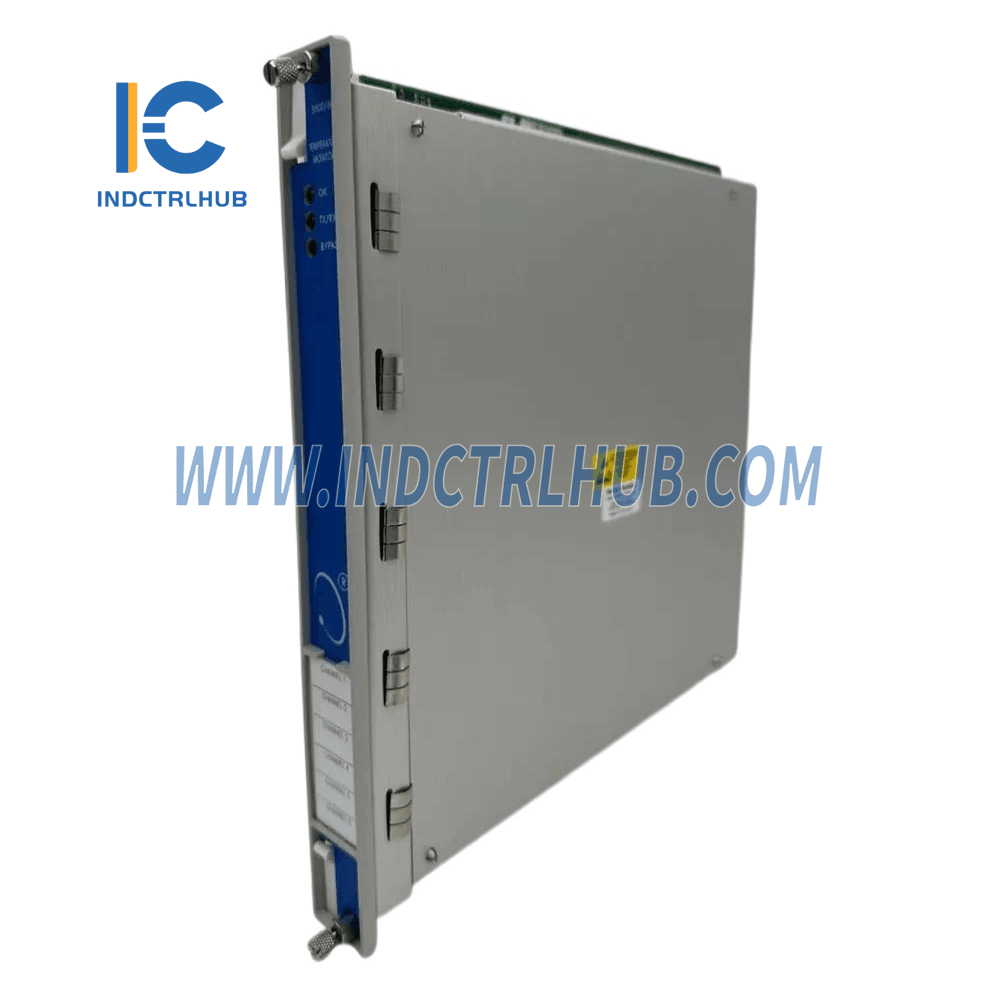

- Manufacturer: Bently Nevada

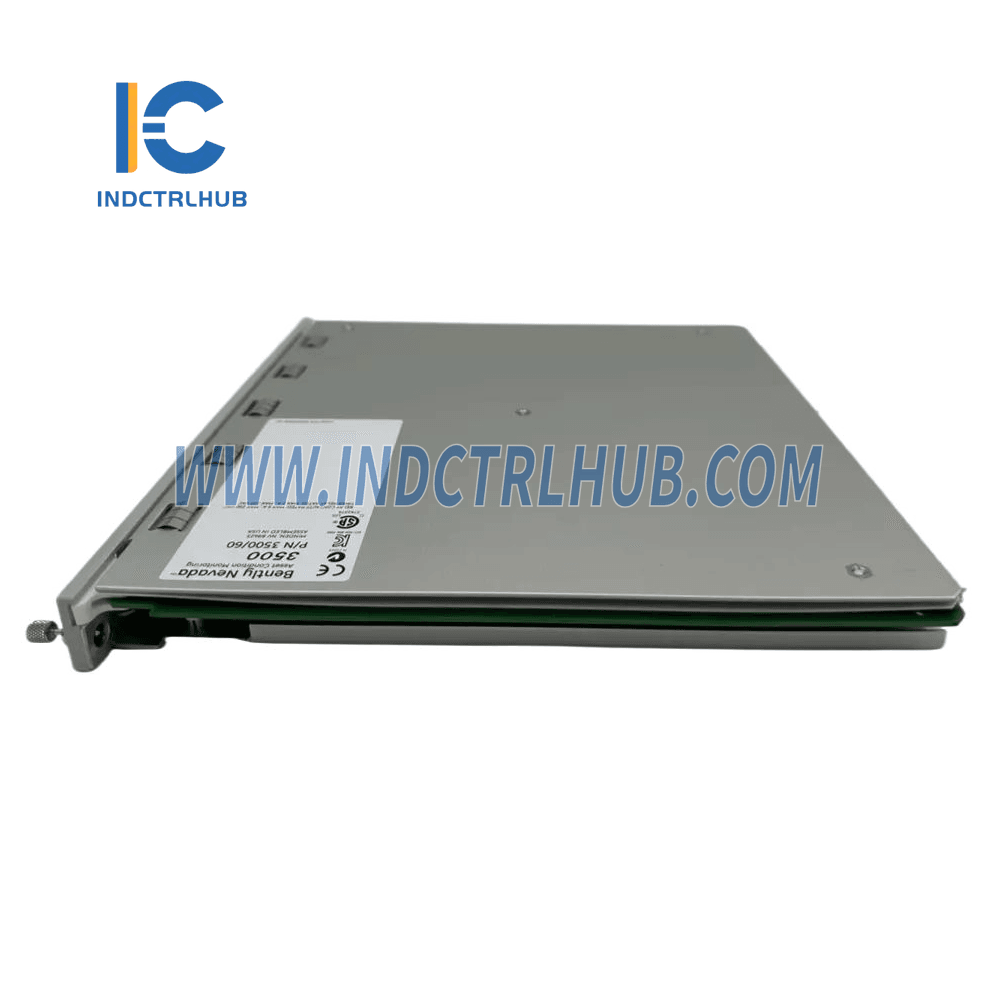

- Series: 3500/60

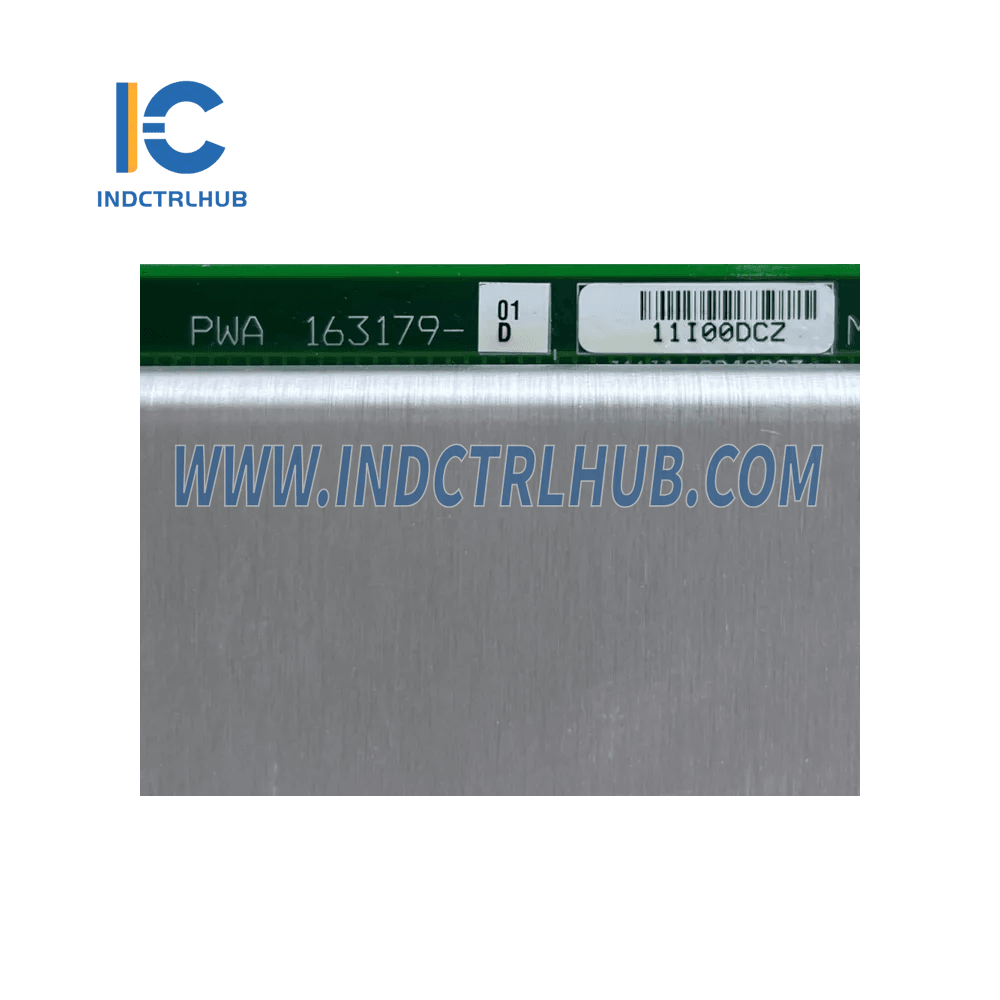

- Model/Part Number: 163179-01D
- Type: Temperature Module
-
Description:
- The 3500/60 provides six channels for temperature monitoring. It accepts both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs.
- The module conditions the input signals and compares them to user-defined alarm setpoints, triggering alarms if the setpoints are exceeded.
- The 3500/61 module is similar but provides recorder outputs for each channel, while the 3500/60 does not.
Supported Transducers
Thermocouples (TC)
-
Type E:
- Range: -100°C to +1000°C (-148°F to +1832°F)
-
Type J:
- Range: -18°C to +760°C (0°F to +1400°F)
-
Type K:
- Range: -18°C to +1370°C (0°F to +2498°F)
-
Type T:
- Range: -160°C to +400°C (-256°F to +752°F)
RTDs
-
100Ω 3-wire & 4-wire Platinum RTD (alpha = 0.00385)
- Range: -200°C to +850°C (-328°F to +1562°F)
- With external barriers: -50°C to +850°C (-122°F to +1562°F)
-
100Ω 3-wire & 4-wire Platinum RTD (alpha = 0.00392)
- Range: -200°C to +700°C (-328°F to +1292°F)
- With external barriers: -50°C to +260°C (-122°F to +1292°F)
-
120Ω 3-wire & 4-wire Nickel RTD
- Range: -80°C to +260°C (-112°F to +500°F)
- With external barriers: -50°C to +260°C (-122°F to +500°F)
-
10Ω 3-wire & 4-wire Copper RTD
- Range: -100°C to +260°C (-148°F to +500°F)
- With external barriers: -50°C to +260°C (-122°F to +500°F)
Environmental Limits
-
Operating Temperature:
- Internal/External Termination I/O Modules: -30°C to +65°C (-22°F to +150°F)
- Internal Barrier I/O Modules (Internal Termination): 0°C to +65°C (32°F to +150°F)
-
Storage Temperature:
- -40°C to +85°C (-40°F to +185°F)
Physical Specifications
| Component | Dimensions (H x W x D) | Weight |
|---|---|---|
| Monitor Module | 241.3 mm x 24.4 mm x 241.8 mm (9.50 x 0.96 x 9.52 in) | 0.91 kg (2.0 lb) |
Ordering Information
The part number format is 3500/60-AA-BB, with the following options:
Option A: I/O Module Type
| Option | Description |
|---|---|
| 01 | RTD/TC Non-isolated I/O Module with Internal Terminations. |
| 02 | RTD/TC Non-isolated I/O Module with External Terminations. |
| 03 | TC Isolated I/O Module with Internal Terminations. |
| 04 | TC Isolated I/O Module with External Terminations. |
| 05 | RTD/TC Non-isolated I/O Module with Internal Barriers. |
Option B: Agency Approval
| Option | Description |
|---|---|
| 00 | None. |
| 01 | CSA/NRTL/C (Class 1, Division 2). |
| 02 | ATEX/IECEx/CSA (Class 1, Zone 2). |
Applications
-
Temperature Monitoring:
- Ideal for applications that require accurate temperature measurement and alarm management.
-
Machinery Protection:
- Provides early detection of temperature-related issues by comparing measured values to user-configured setpoints.
-
Versatile Transducer Compatibility:
- Compatible with a wide range of thermocouples and RTDs, allowing for flexibility across various industrial environments.
