Product Description
Product Details

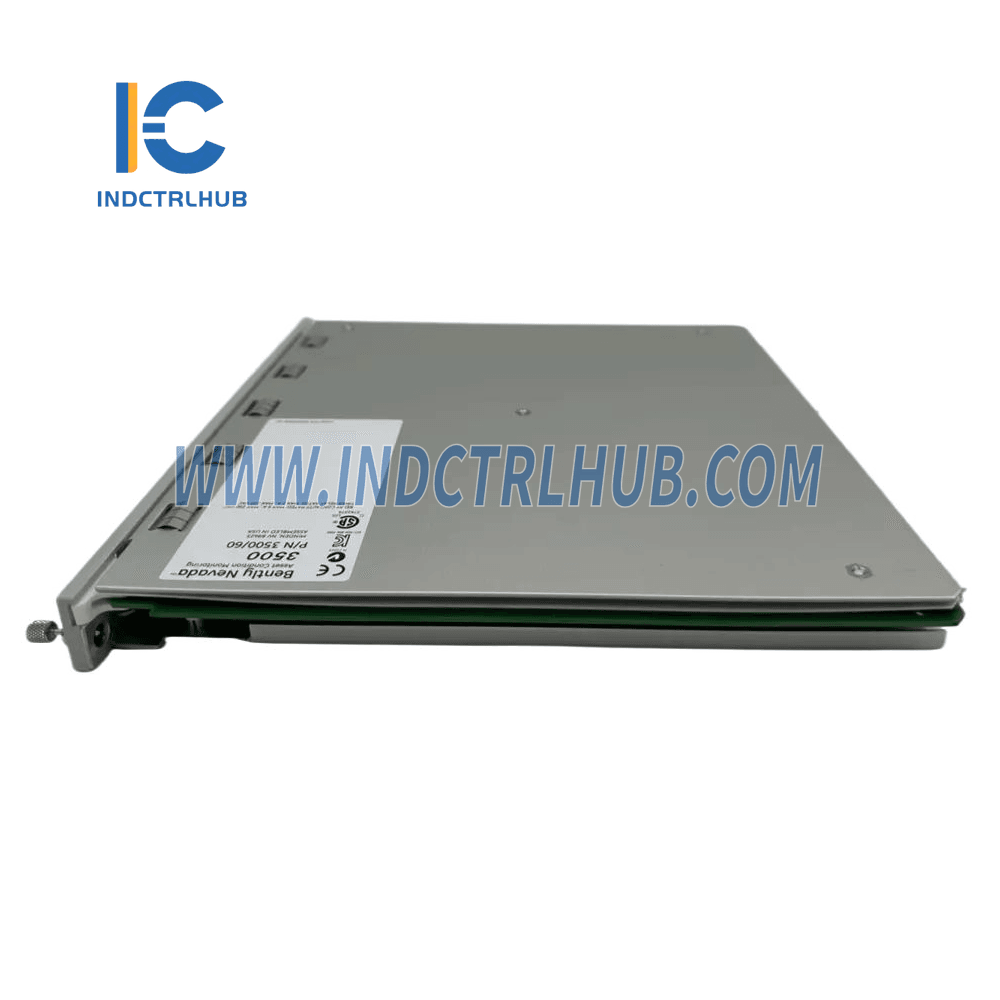

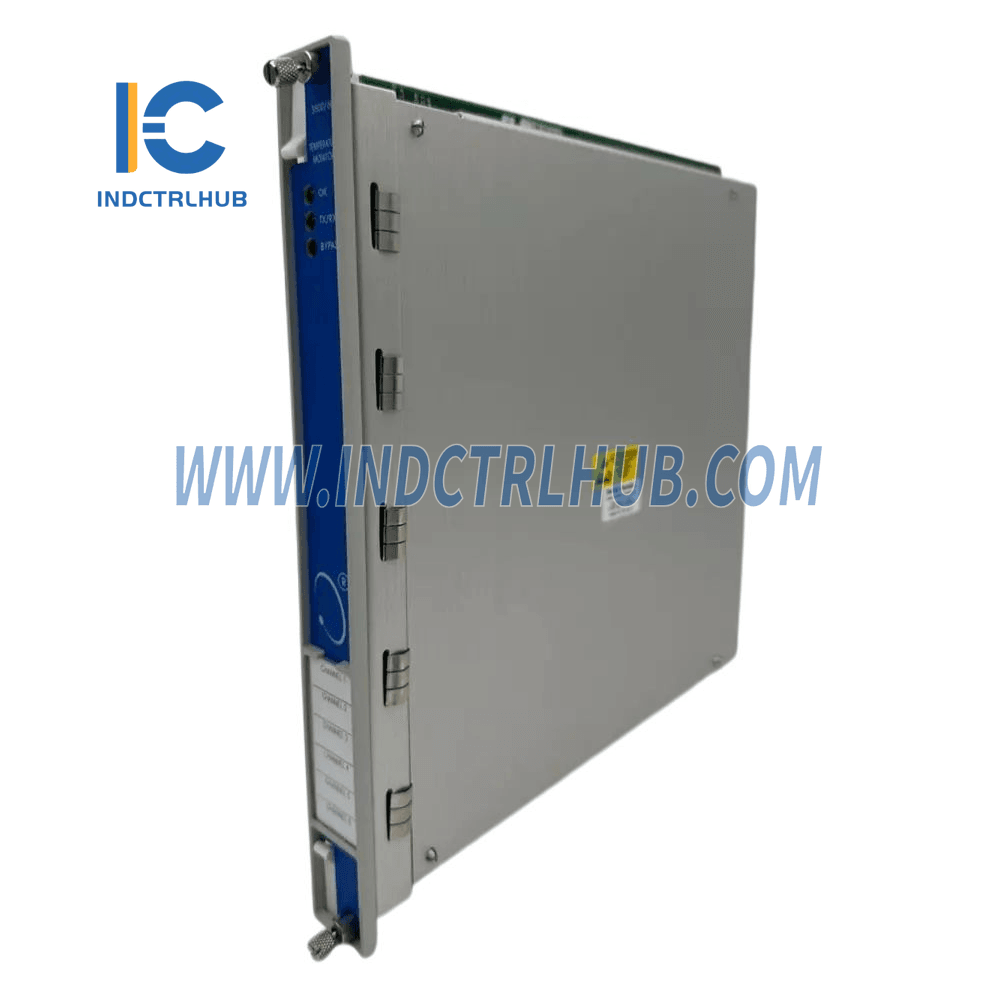

- Manufacturer: Bently Nevada
- Series: 3500/60

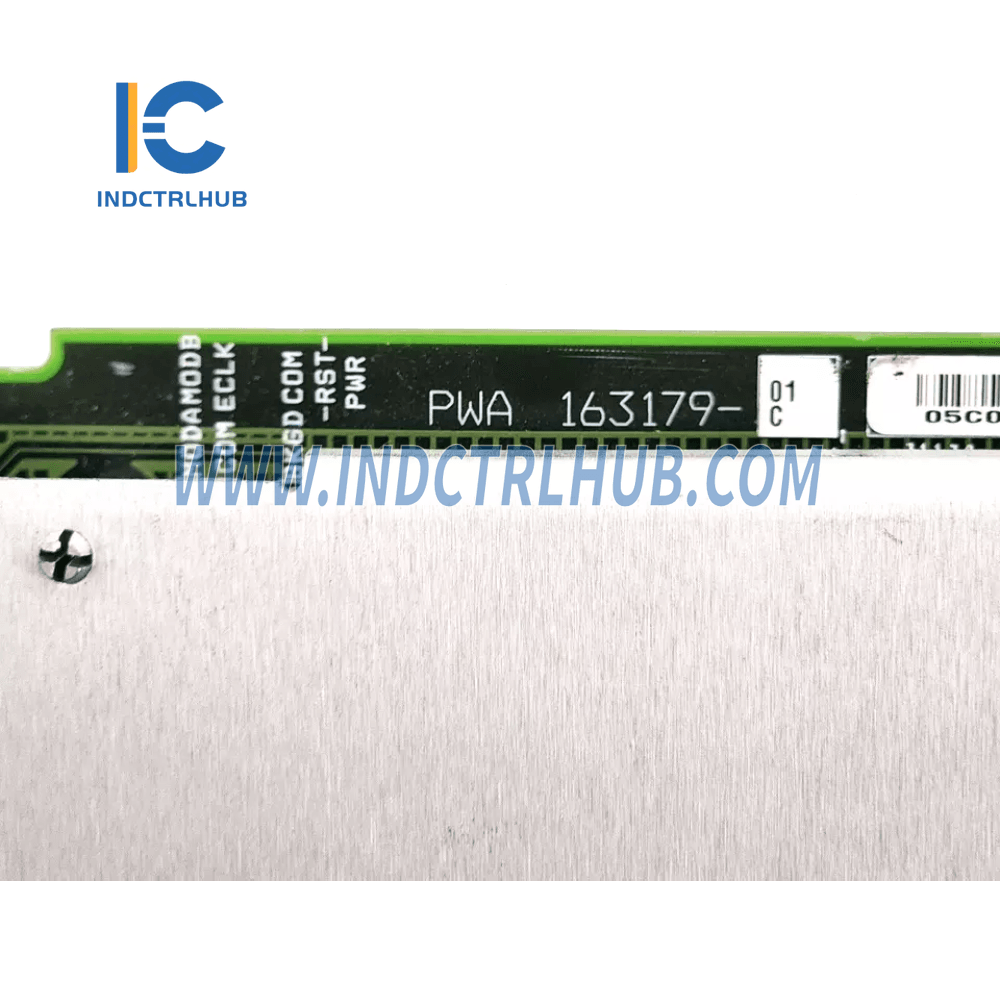

- Model/Part Number: 163179-01C
- Model Type: Temperature Modules
Description
The 3500/60 and 3500/61 modules are designed for six channels of temperature monitoring. They accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints.
- 3500/60: Does not provide recorder outputs for each channel.
- 3500/61: Provides recorder outputs for each of its six channels.
Specifications
Inputs
- Accepts from 1 to 6 RTD or TC transducer signals.
Input Impedance
- 10 MΩ for each lead input.
Power Consumption
- 3500/60: Nominal consumption of 7 watts.
- 3500/61: Nominal consumption of 9 watts.
Environmental Limits
Operating Temperature
- With Internal/External Termination I/O Modules: -30°C to +65°C (-22°F to +150°F).
- With Internal Barrier I/O Modules (Internal Termination): 0°C to +65°C (32°F to +150°F).
Storage Temperature
- -40°C to +85°C (-40°F to +185°F).
Physical Specifications
| Attribute | Details |
|---|---|
| Monitor Module Dimensions | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.91 kg (2.0 lb) |
Ordering Information
The part number format is 3500/60-AA-BB, where:
A: I/O Module Type
| Option | Description |
|---|---|
| 01 | RTD/TC Non-isolated I/O Module with Internal Terminations. |
| 02 | RTD/TC Non-isolated I/O Module with External Terminations. |
| 03 | TC Isolated I/O Module with Internal Terminations. |
| 04 | TC Isolated I/O Module with External Terminations. |
| 05 | RTD/TC Non-isolated I/O Module with Internal Barriers. |
B: Agency Approval Option
| Option | Description |
|---|---|
| 00 | None. |
| 01 | CSA/NRTL/C (Class 1, Div 2). |
| 02 | ATEX/IECEx/CSA (Class 1, Zone 2). |
