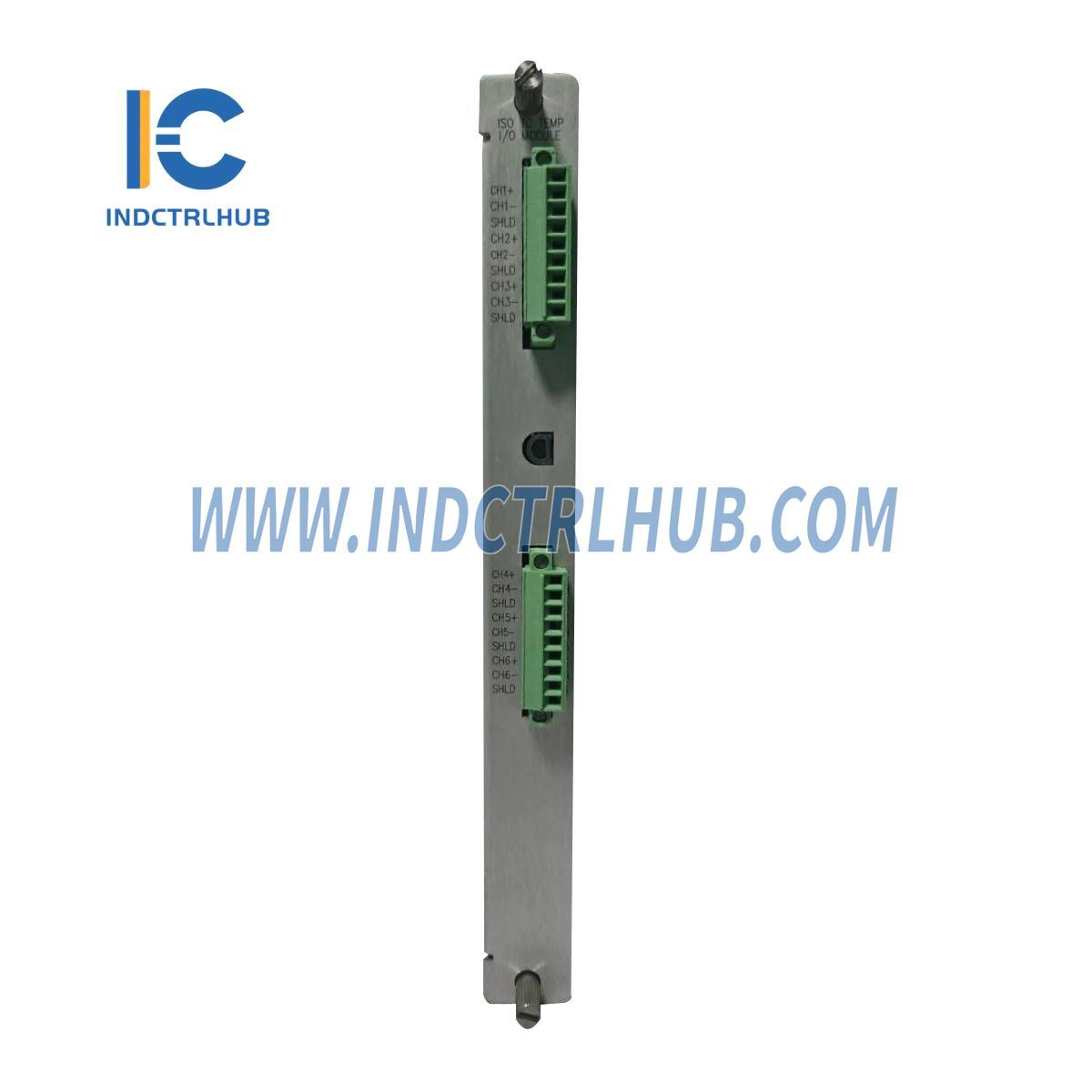

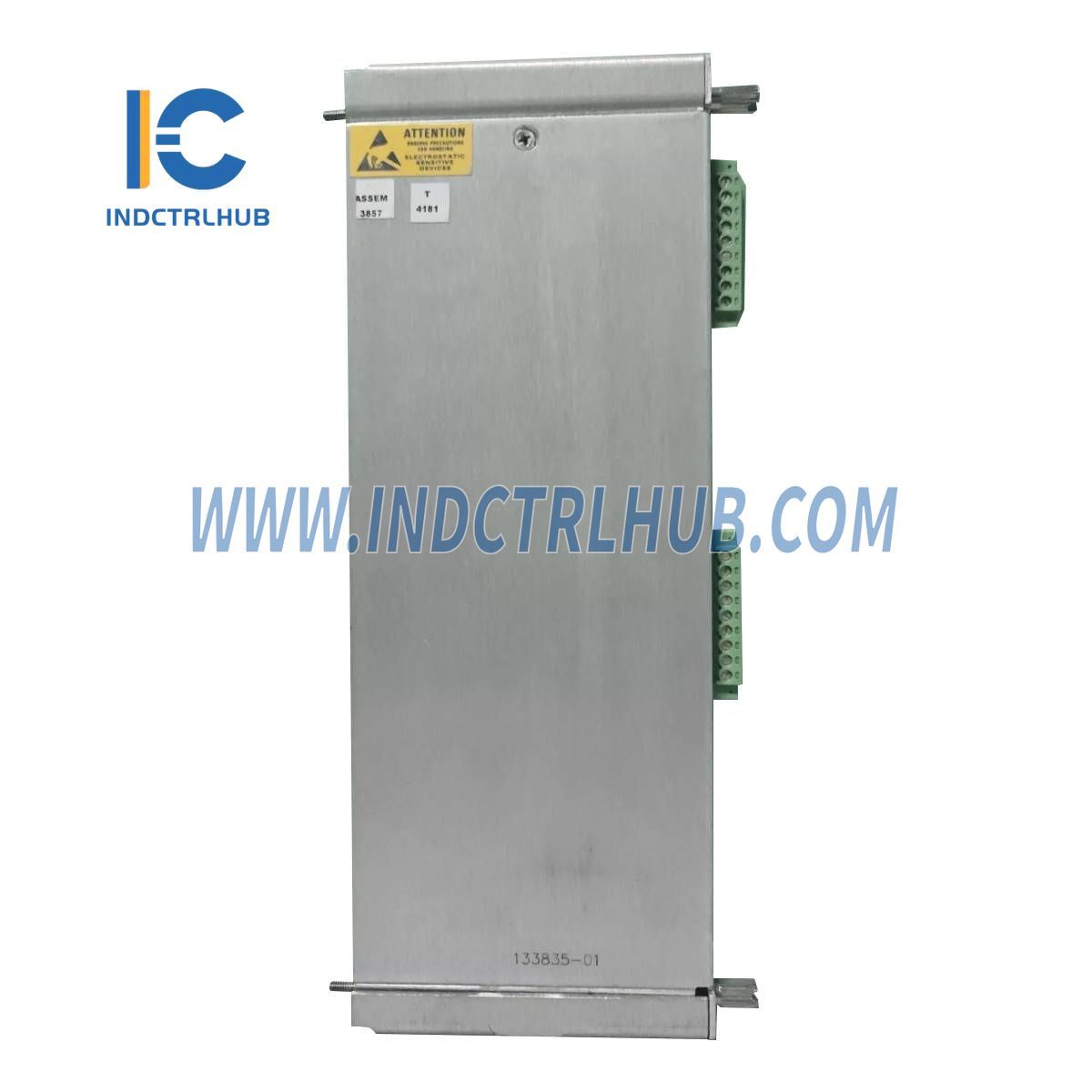

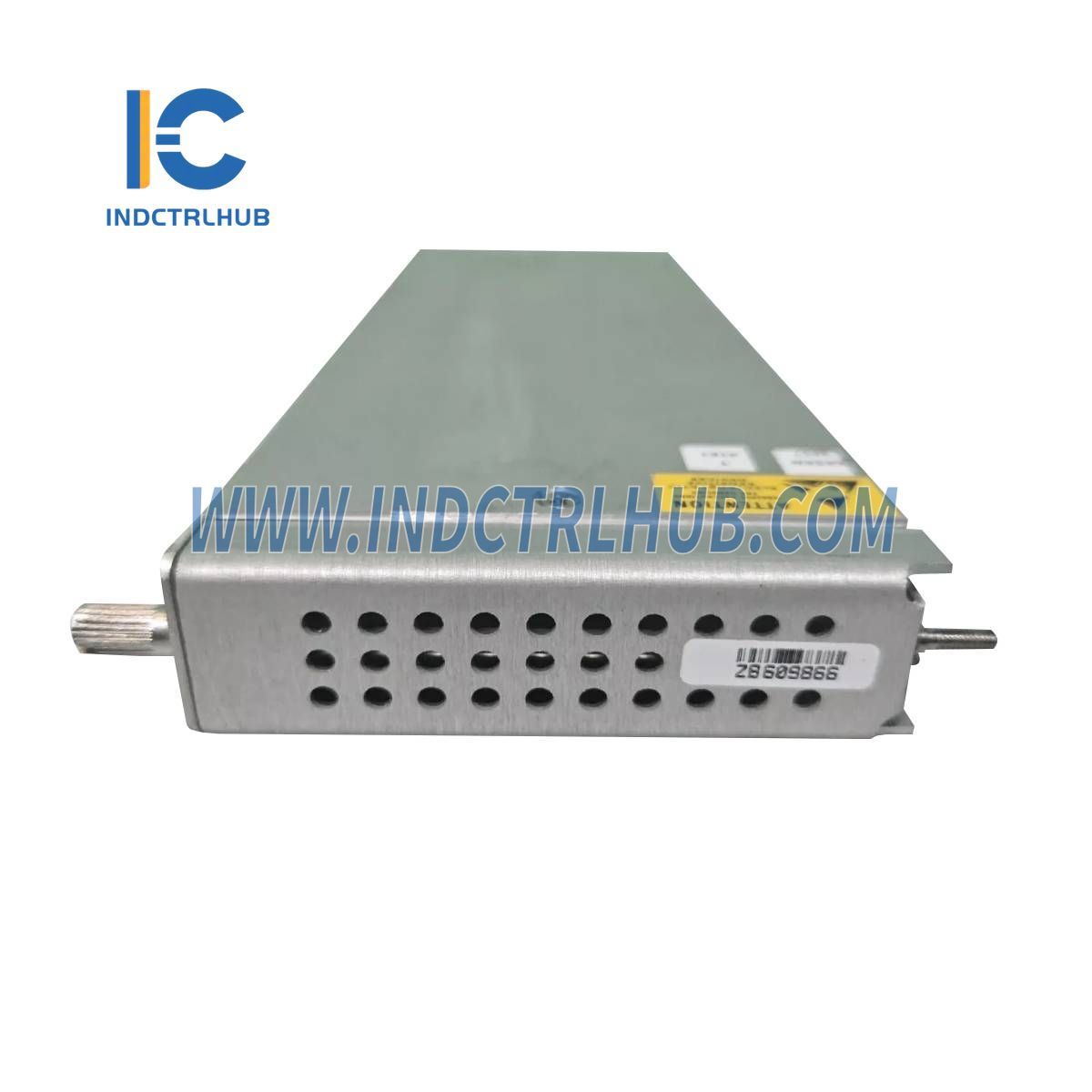

Bently Nevada 3500/60 133835-01 TC Isolated I/O Module Internal Terminations

Bently Nevada 3500/60 133835-01 TC Isolated I/O Module Internal Terminations

  • Manufacturer: Bently Nevada

  • Product No.: 133835-01

  • Condition:1000 in stock

  • Product Type: TC Isolated I/O Module Internal Terminations

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3500/60
  • Model/Part Number: 133835-01
  • Model Type: TC Isolated I/O Module with Internal Terminations

Description

The 3500/60 and 3500/61 modules provide six channels of temperature monitoring. These modules accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. They condition the inputs and compare them against user-programmable alarm setpoints.


Specifications

Inputs

  • Signal: Accepts from 1 to 6 RTD or TC transducer signals.

  • Input Impedance: 10 MΩ for each lead input.

  • Power Consumption:

    • 3500/60: Nominal consumption of 7 watts.
  • I/O Modules: Isolated I/O Module

  • System Isolation: 500 Vdc
    Channel-to-Channel Isolation: 250 Vdc

    • Isolation is only required for fault scenarios. These voltages will not be present on the I/O module inputs when a wiring or field fault occurs.

Environmental Limits

  • Operating Temperature:

    • -30°C to +65°C (-22°F to +150°F) when used with Internal/External Termination I/O Modules
    • 0°C to +65°C (32°F to +150°F) when used with Internal Barrier I/O Modules (Internal Termination)
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F)


Physical Specifications

  • Monitor Module Dimensions (Height x Width x Depth):

    • 241.3 mm x 24.4 mm x 241.8 mm
    • (9.50 in x 0.96 in x 9.52 in)
  • Monitor Module Weight: 0.91 kg (2.0 lb)

  • I/O Modules Dimensions (Height x Width x Depth):

    • 241.3 mm x 24.4 mm x 99.1 mm
    • (9.50 in x 0.96 in x 3.90 in)
  • I/O Modules Weight: 0.45 kg (1.0 lb)

  • I/O Modules (Internal Barrier) Dimensions (Height x Width x Depth):

    • 241.3 mm x 24.4 mm x 163.1 mm
    • (9.50 in x 0.96 in x 6.42 in)
  • I/O Modules (Internal Barrier) Weight: 0.46 kg (1.01 lb)


Ordering Information

  • Without Recorder Outputs: 3500/60-AA-BB
    • A: I/O Module Type

      • 01 = RTD/TC Non-isolated I/O Module (Internal Terminations)
      • 02 = RTD/TC Non-isolated I/O Module (External Terminations)
      • 03 = TC Isolated I/O Module (Internal Terminations)
      • 04 = TC Isolated I/O Module (External Terminations)
      • 05 = RTD/TC Non-isolated I/O Module with Internal Barriers
    • B: Agency Approval Option

      • 00 = None
      • 01 = CSA/NRTL/C (Class 1, Div 2)
      • 02 = ATEX/IECEx/CSA (Class 1, Zone 2)
