Product Description
Product Details
| Manufacturer |
Bently Nevada |
| Series |
3500/60 |
| Model/Part Number |
3500/60-01-02 163179-01 + 133819-01 |
| Model Type |
Temperature Module |
Description
The 3500/60 and 3500/61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints.
-
3500/60: Does not provide recorder outputs.
-
3500/61: Provides recorder outputs for each of its six channels.
Specific Model Information
-

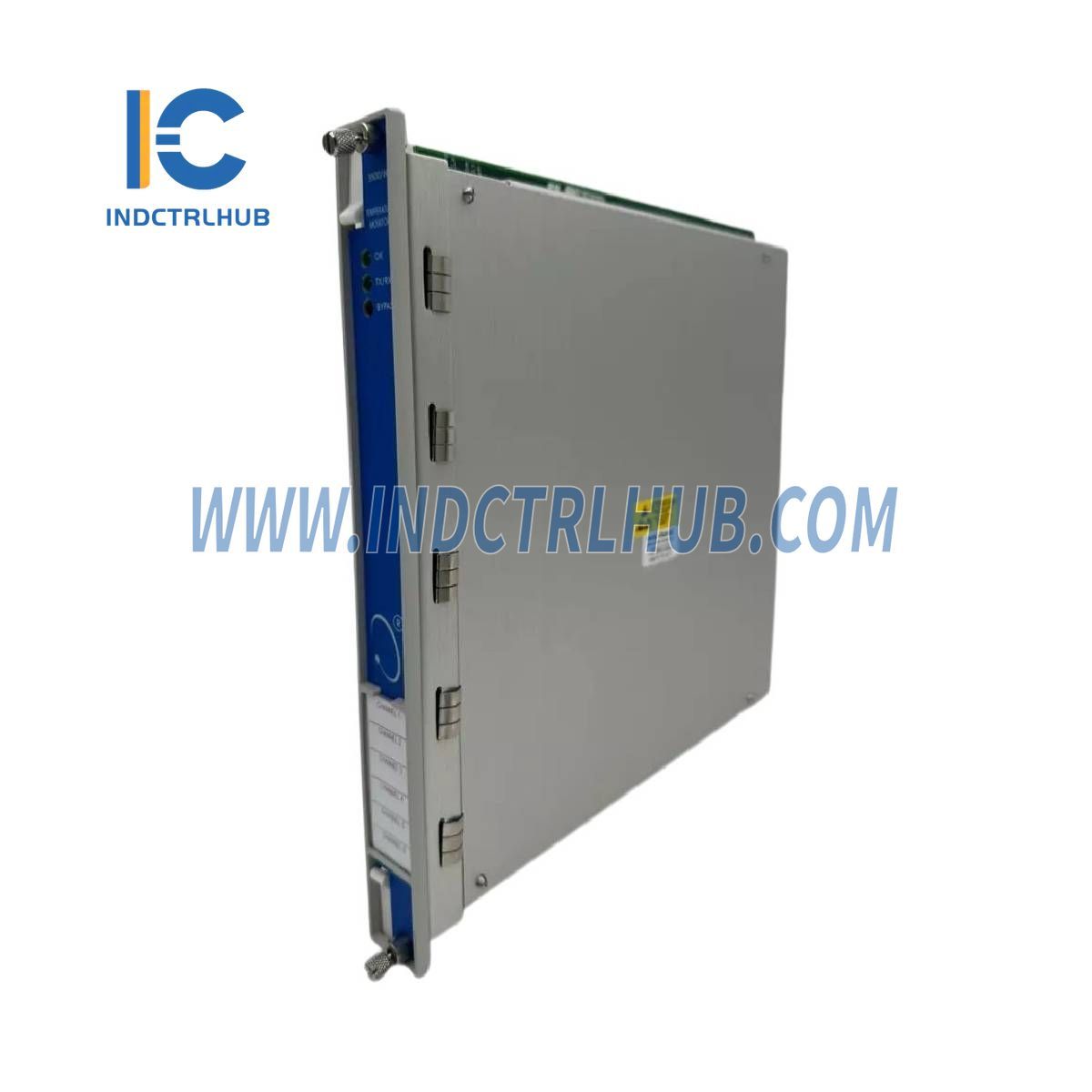

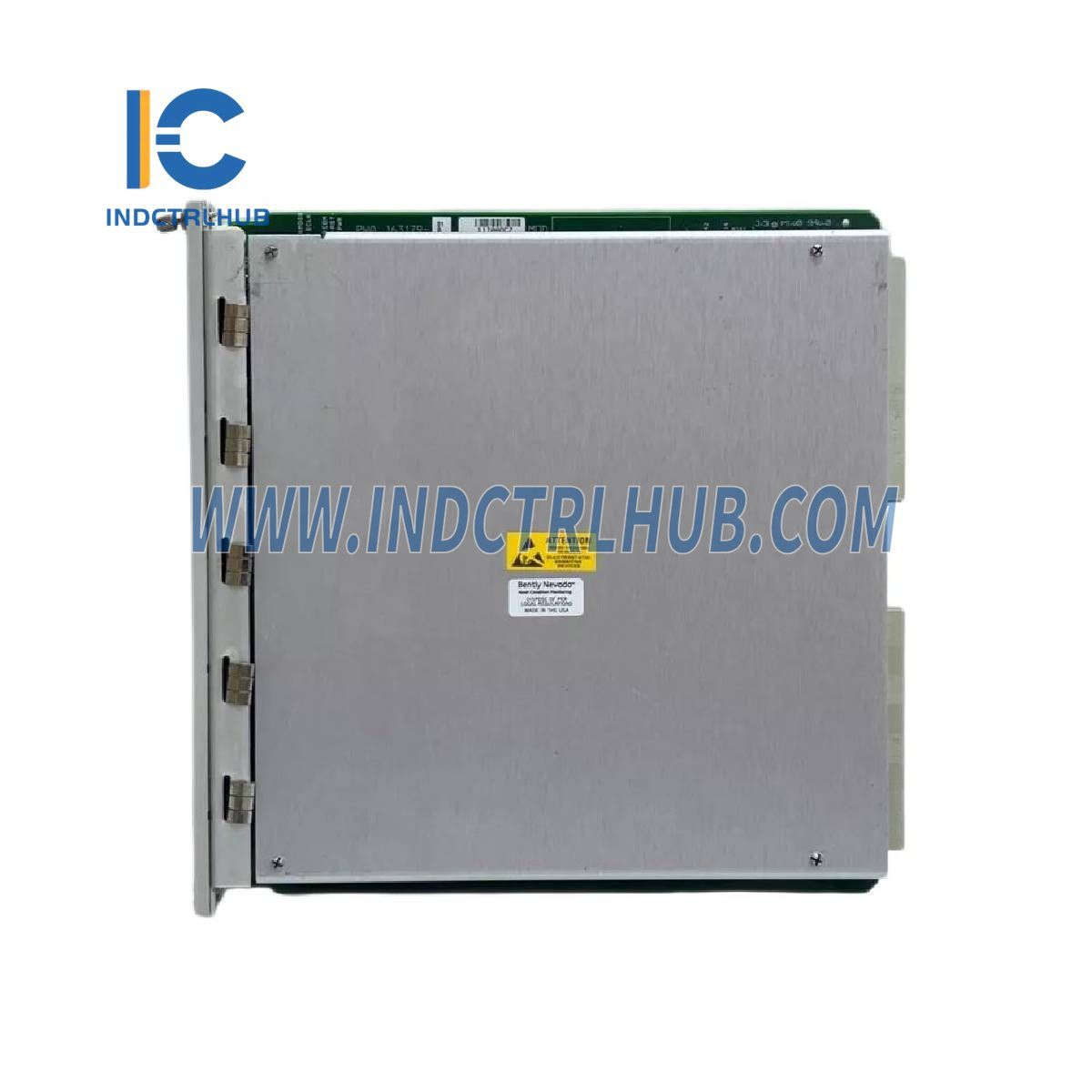

163179-01: 3500/60 Temperature Monitor (without recorders)
-

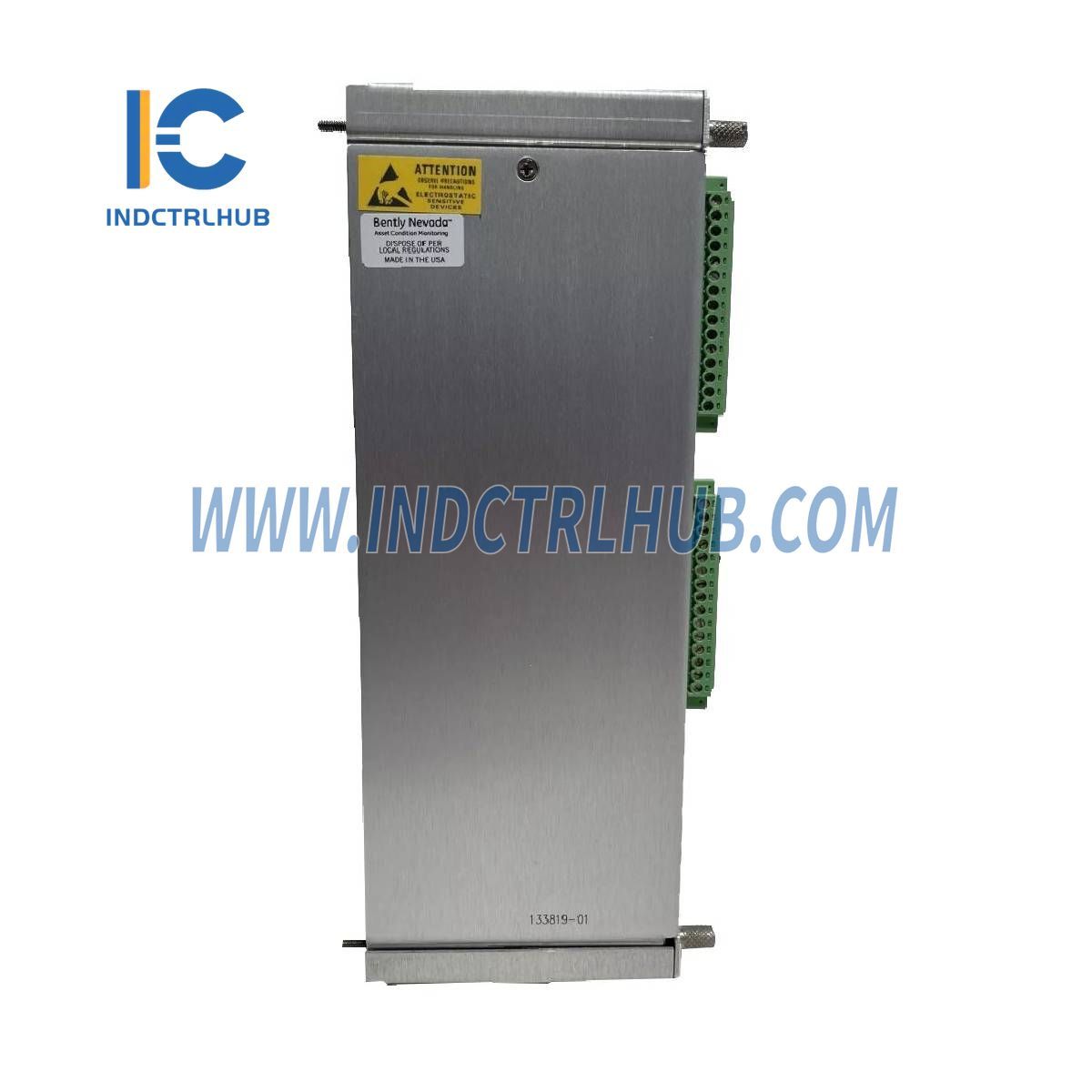

133819-01: 3500/60 RTD/TC non-Isolated I/O Module, Internal Terminations
Specifications
| Parameter |
Value |
| Inputs |
Accepts from 1 to 6 RTD or TC signals |
| Input Impedance |
10 MΩ for each lead input |
| Power Consumption |
7 watts (3500/60), 9 watts (3500/61) |
| Transducers |
TC Types: Type E (-100°C to +1000°C), Type J, Type K, Type T |
|
RTD Types: 100Ω 3-wire & 4-wire platinum (α = 0.00385), 100Ω 3-wire & 4-wire platinum (α = 0.00392), 120Ω 3-wire & 4-wire nickel, 10Ω 3-wire & 4-wire copper |
| RTD Current Source Value |
925 ±15 µA @ 25°C per transducer |
| Resolution |
1°C or 1°F |
| Accuracy |
±3°C at 25°C (±5.4°F at 77°F) |
RTD and TC Temperature Ranges
| Transducer Type |
Temperature Range |
| Type E TC |
-100°C to +1000°C (-148°F to +1832°F) |
| 100Ω Platinum RTD (α = 0.00385) |
-200°C to +850°C (-328°F to +1562°F) |
| 100Ω Platinum RTD (α = 0.00392) |
-200°C to +700°C (-328°F to +1292°F) |
| 120Ω Nickel RTD |
-80°C to +260°C (-112°F to +500°F) |
| 10Ω Copper RTD |
-100°C to +260°C (-148°F to +500°F) |
Ordering Information
| Parameter |
Option |
| I/O Module Type |
01: RTD/TC Non-isolated I/O Module Internal Terminations |
|
02: RTD/TC Non-isolated I/O Module External Terminations |
|
03: TC Isolated I/O Module Internal Terminations |
|
04: TC Isolated I/O Module External Terminations |
|
05: RTD/TC Non-isolated I/O Module with Internal Barriers |
| Agency Approval Option |
00: None |
|
01: CSA/NRTL/C (Class 1, Div 2) |
|
02: ATEX/IECEx/CSA (Class 1, Zone) |
