Bently Nevada 3500/53-02-00 133388-01 133396-01 Electronic Overspeed Detection System

Product Details

• Manufacturer: Bently Nevada
• Series: 3500/53
• Model/Part Numbers: 3500/53-02-00, 133388-01, 133396-01
• Model Type: Electronic Overspeed Detection System

Specifications

Inputs

• Signal:
  Each Overspeed Detection module accepts a single transducer signal from a proximity probe transducer or magnetic pickup. The input signal range is +10.0 V to -24.0 V, and the module internally limits signals that exceed this range.

• Input Impedance: 20 kΩ

• Power Consumption: 8.0 watts, typical.

• Transducers:
  Compatible with:

  • Bently Nevada 3300 8 mm Proximitor
  • 3300 16 mm HTPS
  • 7200 5 mm, 8 mm, 11 mm, and 14 mm Proximitor
  • 3300 RAM Proximitor
  • Magnetic pickups

Ordering Considerations

• If adding the 3500/53 to an existing 3500 system, the following firmware and software versions (or later) are required:

  • 3500/20 Module Firmware-Revision G
  • 3500/01 Software-Version 2.00
  • 3500/02 Software-Version 2.03
  • 3500/03 Software-Version 1.13

• The use of redundant power supplies in a 3500 rack containing the Overspeed Detection System is required.

Ordering Information

• Electronic Overspeed Detection System: 3500/53-AXX-BXX
  • A: Channel Option
    • 02 = Two Channel System
    • 03 = Three Channel System
  • B: Agency Approval Option
    • 00 = None
    • 01 = CSA/NRTL/C

Spares

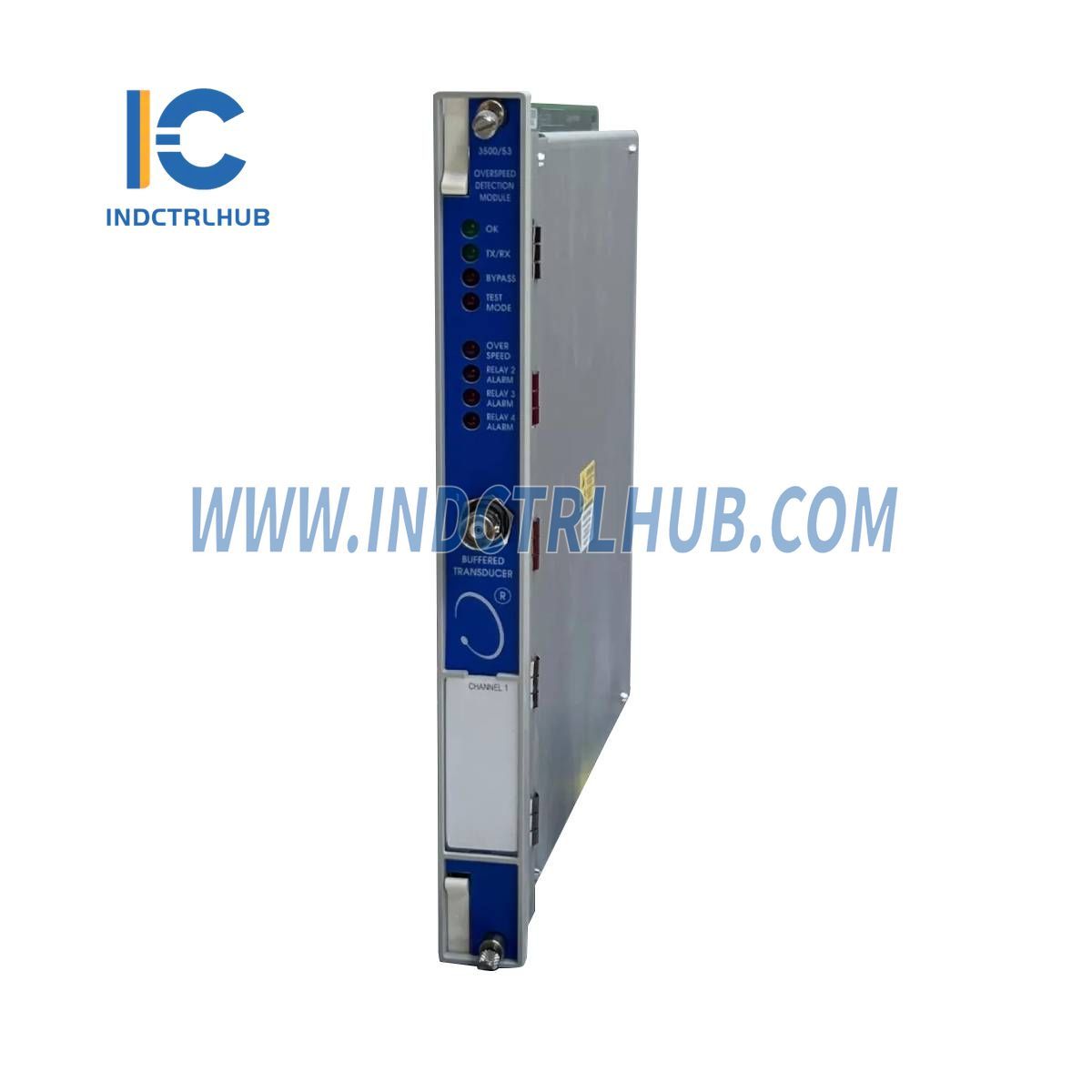

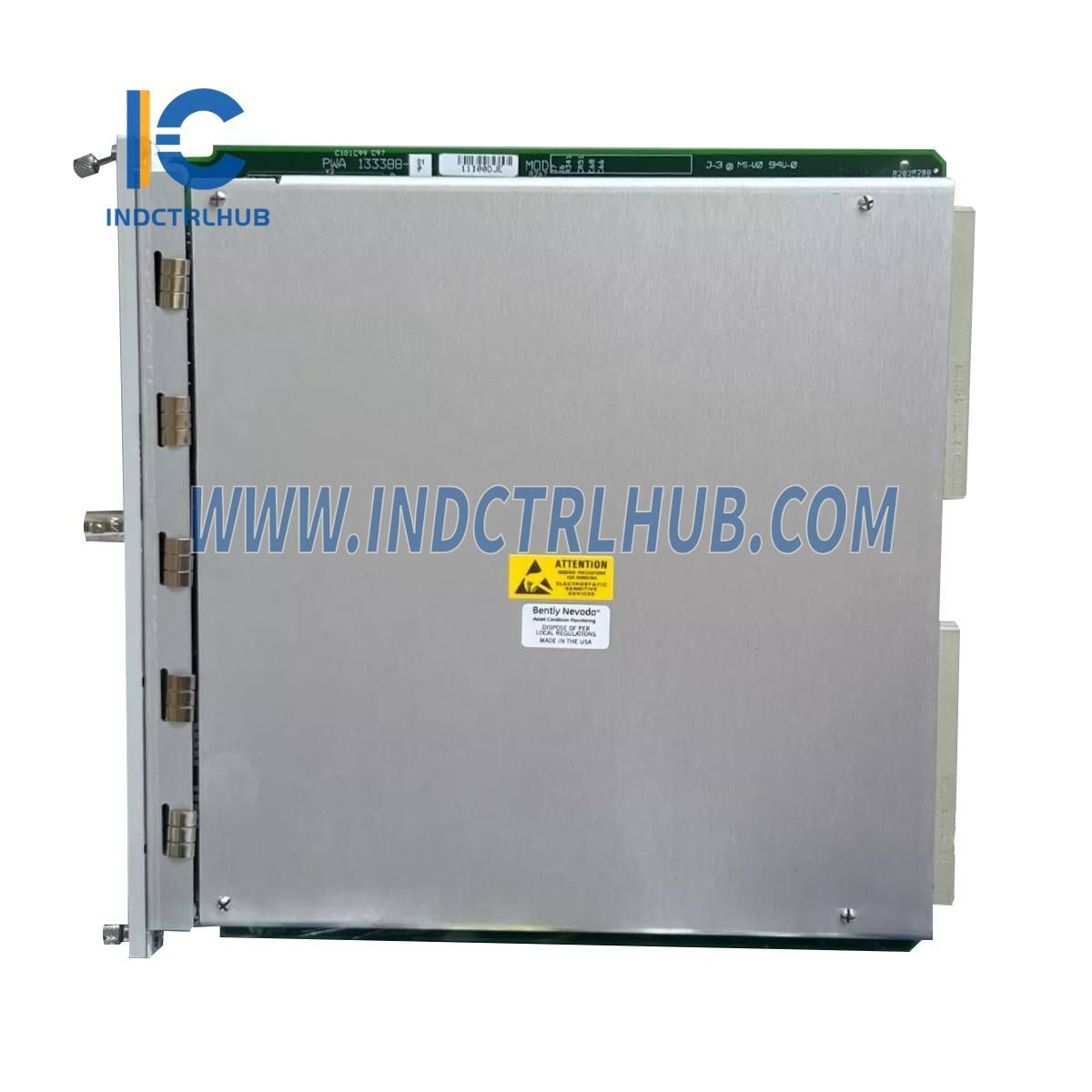

• 133388-01: 3500/53 Overspeed Detection Module

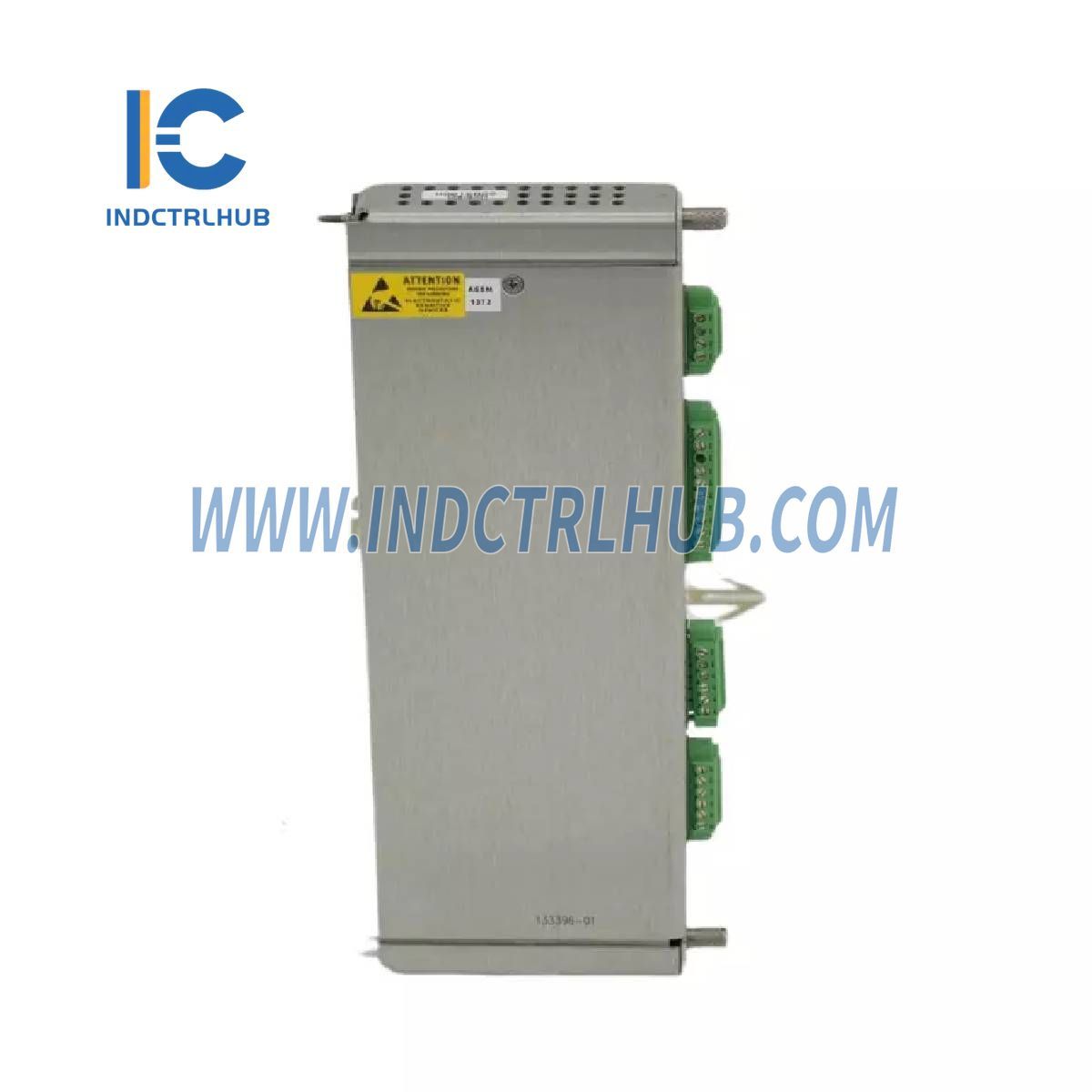

• 133396-01: Overspeed Detection I/O Module
• 04425545: Grounding Wrist Strap (Single Use)
• 04400037: IC Removal Tool
• 134129-01: Firmware IC
• 00580438: Connector Header, Internal Termination (4-position, Green)
• 00580432: Connector Header, Internal Termination (10-position, Green)

Physical Specifications

• Dimensions: 16 cm x 16 cm x 12 cm
• Weight: 0.8 kg
