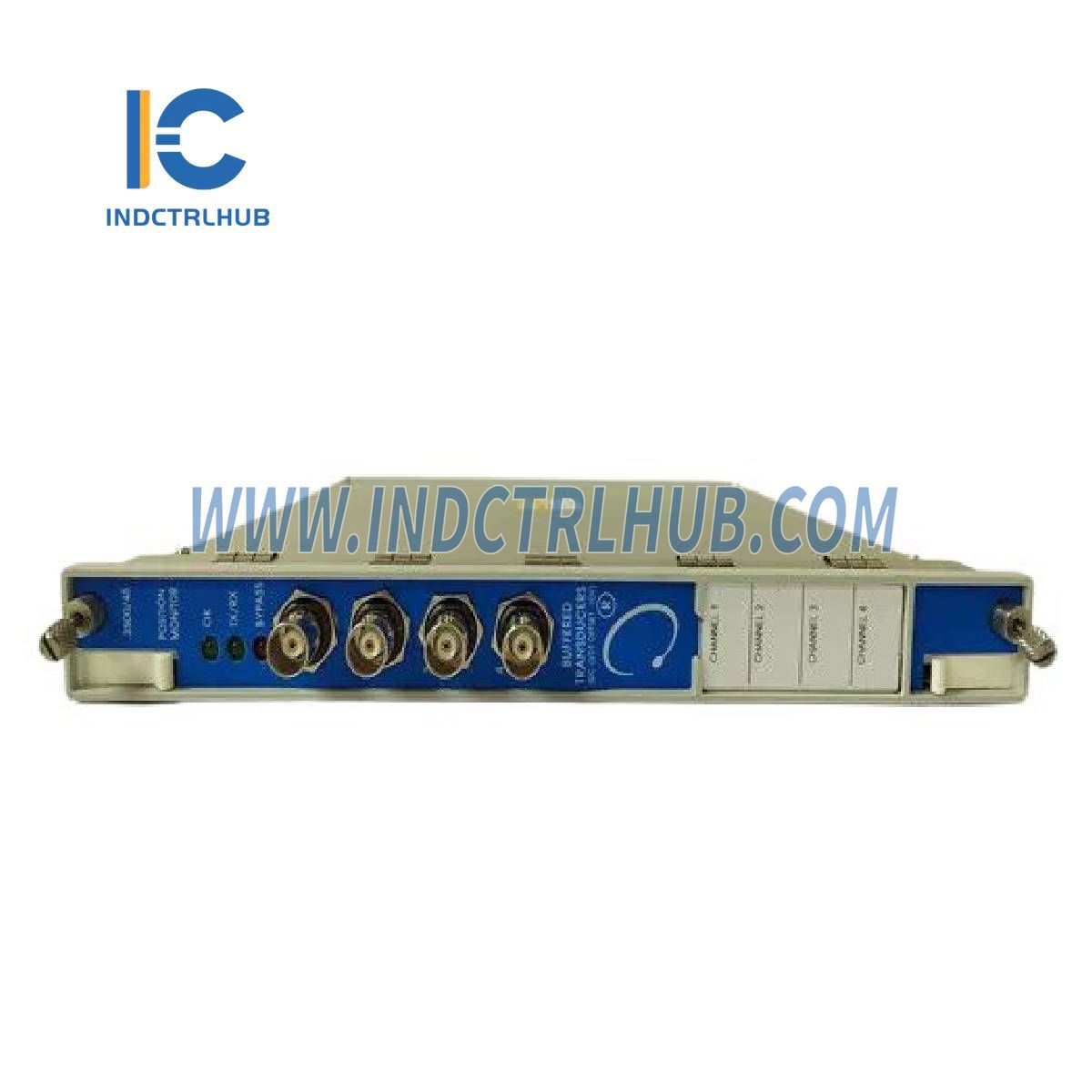

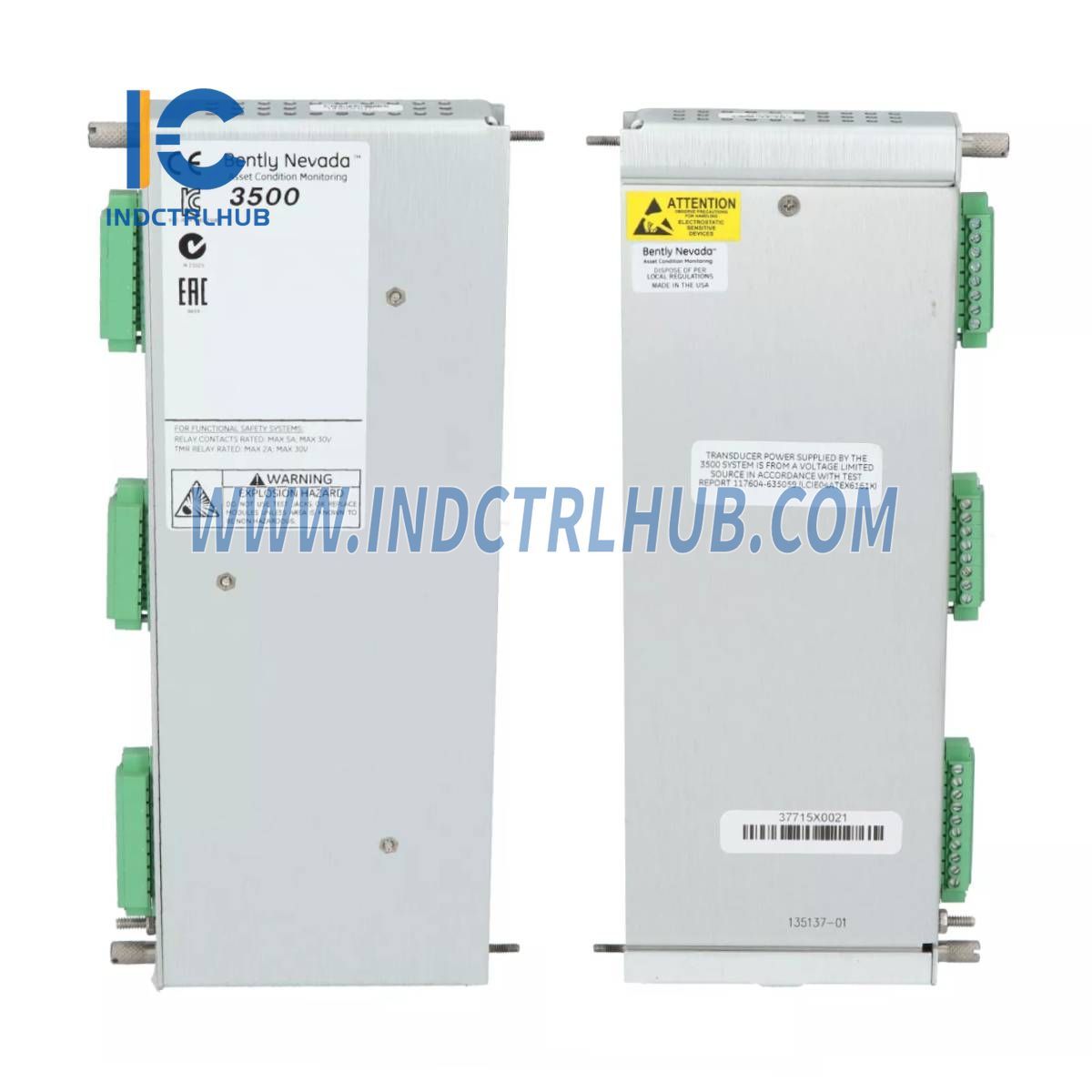

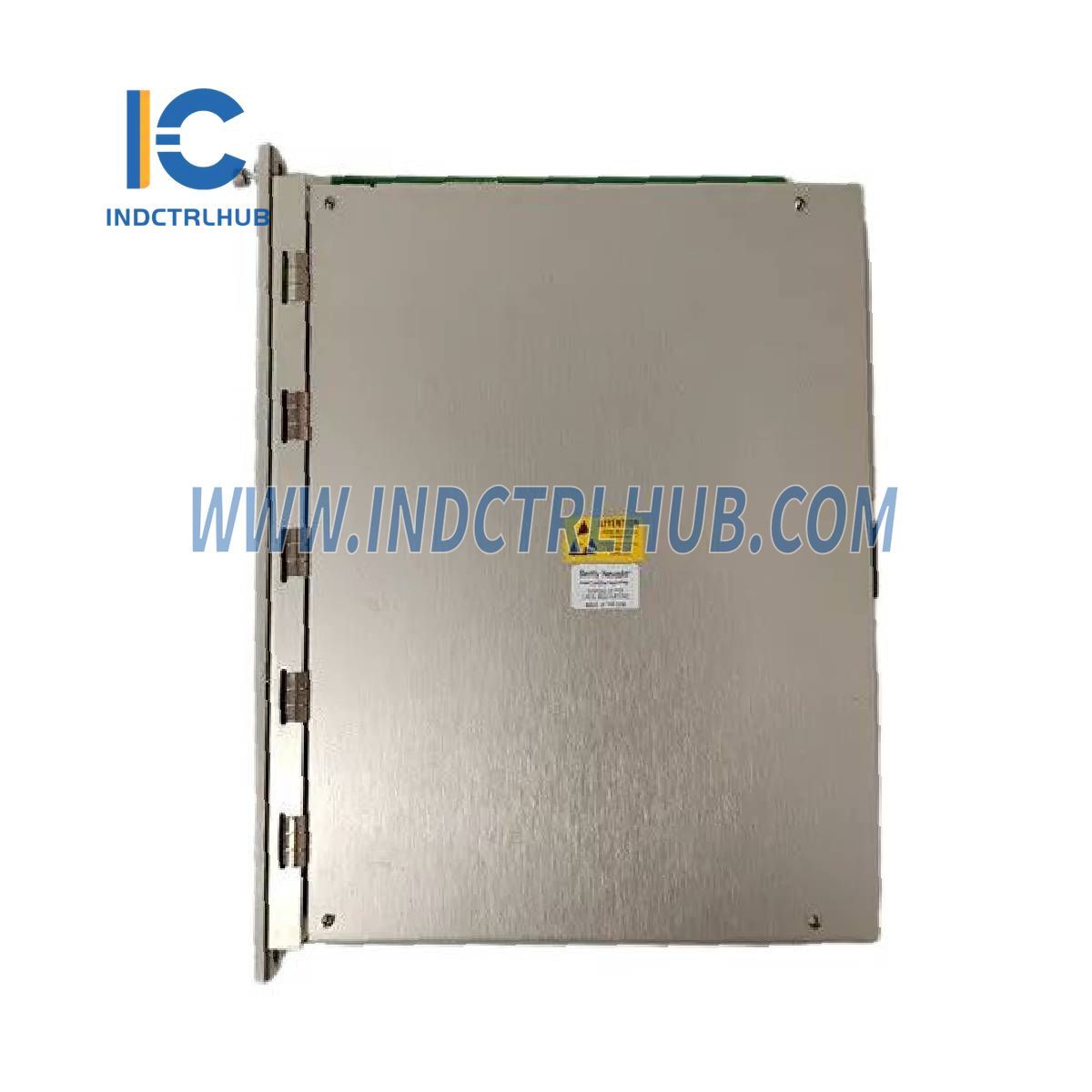

Bently Nevada 3500/45 176449-04+135137-01 Position Monitor

Bently Nevada 3500/45 176449-04+135137-01 Position Monitor

  • Manufacturer: Bently Nevada

  • Product No.: 3500/45 176449-04+135137-01

  • Condition:1000 in stock

  • Product Type: Position Monitor

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3500/45
  • Model/Part Numbers: 3500/45 176449-04 + 135137-01
  • Model Type: Position Monitor

Description

The 3500/45 Position Monitor is a 4-channel instrument designed to accept input from various position sensing devices such as:

  • Proximity transducers
  • Rotary Position Transducers (RPTs)
  • DC Linear Variable Differential Transformers (DC LVDTs)
  • AC Linear Variable Differential Transformers (AC LVDTs)
  • Rotary potentiometers

The monitor conditions the input signals and compares the conditioned signals to user-programmable alarm setpoints.


Physical Specifications

Monitor Module (Main Board) Dimensions:

  • Height x Width x Depth:

    • 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
  • Weight:

    • 0.91 kg (2.0 lb.)

I/O Modules Dimensions:

  • Height x Width x Depth:

    • 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
  • Weight:

    • 0.20 kg (0.44 lb.)

Environmental Limits

  • Operating Temperature (When used with Internal/External Termination I/O Module):

    • -30°C to +65°C (-22°F to +150°F)
  • Storage Temperature:

    • -40°C to +85°C (-40°F to +185°F)
  • Humidity:

    • 95%, non-condensing.

Ordering Information

  • Position Monitor Model: 3500/45-AA-BB
    • A: I/O Module Type:
      • 01: Position I/O Module with Internal Terminations (Proximitor, RPT, DC LVDT)
      • 02: Position I/O Module with External Terminations (Proximitor, RPT, DC LVDT)
      • 05: AC LVDT Position I/O Module with Internal Terminations
      • 06: AC LVDT Position I/O Module with External Terminations
    • B: Agency Approval:
      • 00: None
      • 01: cNRTLus (Class 1, Division 2)
      • 02: ATEX / IECEx / CSA (Class 1, Zone 2)

Spares

  • 176449-04: 3500/45 Position Monitor
  • 135137-01: Position I/O Module with Internal Terminations for use with Proximitors, RPTs, or DC LVDTs
