Product Description
Product Details
| Manufacturer |
Bently Nevada |
| Series |
3500/44M |
| Model/Part Number |
176449-03 |
| Model Type |

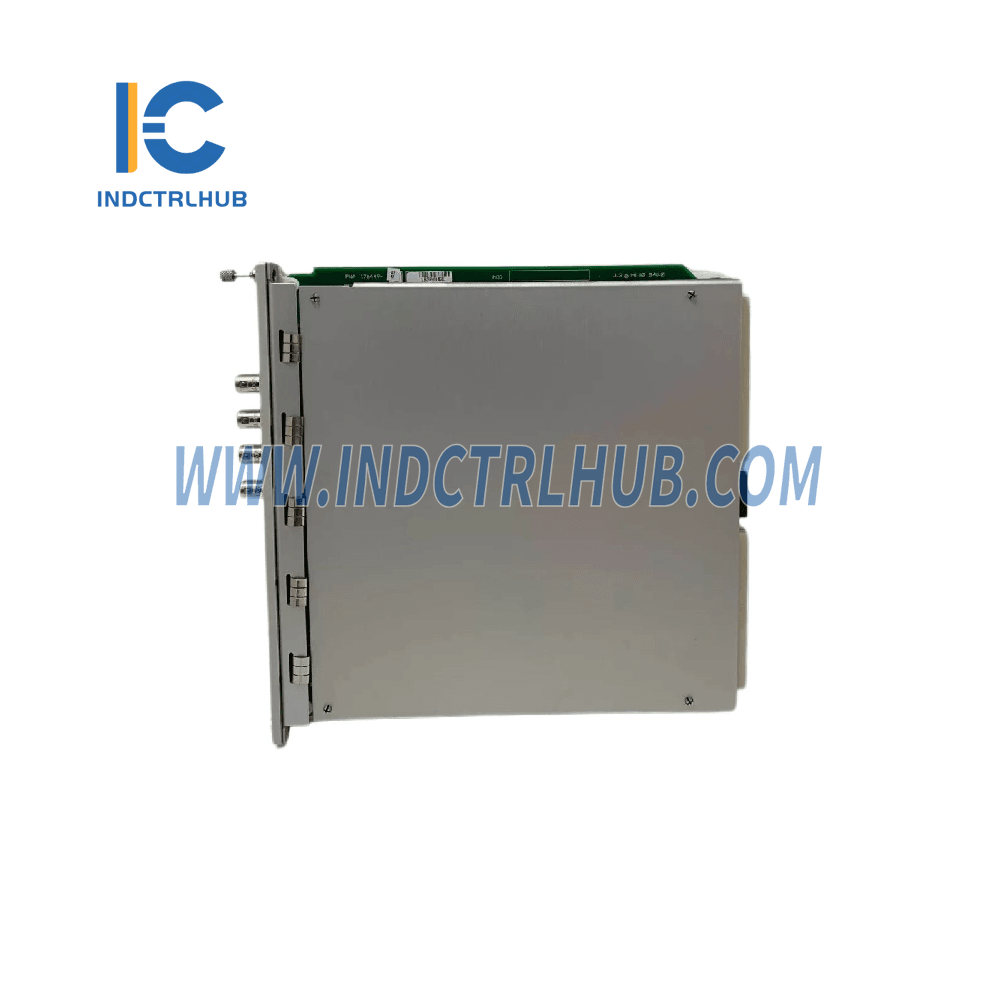

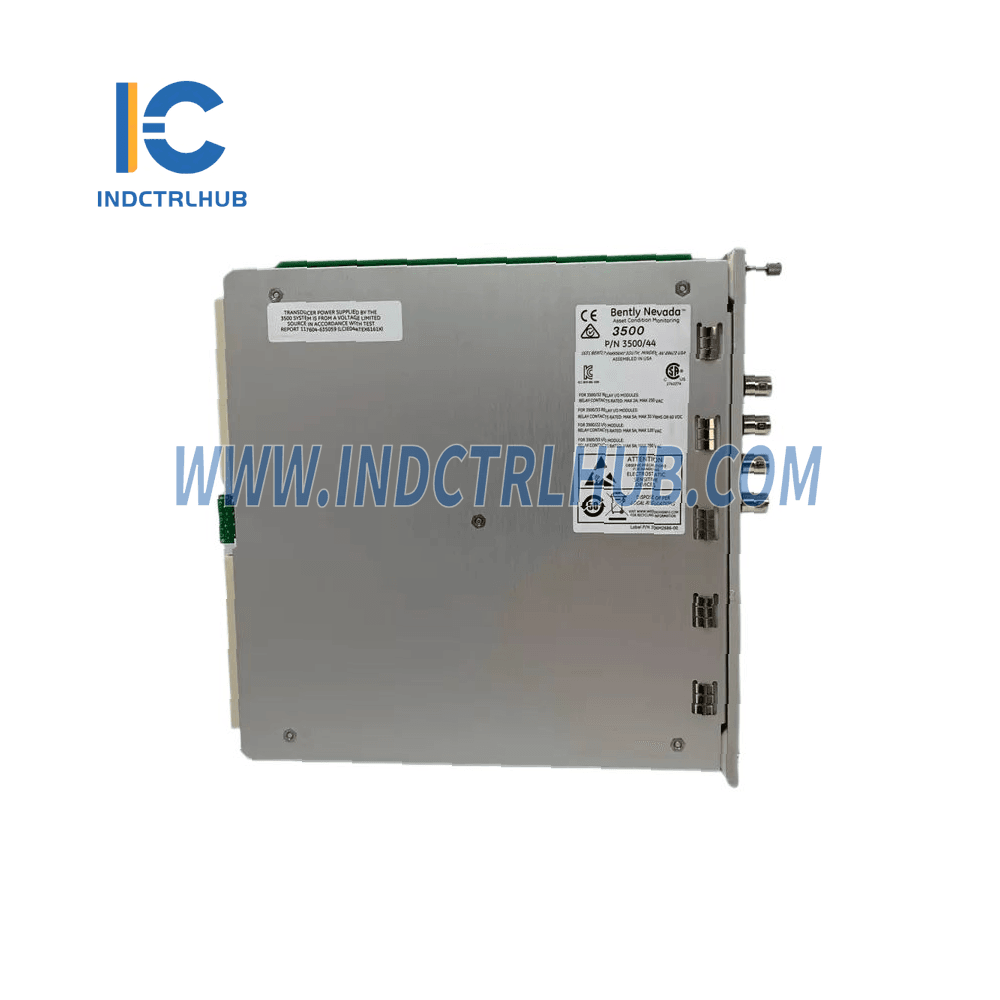

Aeroderivative GT Vibration Monitor |
Description
The 3500/44M Aeroderivative GT Vibration Monitor is a four-channel module tailored for aeroderivative gas turbine applications. It continuously monitors machinery conditions by comparing parameters against user-configured alarm setpoints to trigger alarms, ensuring machinery protection. Additionally, it communicates vital machine data to operations and maintenance personnel.
Features
-
Machinery Protection: Continuously compares monitored parameters to alarm setpoints.
-
Enhanced Communication: Provides essential machine insights for operational efficiency and maintenance.
-
Configurable I/O Options: Flexible connection options to suit specific applications.
Technical Specifications
Outputs
-

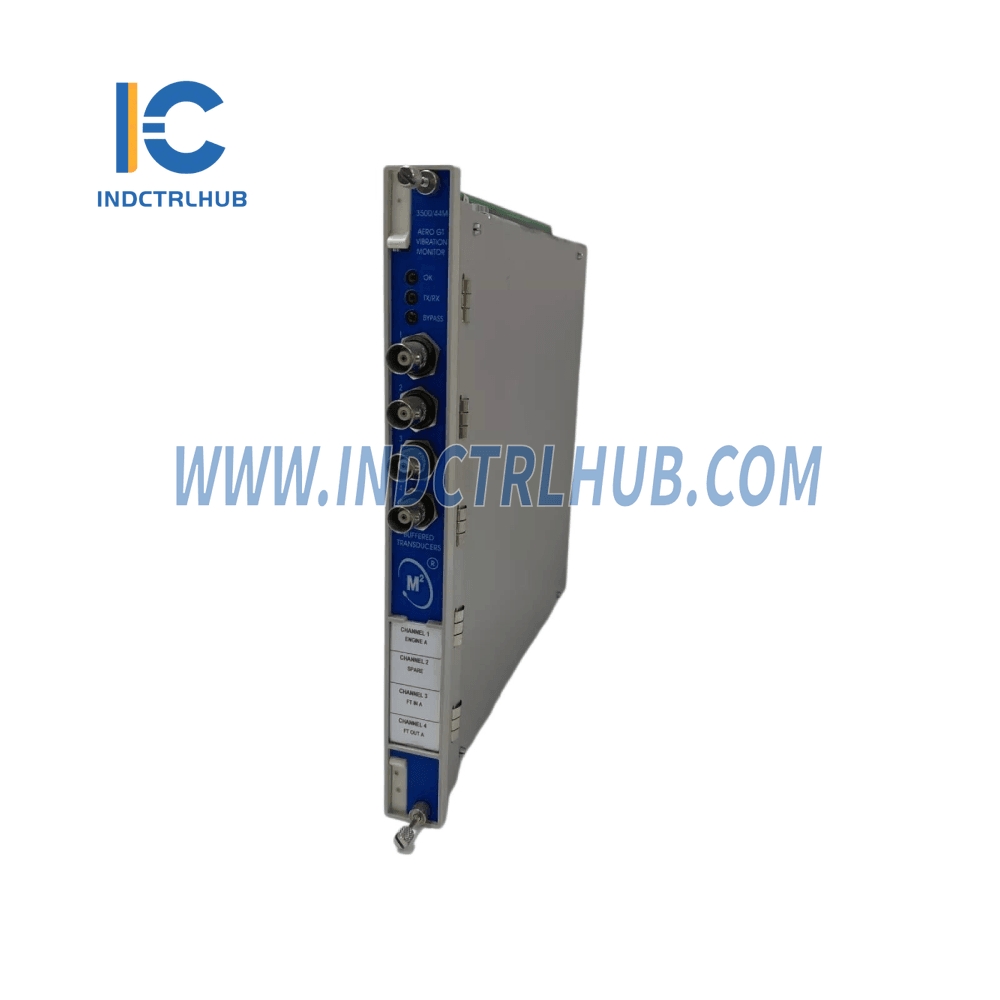

Front Panel LEDs:
-
OK LED: Illuminates when the monitor is functioning correctly.
-
TX/RX LED: Flashes during communication with other modules in the rack.
-
Bypass LED: Indicates when the monitor is in bypass mode.
Physical
| Component |
Dimensions (H x W x D) |
Weight |
| Main Monitor |
241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
0.91 kg (2.0 lbs) |
| I/O Module |
241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
0.45 kg (1.0 lb) |
Ordering Information
| Monitor Part Number |
3500/44-AA-BB |
| A: I/O Module Type |
|
| 01 |
Aero GT I/O Module with Internal Terminations |
| 02 |
Aero GT I/O Module with External Terminations |
| 05 |
Prox/Velom I/O Module with Internal Terminations |
| 06 |
Prox/Velom I/O Module with External Terminations |
| 07 |
Multimode Prox/Velom I/O Module with Internal Terminations |
| 08 |
Multimode Prox/Velom I/O Module with External Terminations |
| B: Hazardous Area Approval Option |
|
| 00 |
None |
| 01 |
cNRTLus (Class 1, Division 2) |
| 02 |
ATEX/IECEx/CSA (Class 1, Zone 2) |
