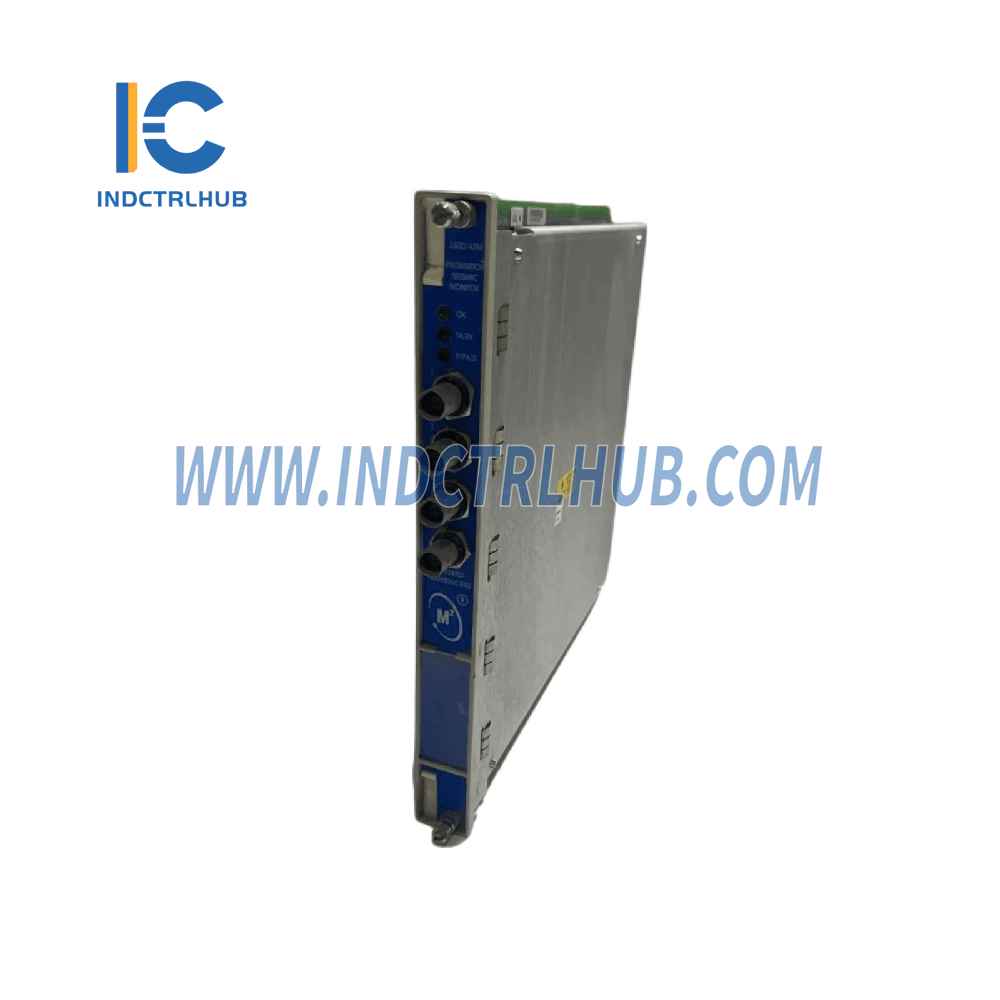

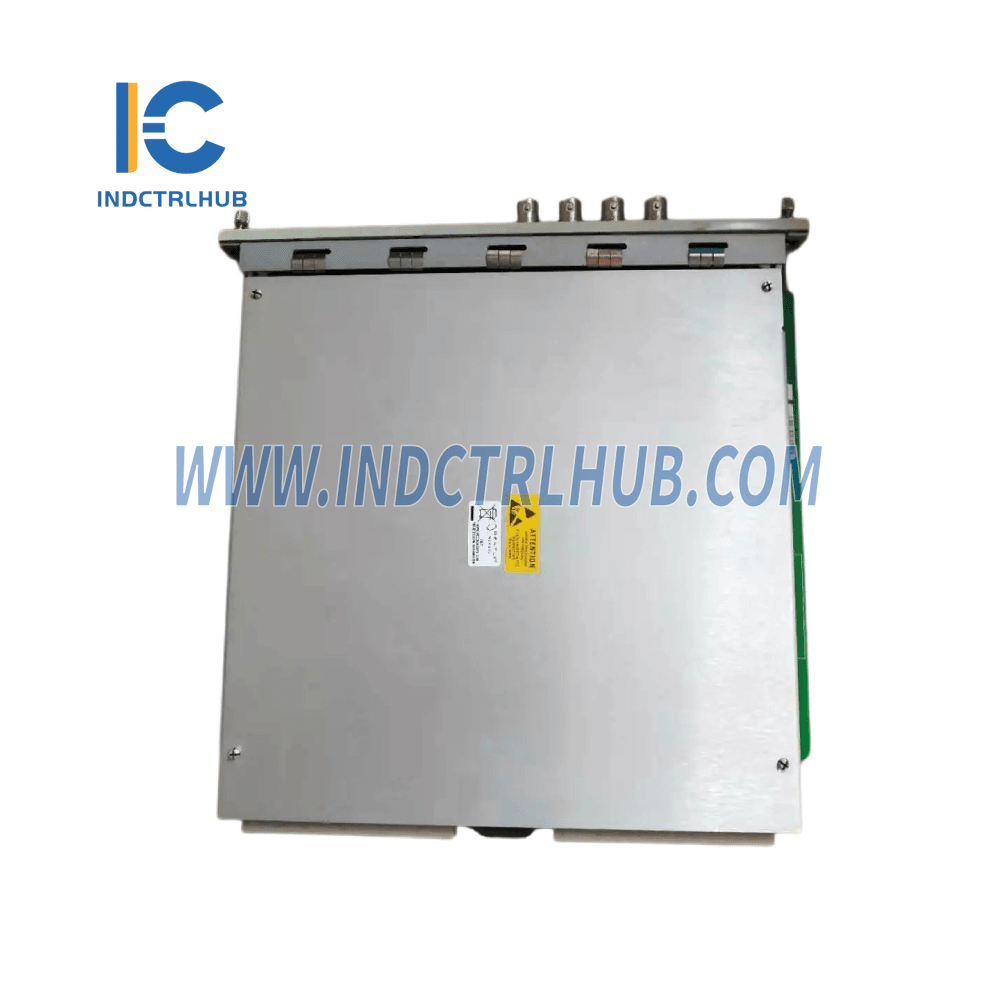

Bently Nevada 3500/42M 140734-02 Proximitor Seismic Monitor

Product Details

Manufacturer: Bently Nevada
Series: 3500/42M
Model/Part Number: 140734-02
Model Type: Proximitor Seismic Monitor

Description

The 3500/42M Proximitor Seismic Monitor is a four-channel monitor that continuously monitors machinery health by comparing proximity and seismic transducer signals to user-configured alarm setpoints. It provides critical data on vibration and position measurements, supporting both operations and maintenance personnel by communicating key machine information.

This monitor protects machinery by:

• Triggering alarms when parameters exceed configured thresholds.
• Accepting input from up to four proximity, velocity, or acceleration transducers.
• Conditioning and comparing signals with programmable alarms for reliable machinery protection.

Specifications

Inputs

• Signal: Accepts up to 4 transducer signals (proximity, velocity, or acceleration).
• Power Consumption: 7.7 watts (typical).
• Input Impedance:
  • 10 kΩ for Proximitor and acceleration inputs.
• Sensitivity:
  • Radial Vibration/Thrust/Eccentricity:
    • 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil).
  • Differential Expansion:
    • 0.394 mV/µm (10 mV/mil) or 0.787 mV/µm (20 mV/mil).
  • REBAM:
    • 40 mV/µm (1000 mV/mil) or 80 mV/µm (2000 mV/mil).
  • Acceleration:
    • 10 mV/(m/s²) (100 mV/g).
  • Velocity:
    • 20 mV/(mm/s) pk (500 mV/(in/s) pk) or other selectable sensitivities.

Outputs

• Front Panel LEDs:
  • OK LED: Indicates proper operation of the monitor.
  • TX/RX LED: Indicates communication with other modules in the rack.
  • Bypass LED: Indicates when the monitor is in bypass mode.

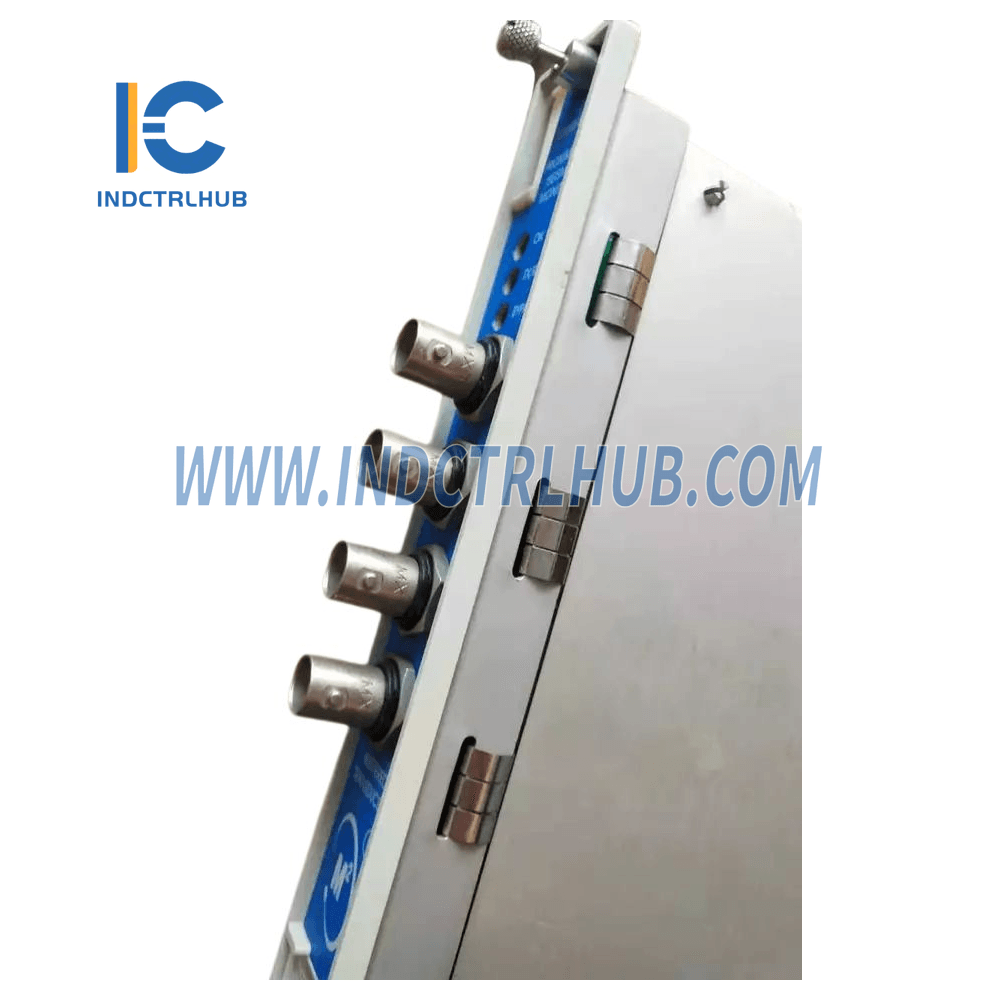

• Buffered Transducer Outputs:
  • One coaxial connector per channel, short-circuit protected.
  • Output Impedance: 550 Ω.
• Recorder Outputs:
  • +4 to +20 mA values proportional to monitor full-scale.
  • Voltage compliance: 0 to +12 Vdc (0 to 600 Ω load).
• Shaft Absolute Buffered Outputs:
  • Output Impedance: 300 Ω.

Physical Specifications

• Monitor Module Dimensions (H x W x D):
  • 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in).
  • Weight: 0.91 kg (2.0 lb).
• I/O Module Dimensions:
  • Non-Barrier: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in); Weight: 0.20 kg (0.44 lb).
  • Barrier: 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in); Weight: 0.46 kg (1.01 lb).
• Rack Space Requirements:
  • Monitor: 1 full-height front slot.
  • I/O Modules: 1 full-height rear slot.

Ordering Information

3500/42-AA-BB

A: I/O Module Type

B: Hazardous Area Approval

• 00: None
• 01: cNRTLus (Class 1, Division 2).
• 02: ATEX / IECEx / CSA (Class 1, Zone 2).
