Product Description
Product Details

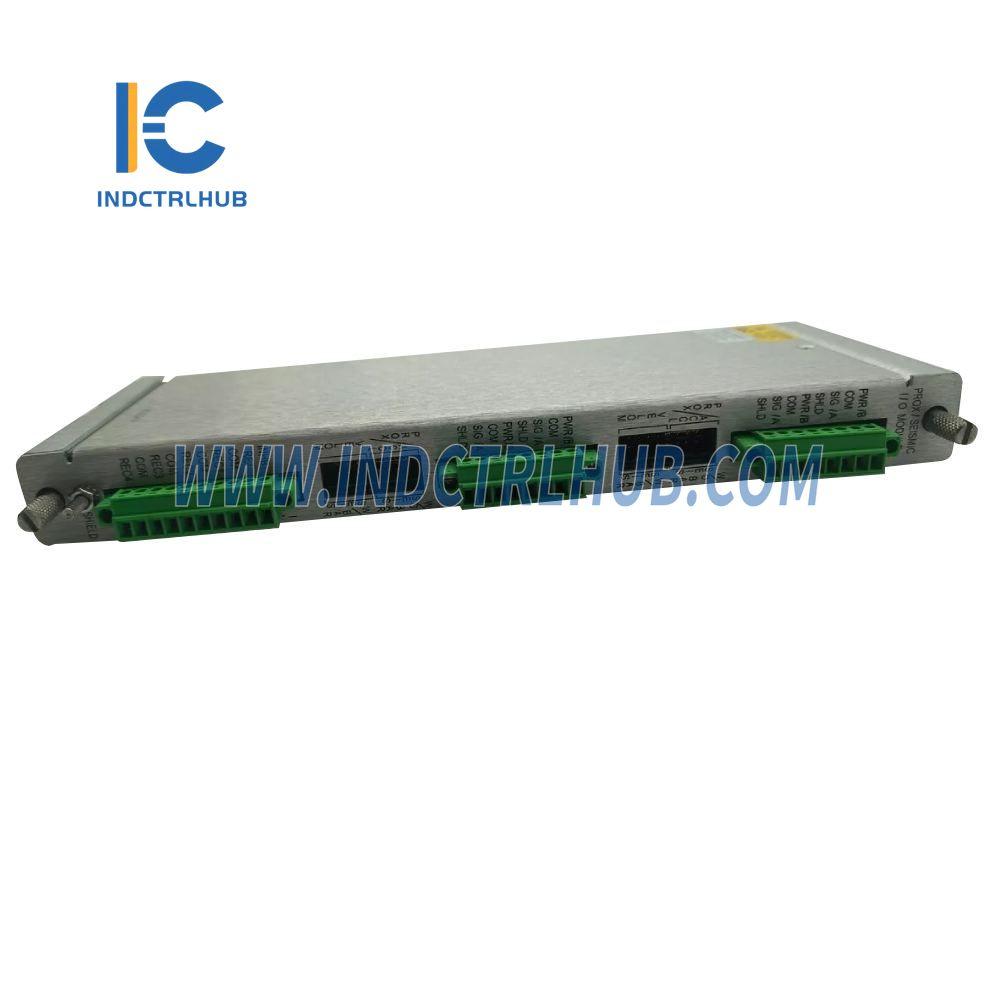

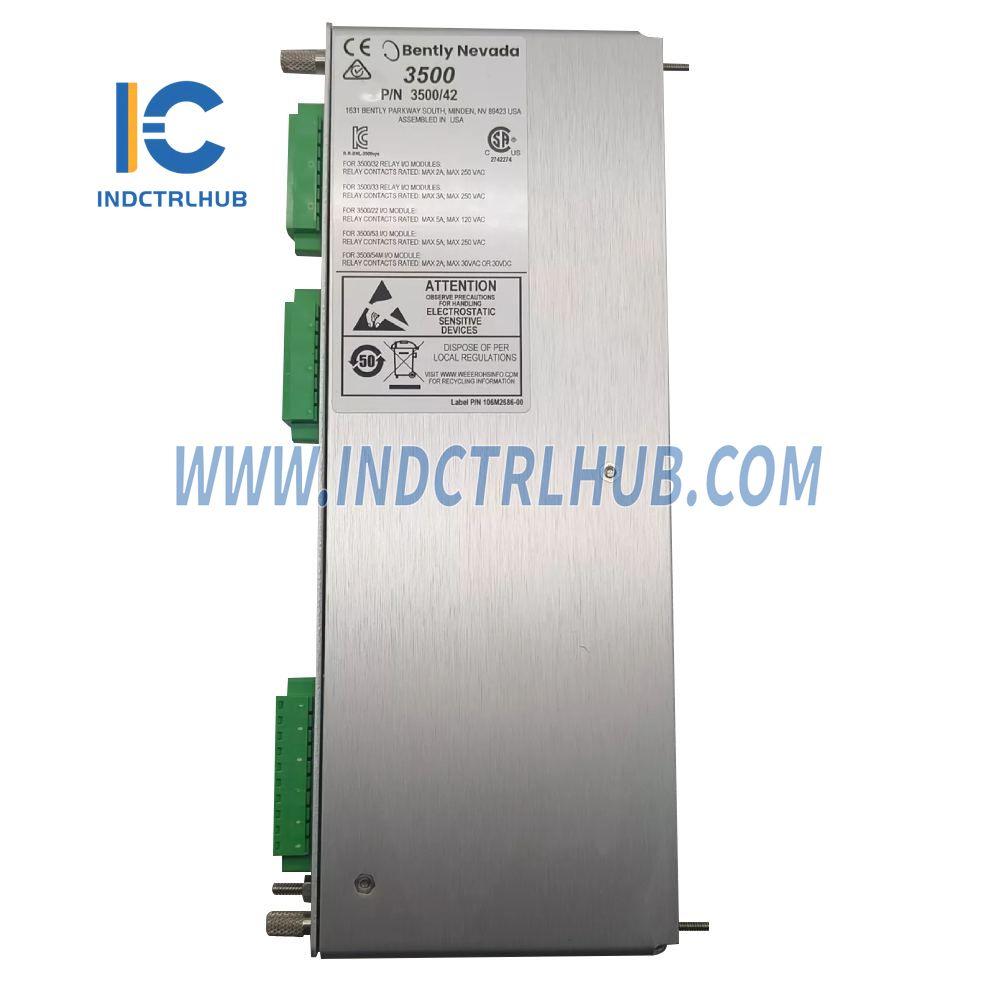

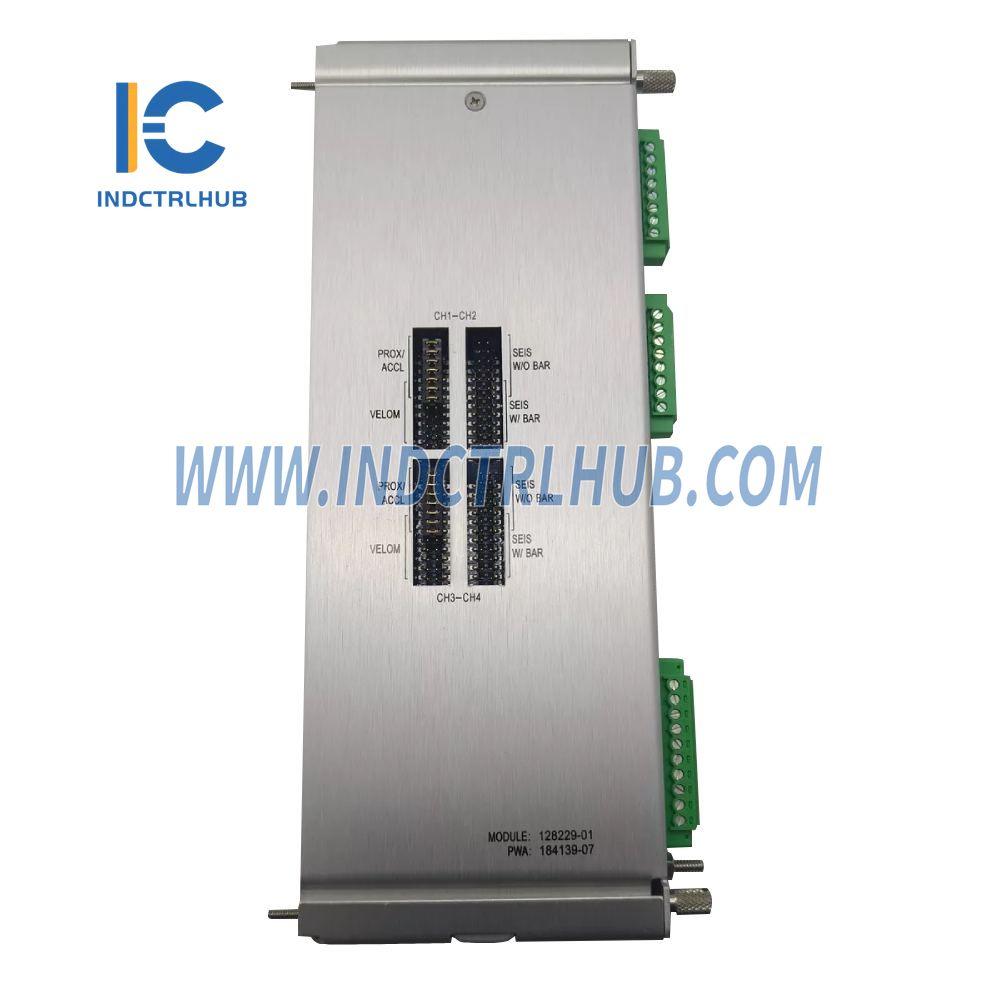

- Manufacturer: Bently Nevada
- Model/Part Number: 3500/42M 128229-01
- Description: Prox/Seismic I/O Module with Internal Terminations
Specifications
I/O Part and Order Options
| Part Number | Description | Configuration | Supply Parameters (U, I, P) |
|---|---|---|---|
| 128229-01 | Prox/Seismic I/O Module with Internal Terminations | Prox/Accel | 23.9 V, 45.5 mA, 1.09 W |
| Velomitor | 23.9 V, 45.5 mA, 1.09 W | ||
| Seismoprobe | 6.82 V, 2.75 mA, 0.02 W |
Input Impedance
- Standard I/O: 10 kΩ (Proximitor and acceleration inputs)
Environmental Limits
| Parameter | Value |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) for Internal/External Termination I/O Module |
| 0°C to +65°C (32°F to +150°F) for Internal Barrier I/O Module | |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Physical Dimensions
| Component | Dimensions (H x W x D) | Weight |
|---|---|---|
| Non-barrier I/O Module | 241.3 mm x 24.4 mm x 99.1 mm | 0.20 kg (0.44 lb) |
| 9.50 in x 0.96 in x 3.90 in | ||
| Barrier I/O Module | 241.3 mm x 24.4 mm x 163.1 mm | 0.46 kg (1.01 lb) |
| 9.50 in x 0.96 in x 6.42 in |
Rack Space Requirements
- I/O Modules: 1 full-height rear slot
