Bently Nevada 3500/42M-09-00 176449-02+140471-01 Proximitor Seismic Monitor

Bently Nevada 3500/42M-09-00 176449-02+140471-01 Proximitor Seismic Monitor

  • Manufacturer: Bently Nevada

  • Product No.: 3500/42M-09-00

  • Condition:1000 in stock

  • Product Type: Proximitor Seismic Monitor

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3500/42M
  • Model/Part Number: 3500/42M-09-00 176449-02+140471-01
  • Model Type: Proximitor Seismic Monitor

Description

The 3500/42M Proximitor Seismic Monitor:

  • Protects machinery by continuously comparing monitored parameters against configured alarm setpoints to trigger alarms.
  • Communicates essential machine information to both operations and maintenance personnel.

Specifications

Inputs

  • Signal Inputs: Accepts from 1 to 4 proximity, velocity, or acceleration transducer signals.
  • Power Consumption: 7.7 watts (typical).
  • Input Impedance:
    • Standard I/O: 10 kΩ (for Proximitor and acceleration inputs).
  • Sensitivity:
    • Radial Vibration: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
    • Thrust: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
    • Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
    • Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil).
    • REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil).
    • Acceleration & Acceleration2: 10 mV/ (m/s²) (100 mV/g).
    • Velocity & Velocity2: 20 mV/ (mm/s) pk (500 mV/ (in/s) pk) or 5.8 mV/ (mm/s) pk (145 mV/ (in/s) pk) or 4 mV/ (mm/s) pk (100 mV/ (in/s) pk).
    • Shaft Absolute Radial Vibration: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
    • Shaft Absolute Direct: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
    • Shaft Absolute Velocity: 20 mV/ (mm/s) pk (500 mV/ (in/s) pk) or 5.8 mV/ (mm/s) pk (145 mV/ (in/s) pk) or 4 mV/ (mm/s) pk (100 mV/ (in/s) pk).

Environmental Limits

  • Operating Temperature:
    • When used with Internal/External Termination I/O Module: -30°C to +65°C (-22°F to +150°F).
    • When used with Internal Barrier I/O Module (Internal Termination): 0°C to +65°C (32°F to +150°F).
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F).
  • Humidity: 95%, non-condensing.

Physical Characteristics

  • Monitor Module (Main Board):
    • Dimensions: 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in).
    • Weight: 0.91 kg (2.0 lb).
  • I/O Modules (non-barrier):
    • Dimensions: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in).
    • Weight: 0.20 kg (0.44 lb).
  • I/O Modules (barrier):
    • Dimensions: 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in).
    • Weight: 0.46 kg (1.01 lb).

Ordering Information

  • 3500/42 - AA - BB
    • A: I/O Module Type (See I/O Module Types on page 17).
    • B: Hazardous Area Approval Option:
      • 00: None.
      • 01: cNRTLus (Class 1, Division 2).
      • 02: ATEX / IECEx / CSA (Class 1, Zone 2).

Spares

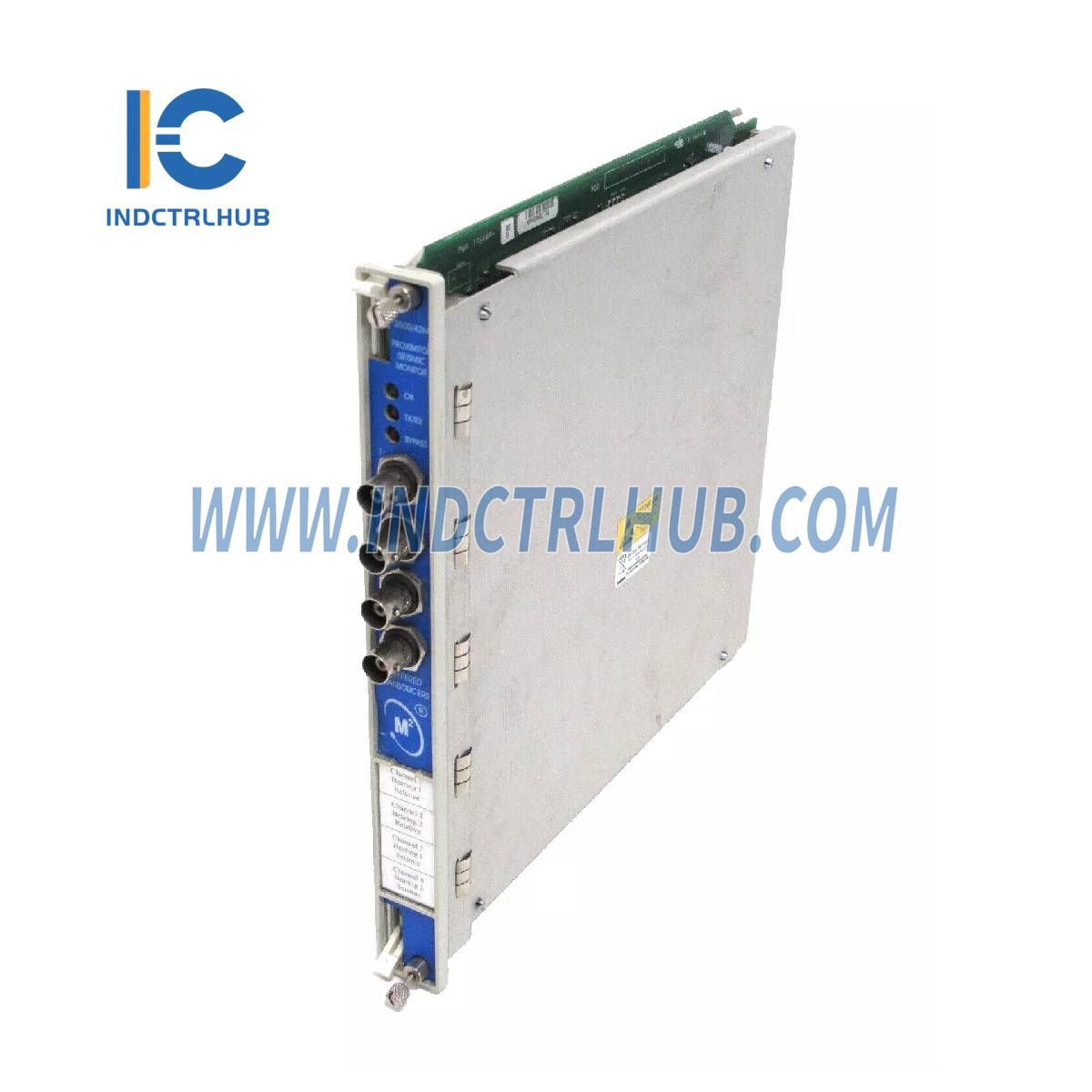

  • 176449-02: 3500/42M Proximitor Seismic Monitor.

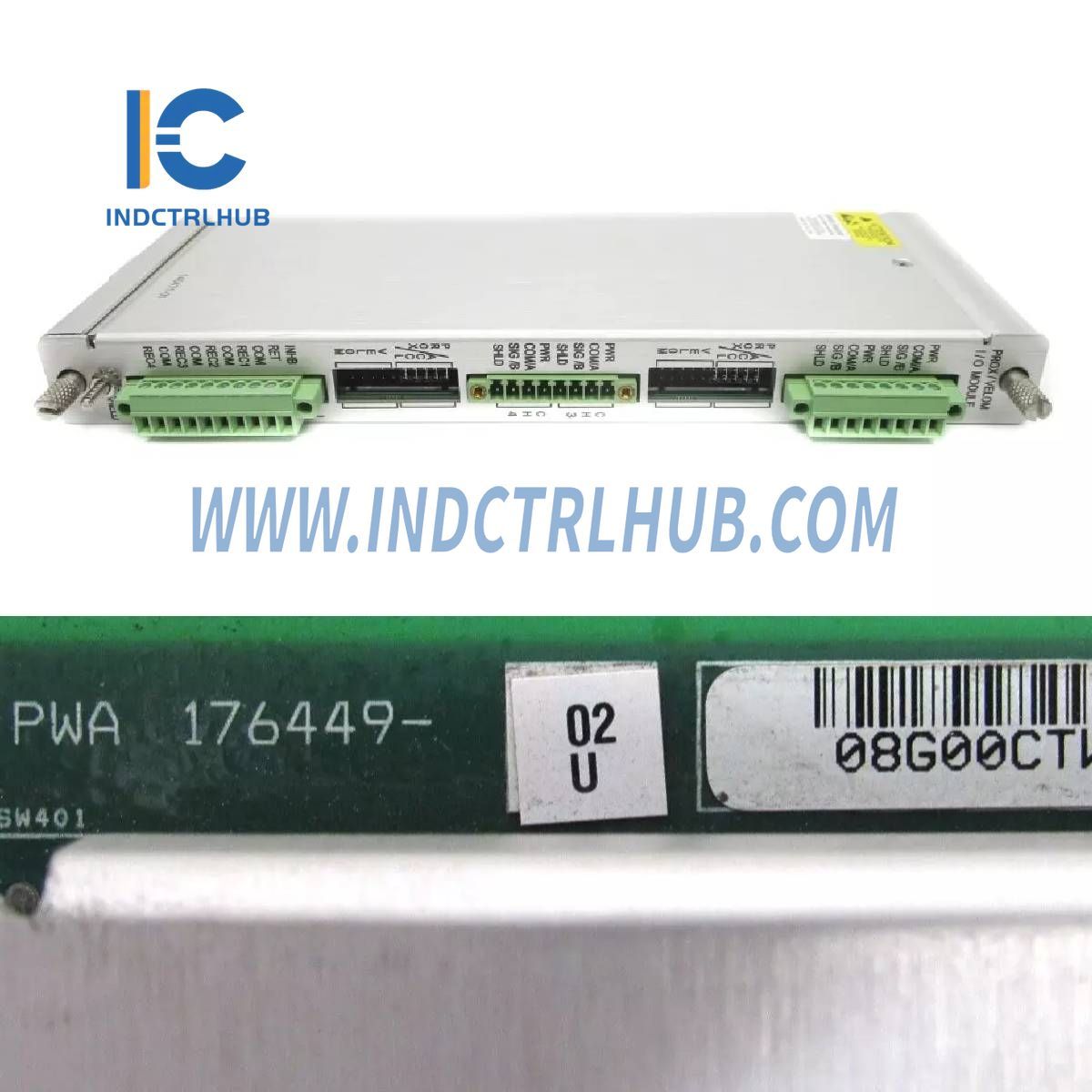

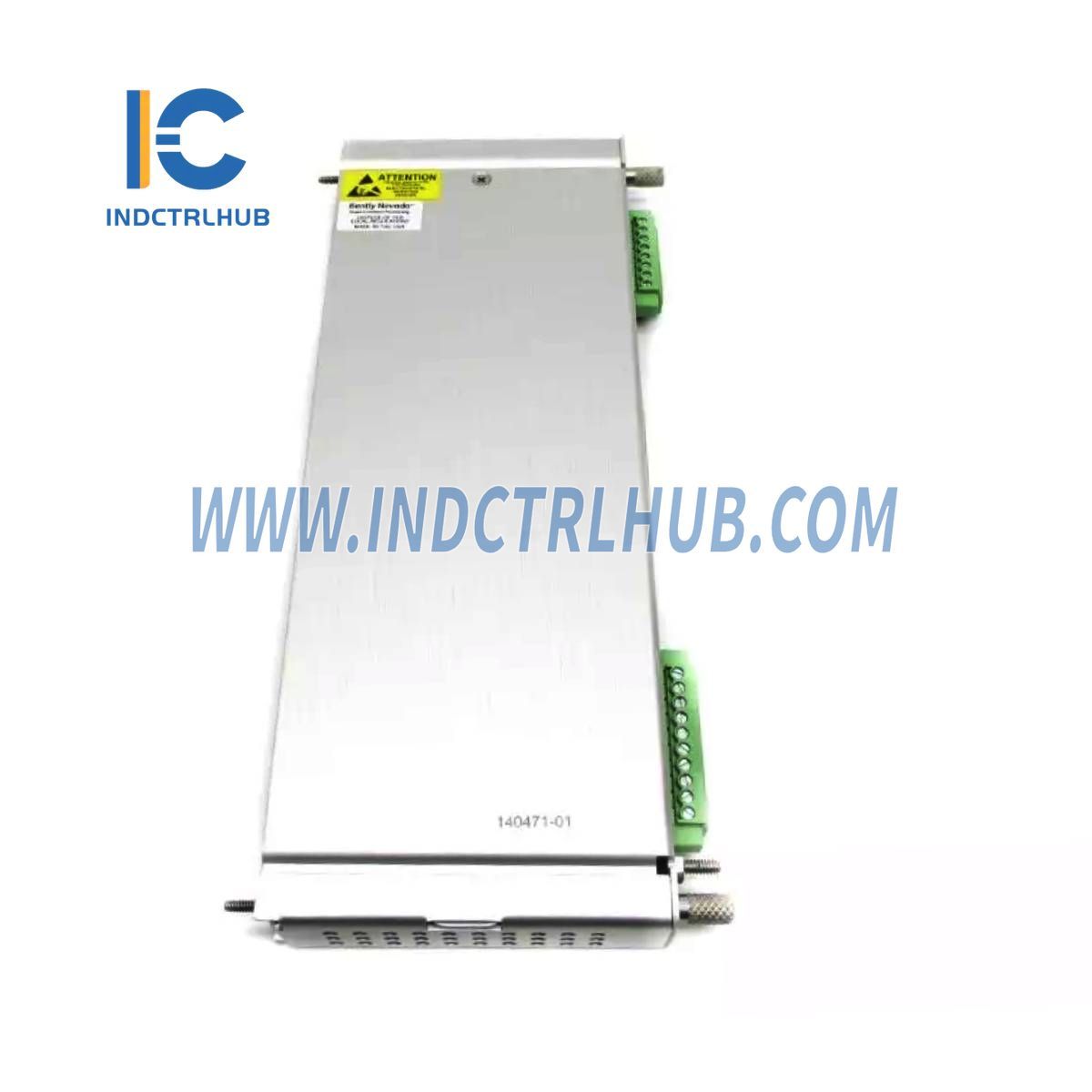

  • 140471-01: Prox/Velom I/O Module with internal terminations.
View full details
