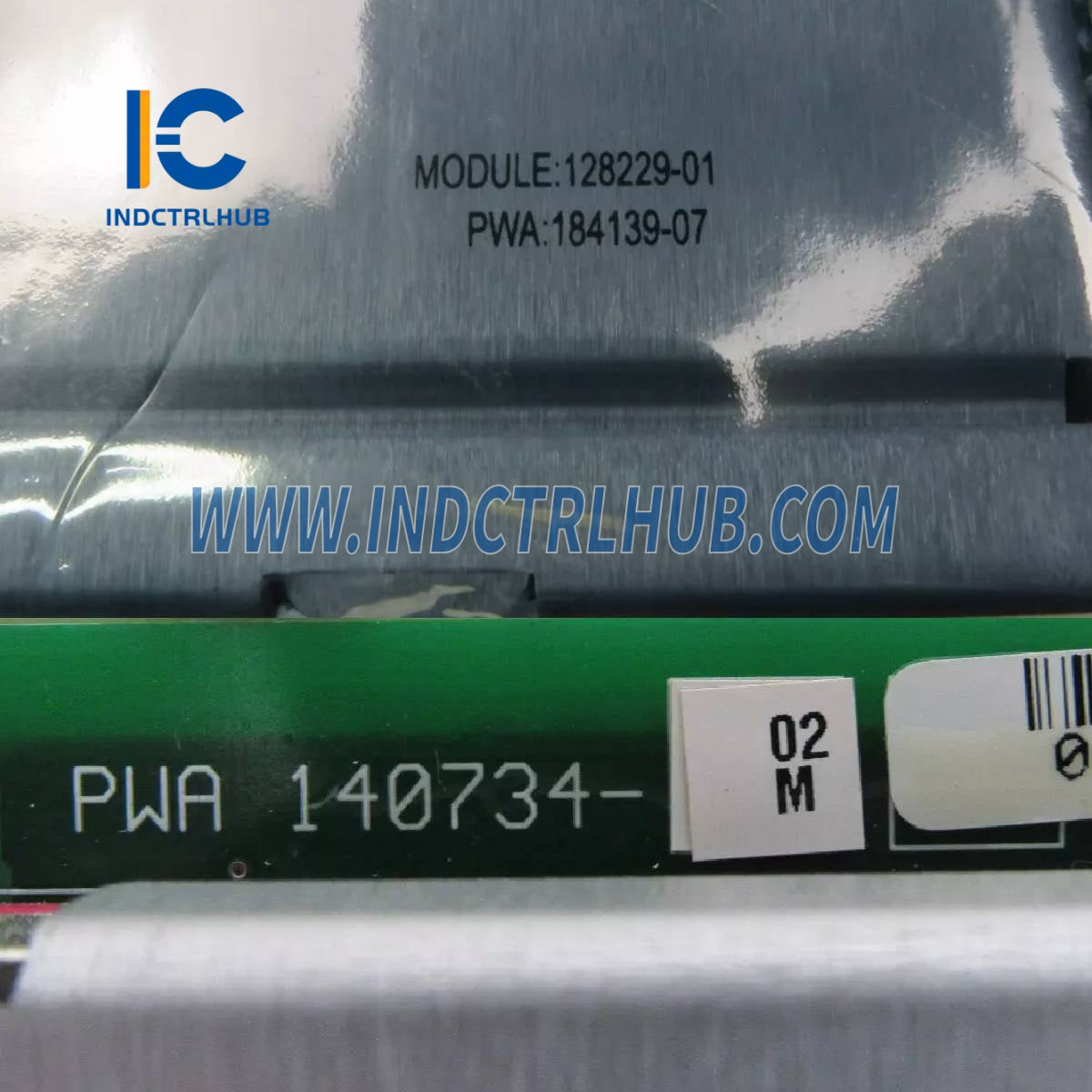

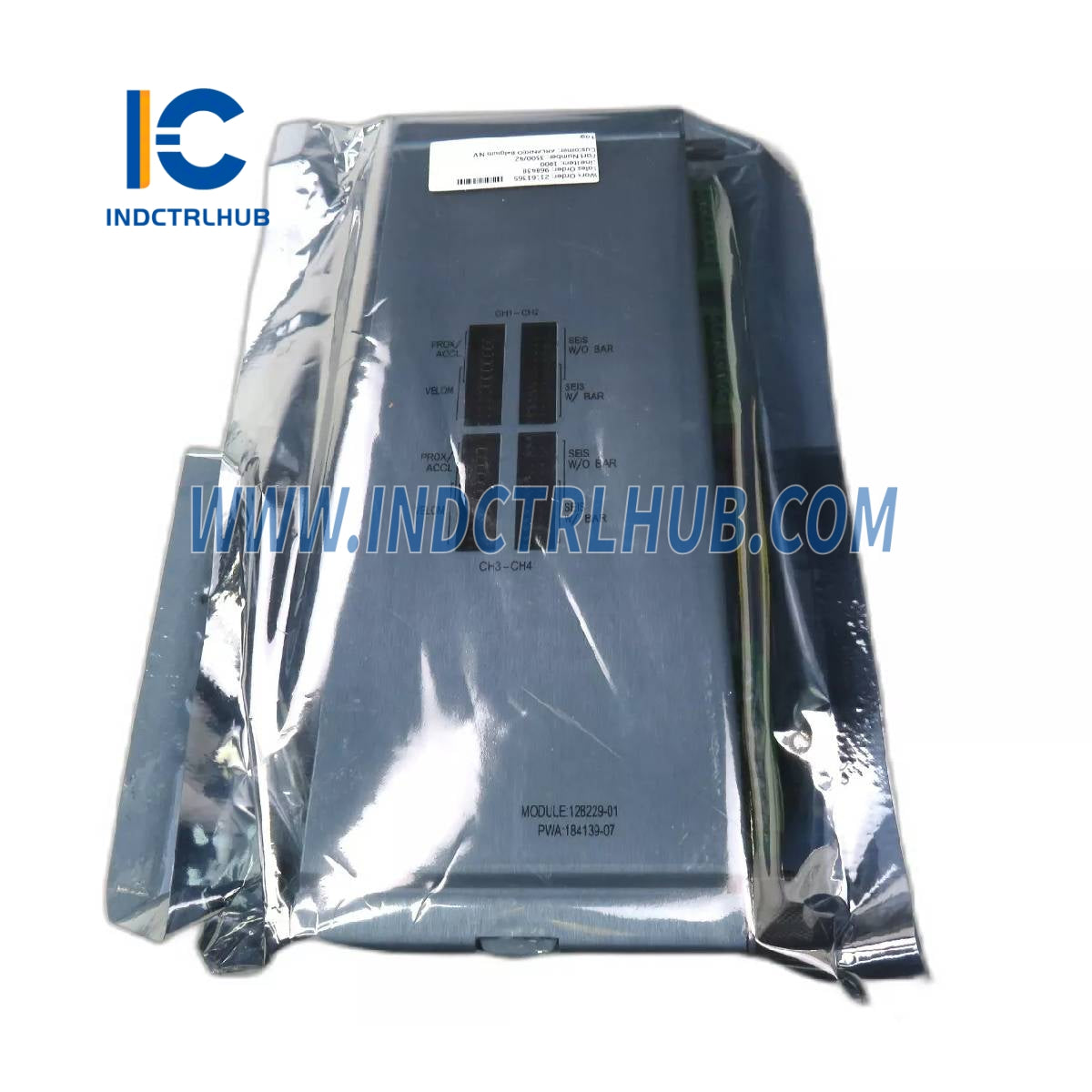

Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/42M-01-01 (140734-02+128229-01) |
|
Description |

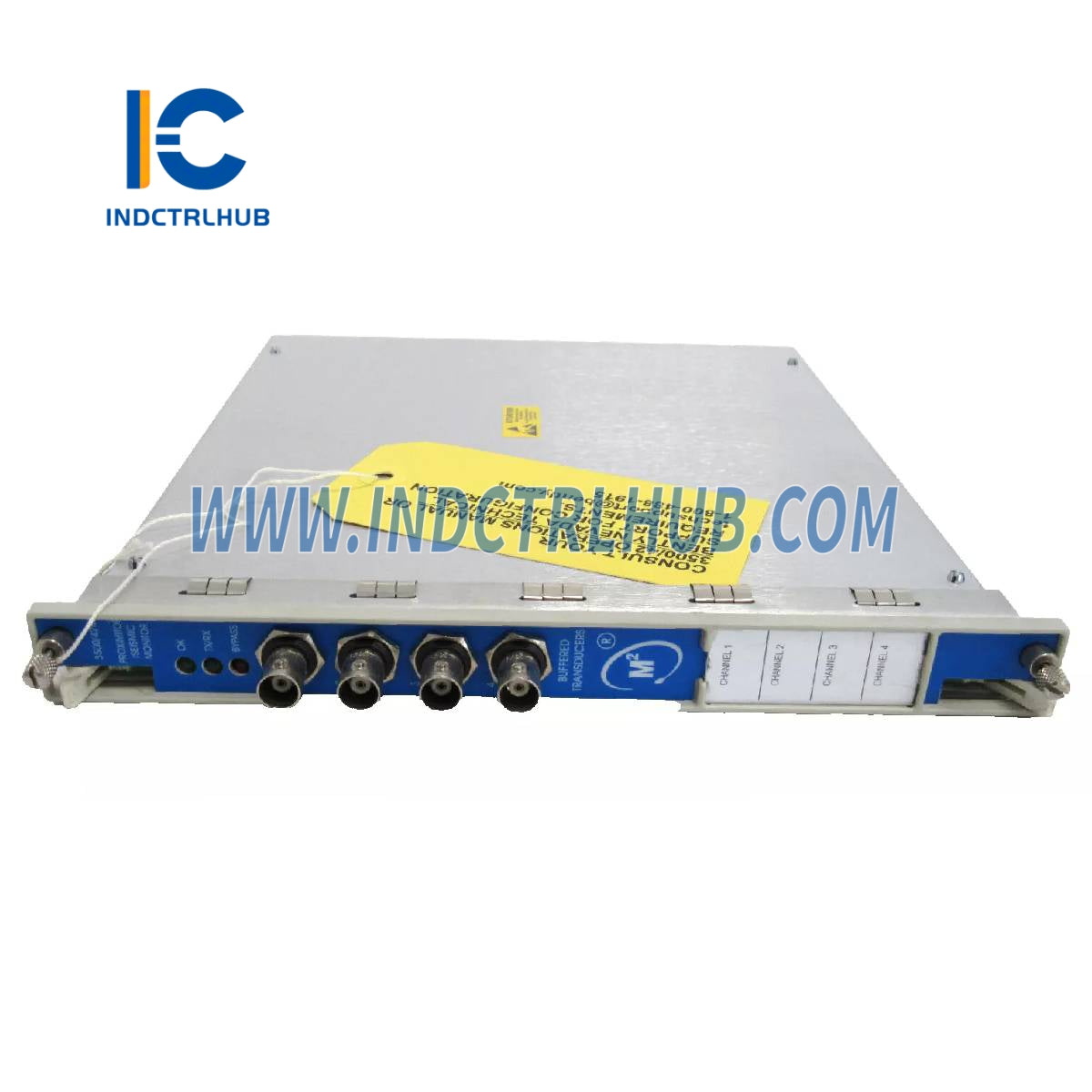

Proximitor Seismic Monitor |
🔹 Description
• The 3500/42M Proximitor Seismic Monitor continuously monitors and protects machinery by comparing parameters against configured alarm setpoints.
• It provides critical machine information for operations and maintenance personnel.
🔹 Environmental Limits
|
Condition |
Value |
|---|---|
|
Operating Temperature |
-30°C to +65°C (-22°F to +150°F) (With Internal/External Termination I/O Module) |
|
Operating Temperature |
0°C to +65°C (32°F to +150°F) (With Internal Barrier I/O Module) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
🔹 Physical Specifications
Monitor Module (Main Board)
|
Dimension (HxWxD) |
Weight |
|---|---|
|
241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
0.91 kg (2.0 lb) |
I/O Modules (Non-Barrier)
|
Dimension (HxWxD) |
Weight |
|---|---|
|
241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
0.20 kg (0.44 lb) |
I/O Modules (Barrier)
|
Dimension (HxWxD) |
Weight |
|---|---|
|
241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in) |
0.46 kg (1.01 lb) |
Rack Space Requirements
|
Component |
Rack Space |
|---|---|
|
Monitor |
1 full-height front slot |
|
I/O Modules |
1 full-height rear slot |
🔹 Spares
|
Part Number |
Description |
|---|---|
|
128229-01 |
Prox/Seismic I/O Module with Internal Terminations |
🔹 Ordering Information
|
Monitor Model |
3500/42 - AA - BB |
|---|---|
|
A: I/O Module Type |
See I/O Module Types |
|
B: Hazardous Area Approval Option |
00 - None |
|
01 - cNRTLus (Class 1, Division 2) |
|
|
02 - ATEX / IECEx / CSA (Class 1, Zone 2) |
