Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/42-01-00 |
|
Spare Part Numbers |
176449-02 (Monitor), 128229-01 (I/O Module) |
|
Description |

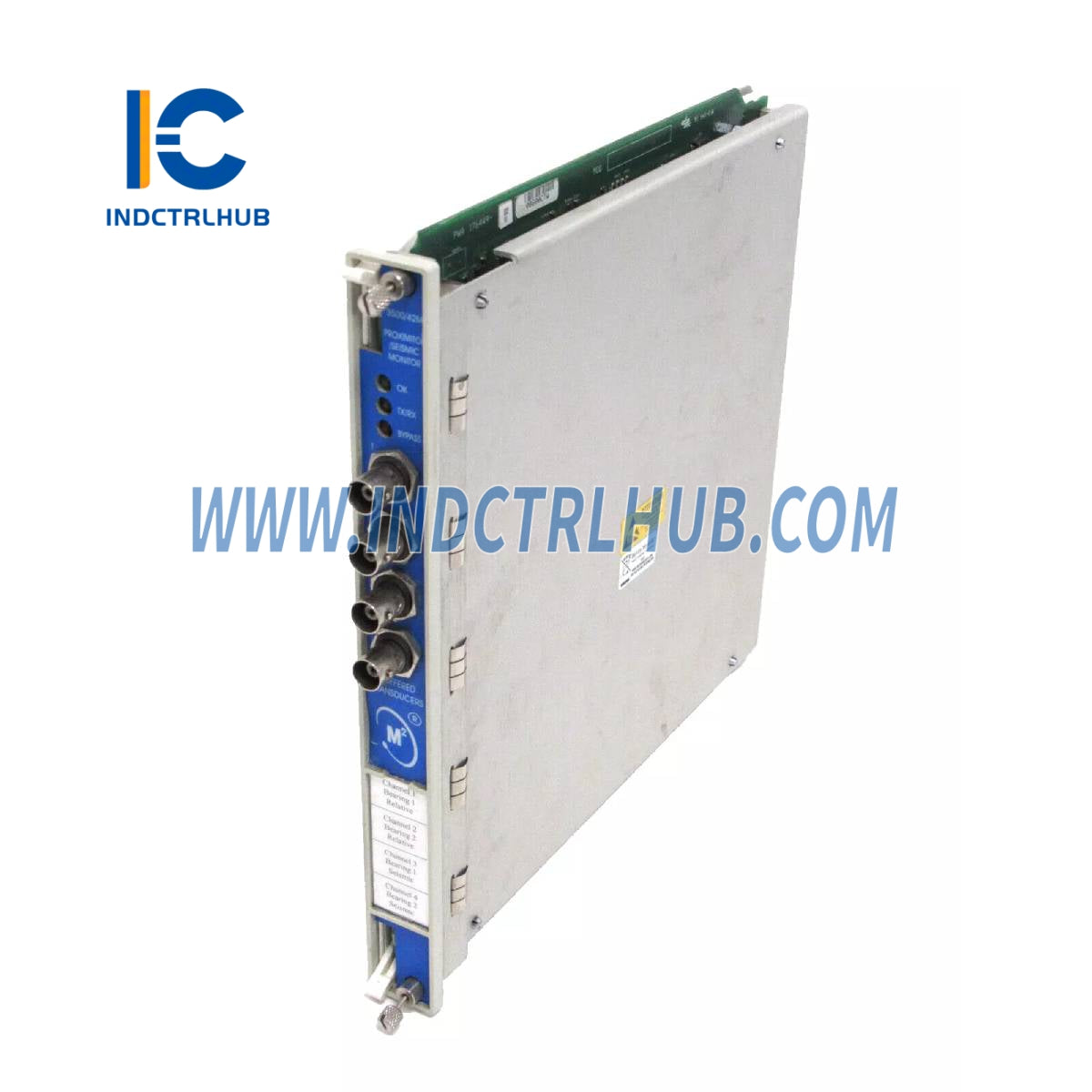

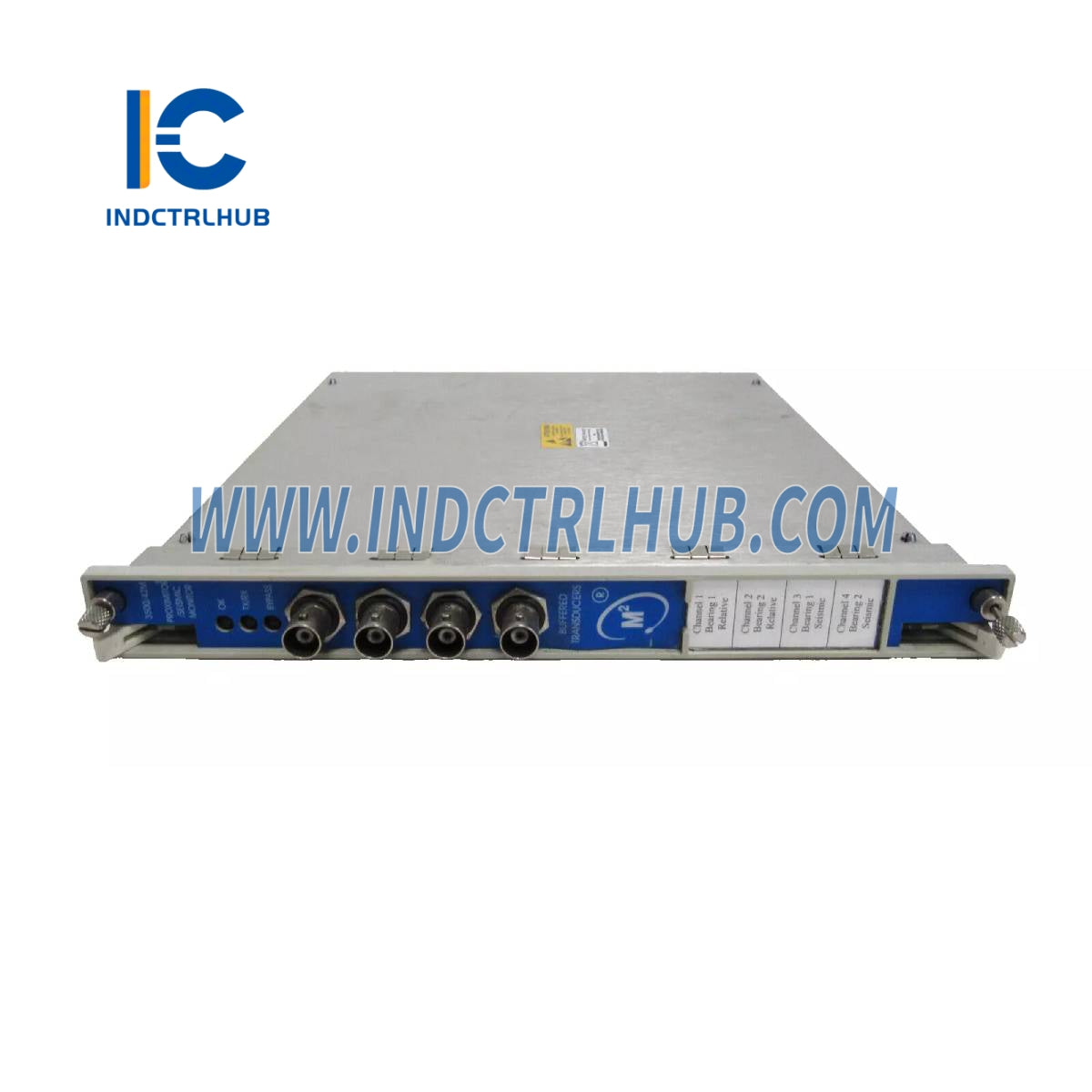

3500/42M Proximitor Seismic Monitor |
|
Series |
3500 |
🔹 Description
The 3500/42M Proximitor Seismic Monitor is a four-channel monitor that:
-
Continuously monitors vibration, velocity, or position parameters using compatible transducers (proximity, velocity, acceleration).
-
Drives alarms by comparing monitored values to user-defined thresholds.
-
Provides critical machine health data to operations and maintenance personnel.
🔹 Specifications
Inputs
|
Parameter |
Value |
|---|---|
|
Signal Type |
1 to 4 proximity, velocity, or acceleration transducers |
|
Input Impedance |
10 kΩ (Proximitor and acceleration inputs) |
|
Power Consumption |
7.7 Watts, typical |
🔹 Environmental Limits
|
Condition |
Range |
|---|---|
|
Operating Temp (Non-barrier I/O) |
-30°C to +65°C (-22°F to +150°F) |
|
Operating Temp (Barrier I/O) |
0°C to +65°C (32°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
🔹 Physical Specifications
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
Monitor Module |
241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
0.91 kg (2.0 lb) |
|
I/O Module (non-barrier) |
241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
0.20 kg (0.44 lb) |
|
I/O Module (barrier) |
241.3 x 24.4 x 163.1 mm (9.50 x 0.96 x 6.42 in) |
0.46 kg (1.01 lb) |
🔹 Ordering Information
3500/42-AA-BB
|
Field |
Option |
Description |
|---|---|---|
|
A |
See I/O Module Types |
(e.g., Internal Terminations, External Terminations, Barrier options) |
|
B |
00 |
No approvals |
|
01 |
cNRTLus (Class 1, Division 2) |
|
|
02 |
ATEX / IECEx / CSA (Class 1, Zone 2) |
🔹 Spares
|
Part Number |
Description |
|---|---|
|
176449-02 |
3500/42M Proximitor Seismic Monitor |
|
128229-01 |

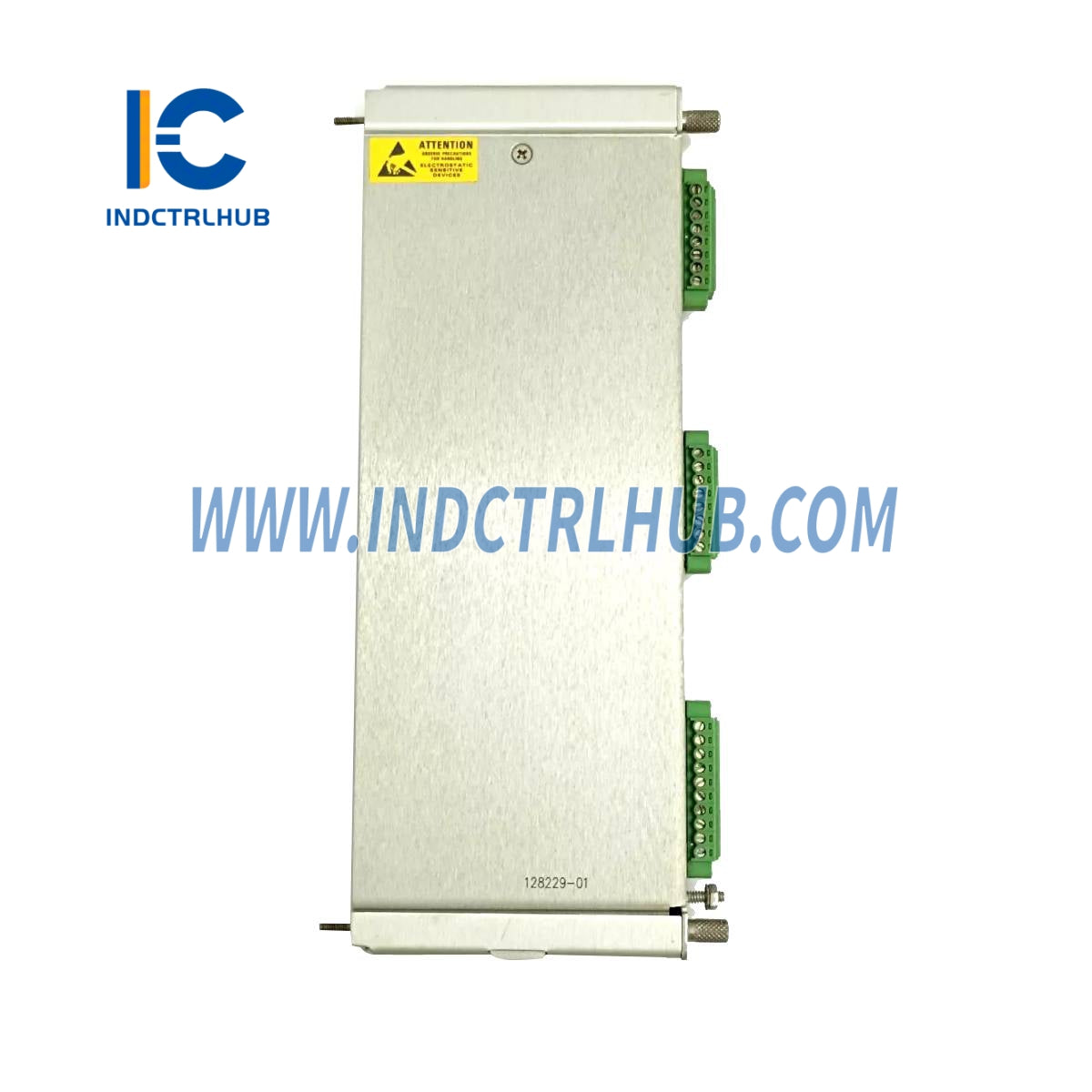

Prox/Seismic I/O Module with Internal Terminations |
