Bently Nevada 3500/40M 176449-01+125680-01 Proximitor Monitor

Bently Nevada 3500/40M 176449-01+125680-01 Proximitor Monitor

  • Manufacturer: Bently Nevada

  • Product No.: 3500/40M 176449-01

  • Condition:1000 in stock

  • Product Type: Proximitor Monitor

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3500/40M
  • Model/Part Number: 3500/40M, 176449-01, 125680-01
  • Model Type: Proximitor Monitor
  • Spares:

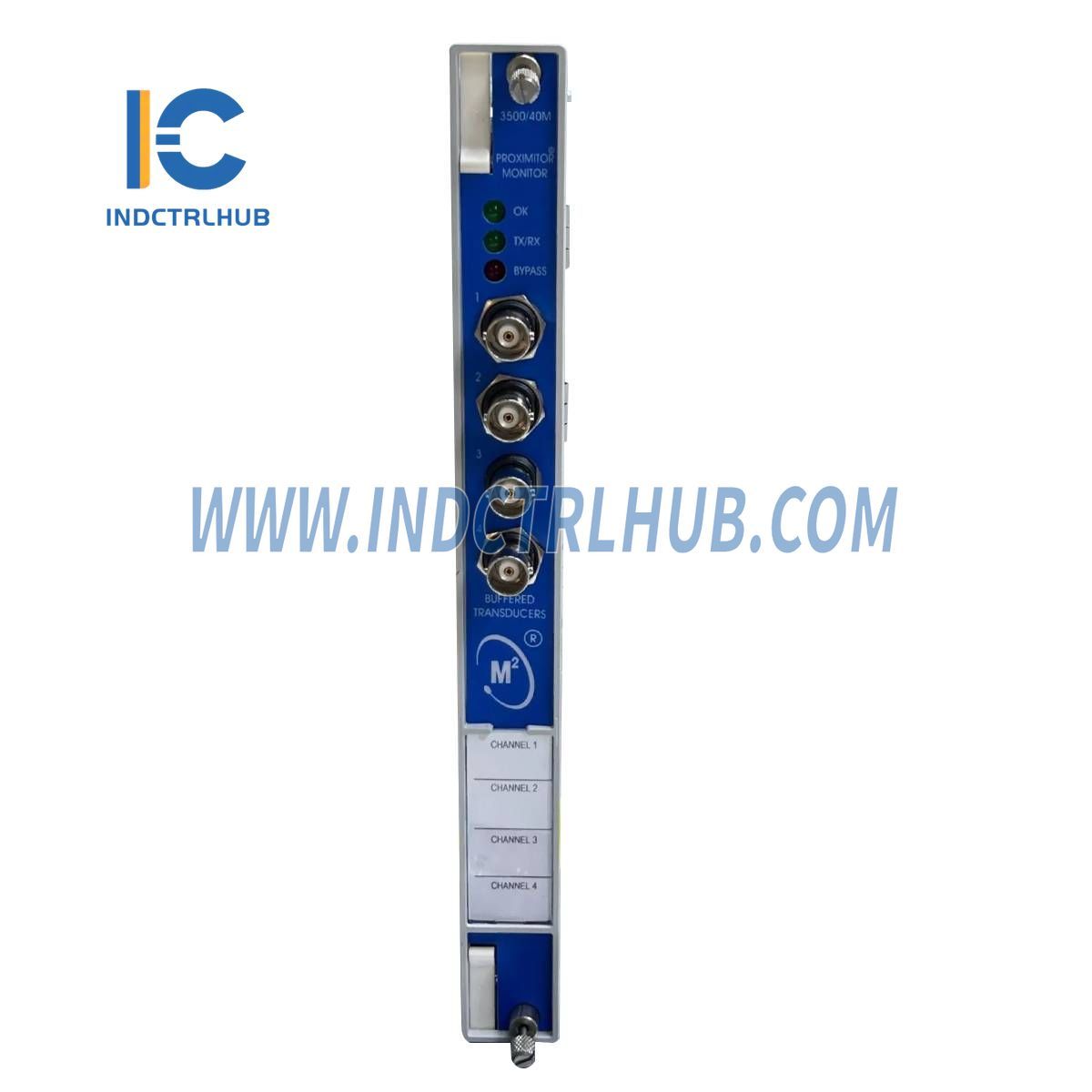

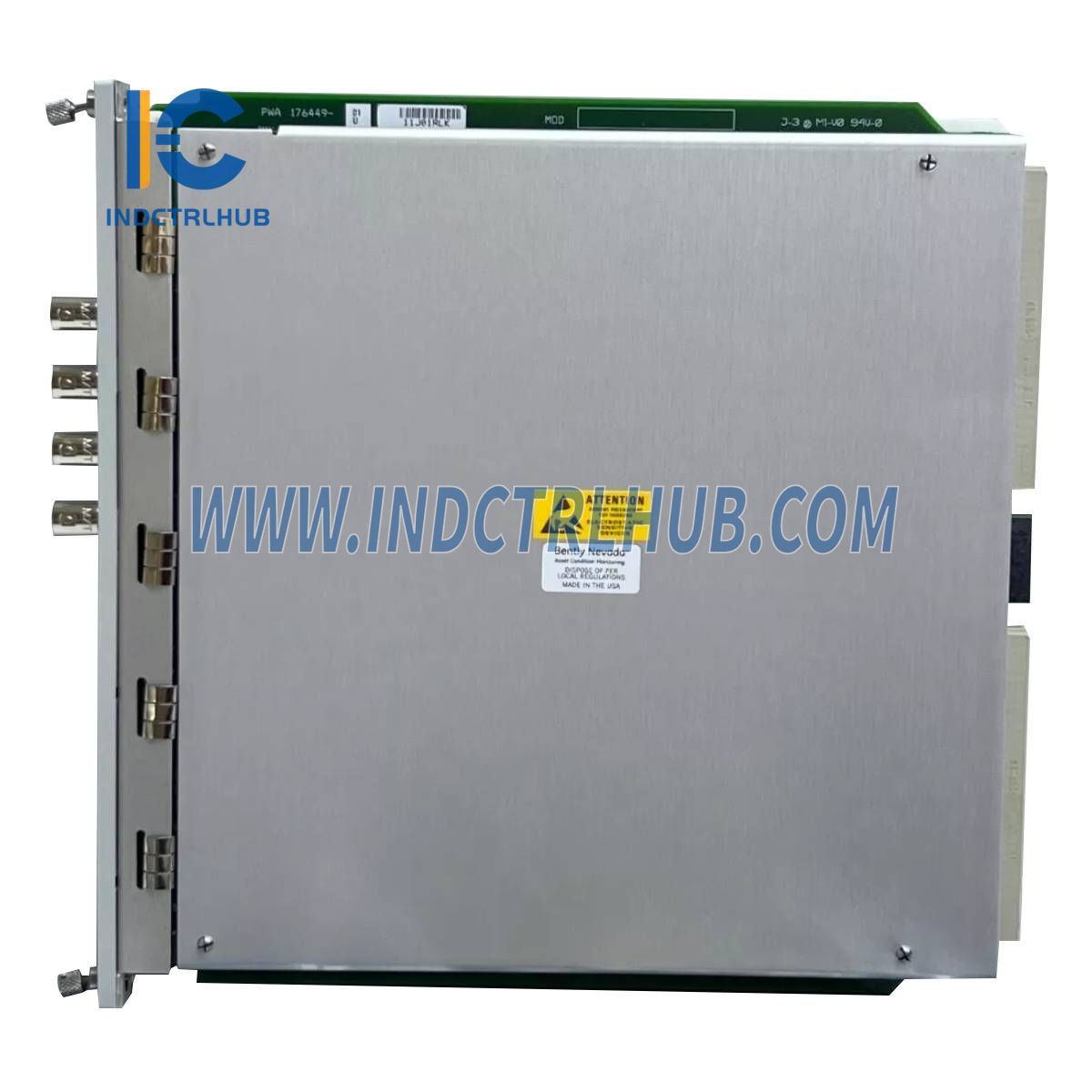

    • 176449-01: 3500/40M Proximitor Monitor

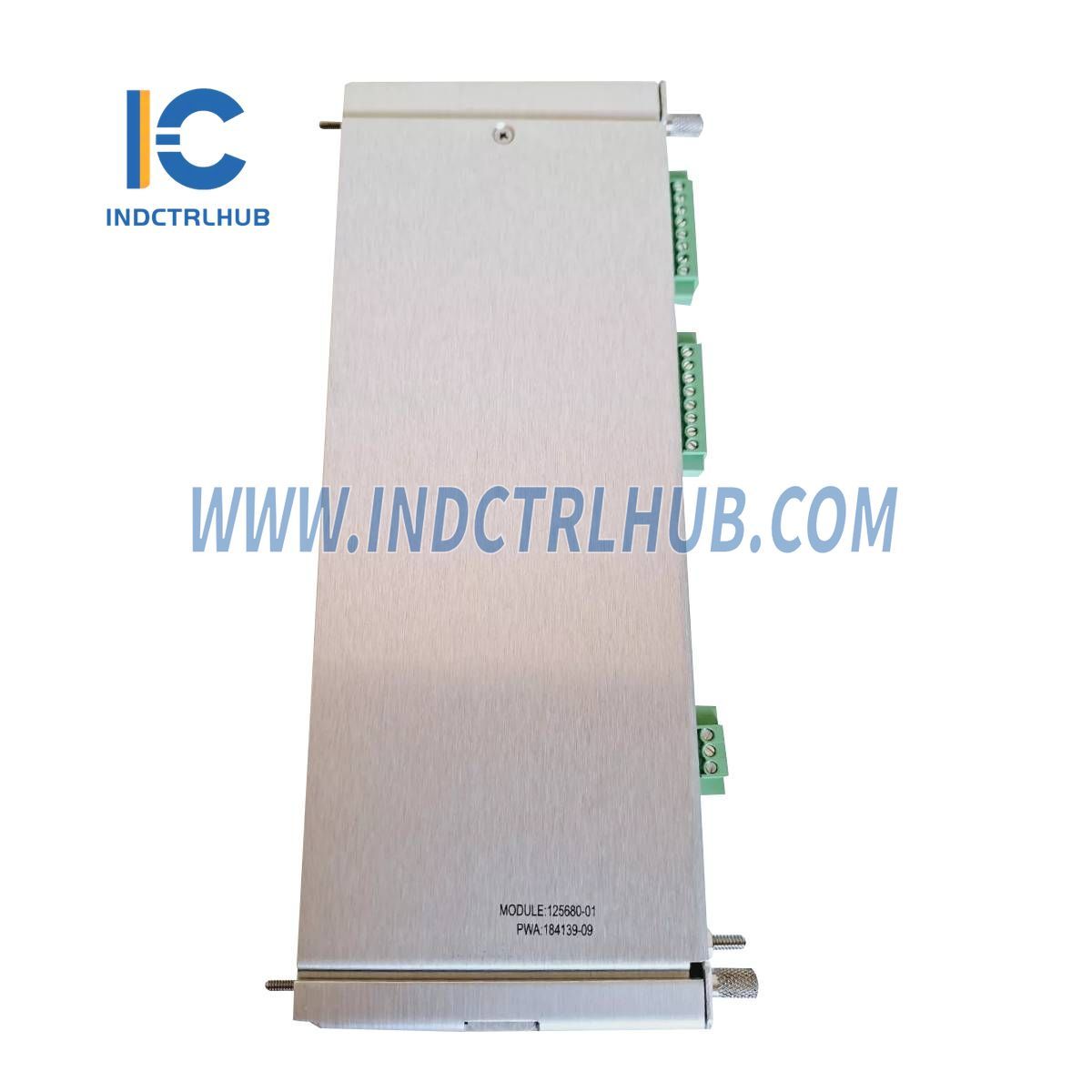

    • 125680-01: Proximitor I/O Module with Internal Terminations

Description

The 3500/40M Proximitor Monitor is a four-channel monitor designed to accept input from Bently Nevada proximity transducers. It conditions the signals to provide vibration and position measurements, then compares the conditioned signals against user-programmable alarms. This monitor is versatile, and each channel can be programmed with 3500 Rack Configuration Software to perform various functions, such as:

  • Radial vibration
  • Thrust
  • Eccentricity
  • Differential expansion
  • REBAM (Rotor bar vibration monitoring)

Specifications

  • Inputs:

    • Signal: Accepts 1 to 4 proximity transducer signals.
    • Power Consumption: 7.7 Watts, typical.
    • Input Impedance:
      • Standard I/O: 10 kΩ (Proximitor and acceleration inputs).
  • Sensitivity:

    • Radial Vibration: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
    • Thrust: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
    • Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
    • Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil)
    • REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil)

Environmental Limits

  • Operating Temperature:
    • With Internal/External Termination I/O Module: -30°C to +65°C (-22°F to +150°F).
    • With Internal Barrier I/O Module (Internal Termination): 0°C to +65°C (32°F to +150°F).
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F).
  • Humidity: 95%, non-condensing.

Physical Specifications

  • Monitor Module (Main Board):

    • Dimensions: 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
    • Weight: 0.91 kg (2.0 lb)
  • I/O Modules (non-barrier):

    • Dimensions: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
    • Weight: 0.20 kg (0.44 lb)
  • I/O Modules (barrier):

    • Dimensions: 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in)
    • Weight: 0.46 kg (1.01 lb)

Ordering Information

  • Proximitor Monitor:
    • 3500/40M-AA-BB
    A: I/O Module Type
    • 01: Proximitor I/O Module with Internal Termination
    • 02: Proximitor I/O Module with External Terminations
    • 03: Proximitor I/O Module with Internal Barriers and Internal Terminations
    B: Hazardous Area Approval Option
    • 00: None
    • 01: cNRTLus (Class 1, Division 2)
    • 02: ATEX/IECEx/CSA (Class 1, Zone 2)
