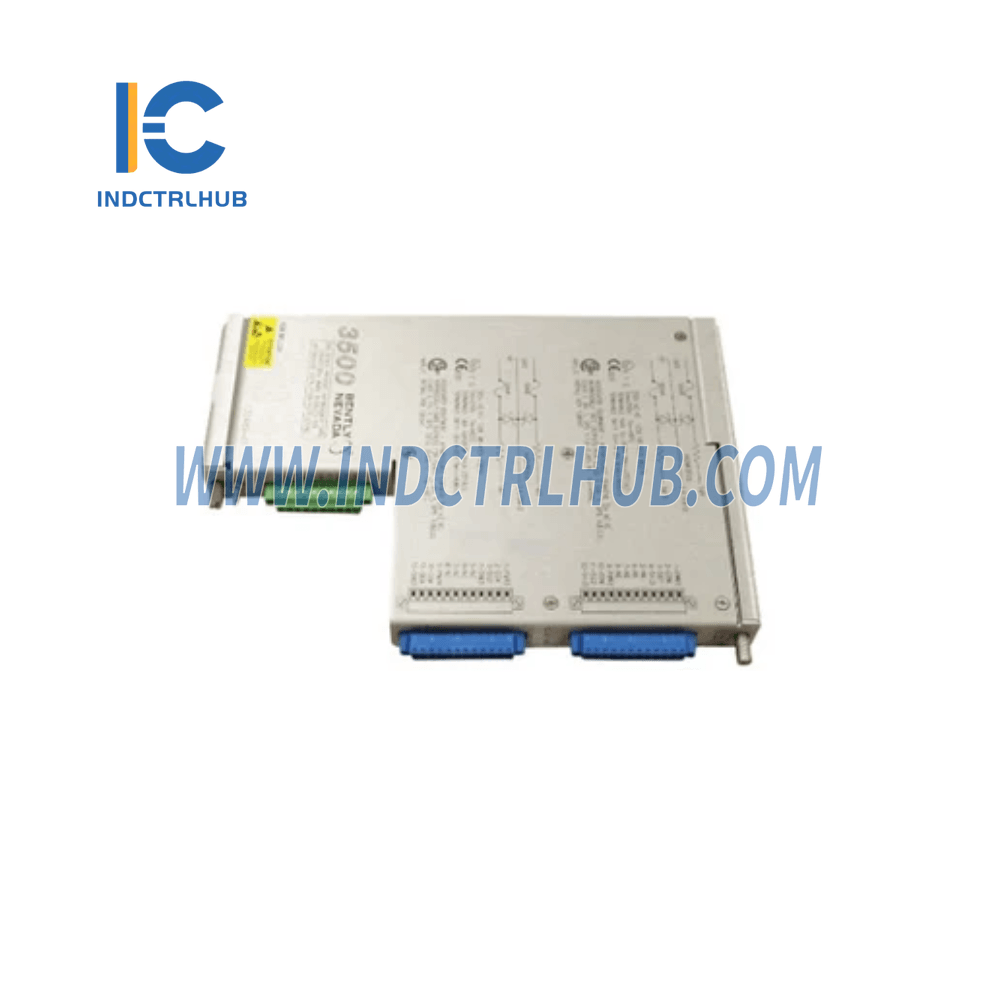

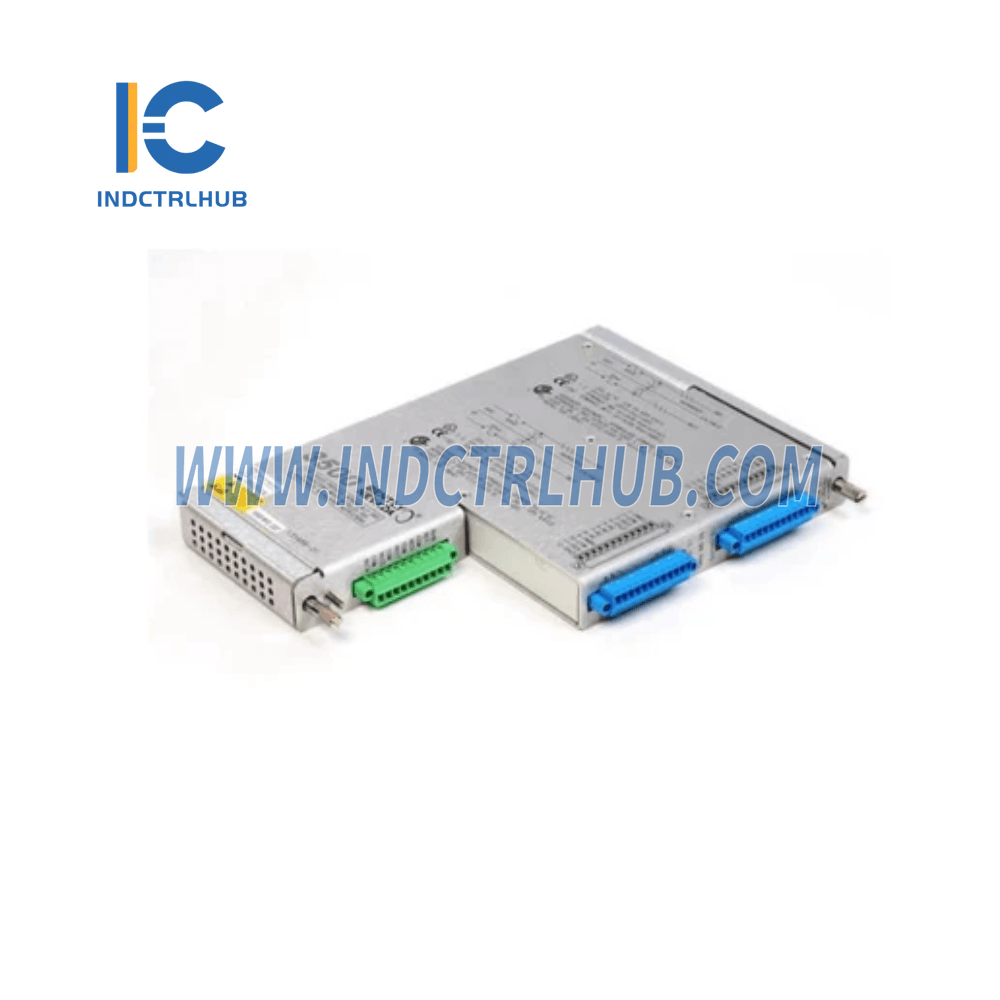

BENTLY NEVADA 3500/40M 135489-04 Proximitor I/O Module

Manufacturer: Bently Nevada

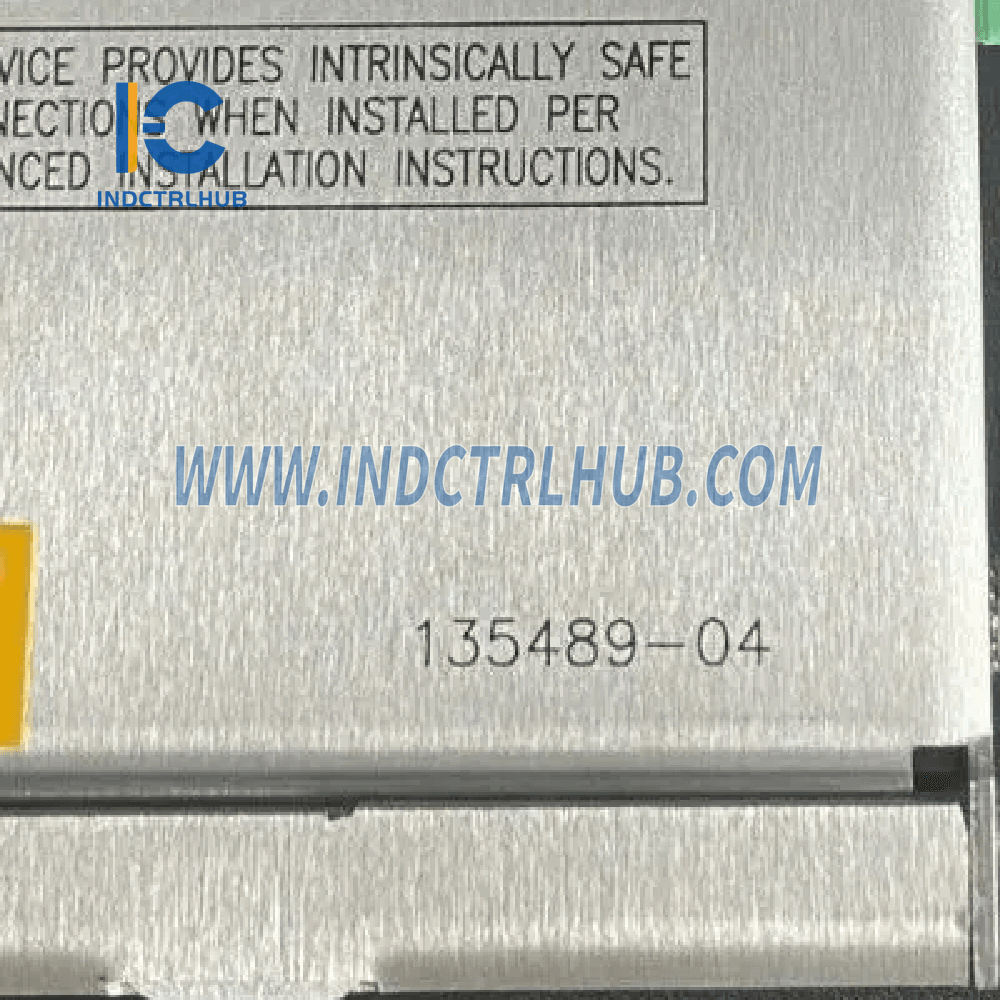

Product No.: 135489-04
Condition:1000 in stock
Product Type: Proximitor I/O Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 460g
Shipping port: Xiamen
Warranty: 12 months

Quantity

24/7 Support
30-Day Returns
Fast Shipping

Product Details

Manufacturer: Bently Nevada
Series: 3500/40
Model/Part Number: 135489-04
Model Type: Proximitor I/O Module with Internal Barriers and Internal Terminations

Description

The 3500/40M Proximitor Monitor is a four-channel monitor that accepts input from Bently Nevada proximity transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The monitor can be programmed with the 3500 Rack Configuration Software to perform the following functions:

Radial vibration
Eccentricity
REBAM
Thrust position
Differential expansion

Specifications

Inputs

Signal: Accepts from 1 to 4 proximity transducer signals
Power Consumption: 7.7 Watts (typical)
Input Impedance:
- Standard I/O: 10 kΩ
- Proximitor and acceleration inputs
Sensitivity:
- Radial Vibration: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
- Thrust: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
- Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
- Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil)
- REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil)

Outputs

Front Panel LEDs:
- OK LED: Indicates when the 3500/40M SIL Proximitor is operating properly
- TX/RX LED: Indicates communication with other modules in the 3500 rack
- Bypass LED: Indicates when the 3500/40M SIL Proximitor is in Bypass Mode
Buffered Transducer Outputs:
- Each channel has one coaxial connector, short-circuit protected
- Output Impedance: 550 Ω
- Transducer Power Supply: -24 Vdc

Environmental Limits

Operating Temperature

With Internal/External Termination I/O Module: -30°C to +65°C (-22°F to +150°F)
With Internal Barrier I/O Module (Internal Termination): 0°C to +65°C (32°F to +150°F)

Dimensions

I/O Modules (non-barrier):
- 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
- Weight: 0.20 kg (0.44 lb)
I/O Modules (barrier):
- 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in)
- Weight: 0.46 kg (1.01 lb)

Ordering Information

Part Number: 3500/40M-AA-BB
- A: I/O Module Type
  - 01: Proximitor I/O Module with Internal Termination
  - 02: Proximitor I/O Module with External Terminations
  - 03: Proximitor I/O Module with Internal Barriers and Internal Terminations
- B: Hazardous Area Approval Option
  - 00: None
  - 01: cNRTLus (Class 1, Division 2)
  - 02: ATEX / IECEx / CSA (Class 1, Zone 2)
