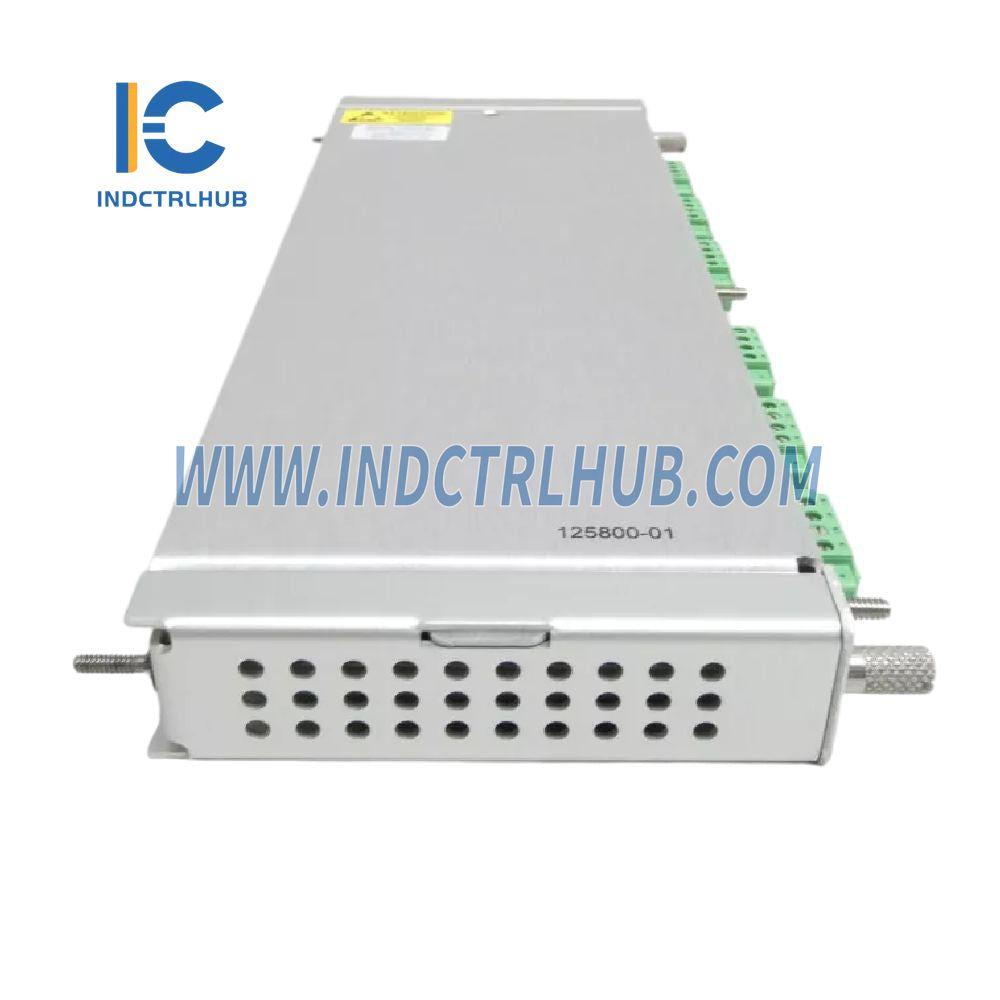

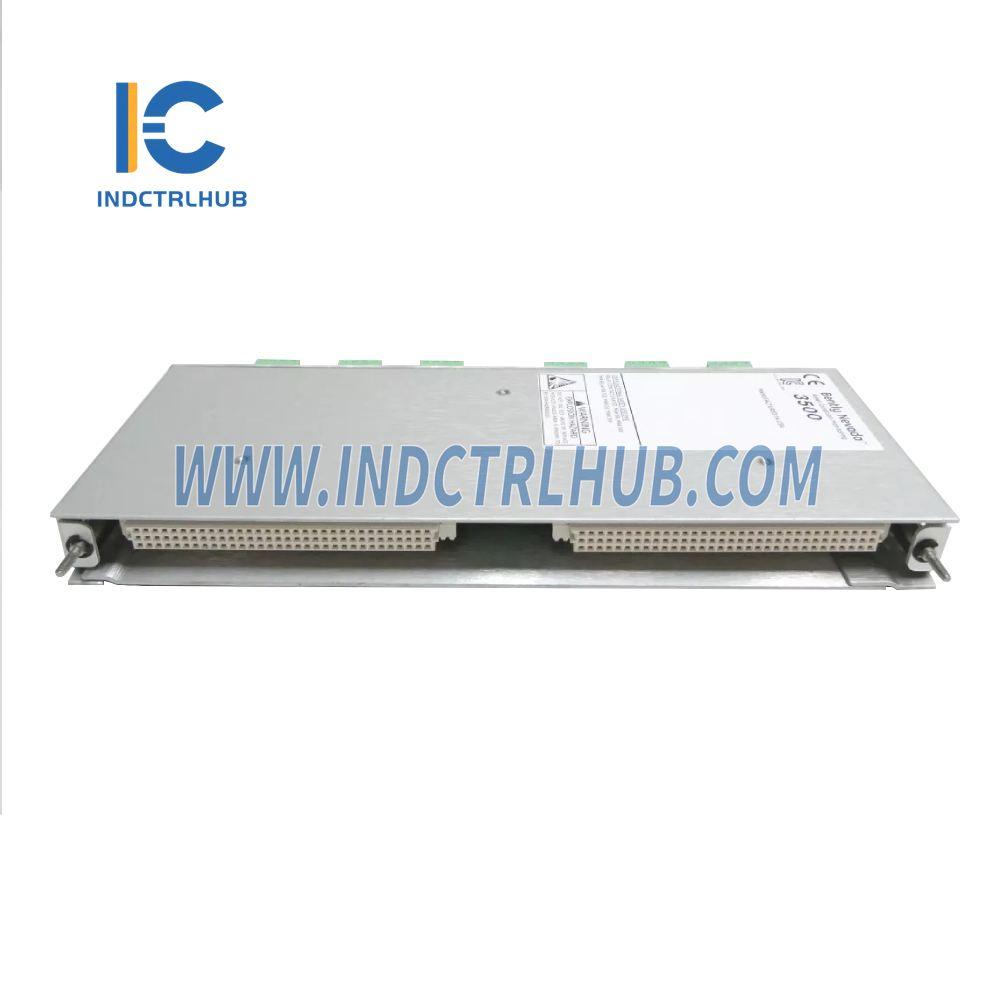

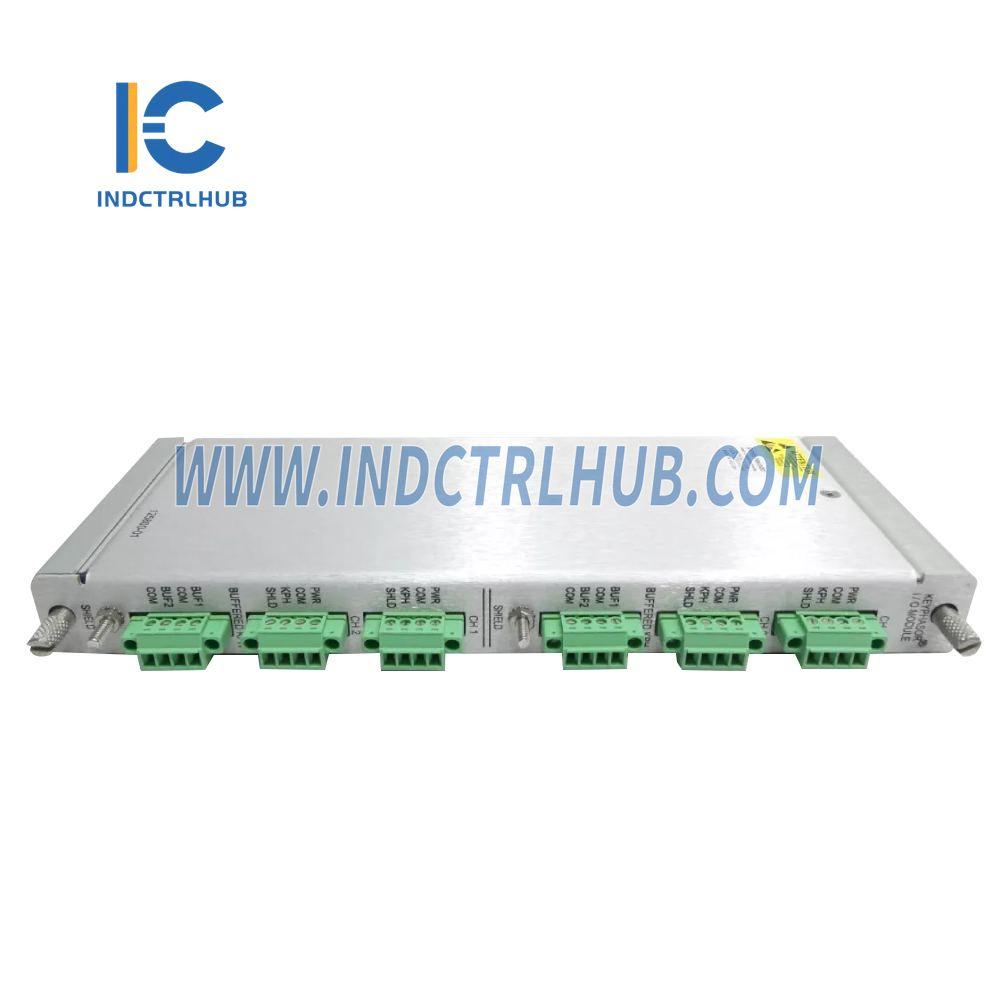

Bently Nevada 3500/25 125800-01 Keyphasor I/O Module (Internal Terminations)

Bently Nevada 3500/25 125800-01 Keyphasor I/O Module (Internal Terminations)

  • Manufacturer: Bently Nevada

  • Product No.: 125800-01

  • Condition:1000 in stock

  • Product Type: Keyphasor I/O Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 460g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Model/Part Number: 3500/25 125800-01
  • Description: Keyphasor I/O Module (Internal Terminations)

Specifications

Inputs

  • Power Consumption: 3.2 Watts typical
  • Signal:
    • Each Keyphasor Module accepts up to two transducer signals from proximity probe transducers or magnetic pickups.
    • Input Signal Range:
      • +0.8 V to -21.0 V (Non-Isolated I/O modules)
      • +5 V to -11 V (Isolated I/O modules)
    • Signals exceeding these ranges are internally limited by the module.
    • Passive magnetic pickups require a shaft rotative speed greater than 200 rpm (3.3 Hz).
  • Input Impedance: 21.8 kΩ minimum

Environmental Limits

Parameter Value
Operating Temperature -30°C to +65°C (-22°F to +150°F) for Keyphasor I/O Module (non-Barrier)
0°C to +65°C (32°F to +150°F) for Keyphasor Internal Barrier I/O Module
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95%, non-condensing

Physical Dimensions

Parameter Value
Dimensions (H x W x D) 241.3 mm x 24.4 mm x 103.1 mm (9.50 in x 0.96 in x 4.06 in)
Weight 0.46 kg (1.01 lbs.)
View full details

Product Description

Product Details

  • Manufacturer: Bently Nevada
  • Model/Part Number: 3500/25 125800-01
  • Description: Keyphasor I/O Module (Internal Terminations)

Specifications

Inputs

  • Power Consumption: 3.2 Watts typical
  • Signal:
    • Each Keyphasor Module accepts up to two transducer signals from proximity probe transducers or magnetic pickups.
    • Input Signal Range:
      • +0.8 V to -21.0 V (Non-Isolated I/O modules)
      • +5 V to -11 V (Isolated I/O modules)
    • Signals exceeding these ranges are internally limited by the module.
    • Passive magnetic pickups require a shaft rotative speed greater than 200 rpm (3.3 Hz).
  • Input Impedance: 21.8 kΩ minimum

Environmental Limits

Parameter Value
Operating Temperature -30°C to +65°C (-22°F to +150°F) for Keyphasor I/O Module (non-Barrier)
0°C to +65°C (32°F to +150°F) for Keyphasor Internal Barrier I/O Module
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95%, non-condensing

Physical Dimensions

Parameter Value
Dimensions (H x W x D) 241.3 mm x 24.4 mm x 103.1 mm (9.50 in x 0.96 in x 4.06 in)
Weight 0.46 kg (1.01 lbs.)
