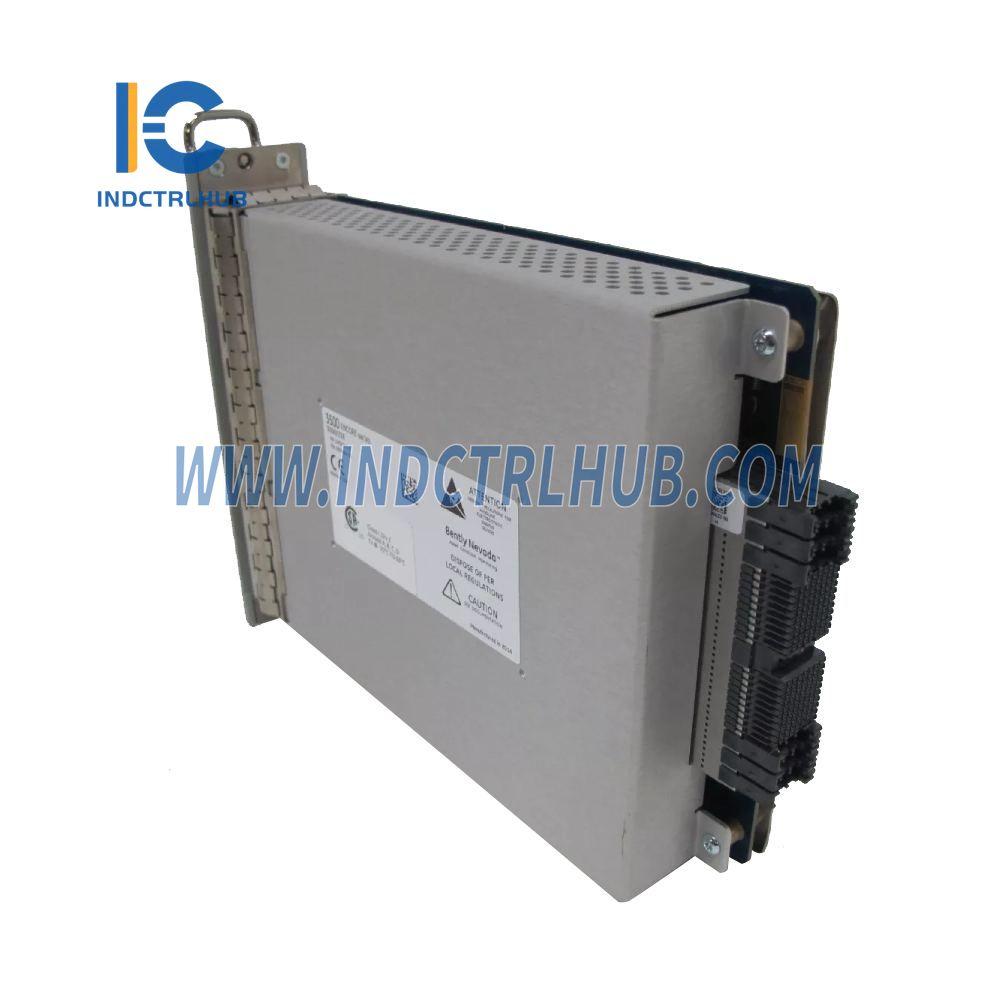

Bently Nevada 3500/23E Transient Data Interface

Product Details

Description

The 3500/23E Transient Data Interface (TDI) is an interface between the 3500 ENCORE monitoring system and GE’s System 1 condition monitoring and diagnostic software. It combines the capabilities of a System Monitor with the data collection functionality of a communication processor.

Specifications

Inputs:

• Power Consumption: TBD
• Data Front Panel:
  • Ethernet: 2 Ports (10Base-T or 100Base-TX), autosensing.
• Rear I/O:
  • Serial Communication:
    • 115.2 kbaud maximum (RS232 or RS422 serial communications).
    • 1200 baud minimum rate supported.
  • Ethernet:
    • 10Base-T Ethernet, autosensing.

Outputs:

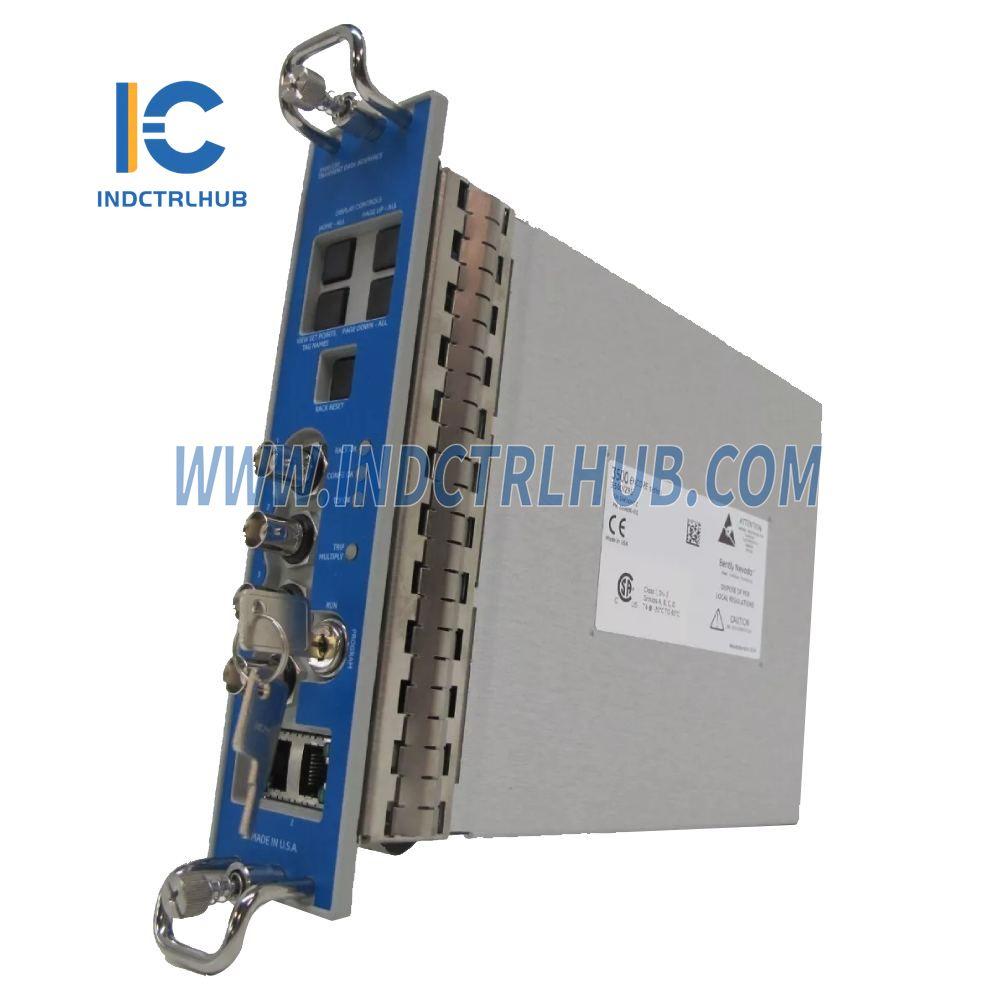

• Front Panel LEDs:
  • Rack OK LED: Indicates when the 3500 ENCORE system is operating properly.
  • TDI OK LED: Indicates when the 3500/23E is operating properly.
  • TM LED: Indicates when the 3500 ENCORE system is in Trip Multiply mode.
  • CONFIG OK LED: Indicates that the 3500 ENCORE system has a valid configuration.
• I/O Module OK Relay:
  • Relay to indicate when the 3500 ENCORE system is operating normally or when a fault has been detected within the rack.
  • User can select either an “OPEN” or “CLOSED” contact to indicate a NOT OK condition. This relay always operates as “Normally Energized”.
• OK Relay: Specifications in the 3300/12 or 3300/14 data sheet.

Physical Specifications

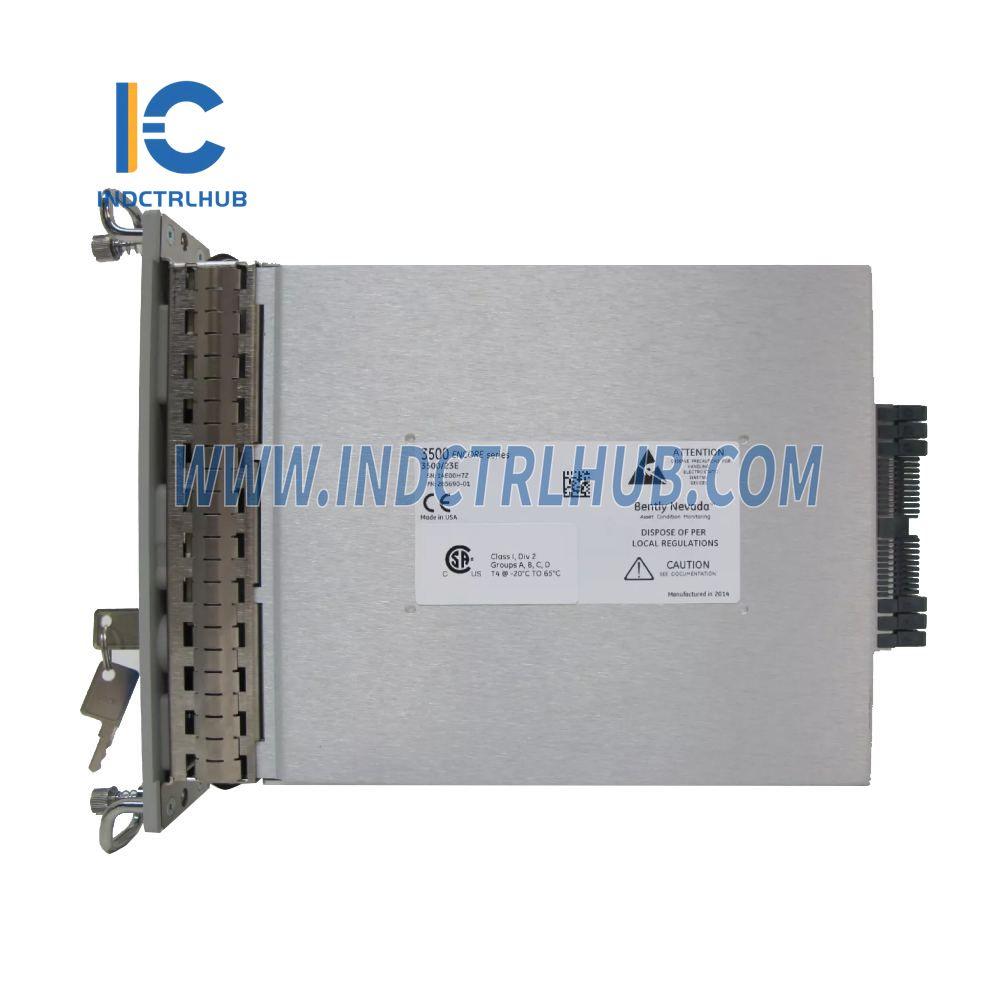

• TDI Module Dimensions:
  • Height: 228 mm (8.97 in)
  • Width: 50 mm (1.98 in)
  • Depth: 289 mm (11.39 in)
• Weight: 1.45 kg (3.2 lb)

Ordering Information

Download PDF file here:
