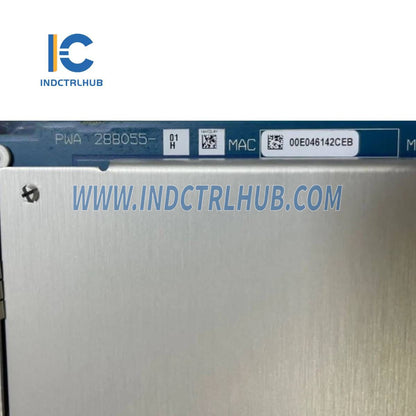

Bently Nevada 3500/22M 288055-01+146031-01 Transient Data Interface Module

Bently Nevada 3500/22M 288055-01+146031-01 Transient Data Interface Module

  • Manufacturer: Bently Nevada

  • Product No.: 3500/22M 288055-01+146031-01

  • Condition:1000 in stock

  • Product Type: Transient Data Interface Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3500/22M
  • Model/Part Number: 3500/22M 288055-01 + 146031-01
  • Model Type: Transient Data Interface Module

Spares

  • 288055-01: Standard Transient Data Interface Module with USB cable
  • 146031-01: 10Base-T/100Base-TX I/O Module

Description

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software. It works with System 1 Condition Monitoring and Diagnostic Software as well as 3500 System Configuration Software. The TDI combines the functionality of a 3500/20 Rack Interface Module (RIM) with the data collection capabilities of a communication processor such as TDXnet.

I/O Module Signal Common Terminal

Both versions of the TDI I/O Module now include a 2-pin connector. This is used for connecting Signal Common to a single point Instrument Ground for the rack. The selector switch on the side of the Power Input Module (PIM) must be set to the "HP" position to isolate Signal Common from the chassis ground.

Static Values Data

  • TDI will collect static values, including values measured by the monitors.
  • Four nX static values are provided for each point. Amplitude and phase are returned for each value.

Communications

Protocols

  • BN Host Protocol: For communication with 3500 Configuration Software, 3500 Data Acquisition Software, and 3500 Display Software.
  • BN TDI Protocol: For communication with System 1 Condition Monitoring and Diagnostic Software.

10Base-T / 100Base-TX Ethernet I/O Communications

  • Ethernet standards: 10Base-T and 100Base-TX, conforming to IEEE802.3.
  • Protocol Supported: BN Host Protocol and BN TDI Protocol using Ethernet TCP/IP.
  • Connection Type: RJ-45 (telephone jack style) for 10Base-T/100Base-TX Ethernet cabling.
  • Cable Length: Maximum of 100 meters (328 feet).

100 Base-FX Ethernet I/O Communications

  • Ethernet standard: 100Base-FX Fiber Optic, full duplex multimode, conforming to IEEE802.3u.
  • Protocol Supported: BN Host Protocol and BN TDI Protocol using Ethernet TCP/IP.
  • Connection Type: MT-RJ Male Fiber Optic connector for 100 Base-FX cabling.
  • Cable Length: Maximum of 2000 meters (6560 feet), multimode fiber optic cable.

Environmental Limits

Feature Specification
Operating Temperature -30°C to +65°C (-22°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95%, non-condensing

Physical Specifications

TDI Module

Feature Specification
Dimensions (H x W x D) 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
Weight 0.91 kg (2.0 lbs)

I/O Modules

Feature Specification
Dimensions (H x W x D) 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
Weight 0.20 kg (0.44 lbs)

Ordering Information

  • Model: 3500/22M TDI Module and I/O
  • Part Number Format: 3500/22-AA-BB-CC

A: Transient Data Interface Type

Option Description
01 Standard (use for standard monitoring applications)

B: I/O Module Type

Option Description
01 10Base-T/100Base-TX Ethernet
02 100Base-FX (Fiber Optic) Ethernet
03 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts
04 100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts

C: Agency Approval

Option Description
00 None
01 CSA/NRTL/C (Class 1, Division 2)
02 Multi (CSA, ATEX, IECEx)
View full details

Product Description

Product Details

  • Manufacturer: Bently Nevada
  • Series: 3500/22M
  • Model/Part Number: 3500/22M 288055-01 + 146031-01
  • Model Type: Transient Data Interface Module

Spares

  • 288055-01: Standard Transient Data Interface Module with USB cable
  • 146031-01: 10Base-T/100Base-TX I/O Module

Description

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software. It works with System 1 Condition Monitoring and Diagnostic Software as well as 3500 System Configuration Software. The TDI combines the functionality of a 3500/20 Rack Interface Module (RIM) with the data collection capabilities of a communication processor such as TDXnet.

I/O Module Signal Common Terminal

Both versions of the TDI I/O Module now include a 2-pin connector. This is used for connecting Signal Common to a single point Instrument Ground for the rack. The selector switch on the side of the Power Input Module (PIM) must be set to the "HP" position to isolate Signal Common from the chassis ground.

Static Values Data

  • TDI will collect static values, including values measured by the monitors.
  • Four nX static values are provided for each point. Amplitude and phase are returned for each value.

Communications

Protocols

  • BN Host Protocol: For communication with 3500 Configuration Software, 3500 Data Acquisition Software, and 3500 Display Software.
  • BN TDI Protocol: For communication with System 1 Condition Monitoring and Diagnostic Software.

10Base-T / 100Base-TX Ethernet I/O Communications

  • Ethernet standards: 10Base-T and 100Base-TX, conforming to IEEE802.3.
  • Protocol Supported: BN Host Protocol and BN TDI Protocol using Ethernet TCP/IP.
  • Connection Type: RJ-45 (telephone jack style) for 10Base-T/100Base-TX Ethernet cabling.
  • Cable Length: Maximum of 100 meters (328 feet).

100 Base-FX Ethernet I/O Communications

  • Ethernet standard: 100Base-FX Fiber Optic, full duplex multimode, conforming to IEEE802.3u.
  • Protocol Supported: BN Host Protocol and BN TDI Protocol using Ethernet TCP/IP.
  • Connection Type: MT-RJ Male Fiber Optic connector for 100 Base-FX cabling.
  • Cable Length: Maximum of 2000 meters (6560 feet), multimode fiber optic cable.

Environmental Limits

Feature Specification
Operating Temperature -30°C to +65°C (-22°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity 95%, non-condensing

Physical Specifications

TDI Module

Feature Specification
Dimensions (H x W x D) 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
Weight 0.91 kg (2.0 lbs)

I/O Modules

Feature Specification
Dimensions (H x W x D) 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
Weight 0.20 kg (0.44 lbs)

Ordering Information

  • Model: 3500/22M TDI Module and I/O
  • Part Number Format: 3500/22-AA-BB-CC

A: Transient Data Interface Type

Option Description
01 Standard (use for standard monitoring applications)

B: I/O Module Type

Option Description
01 10Base-T/100Base-TX Ethernet
02 100Base-FX (Fiber Optic) Ethernet
03 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts
04 100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts

C: Agency Approval

Option Description
00 None
01 CSA/NRTL/C (Class 1, Division 2)
02 Multi (CSA, ATEX, IECEx)

Download PDF file here:

Click to Download PDF
