Product Description
Product Details
Manufacturer: Bently Nevada
Series: 3500/22

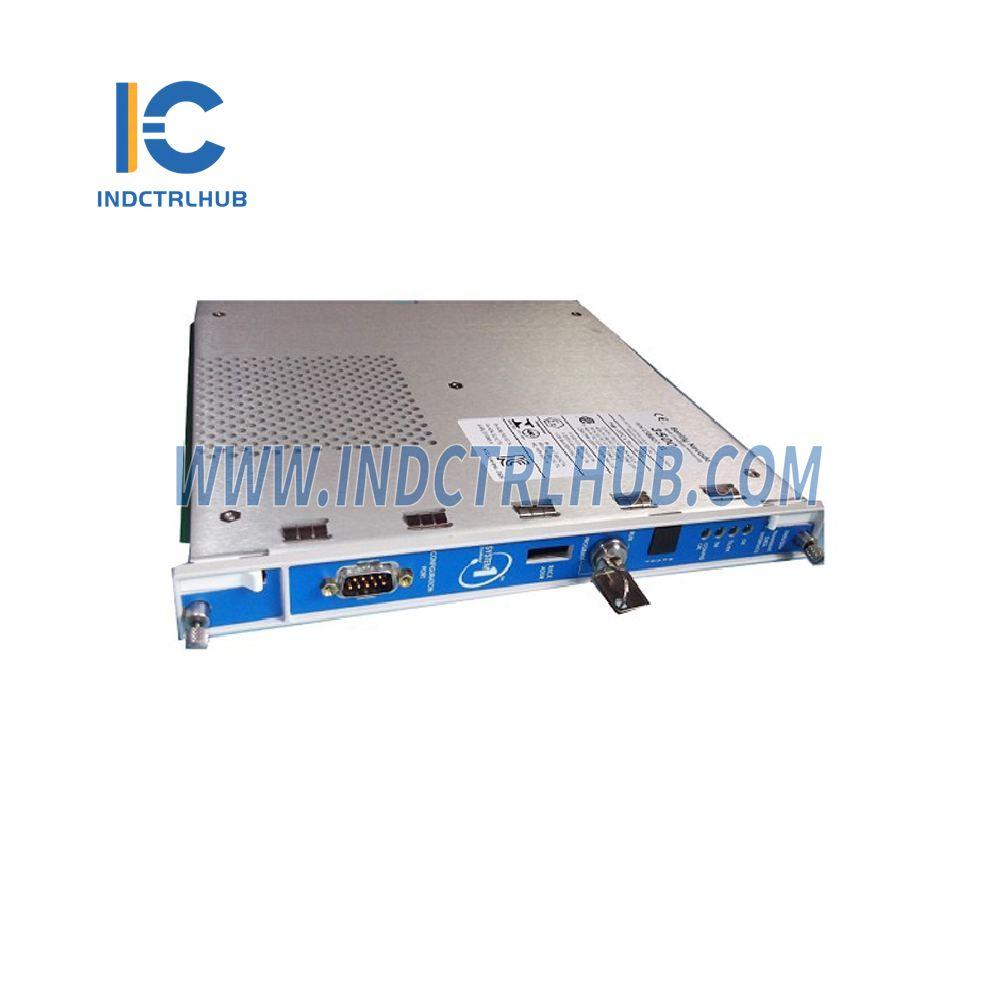

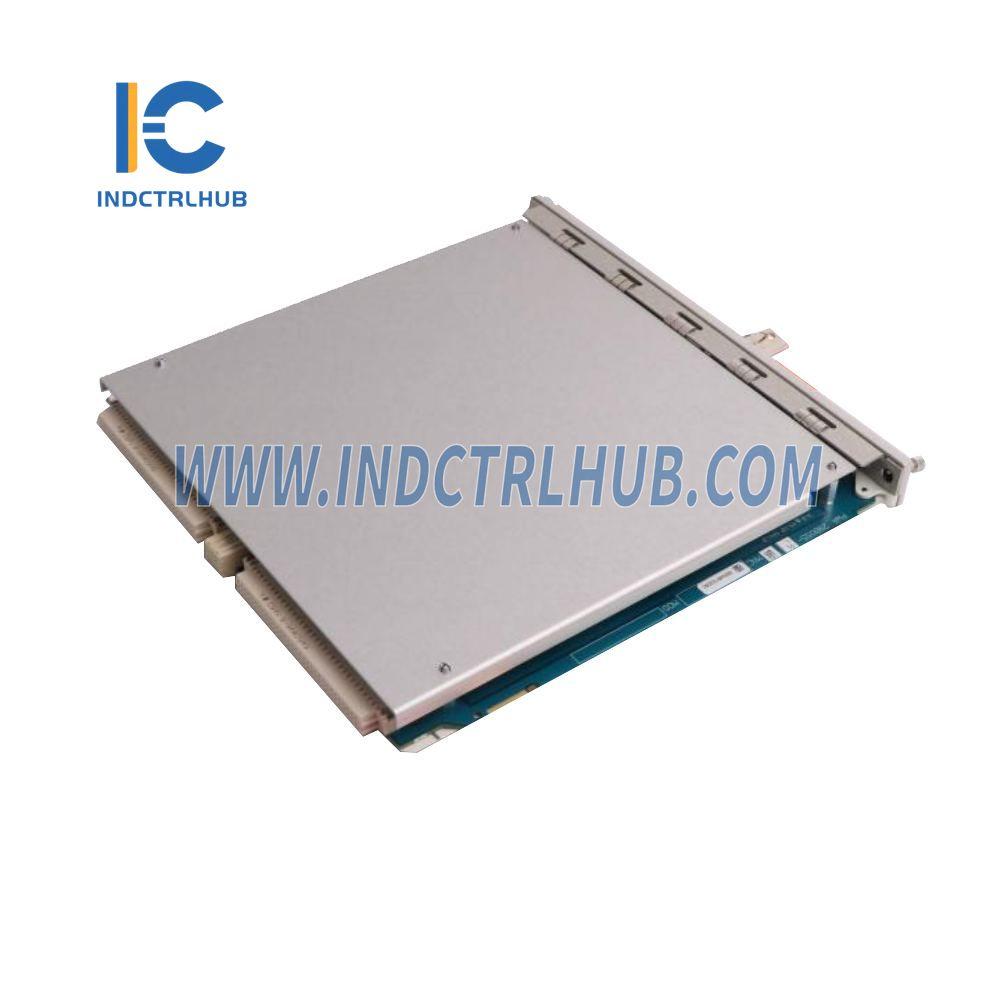

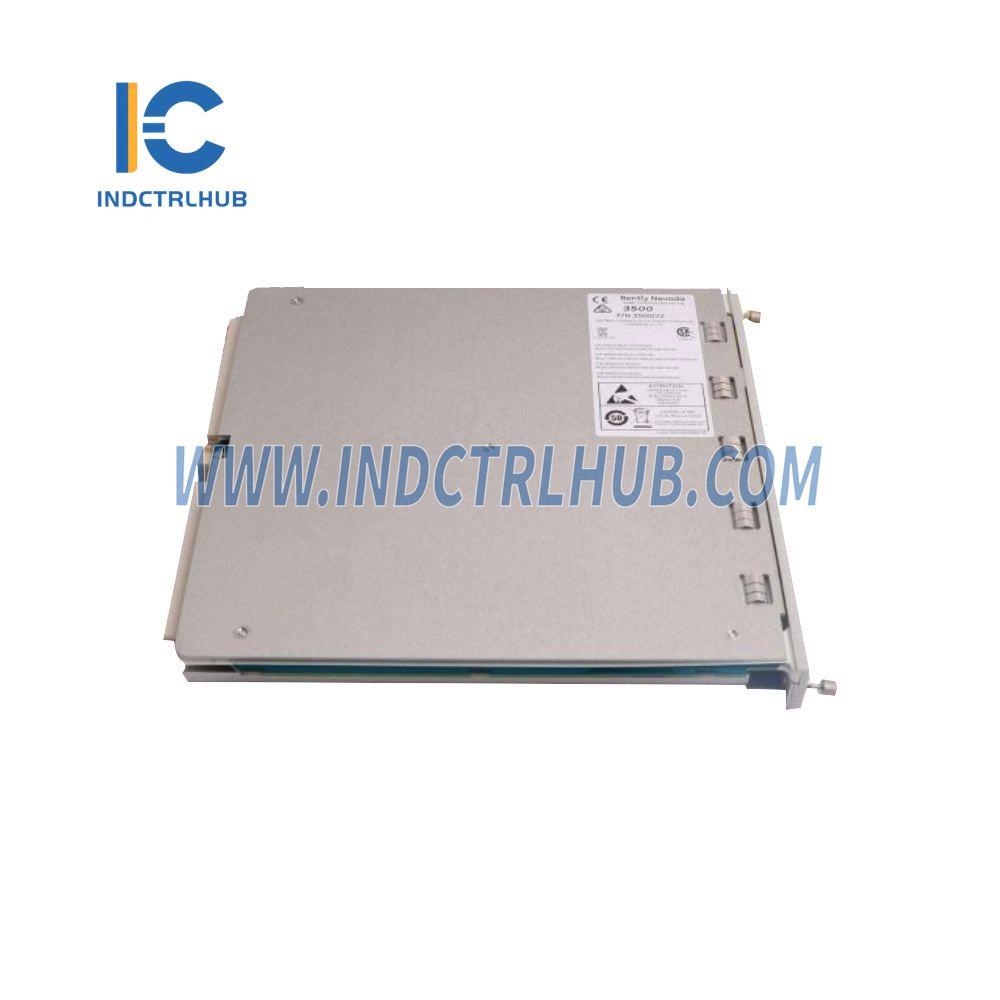

Model/Part Number: 3500/22-02-00
Model Type: Transient Data Interface Module
Description
The 3500/22M Transient Data Interface (TDI) acts as the communication interface between the 3500 Monitoring System and compatible software applications such as System 1 Condition Monitoring and Diagnostic Software, as well as 3500 System Configuration Software. The TDI combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors like TDXnet.
Environmental Limits
| Parameter | Range |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Physical Specifications
| Component | Dimensions (H x W x D) | Weight |
|---|---|---|
| TDI Module | 241.3 mm x 24.4 mm x 241.8 mm | 0.91 kg (2.0 lbs) |
| (9.50 in x 0.96 in x 9.52 in) |
Ordering Information
The part number follows the format: 3500/22-AA-BB-CC
Field Breakdown
-
A: Transient Data Interface Type
- 01: Standard (for standard monitoring applications)
-
B: I/O Module Type
- 01: 10Base-T/100Base-TX Ethernet
- 02: 100Base-FX (Fiber Optic) Ethernet
- 03: 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts
- 04: 100Base-FX (Fiber Optic) Ethernet with gold-plated OK Relay contacts
-
C: Agency Approval
- 00: None
- 01: CSA/NRTL/C (Class 1, Division 2)
- 02: Multi (CSA, ATEX, IECEx)
