Product Description
Product Details
- Manufacturer: Bently Nevada
- Series: 3500/22

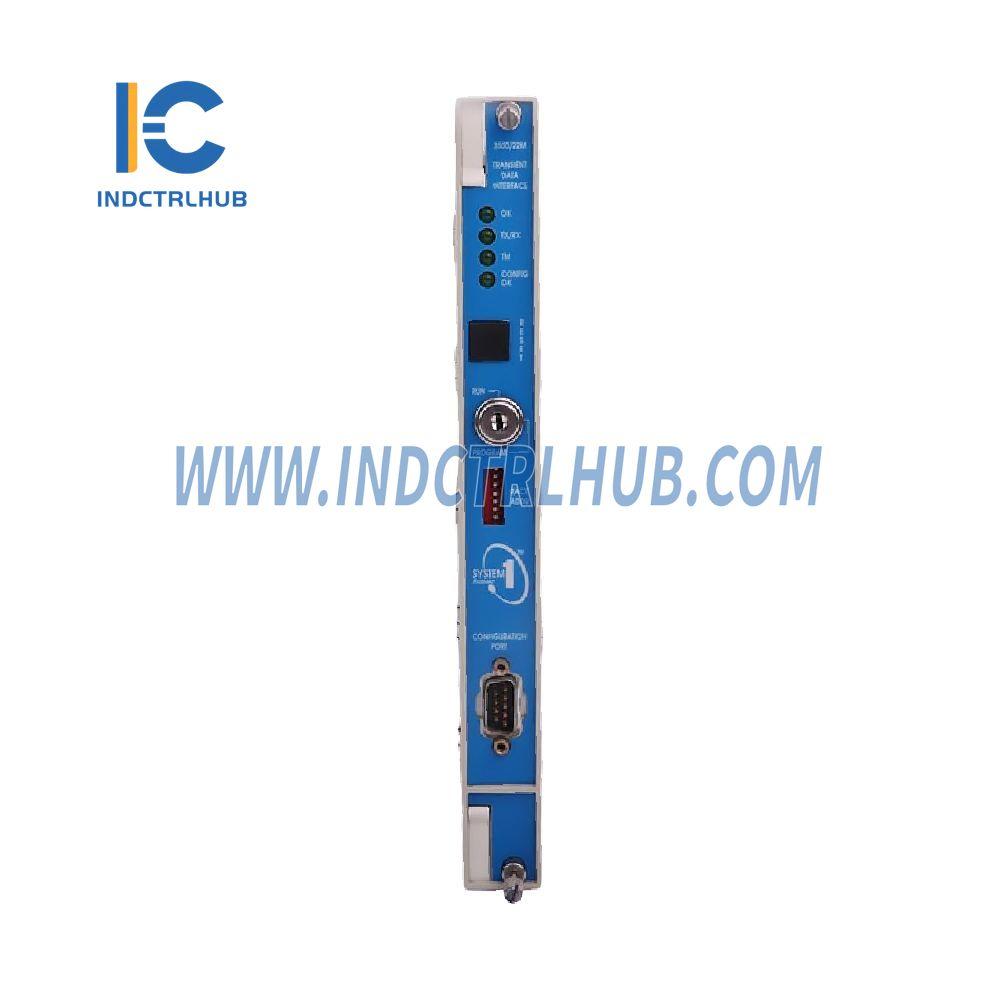

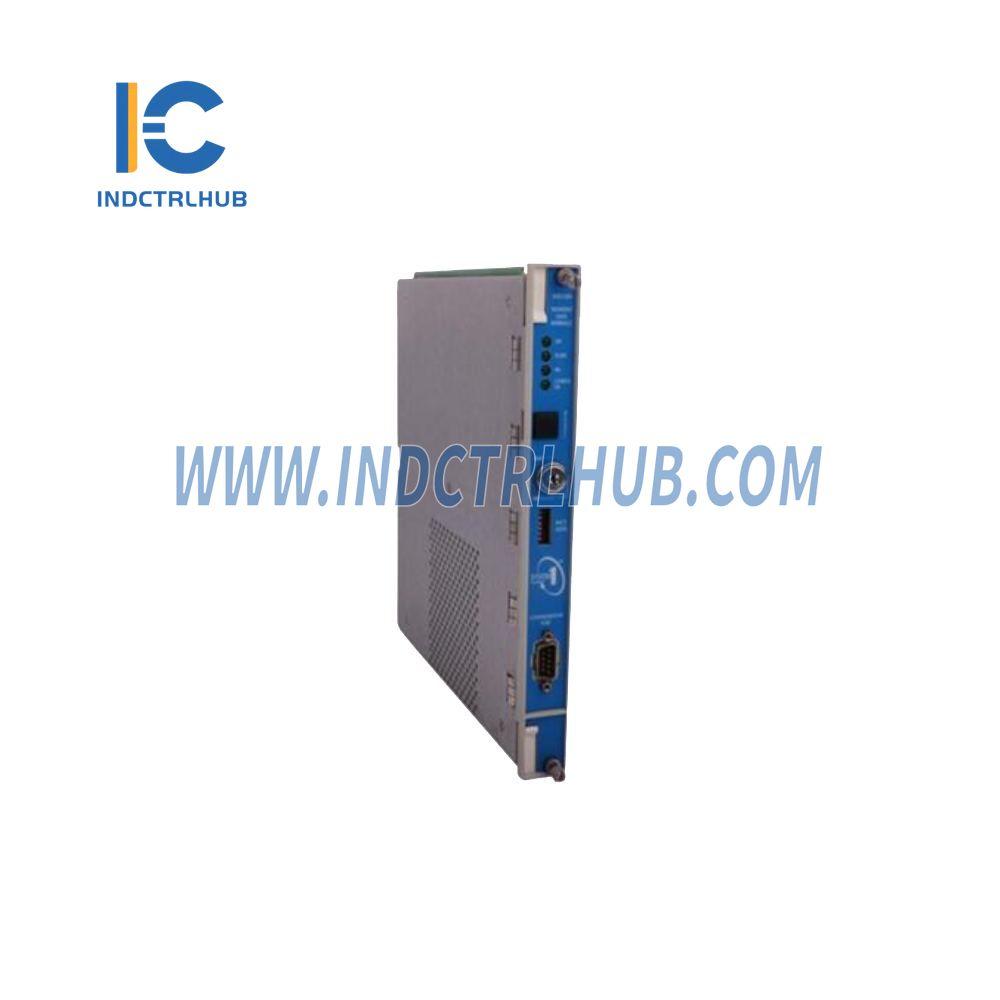

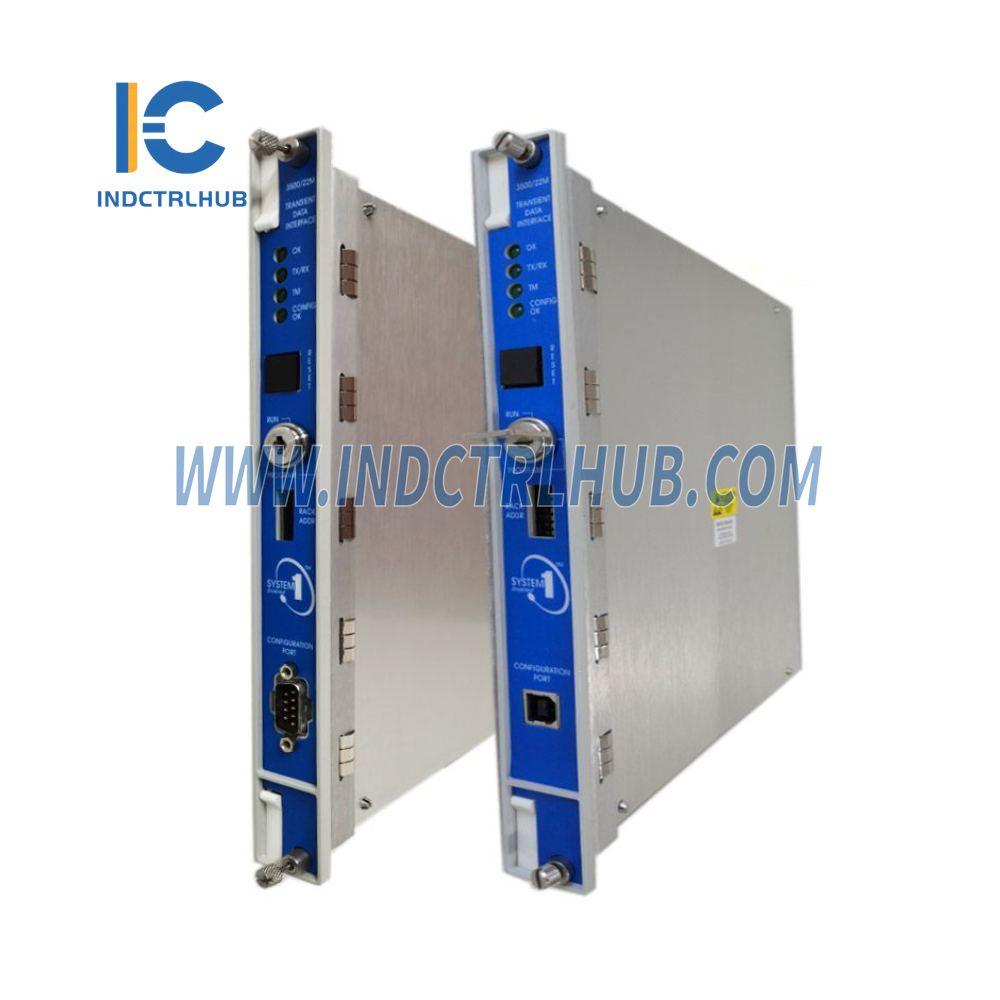

- Model/Part Number: 3500/22-01-03-00
- Model Type: Transient Data Interface (TDI) Module
Description
The 3500/22M Transient Data Interface (TDI) functions as the primary interface between the 3500 monitoring system and compatible software, such as System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software. The TDI integrates the capabilities of the 3500/20 Rack Interface Module (RIM) with the data collection functionalities of a communication processor, like TDXnet.
Environmental Limits
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: Up to 95%, non-condensing
Physical Specifications
- Dimensions (H x W x D): 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
- Weight: 0.91 kg (2.0 lbs)
Ordering Information
The part number format is 3500/22-AA-BB-CC, with the following configuration options:
-
A: Transient Data Interface Type
- 01: Standard (for standard monitoring applications)
-
B: I/O Module Type
- 01: 10Base-T/100Base-TX Ethernet
- 02: 100Base-FX (Fiber Optic) Ethernet
- 03: 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts
- 04: 100Base-FX (Fiber Optic) Ethernet with gold-plated OK Relay contacts
-
C: Agency Approval
- 00: None
- 01: CSA/NRTL/C (Class 1, Division 2)
- 02: Multi (CSA, ATEX, IECEx)
