Product Description
Product Details

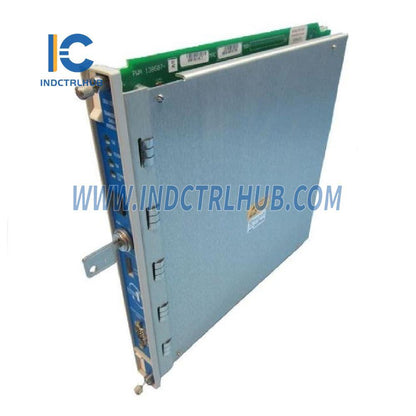

- Manufacturer: Bently Nevada
- Model/Part Number: 3500/22-01-01-01
- Description: TDI Module and I/O
Specifications
I/O Module Signal Common Terminal
- Both versions of the TDI I/O Module include a 2-pin connector for connecting Signal Common to a single point Instrument Ground for the rack.
- When this is done, the selector switch on the side of the Power Input Module (PIM) must be slid in the direction of the arrow marked "HP" to isolate Signal Common from chassis (safety) ground.
Environmental Limits
| Attribute | Details |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Battery Life | Powered TDI: 38 years @ 50°C (122°F) Unpowered TDI: 12 years @ 50°C (122°F) |
Physical
| Attribute | Details |
|---|---|
| TDI Module Dimensions | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.91 kg (2.0 lbs)TDI Module and I/O |
| I/O Modules Dimensions | 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| Weight | 0.20 kg (0.44 lbs) |
| Rack Space Requirements |
TDI Module: 1 full-height front slot I/O Modules: 1 full-height rear slot |
Ordering Information
| Attribute | Details |
|---|---|
| A: Transient Data Interface Type | 01: Standard (use for standard monitoring applications) |
| B: I/O Module Type | 01: 10Base-T/100Base-TX Ethernet 02: 100Base-FX (Fiber Optic) Ethernet 03: 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts 04: 100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts |
| C: Agency Approval | 00: None 01: CSA/NRTL/C (Class 1, Division 2) 02: Multi (CSA, ATEX, IECEx) |
