Product Description
Product Details
| Manufacturer | Bently Nevada |
|---|---|
| Series | 3500/22 |
| Model/Part Number | 3500/22-01-00 |
| Model Type | Transient Data Interface Module |
Description

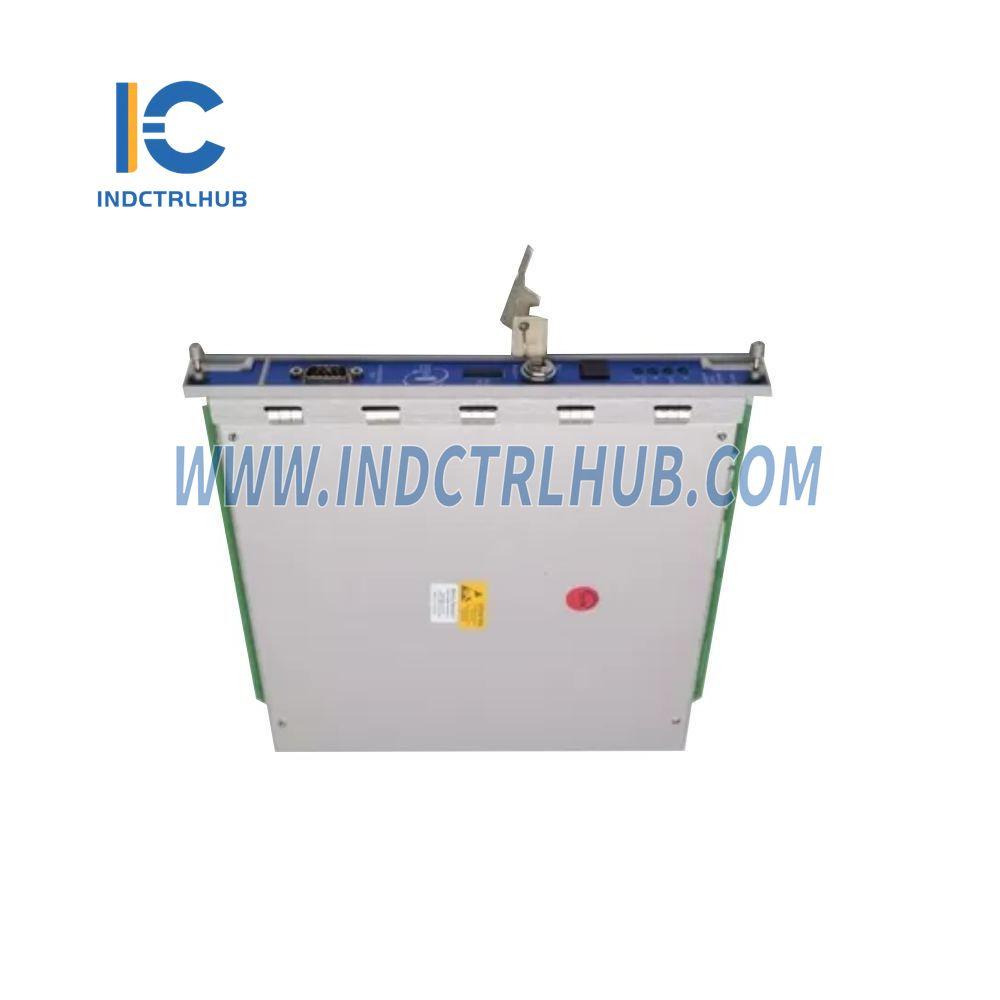

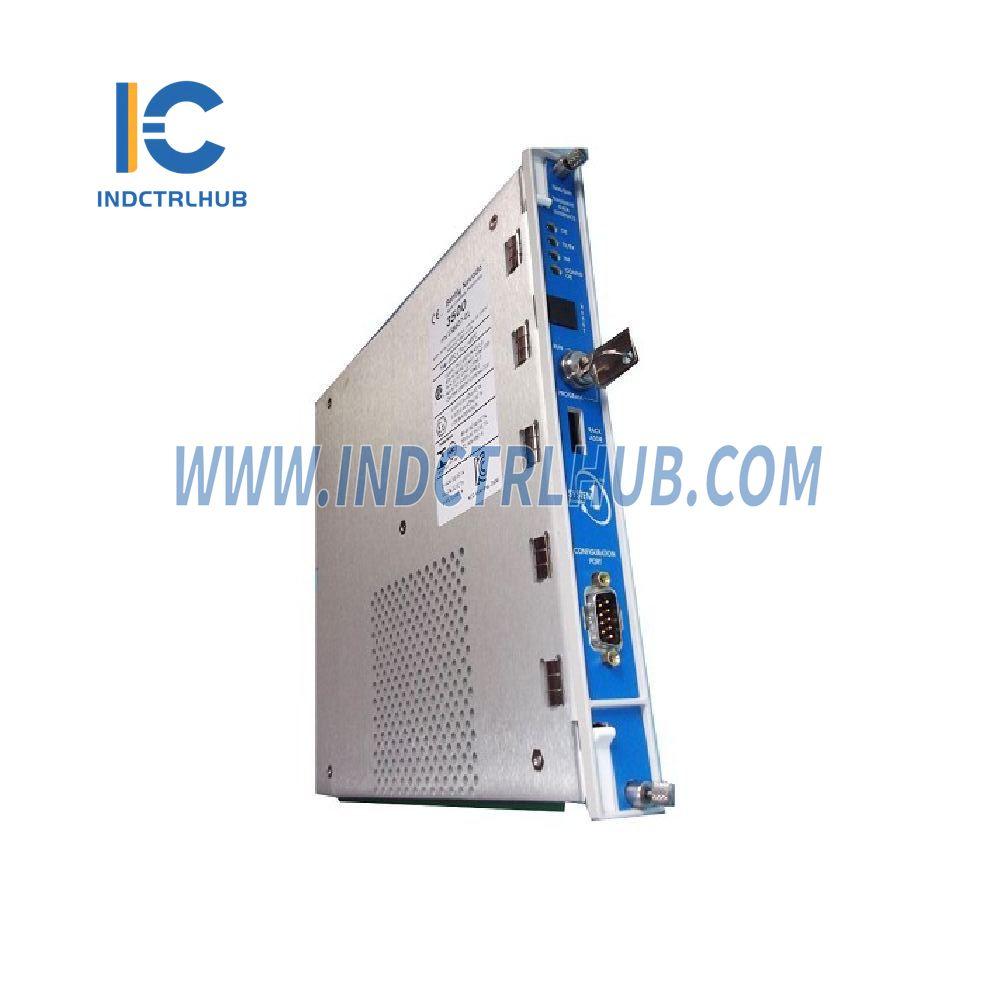

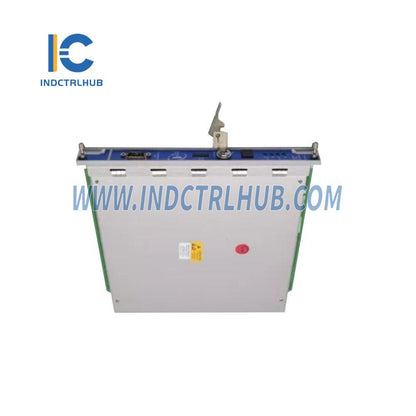

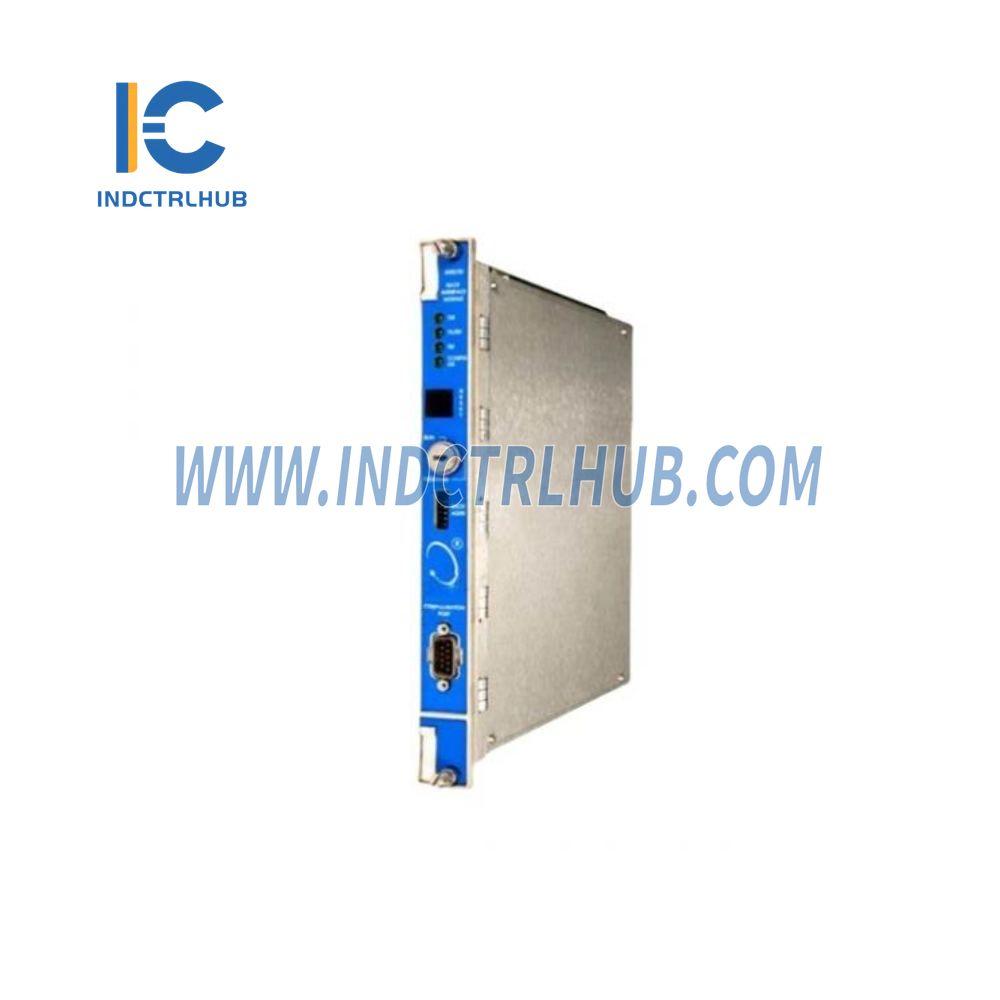

The 3500 Transient Data Interface (TDI) serves as the interface between the 3500 monitoring system and GE’s System 1 machinery management software. It combines the functionality of the 3500/20 Rack Interface Module (RIM) with advanced data collection capabilities of a communication processor like TDXnet.
-
Primary Features:
- Operates in the RIM slot of a 3500 rack, working in conjunction with M series monitors (e.g., 3500/40M, 3500/42M).
- Continuously collects steady-state and transient waveform data, passing it through an Ethernet link to host software.
- Static data capture is standard, while dynamic/transient data capture is available via an optional Channel Enabling Disk.
- Acts as the communication processor within the 3500 rack, offering enhanced performance over previous communication processors.
- The TDI is non-critical to the normal operation of the system, meaning it does not affect the proper functioning of the monitoring system.
- Every 3500 rack requires either a TDI or RIM, always installed in Slot 1 (next to the power supplies).
For Triple Modular Redundant (TMR) configurations, the TDI includes additional functionality:
- Performs monitor channel comparison, ensuring that the data from three redundant monitors is consistent.
- If one monitor's output deviates from the others by a configured threshold, the TDI flags an error and records an event.
Ordering Information
| Part Number Format | 3500/22-AXX-BXX-CXX |
|---|---|
| A: Transient Data Interface Type | 01: Standard (for standard monitoring applications) |
| 02: TMR (for Triple Modular Redundant Configuration) | |
| B: I/O Module Type | 01: 10Base-T/100Base-TX Ethernet I/O Module |
| 02: 100Base-FX (Fiber Optic) Ethernet I/O Module | |
| C: Agency Approval Option | 00: None |
| 01: CSA/NRTL/C | |
| 02: CSA/ATEX |
