Product Description
Product Details

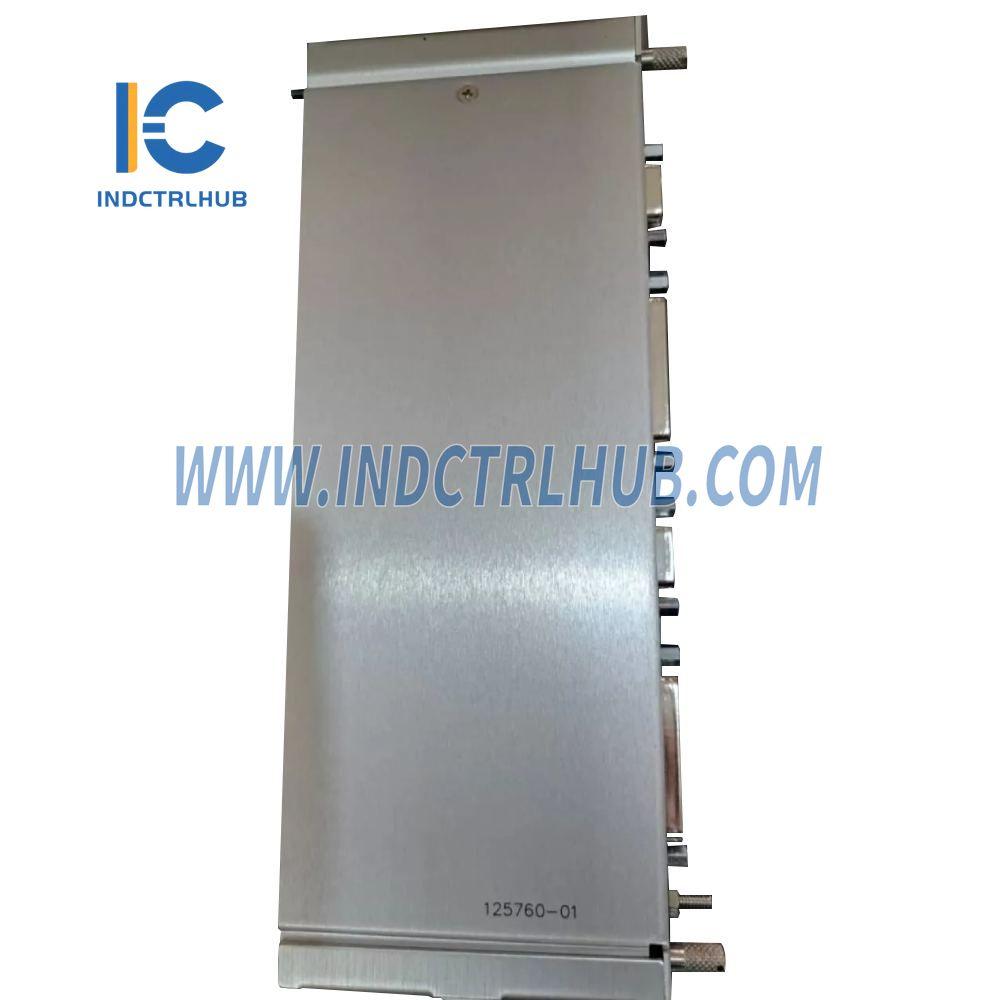

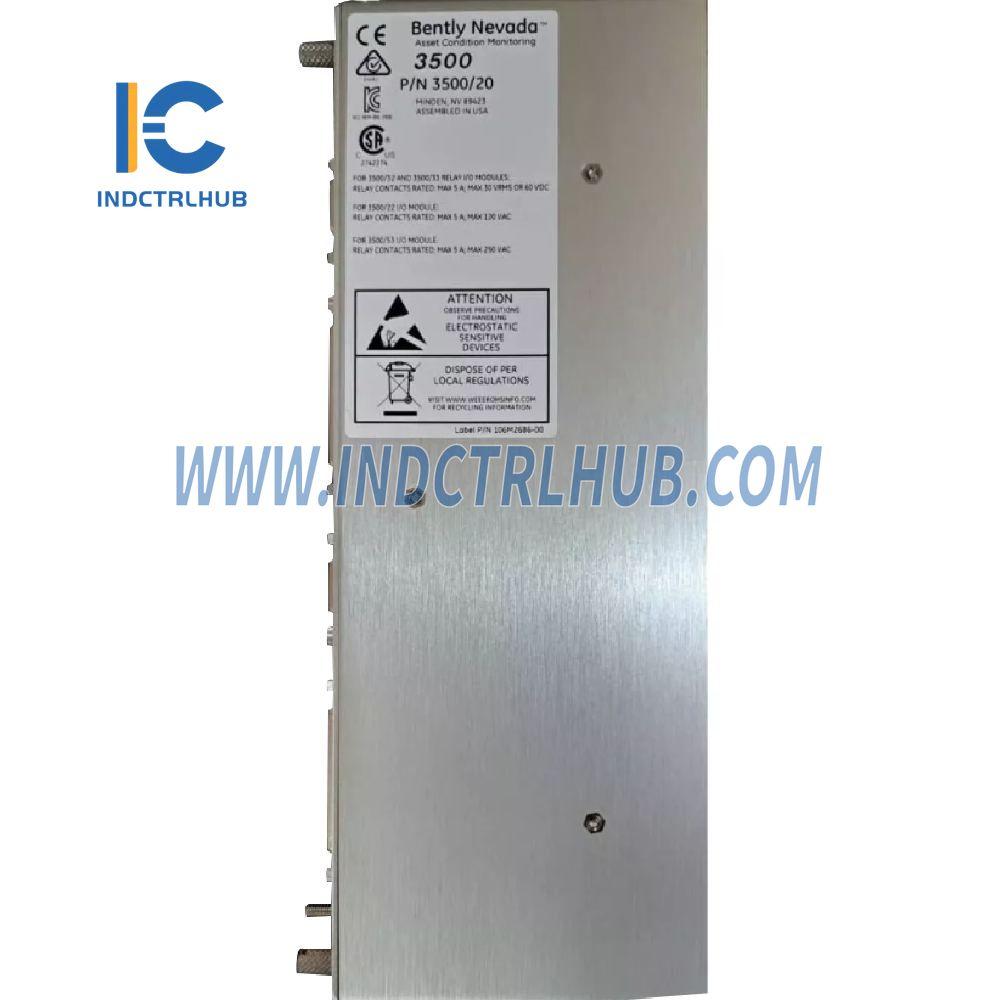

- Manufacturer: Bently Nevada
- Model/Part Number: 3500/20 125760-01
- Description: Data Manager I/O Module
Specifications
Inputs
-
I/O Modules
-
Data Rate:
- 38.4 k baud maximum (serial communications)
- 14.4 k baud (internal modem communications)
-
I/O Module System Contacts:
- Trip Multiply: Used to place the 3500 rack in Trip Multiply.
- Alarm Inhibit: Used to inhibit all alarms in the 3500 rack.
- Rack Reset: Used to clear latched alarms and Timed OK Channel Defeat.
- Maximum Current: <1 mA DC, Dry Contact to Common.
-
Data Rate:
Communications
| Parameter | Description |
|---|---|

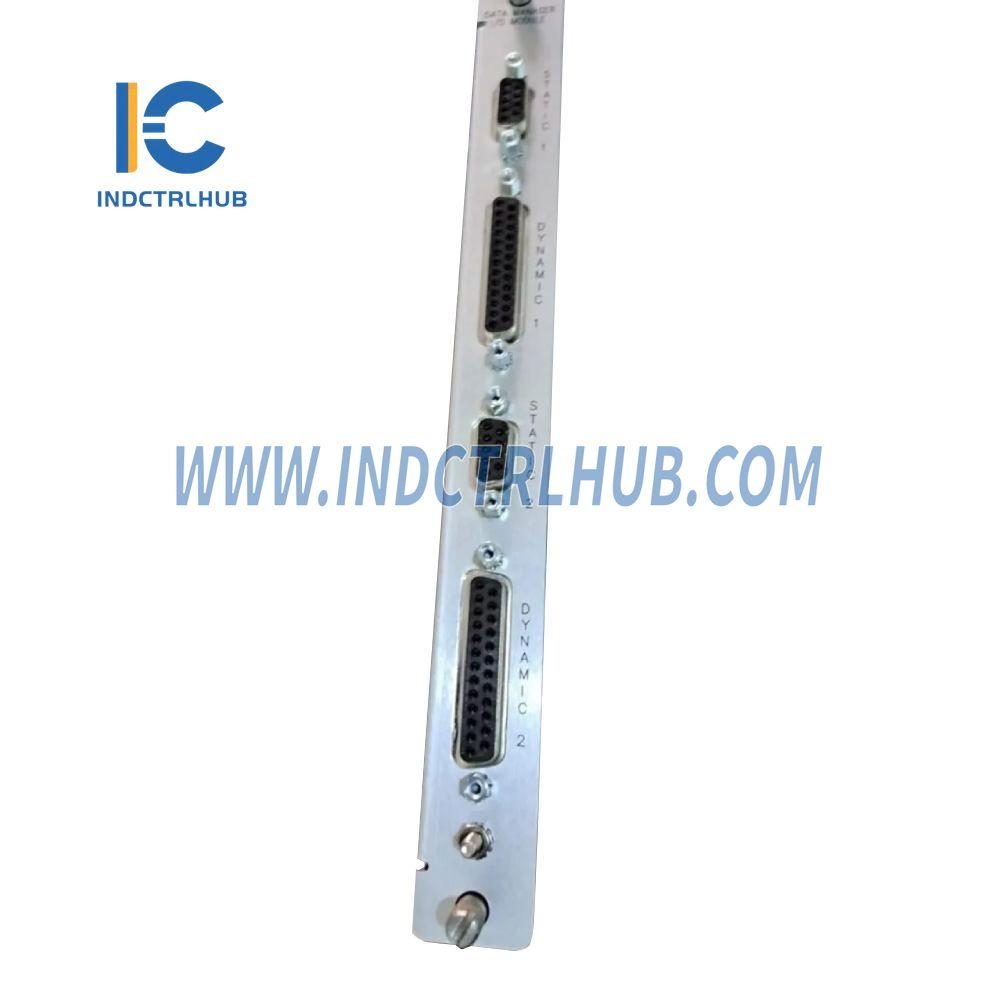

| Communication Ports | 2 sets (Data Manager I/O Module) |
| Protocol | Bently Nevada proprietary |
| Baud Rate | 9600 baud fixed |
| Purpose | Permits static and dynamic data collection by Bently Nevada |
| Interfaces | Transient Data Interface External or Dynamic Data Interface External |
| Cable Length | 3 meters (10 feet) maximum |
Environmental Limits
| Parameter | Value |
|---|---|
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Physical Dimensions
- Dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in. x 0.96 in. x 3.90 in.)
- Weight: 0.45 kg (1.0 lb.)
