Product Description
Product Overview

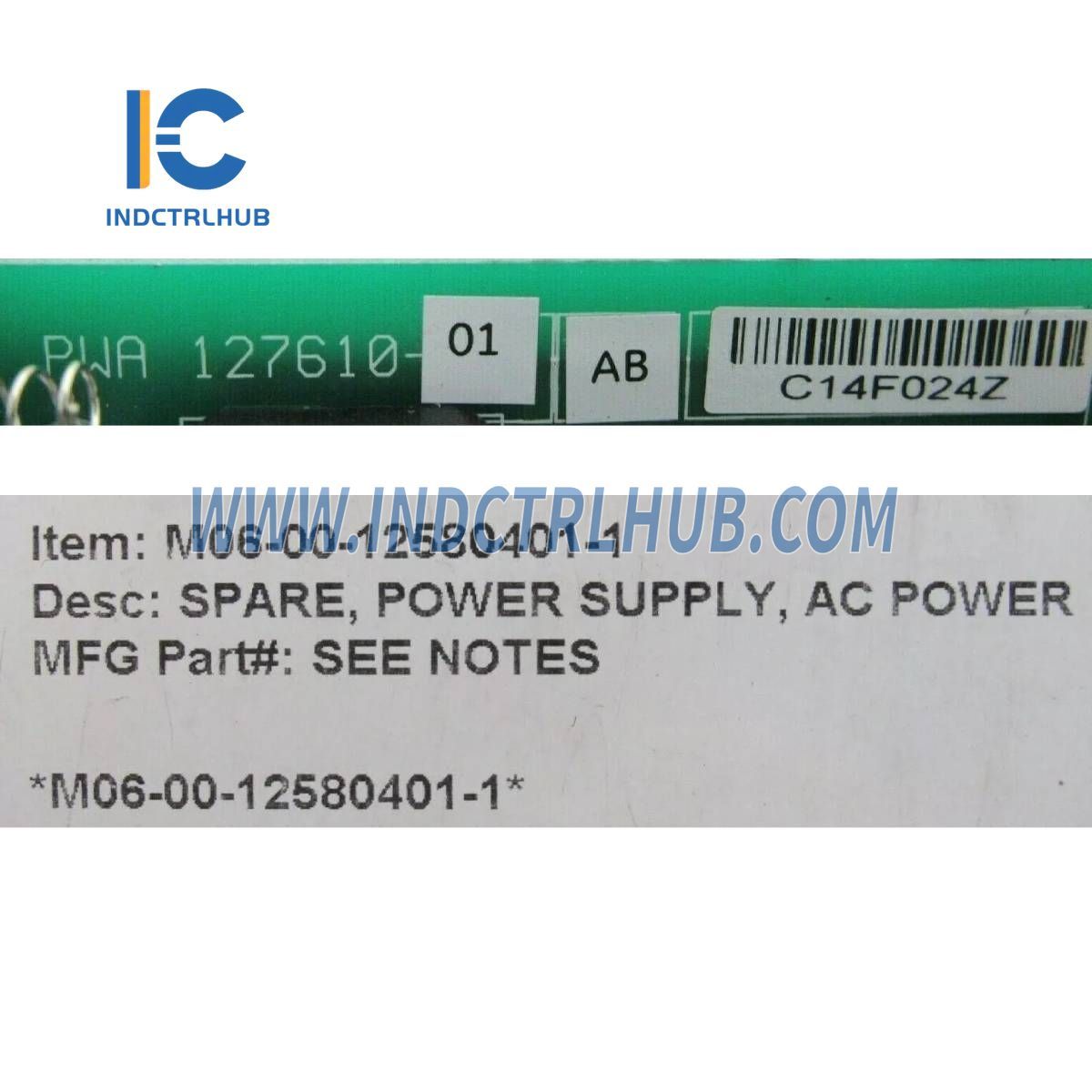

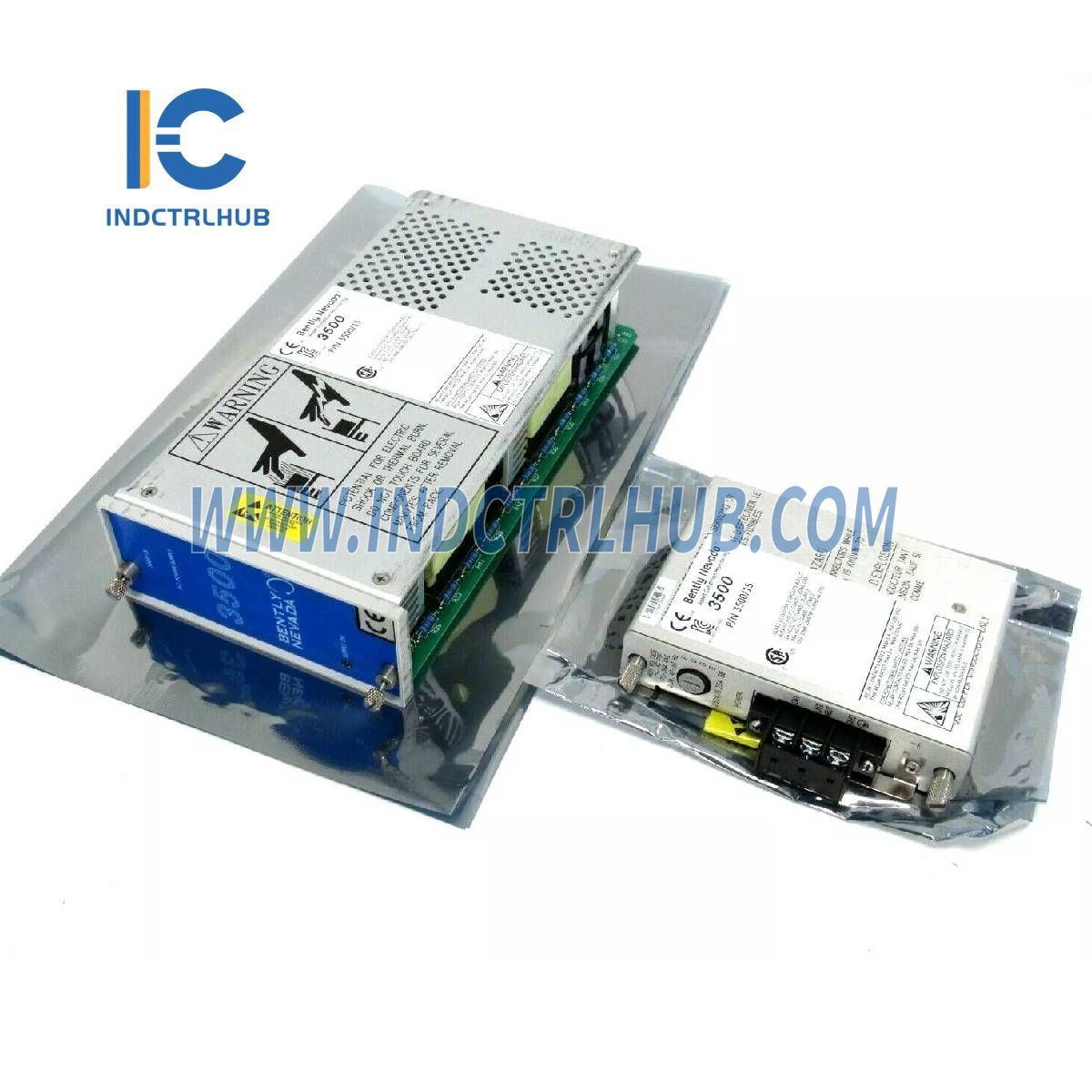

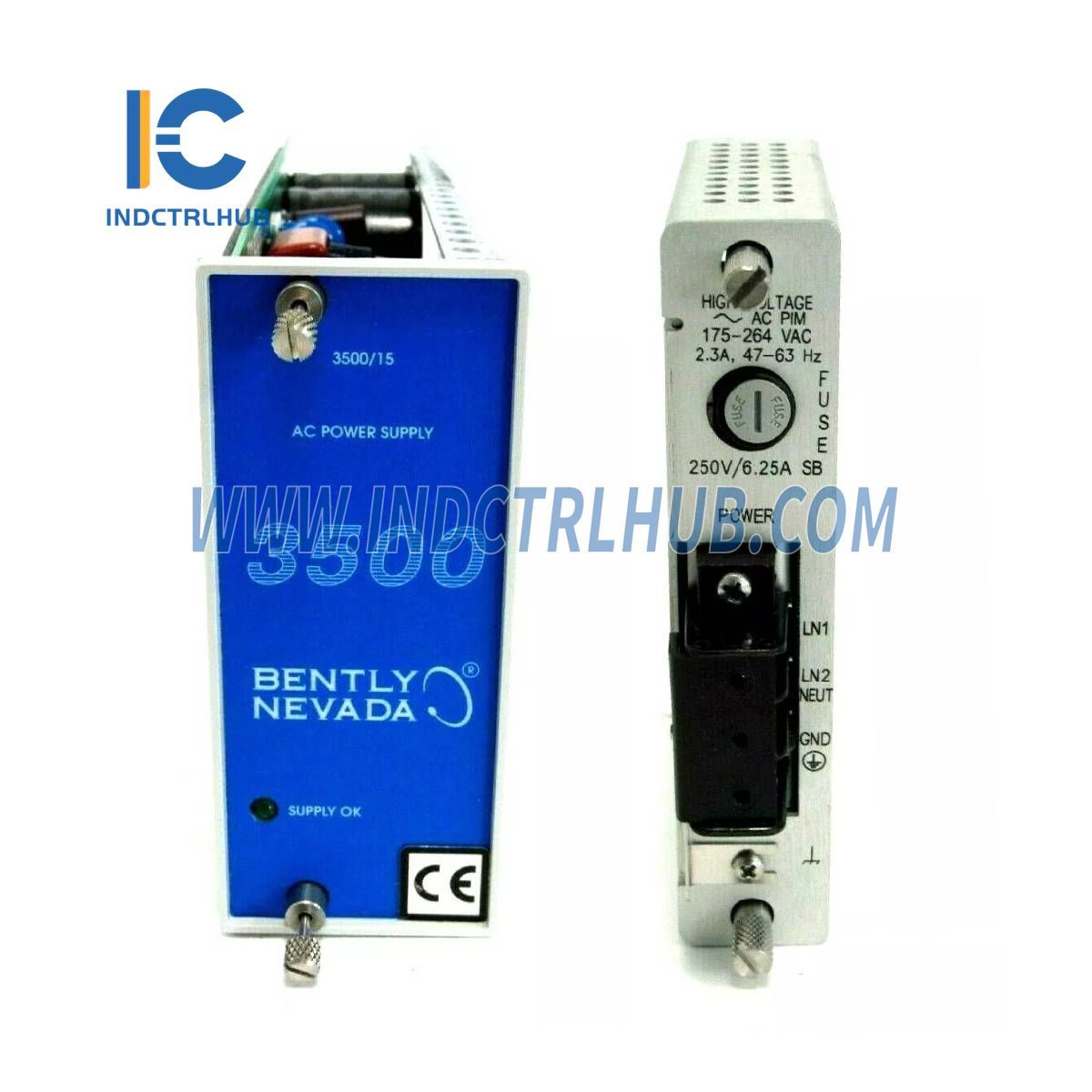

- The Bently Nevada 3500/15 Power Supply Module, part of the 3500/15 series, is a half-height module designed to provide reliable power to a 3500 rack system. Identified by part numbers 127610-01 (AC Power Supply Module) and 125840-01 (High Voltage AC Power Input Module), it must be installed in designated slots on the left side of the rack. The 3500 rack can accommodate one or two power supplies in any AC or DC combination, with a single supply capable of powering the entire rack.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500/15 |
| Model/Part Number | 3500/15 (127610-01 + 125840-01) |
| Model Type | Power Supply Module |
| Inputs - Voltage Options | Universal Voltage AC: - Description: Uses the universal AC Power Supply and universal AC Power Input Module (PIM) - Input Voltage: - 110 to 220 Vac nominal - Non-hazardous areas: 85 to 264 Vac rms - Hazardous areas: 85 to 250 Vac rms - 120 to 373 Vac pk - Note: Not compatible with legacy High Voltage AC or Low Voltage AC units Input Frequency: 47 to 63 Hz |
| Power Supply Module Dimensions (HxWxD) | 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) |
| Power Supply Module Weight | 1.39 kg (3.06 lb) |
| Power Input Module Dimensions (HxWxD) | 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in) |
| Power Input Module Weight | 0.34 kg (0.75 lb) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Spares
- 127610-01: AC Power Supply Module
- 125840-01: High Voltage AC Power Input Module (PIM)
Ordering Information
- Model: 3500/15 Power Supply Module
- Ordering Format: 3500/15-AA-BB-CC
- Option Descriptions:
- A: Power Supply Type (Top Slot)
- 03: Legacy High Voltage DC (88 to 140 Vdc)
- 04: Legacy Low Voltage DC (20 to 30 Vdc)
- 05: Universal AC Voltage (85 to 264 Vac rms)
- 06: High Voltage DC Supply
- 07: Low Voltage DC Supply
- B: Power Supply Type (Bottom Slot)
- 00: No Supply (Used when no supply is required)
- 03: Legacy High Voltage DC (88 to 140 Vdc)
- 04: Legacy Low Voltage DC (20 to 30 Vdc)
- 05: Universal AC Voltage (85 to 264 Vac rms)
- 06: High Voltage DC Supply
- 07: Low Voltage DC Supply
- C: Agency Approval
- 00: None
- 01: CSA/NRTL/C (Class 1, Division 2)
- A: Power Supply Type (Top Slot)
Specific Configuration
- Model/Part Number: 3500/15 (127610-01 + 125840-01)
- Configuration Details:
- 127610-01: AC Power Supply Module (corresponds to option A: 05 - Universal AC Voltage)
- 125840-01: High Voltage AC Power Input Module (PIM)
- Assumed Ordering Code: 3500/15-05-00-00 (single AC supply in top slot, no bottom supply, no agency approval)
