Product Description
Product Details
| Manufacturer | Bently Nevada |
|---|---|
| Model/Part Number | 115M7750-01 |

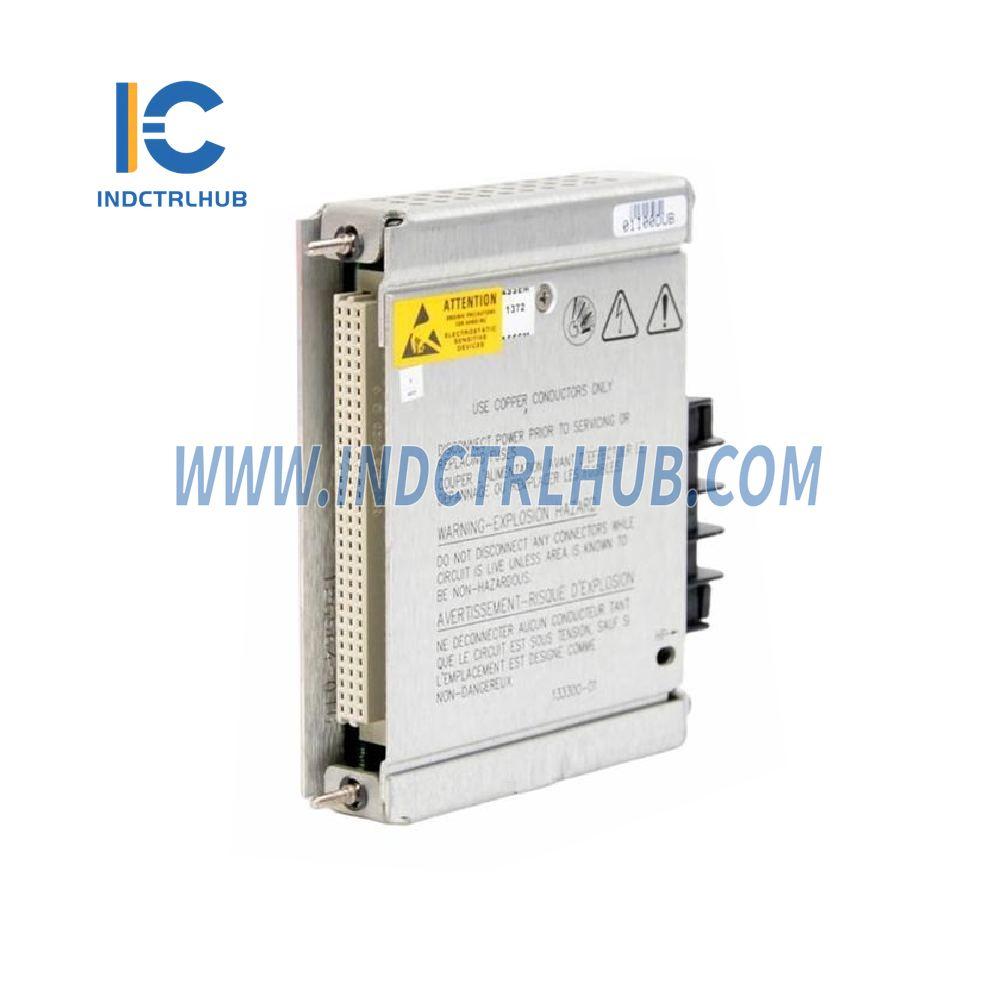

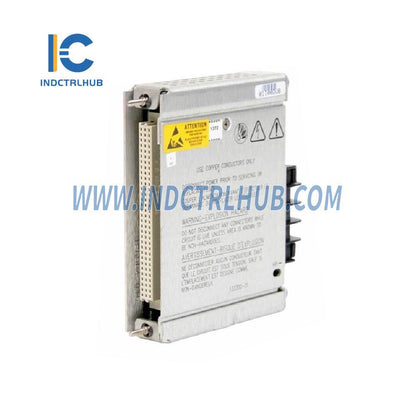

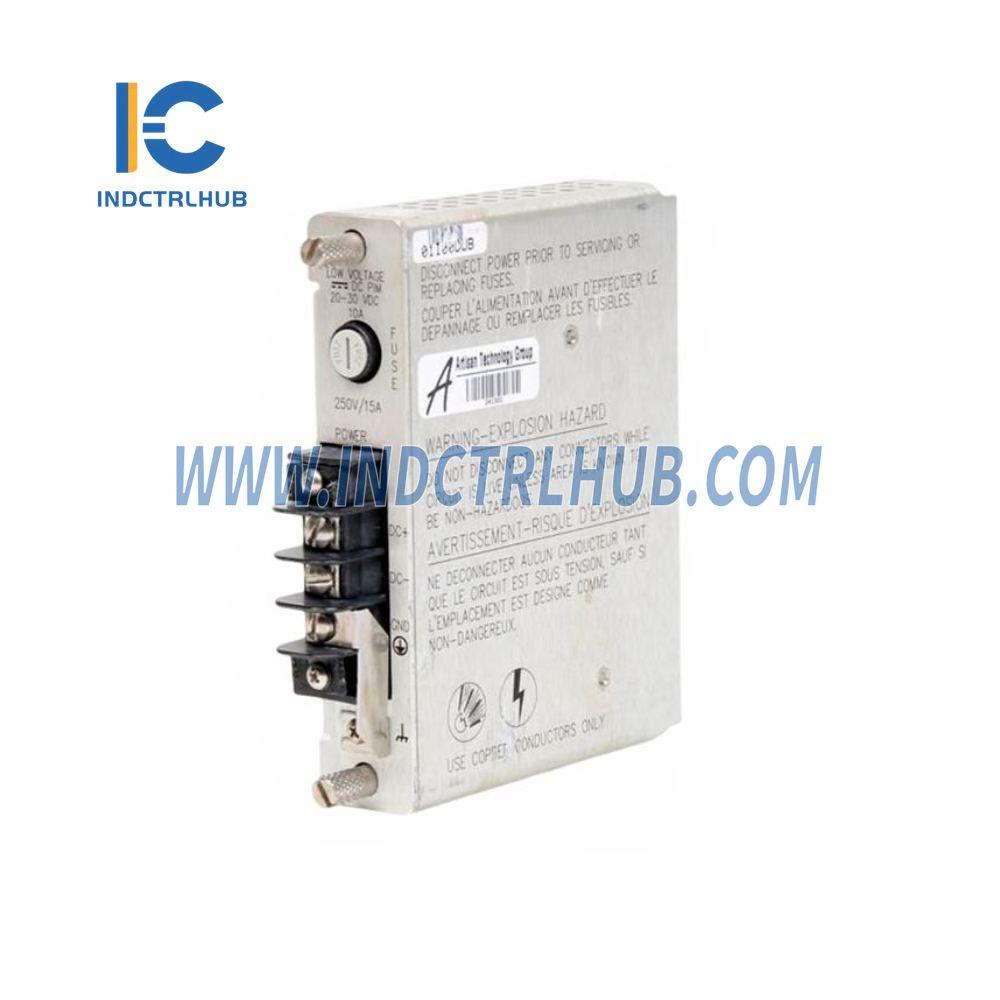

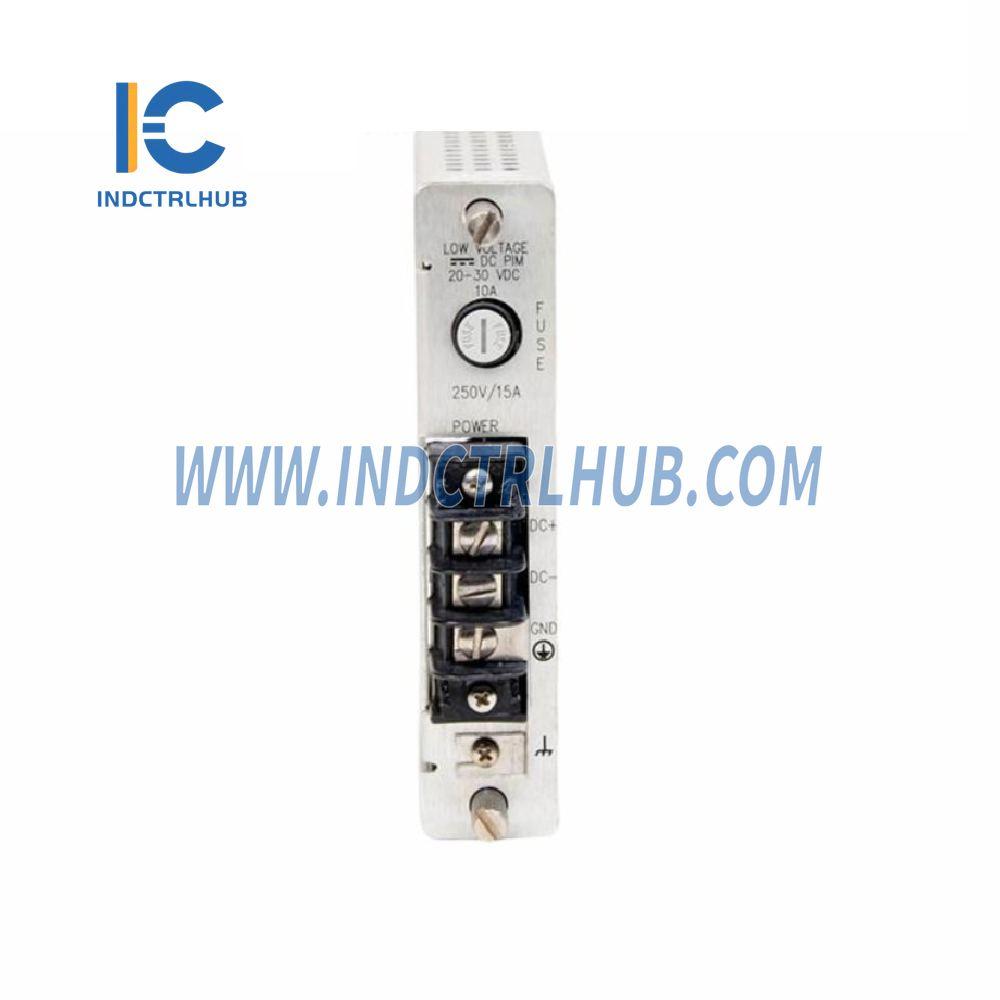

| Description | 3500/15 High Voltage DC Power Input Module (PIM) |
Product Description
The Bently Nevada 3500/15 High Voltage DC Power Input Module (PIM) is designed to work seamlessly with the High Voltage DC Power Supply in the 3500 monitoring system. This module ensures the efficient transfer of DC power to the rack, providing stable and reliable power delivery for demanding industrial environments. It is ideal for both hazardous and non-hazardous areas and is engineered for high performance under varying conditions.
Specifications
Electrical
| Parameter | Value |
|---|---|
| Voltage Options | High Voltage DC |
| Input Voltage | 88 to 140 VDC |
| Input Frequency | 47 to 63 Hz (for AC systems) |
| Full Rack Current Draw | |
| - Universal Voltage AC | 2.8 A rms (maximum) |
| - High Voltage DC | 2.5 A (maximum) |
| - Low Voltage DC | 11.0 A (maximum) |
Physical Dimensions
| Component | Height | Width | Depth | Weight |
|---|---|---|---|---|
| Power Input Module | 120.7 mm | 50.8 mm | 251.5 mm | 1.39 kg (3.06 lb) |
Features
- High Voltage DC Compatibility: Designed specifically for systems requiring 88–140 VDC input.
- Industrial Strength: Capable of operating in harsh industrial conditions, including hazardous areas.
- Wide Current Support: Handles varying current demands for diverse applications.
- Compact and Robust: Slim and durable design ensures reliability and easy integration into the 3500 system rack.
Ordering Information
| Part Number | Description |
|---|---|
| 3500/15-AA-BB-CC | High Voltage DC Power Input Module |
Configuration Options
-
A: Power Supply Type (Top Slot)
- 03: Legacy High Voltage DC (88 to 140 VDC)
- 06: High Voltage DC Supply
-
B: Power Supply Type (Bottom Slot)
- 00: No Supply (if not required)
- 03: Legacy High Voltage DC (88 to 140 VDC)
- 06: High Voltage DC Supply
-
C: Agency Approval
- 00: None
- 01: CSA / NRTL / C (Class 1, Division 2)
- 02: ATEX / IECEx / CSA (Class 1, Zone 2)
