Product Description
Product Details
| Manufacturer | Bently Nevada |
|---|---|
| Model/Part Number | 106M1079-01 |
| Description | 3500/15 Universal AC Power Supply Module |
Product Description

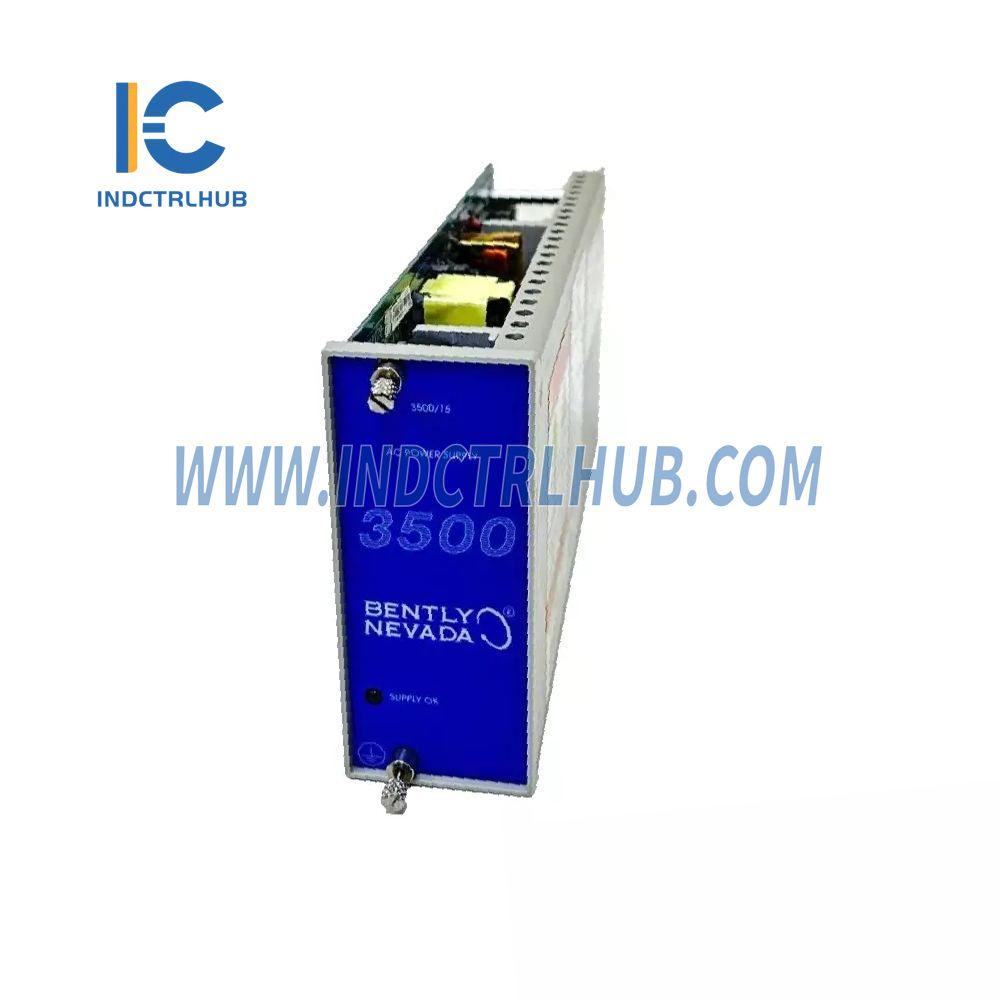

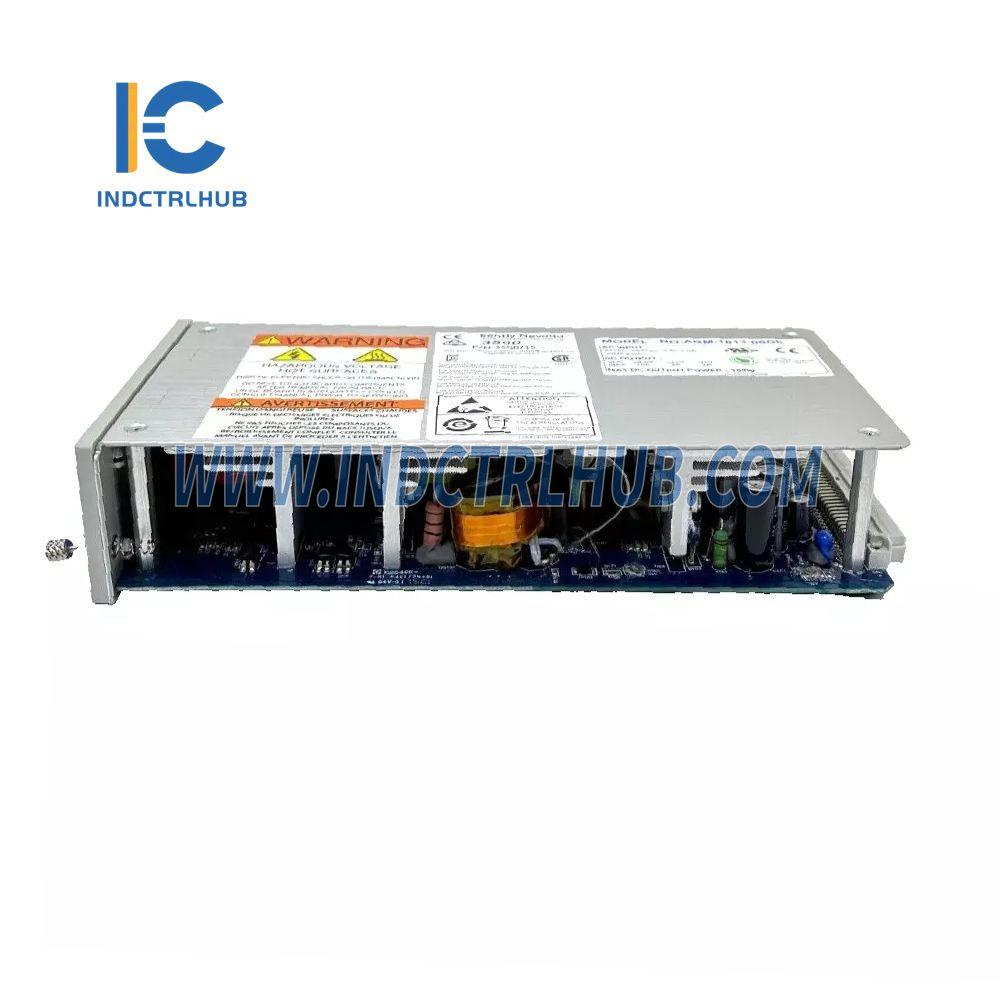

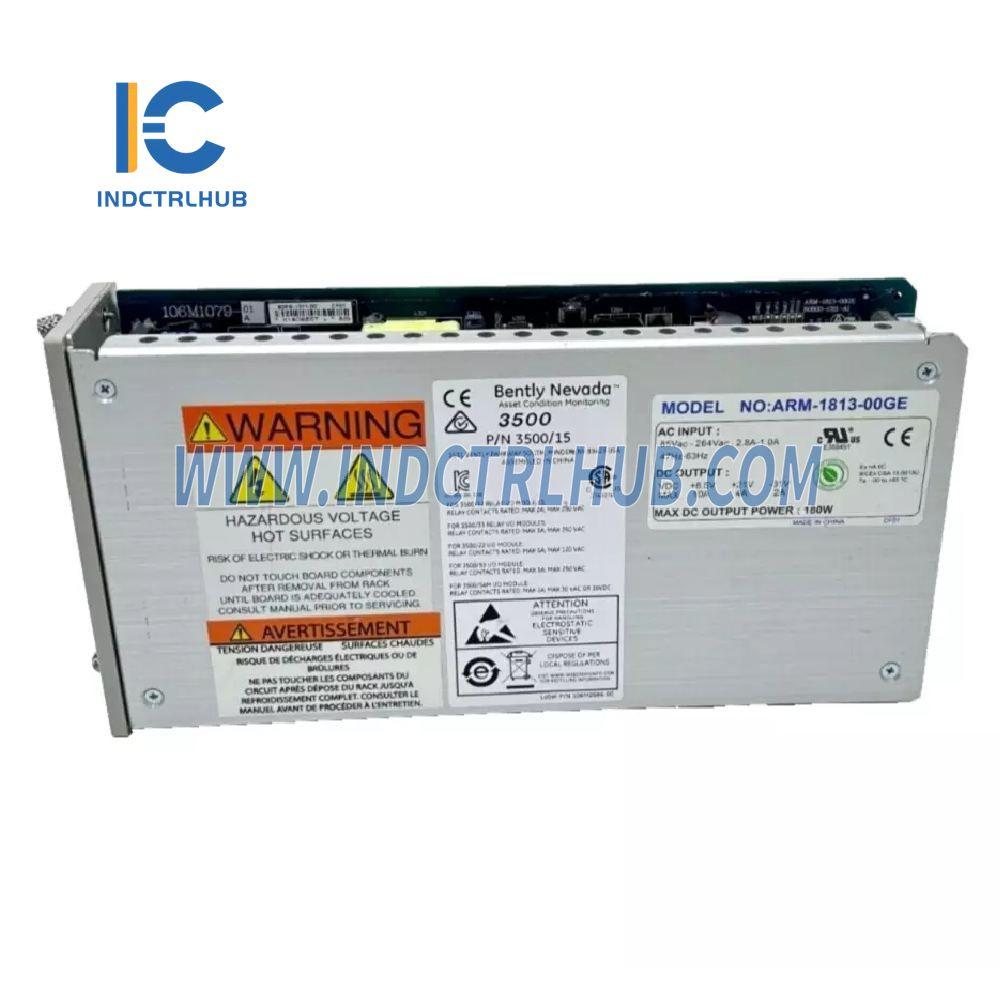

The Bently Nevada 3500/15 Universal AC Power Supply Module is a critical component for the 3500 system, designed to provide reliable power for monitoring and protection solutions. This half-height module can be installed in designated slots on the left side of the rack and allows for configurations with either AC, DC, or both power supply types.
Key features include:
- Flexible Power Configurations: Supports AC and DC combinations for redundancy and reliability.
- Redundant Operation: The system allows two power supplies to run simultaneously for uninterrupted performance.
- Compact Design: Occupies two half-height slots, with the power input module placed directly behind the power supply.
Specifications
Physical Dimensions
| Parameter | Measurement |
|---|---|
| Dimensions (HxWxD) | 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) |
| Weight | 1.39 kg (3.06 lb) |
Rack Space Requirements
- Power Supply Module: Requires two half-height slots on the rack's left side.
- Power Input Module: Positioned directly behind the associated power supply module.
Ordering Information
The module's part number follows the structure: 3500/15-AA-BB-CC
| Code | Description |
|---|---|
| A: Power Supply Type (Top Slot) | |
| 03 | Legacy High Voltage DC (88 to 140 Vdc) |
| 04 | Legacy Low Voltage DC (20 to 30 Vdc) |
| 05 | Universal AC Voltage (85 to 264 Vac rms) |
| 06 | High Voltage DC Supply |
| 07 | Low Voltage DC Supply |
| B: Power Supply Type (Bottom Slot) |
| 00 | No Supply |
| 03 | Legacy High Voltage DC (88 to 140 Vdc) |
| 04 | Legacy Low Voltage DC (20 to 30 Vdc) |
| 05 | Universal AC Voltage (85 to 264 Vac rms) |
| 06 | High Voltage DC Supply |
| 07 | Low Voltage DC Supply |
| C: Agency Approval |
| 00 | None |
| 01 | CSA/NRTL/C (Class 1, Division 2) |
| 02 | ATEX/IECEx/CSA (Class 1, Zone 2) |
