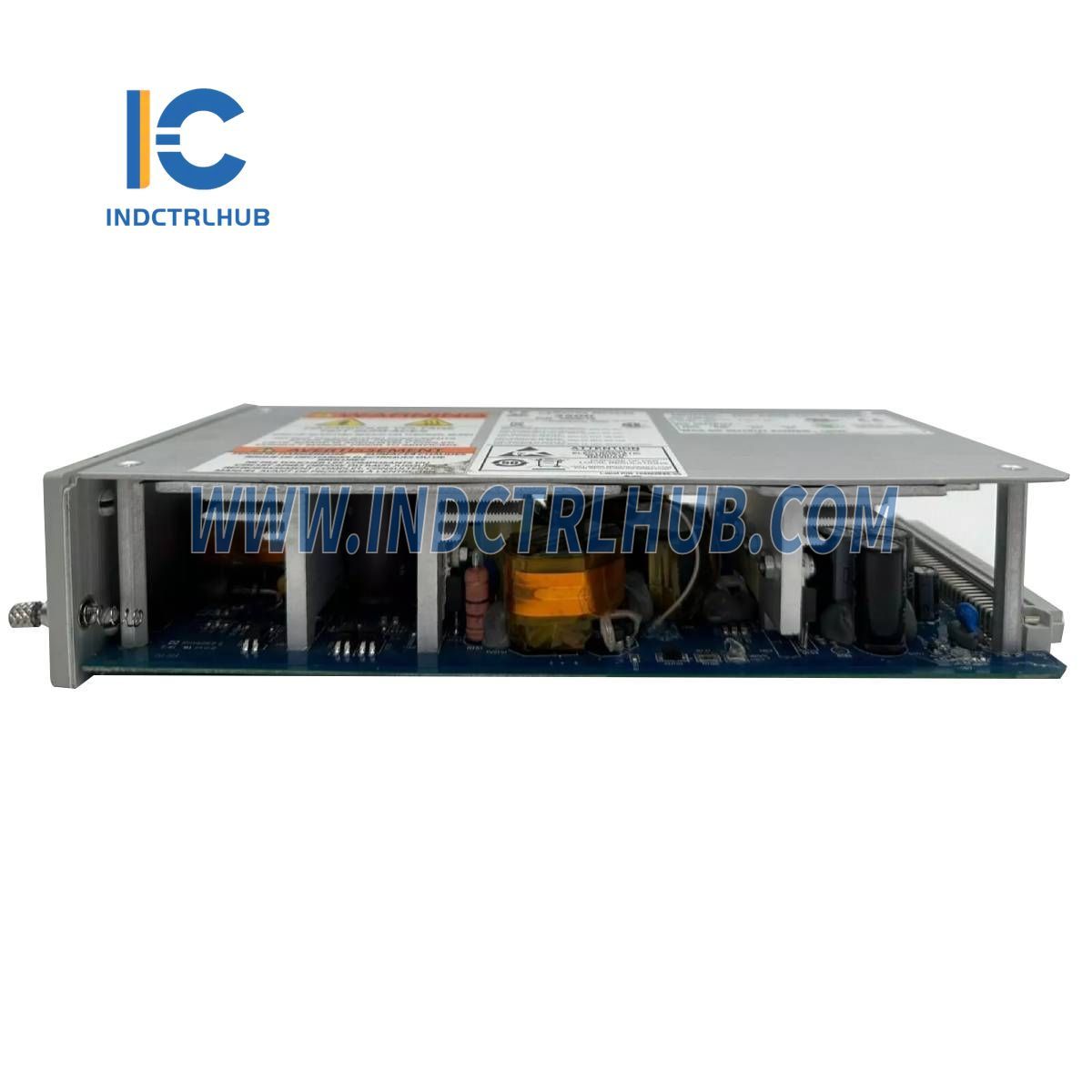

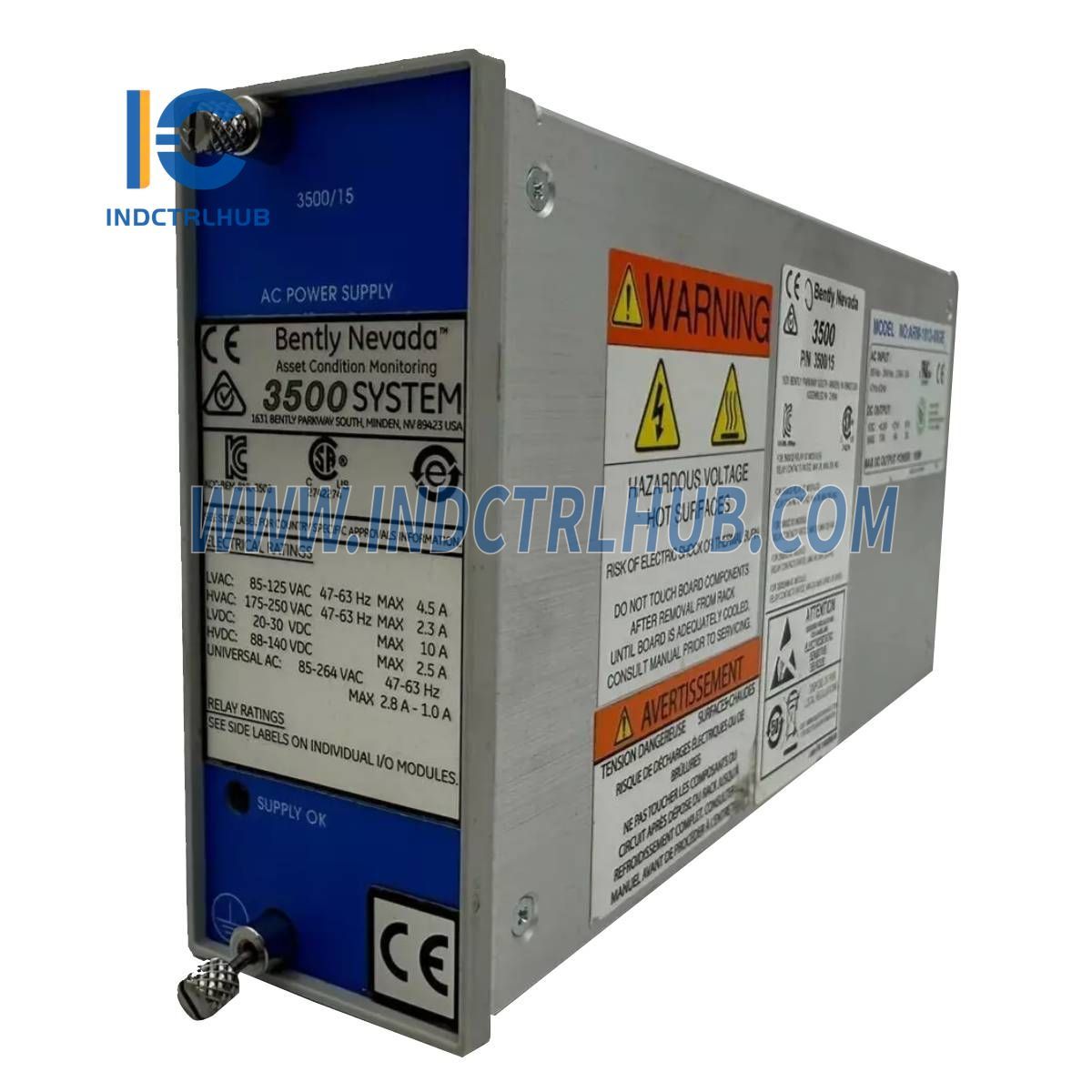

Bently Nevada 3500/15-07-07-00 AC and DC Power Supplies

Product Details

• Manufacturer: Bently Nevada
• Series: 3500/15
• Model/Part Number: 3500/15-07-07-00
• Model Type: AC and DC Power Supplies

Description

The 3500/15 AC and DC Power Supplies are half-height modules that need to be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies, with any combination of AC and DC supplies. Each power supply can power a full rack.

Physical Specifications

Power Supply Module Dimensions:

• Height x Width x Depth:
  • 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
• Weight:
  • 1.39 kg (3.06 lb)

Power Input Modules Dimensions:

• Height x Width x Depth:
  • 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
• Weight:
  • 0.34 kg (0.75 lb)

Environmental Limits

• Operating Temperature:
  • -30°C to +65°C (-22°F to +150°F)
• Storage Temperature:
  • -40°C to +85°C (-40°F to +185°F)
• Humidity:
  • 95%, non-condensing

Ordering Information

• 3500/15 Power Supply Module: 3500/15-AA-BB-CC
  • A: Power Supply Type (Top Slot):
    • 03: Legacy High Voltage DC (88 to 140 Vdc)
    • 04: Legacy Low Voltage DC (20 to 30 Vdc)
    • 05: Universal AC Voltage (85 to 264 Vac rms)
    • 06: High Voltage DC Supply
    • 07: Low Voltage DC Supply
  • B: Power Supply Type (Bottom Slot):
    • 00: No Supply (Used when no supply is required)
    • 03: Legacy High Voltage DC (88 to 140 Vdc)
    • 04: Legacy Low Voltage DC (20 to 30 Vdc)
    • 05: Universal AC Voltage (85 to 264 Vac rms)
    • 06: High Voltage DC Supply
    • 07: Low Voltage DC Supply
  • C: Agency Approval:
    • 00: None
    • 01: CSA / NRTL / C (Class 1, Division 2)
    • 02: ATEX / IECEx / CSA (Class 1, Zone 2)
