Product Description

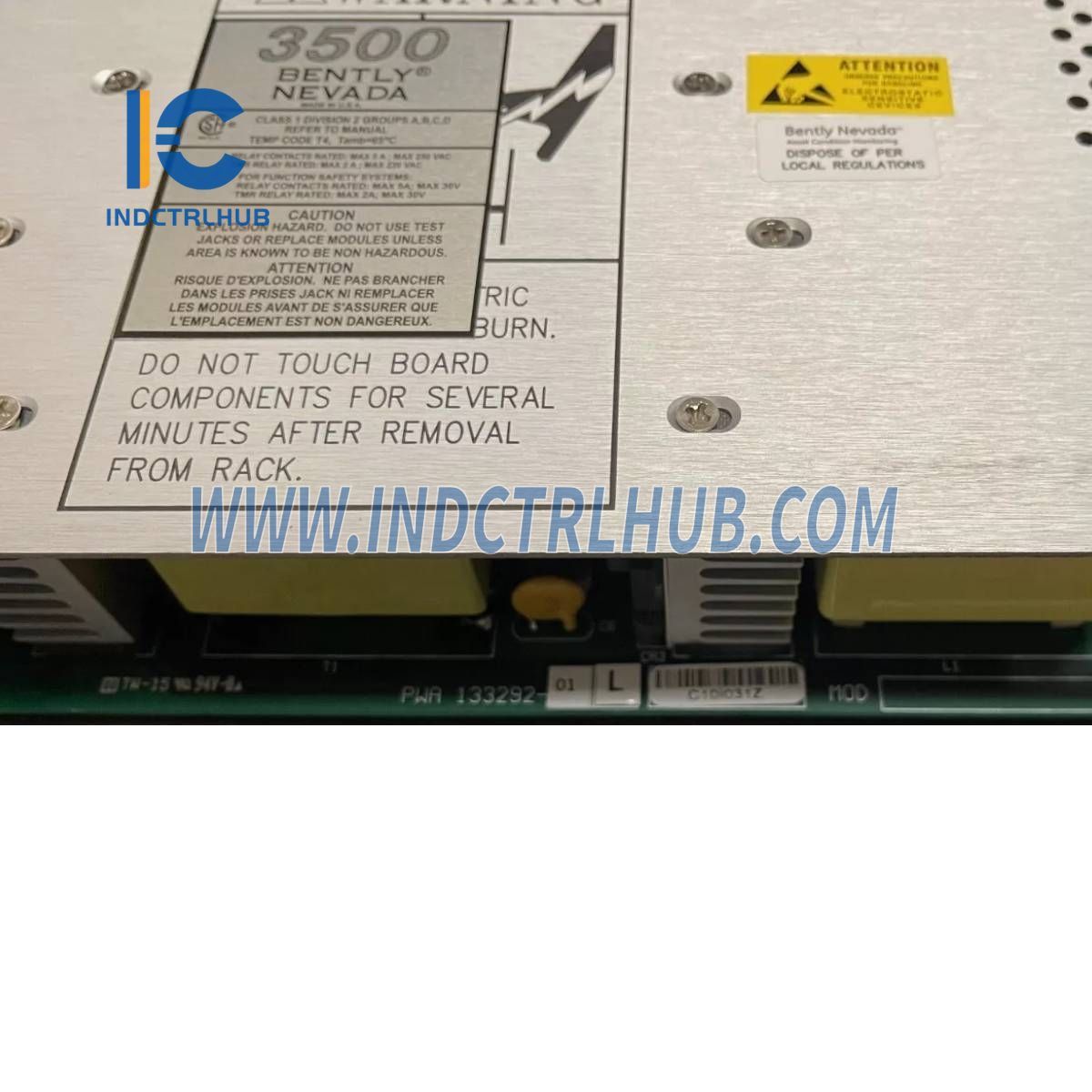

Product Information: Bently Nevada 3500/15 AC and DC Power Supplies
| Manufacturer | Bently Nevada |
|---|---|
| Series | 350015 |
| Model/Part Number | 350015-04-04-01 |
| Model Type | AC and DC Power Supplies |
General Description
The 3500/15 AC and DC Power Supplies are half-height modules designed to be installed in the designated slots on the left side of a 3500 rack. These power supplies support both AC and DC input and can power a full rack with either supply. A single rack can accommodate one or two power supplies, and they can be configured with any combination of AC or DC.
Input Specifications
Universal AC Power Supply
-
Input Voltage:
- Nominal: 110 to 220 Vac
- Non-hazardous Areas: 85 to 264 Vac rms
- Hazardous Areas: 85 to 250 Vac rms
- Peak Voltage: 120 to 373 Vac pk
- Input Frequency: 47 to 63 Hz
- Note: This module is not compatible with the legacy High Voltage AC or Low Voltage AC units.
High Voltage DC Power Supply
- Input Voltage: 88 to 140 Vdc

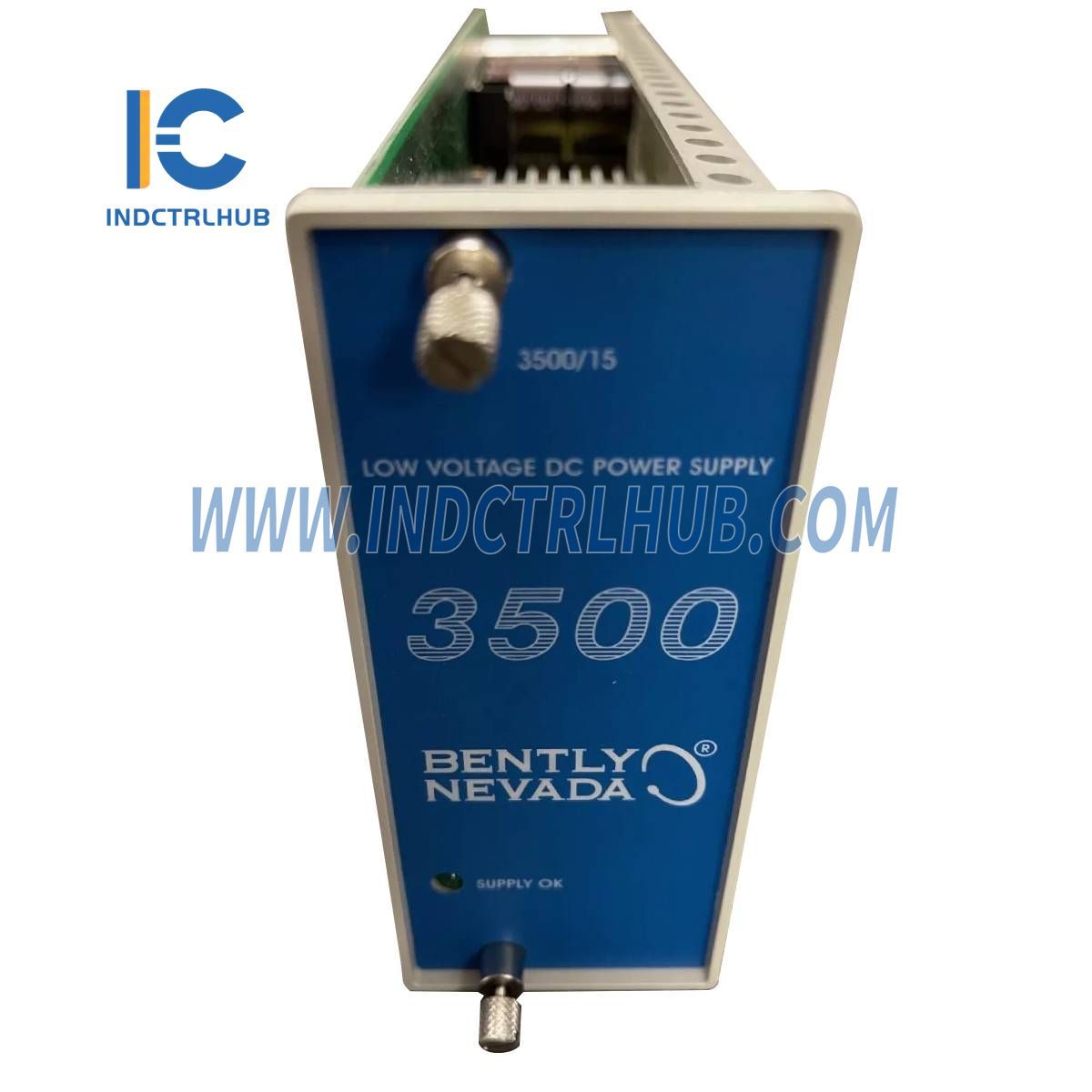

Low Voltage DC Power Supply
- Input Voltage: 20 to 30 Vdc
Physical Specifications
| Component | Dimensions (Height x Width x Depth) | Weight |
|---|---|---|
| Power Supply Module | 120.7 mm x 50.8 mm x 251.5 mm 4.75 in x 2.0 in x 9.9 in |
1.39 kg 3.06 lb |
| Power Input Modules | 120.7 mm x 25.4 mm x 114.3 mm 4.75 in x 1.0 in x 4.5 in |
0.34 kg 0.75 lb |
Environmental Limits
| Condition | Specification |
|---|---|
| Operating Temperature | -30 °C to +65 °C (-22 °F to +150 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95%, non-condensing |
Ordering Information
The 3500/15 Power Supply Module is ordered using the following format:
3500/15 -AA-BB-CC
-
A: Power Supply Type (Top Slot)
- 03: Legacy High Voltage DC (88 to 140 Vdc)
- 04: Legacy Low Voltage DC (20 to 30 Vdc)
- 05: Universal AC Voltage (85 to 264 Vac rms)
- 06: High Voltage DC Supply
- 07: Low Voltage DC Supply
-
B: Power Supply Type (Bottom Slot)
- 00: No Supply (Used when no supply is required)
- 03: Legacy High Voltage DC (88 to 140 Vdc)
- 04: Legacy Low Voltage DC (20 to 30 Vdc)
- 05: Universal AC Voltage (85 to 264 Vac rms)
- 06: High Voltage DC Supply
- 07: Low Voltage DC Supply
-
C: Agency Approval
- 00: None
- 01: CSA / NRTL / C (Class 1, Division 2)
- 02: ATEX / IECEx / CSA (Class 1, Zone 2)
