Product Description
Product Details
| Manufacturer |
Bently Nevada |
| Series |
3500/15 |
| Model/Part Number |
3500/15-04-00-00 133292-01+133300-01 |
| Model Type |
AC and DC Power Supplies |

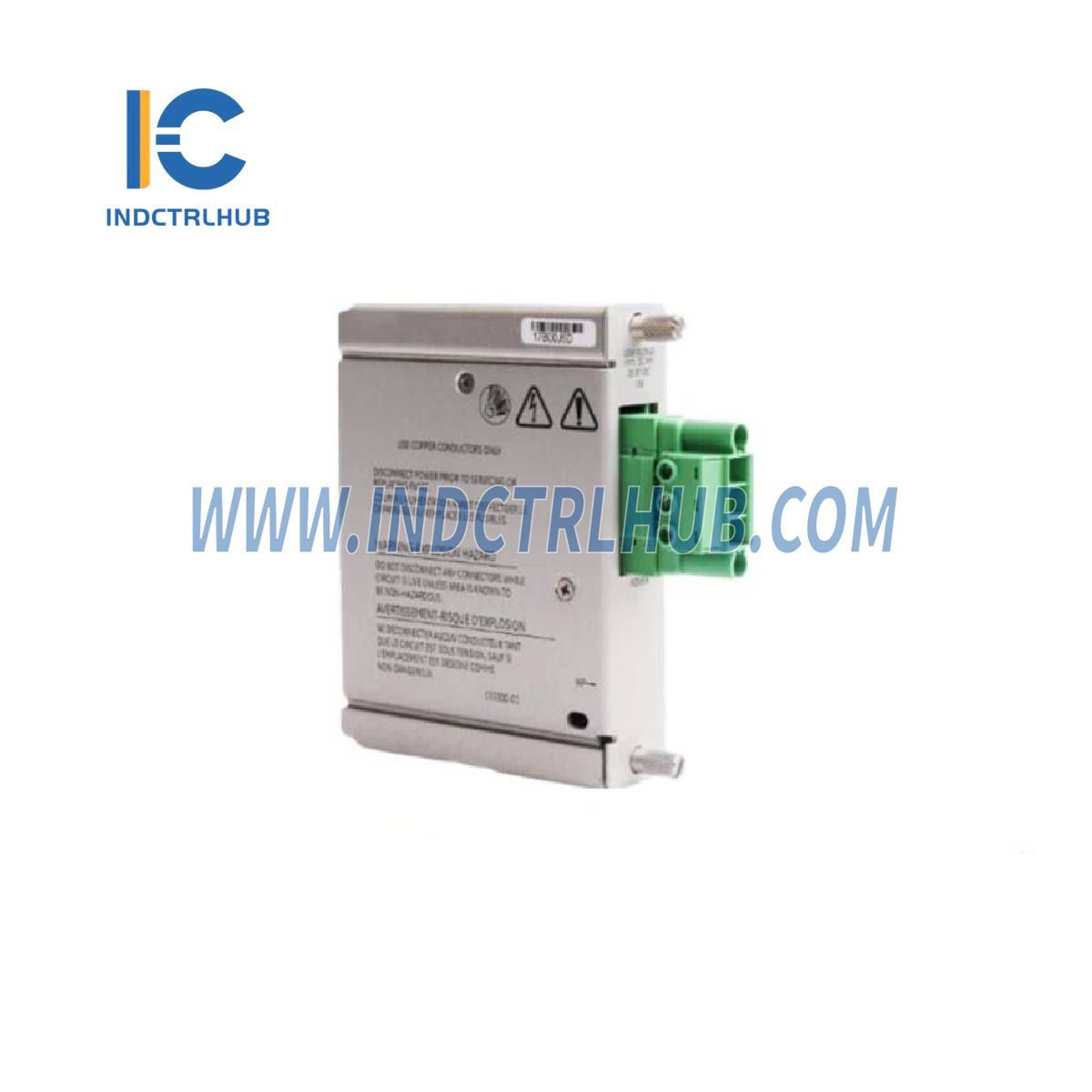

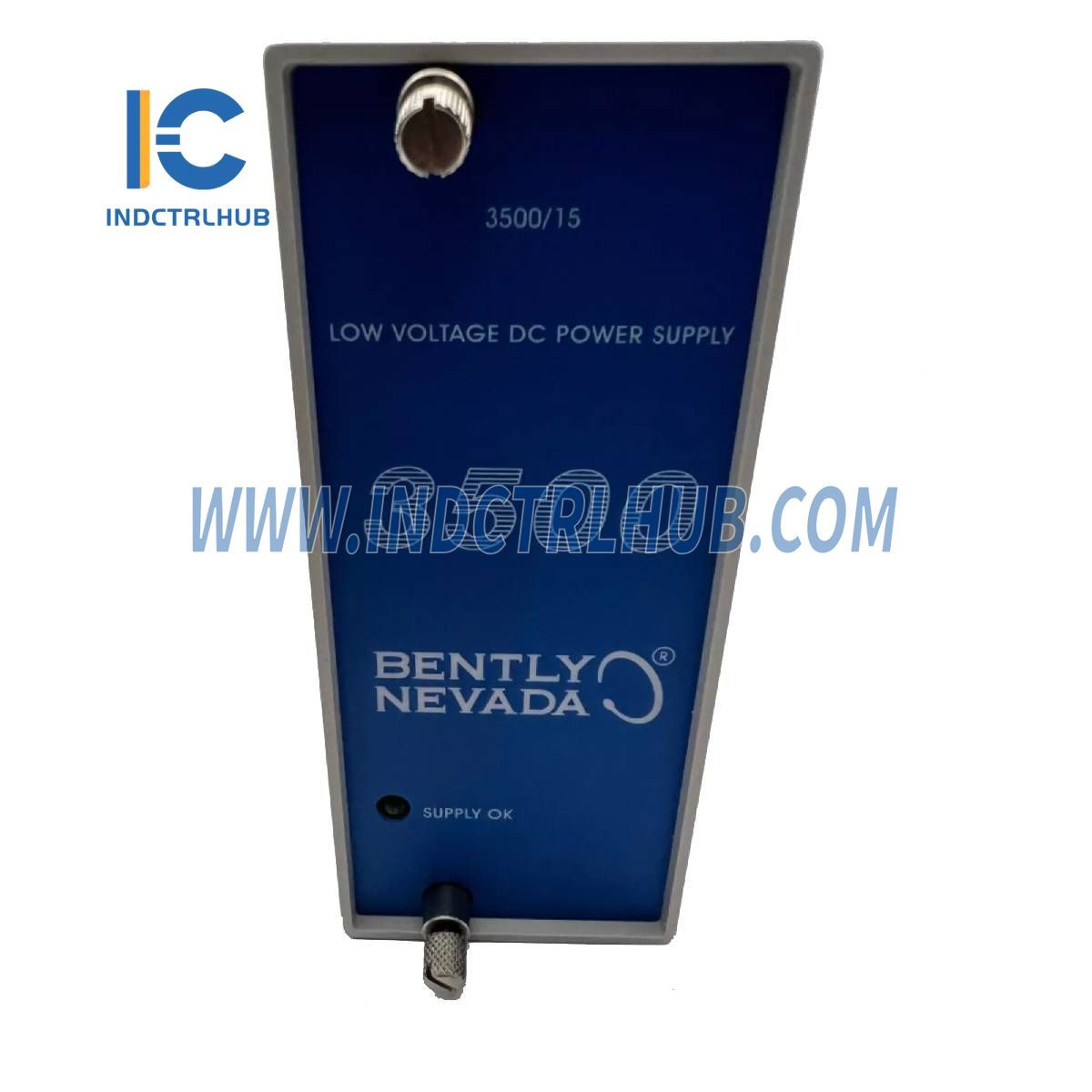

Description
The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can accommodate one or two power supplies with any combination of AC and DC. Either supply can power the entire rack.
Specifications
Inputs
| Voltage Options |
Description |
| Universal Voltage AC |
Uses the universal AC Power Supply and universal AC Power Input Module (PIM). |
| Input Voltage |
110 to 220 Vac nominal, 85 to 264 Vac rms (non-hazardous areas), 85 to 250 Vac rms (hazardous areas), 120 to 373 Vac pk. |
| Input Frequency |
47 to 63 Hz |
| High Voltage DC |
Uses the High Voltage DC Power Supply and High Voltage DC Power Input Module (PIM). |
| Input Voltage |
88 to 140 Vdc |
| Low Voltage DC |
Uses the Low Voltage DC Power Supply and Low Voltage DC Power Supply Input Module (PIM). |
| Input Voltage |
20 to 30 Vdc |
Physical
| Component |
Dimensions (Height x Width x Depth) |
Weight |
| Power Supply Module |
120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) |
1.39 kg (3.06 lb) |
| Power Input Modules |
120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in) |
0.34 kg (0.75 lb) |
Environmental Limits
| Parameter |
Range |
| Operating Temperature |
-30°C to +65°C (-22°F to +150°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Humidity |
95%, non-condensing |
Ordering Information
| Model/Part Number |
Description |
| 3500/15 Power Supply Module |
3500/15-04-00-00 (AC and DC Power Supplies) |
| 3500/15 -AA-BB-CC |
A: Power Supply Type (Top Slot), B: Power Supply Type (Bottom Slot), C: Agency Approval |
Ordering Codes
| A: Power Supply Type (Top Slot) |
B: Power Supply Type (Bottom Slot) |
C: Agency Approval |
| 03 - Legacy High Voltage DC (88 to 140 Vdc) |
00 - No Supply (when no supply is required) |
00 - None |
| 04 - Legacy Low Voltage DC (20 to 30 Vdc) |
03 - Legacy High Voltage DC (88 to 140 Vdc) |
01 - CSA / NRTL / C (Class 1, Division 2) |
| 05 - Universal AC Voltage (85 to 264 Vac rms) |
04 - Legacy Low Voltage DC (20 to 30 Vdc) |
|
| 06 - High Voltage DC Supply |
05 - Universal AC Voltage (85 to 264 Vac rms) |
|
| 07 - Low Voltage DC Supply |
06 - High Voltage DC Supply |
