Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
3500/15 |
|
Model/Part Number |
3500/15-02-02-00 (127610-01 + 125840-01) |
|
Description |
3500/15 AC and DC Power Supplies Module |
🔹 Description
-
The 3500/15 Power Supply modules are half-height modules.
-
Must be installed in dedicated slots on the left side of the 3500 rack.
-
A 3500 rack may contain one or two power supplies in any combination of AC and DC types.
-
Either module can power the entire rack independently.
🔹 Physical Characteristics
|
Component |
Dimensions (H × W × D) |
Weight |
|---|---|---|
|

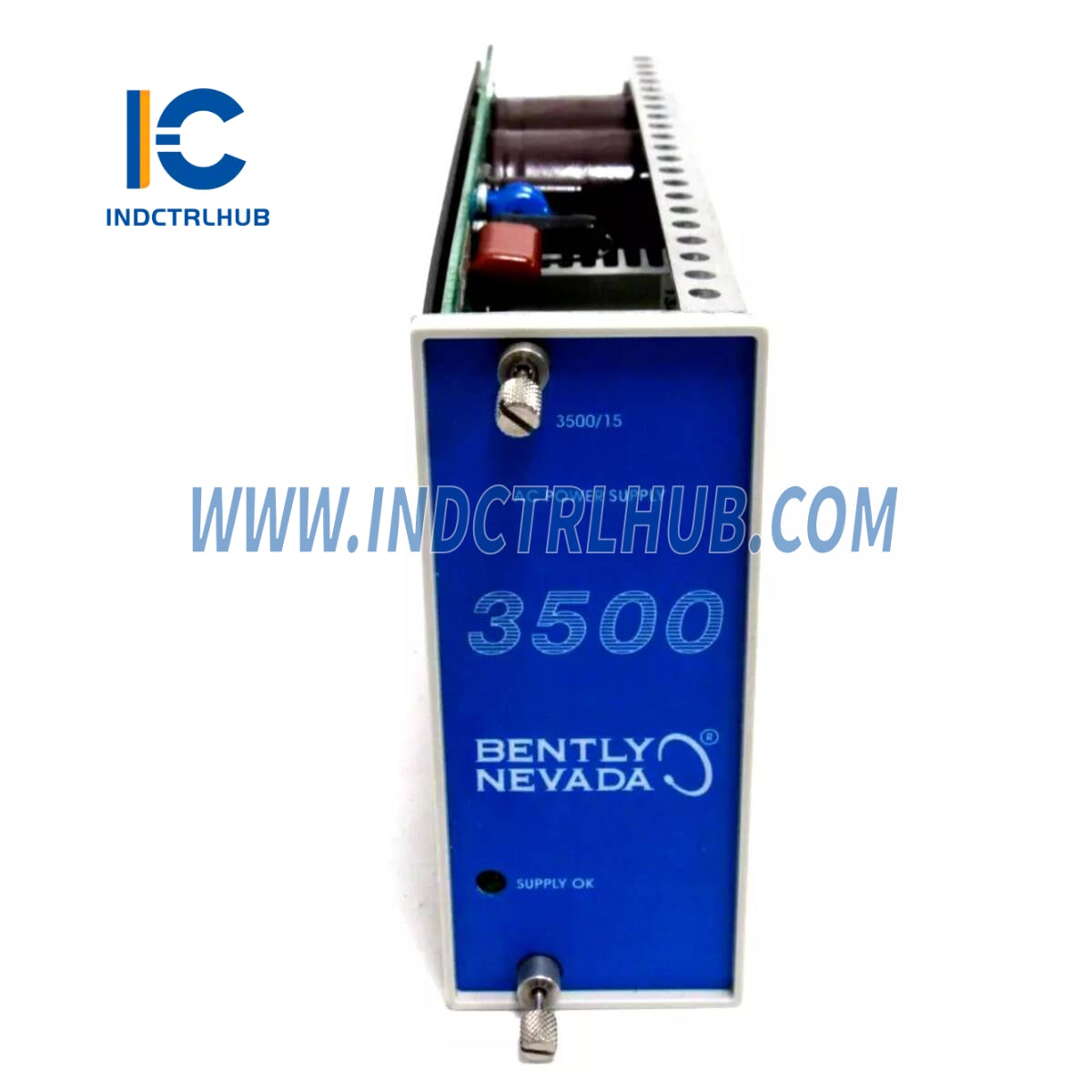

Power Supply Module |
120.7 mm × 50.8 mm × 251.5 mm (4.75 in × 2.0 in × 9.9 in) |
1.39 kg (3.06 lb) |
|

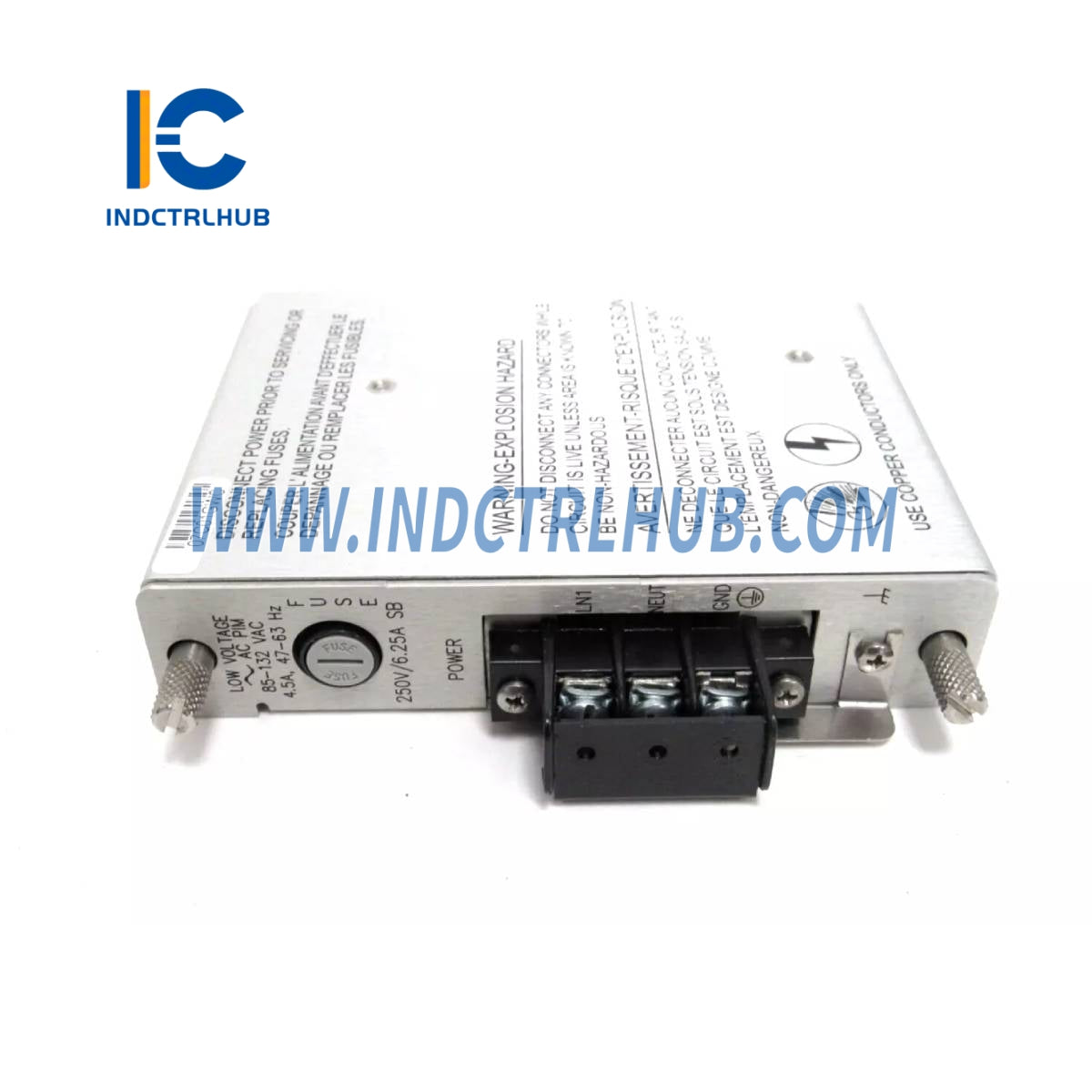

Power Input Module |
120.7 mm × 25.4 mm × 114.3 mm (4.75 in × 1.0 in × 4.5 in) |
0.34 kg (0.75 lb) |
🔹 Environmental Limits
|
Parameter |
Range |
|---|---|
|
Operating Temp |
-30°C to +65°C (-22°F to +150°F) |
|
Storage Temp |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
🔹 Ordering Information Breakdown –
3500/15-02-02-00
|
Field |
Code |
Details |
|---|---|---|
|
A |
02 |
ATEX / IECEx / CSA (Class 1, Zone 2) approvals |
|
B |
02 |
ATEX / IECEx / CSA (Class 1, Zone 2) approvals (for second supply) |
|
C |
00 |
No additional approvals |

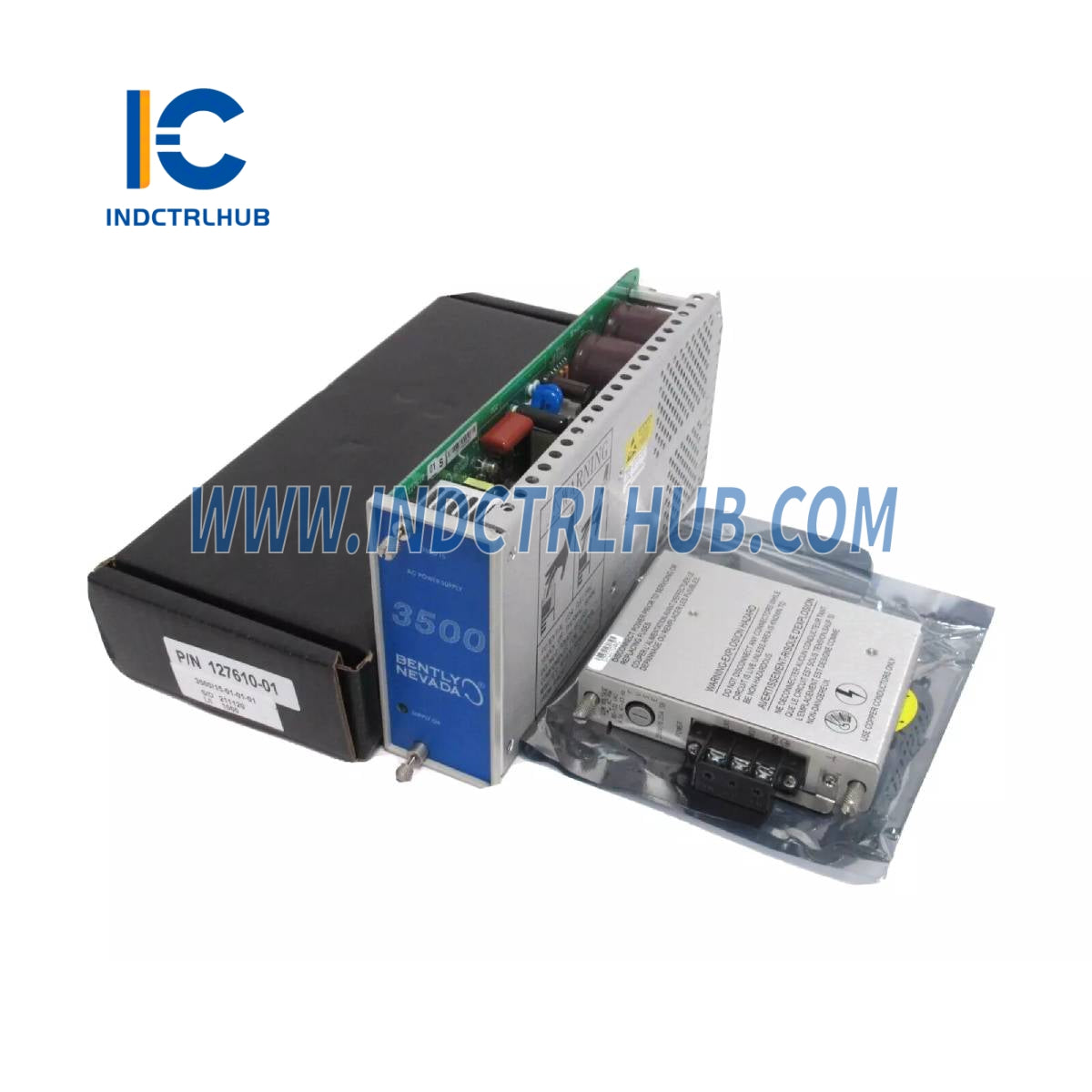

🔹 Spares
|
Part Number |
Description |
|---|---|
|

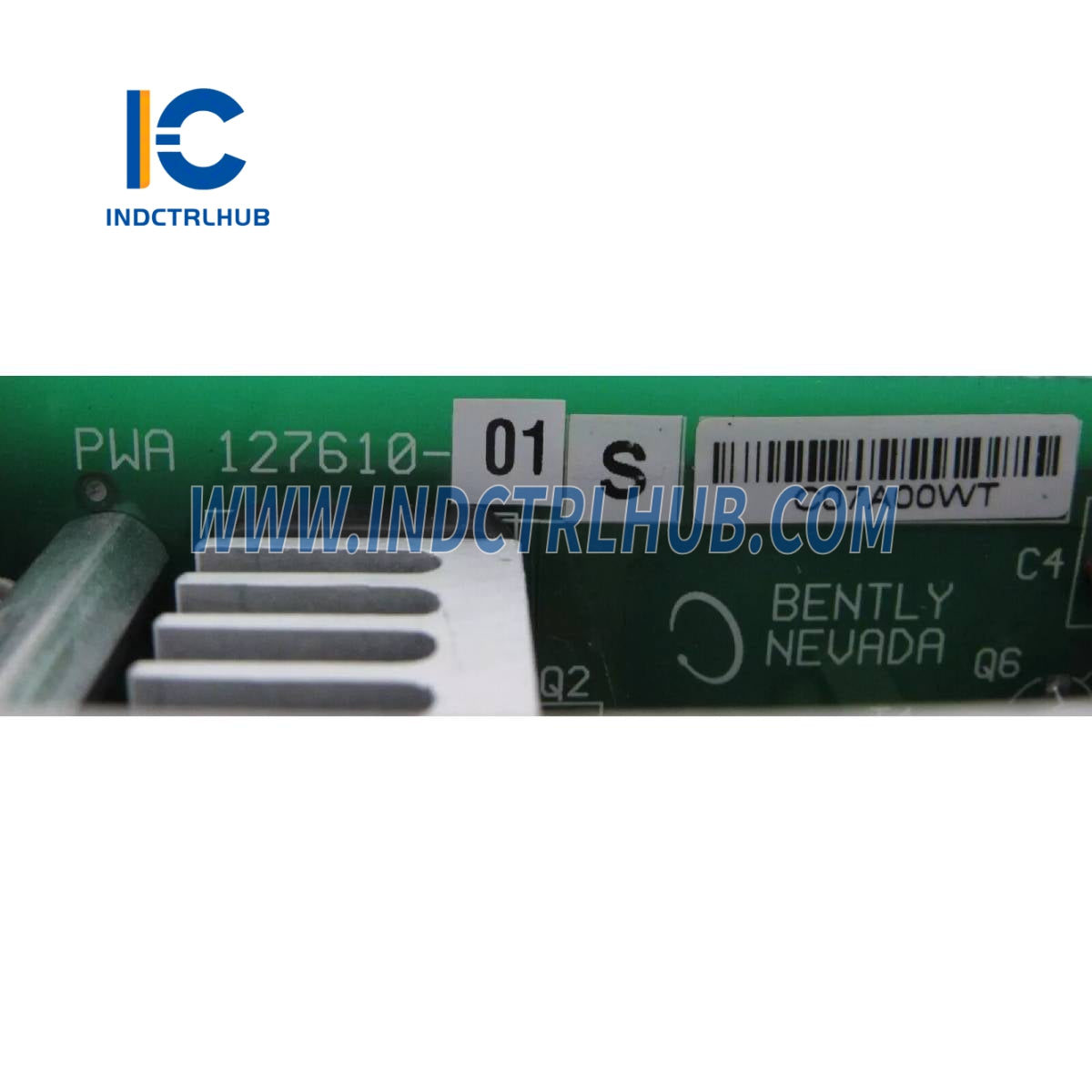

127610-01 |
Power Supply Module |
|
125840-01 |
Power Input Module |
