Product Description
General Information
-
Manufacturer: Bently Nevada
-
Series: 3500
-

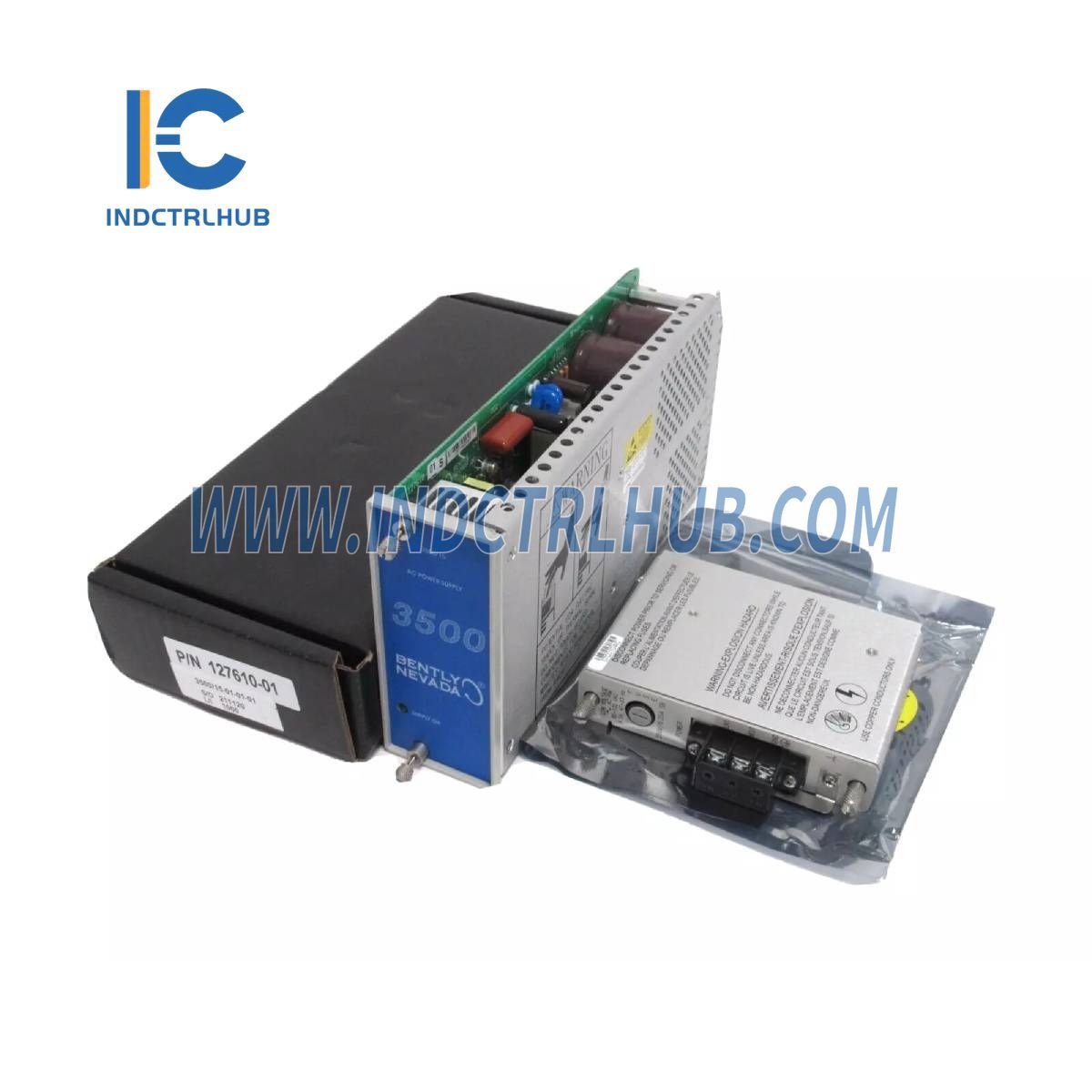

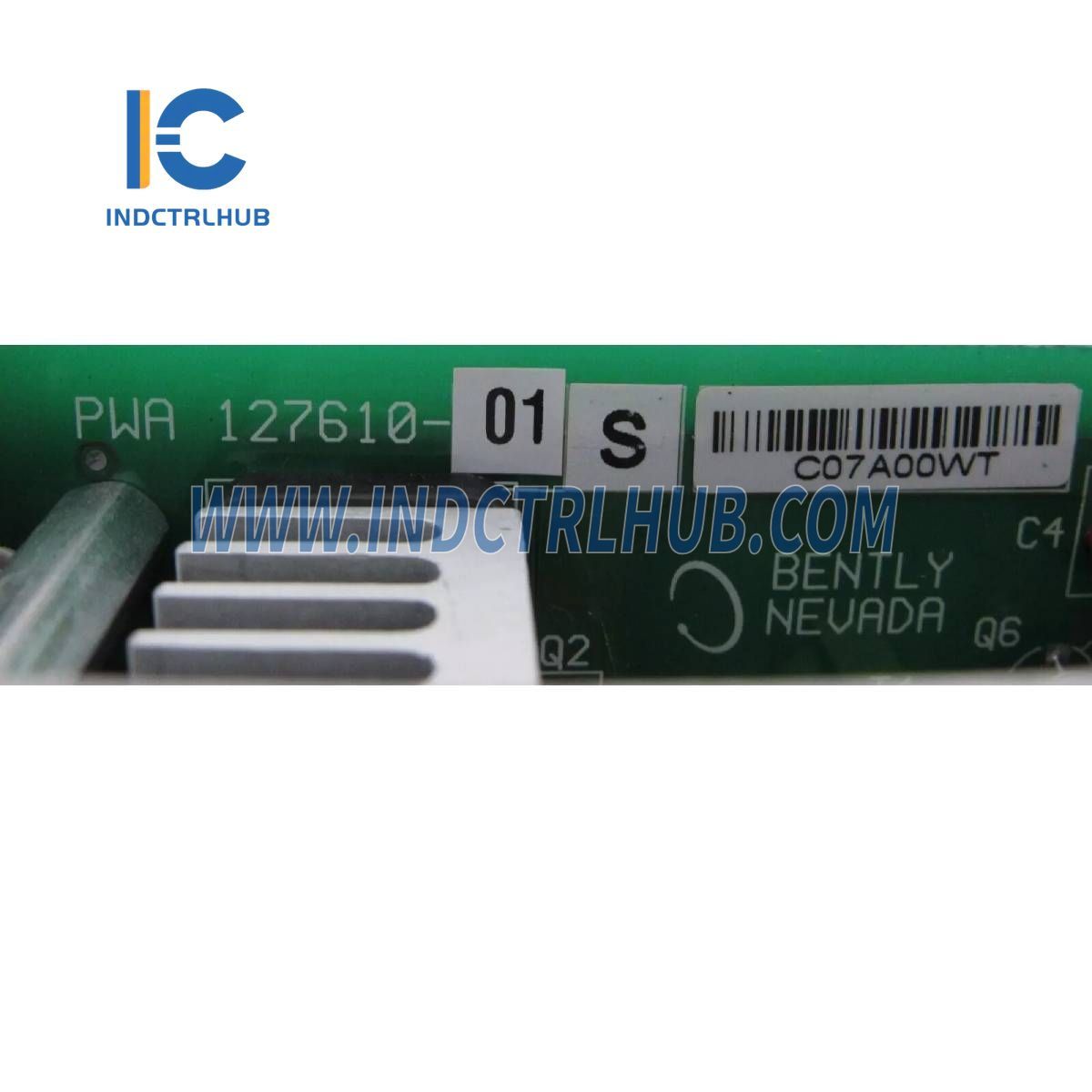

Model/Part Number: 3500/15-02-00-00 127610-01
-
Model Type: AC Power Supply Module
Description

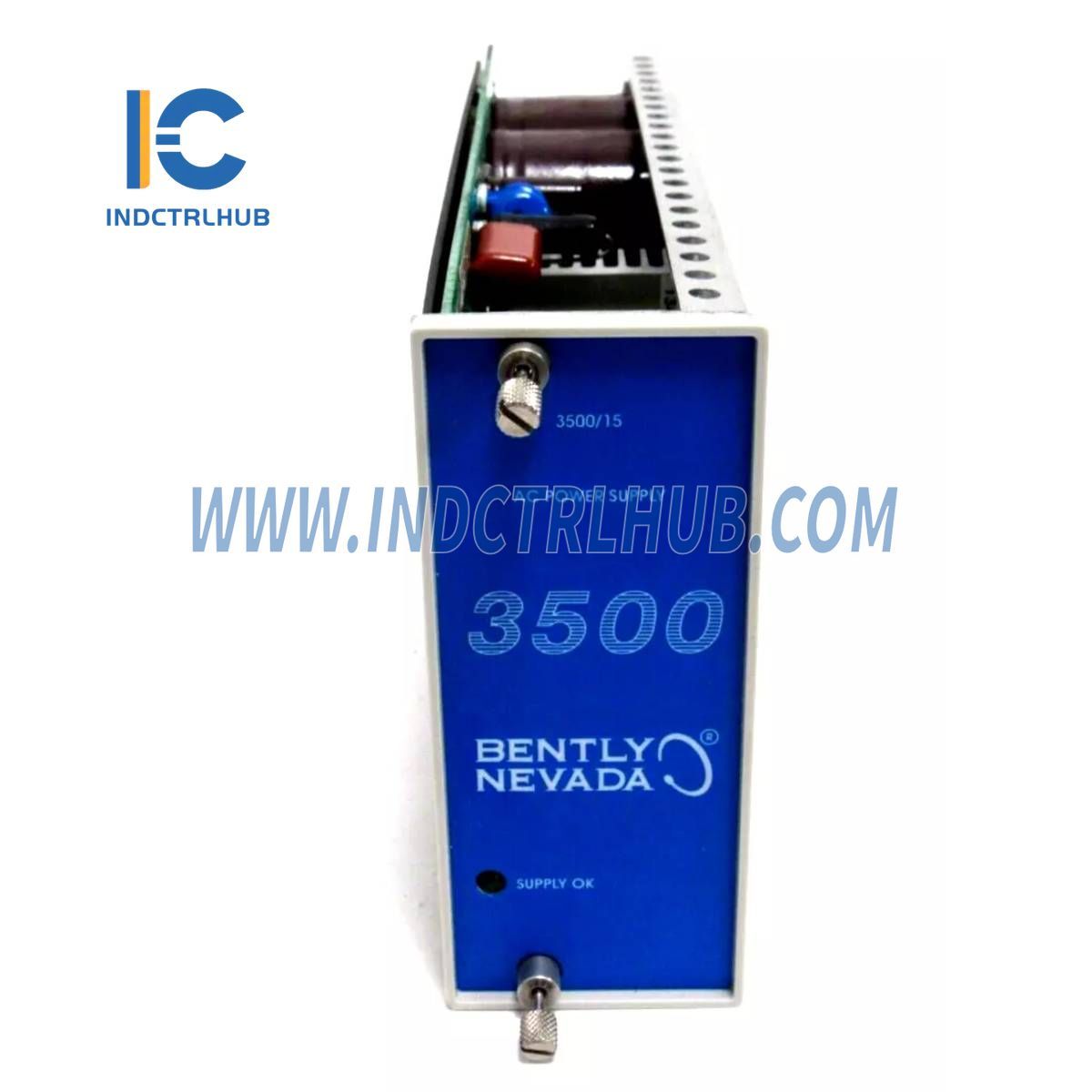

The 3500/15 AC and DC Power Supplies are half-height modules designed for installation in designated slots on the left side of the rack. The 3500 rack can accommodate one or two power supplies, with any combination of AC and DC. Either supply can power the entire rack.
Specifications
Inputs
| Voltage Options | Description |
|---|---|
| Universal Voltage AC | Nominal Input: 110 to 220 Vac |
| Non-hazardous Areas | 85 to 264 Vac rms |
| Hazardous Areas | 85 to 250 Vac rms, 120 to 373 Vac pk |
| Input Frequency | 47 to 63 Hz |
Physical
| Attribute | Value |
|---|---|
| Dimensions (Height x Width x Depth) | 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) |
| Weight | 1.39 kg (3.06 lb) |
Environmental Limits
| Attribute | Value |
|---|---|
| Operating Temperature | -30 °C to +65 °C (-22 °F to +150 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95%, non-condensing |
Ordering Information for Power Supply Module
3500/15 Power Supply Module (3500/15 -AA-BB-CC)
A: Power Supply Type (Top Slot)
-
03 → Legacy High Voltage DC (88 to 140 Vdc)
-
04 → Legacy Low Voltage DC (20 to 30 Vdc)
-
05 → Universal AC Voltage (85 to 264 Vac rms)
-
06 → High Voltage DC Supply
-
07 → Low Voltage DC Supply
B: Power Supply Type (Bottom Slot)
-
00 → No Supply (Used when no supply is required)
-
03 → Legacy High Voltage DC (88 to 140 Vdc)
-
04 → Legacy Low Voltage DC (20 to 30 Vdc)
-
05 → Universal AC Voltage (85 to 264 Vac rms)
-
06 → High Voltage DC Supply
-
07 → Low Voltage DC Supply
C: Agency Approval
-
00 → None
-
01 → CSA / NRTL / C (Class 1, Division 2)
-
02 → ATEX / IECEx / CSA (Class 1, Zone 2)
