Product Description
Product Overview

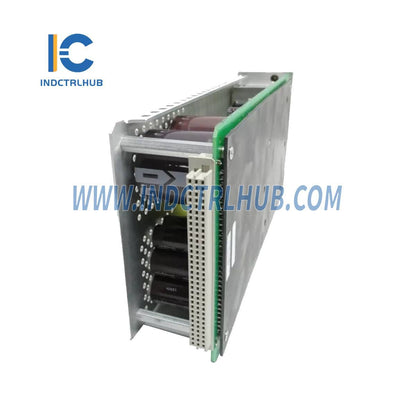

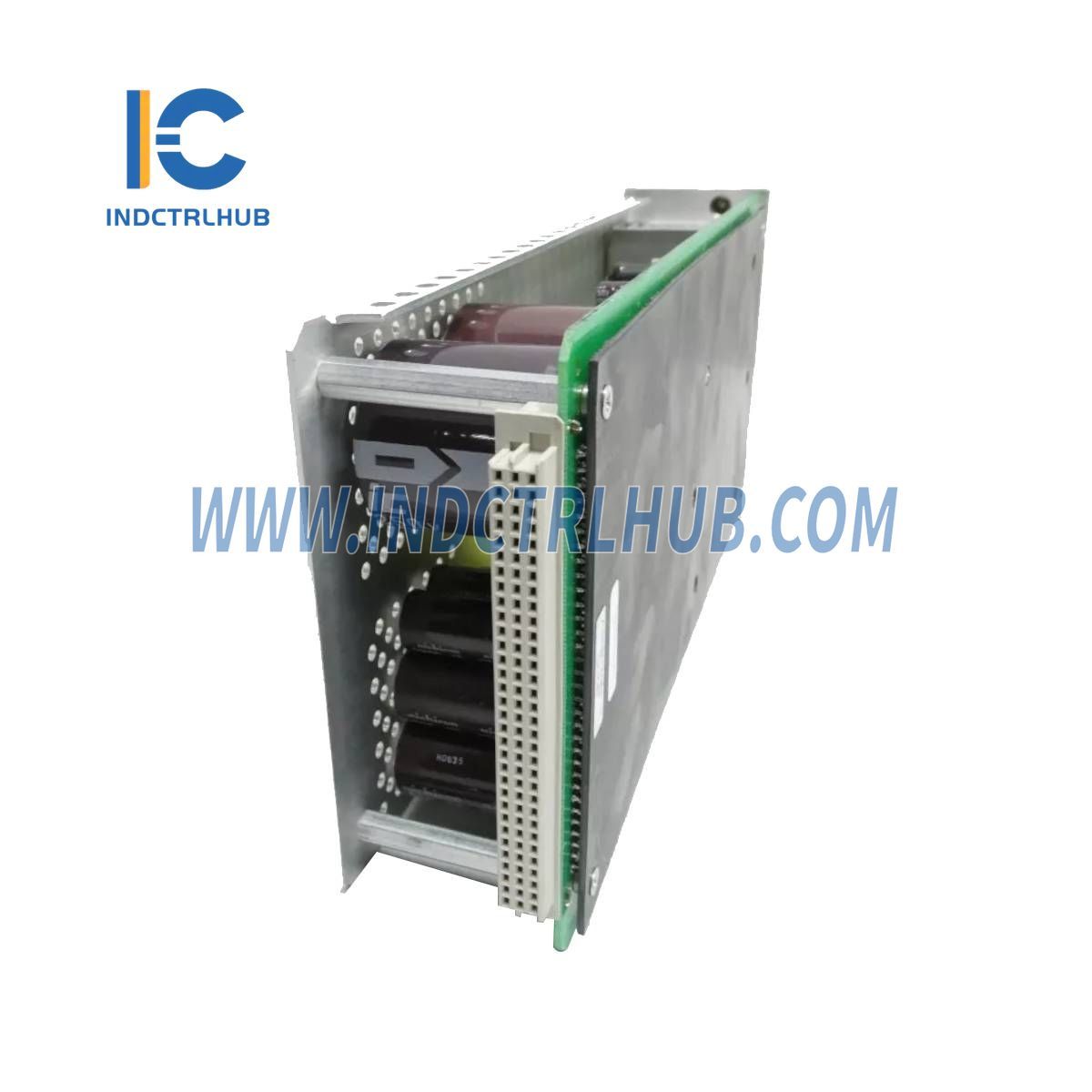

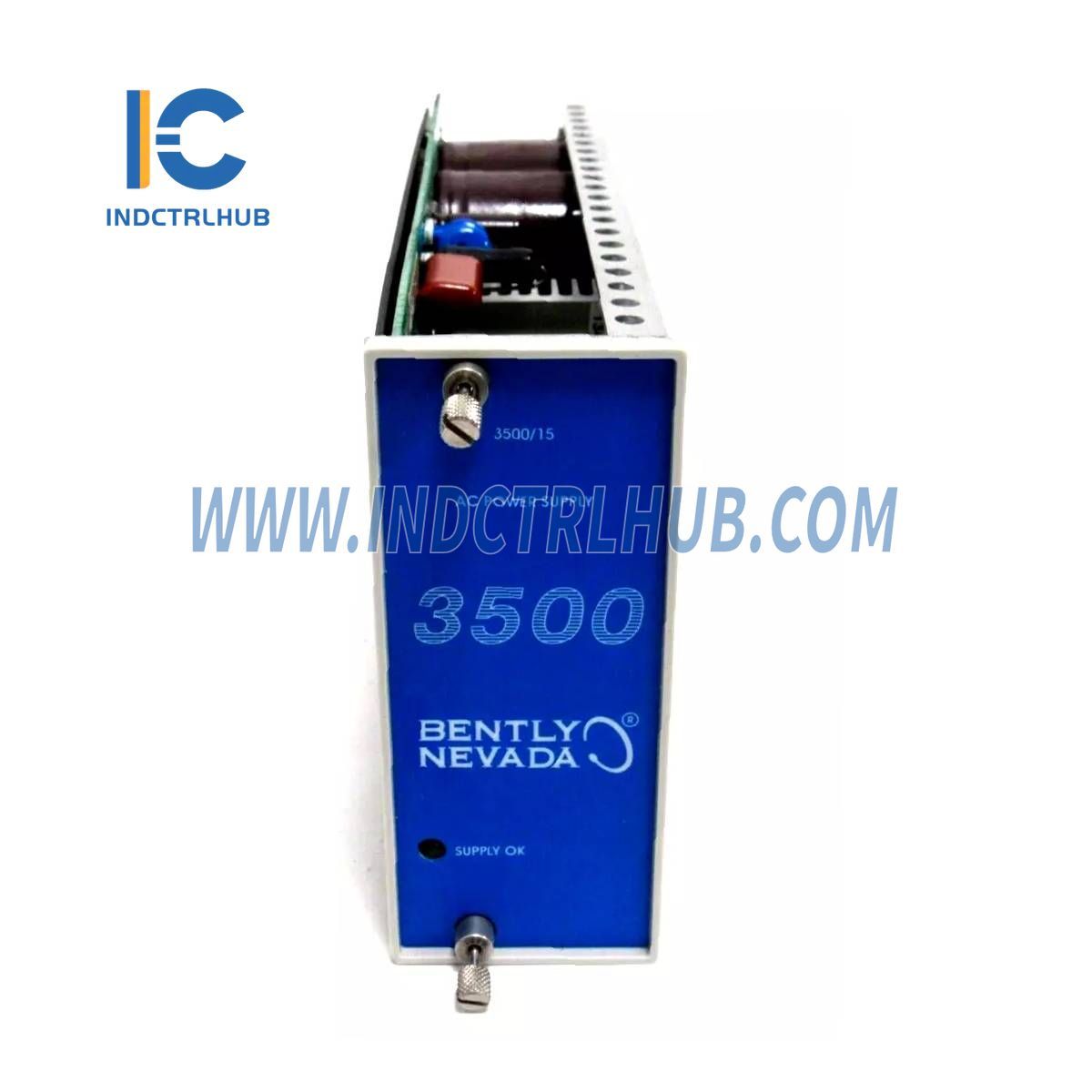

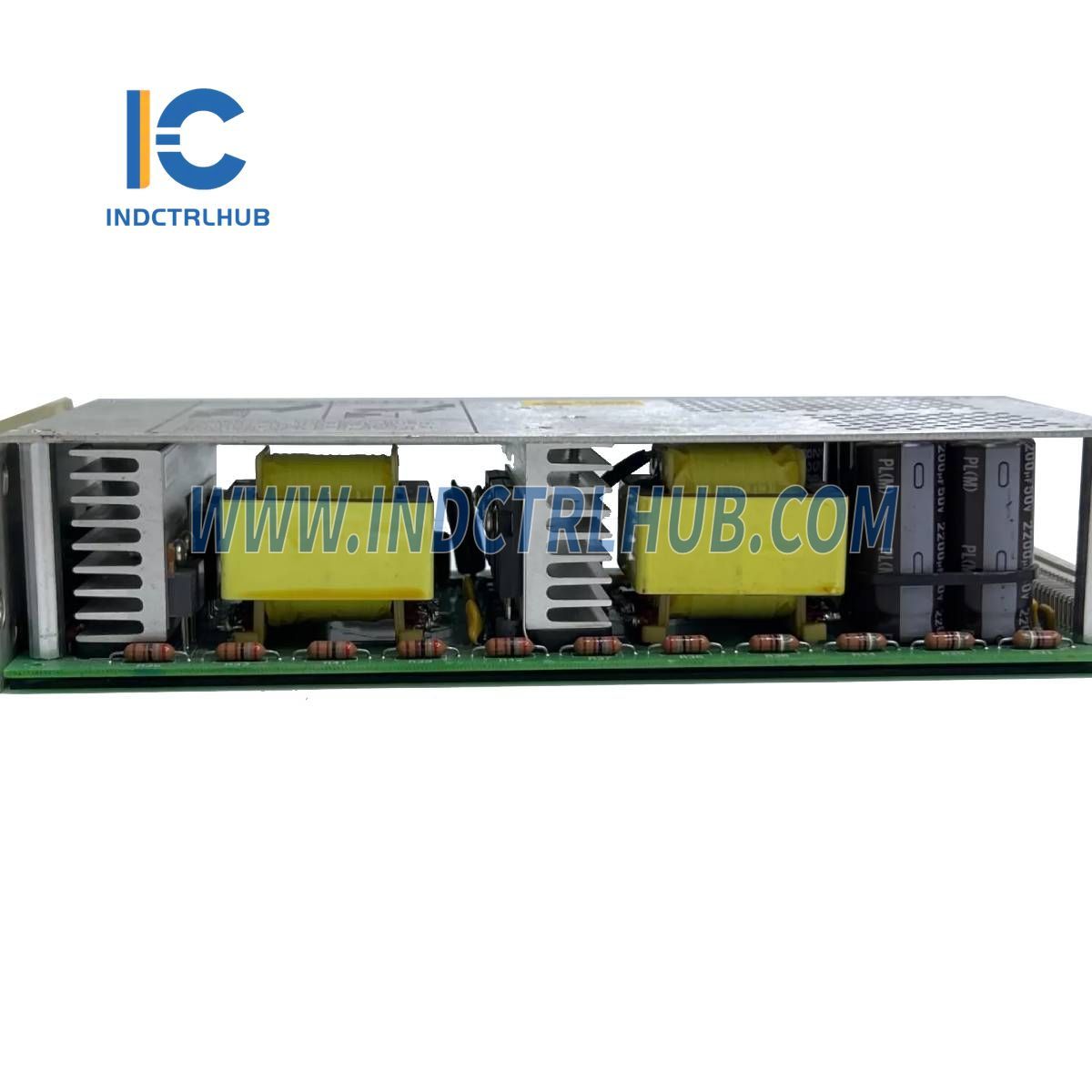

- The Bently Nevada 3500/15-01-00-00 is a Power Supply Module from the 3500/15 series, consisting of half-height AC and DC power supplies. These modules are designed to be installed in designated slots on the left side of a 3500 rack, which can accommodate one or two power supplies in any combination of AC and DC configurations. A single supply is sufficient to power an entire rack, providing flexible and reliable power solutions for industrial monitoring systems.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500/15 |
| Model/Part Number | 3500/15-01-00-00 |
| Model Type | AC and DC Power Supplies |
| Inputs - Voltage Options | Universal Voltage AC: - Description: Uses the universal AC Power Supply and universal AC Power Input Module (PIM) - Input Voltage: - 110 to 220 Vac nominal - Non-hazardous areas: 85 to 264 Vac rms - Hazardous areas: 85 to 250 Vac rms - 120 to 373 Vac pk - Note: Not compatible with legacy High Voltage AC or Low Voltage AC units - Input Frequency: 47 to 63 Hz |
| Power Supply Module Dimensions (HxWxD) | 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) |
| Power Supply Module Weight | 1.39 kg (3.06 lb) |
| Power Input Module Dimensions (HxWxD) | 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in) |
| Power Input Module Weight | 0.34 kg (0.75 lb) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Ordering Information
- Model: 3500/15 Power Supply Module
- Ordering Format: 3500/15-AA-BB-CC
- Option Descriptions:
- A: Power Supply Type (Top Slot)
- 03: Legacy High Voltage DC (88 to 140 Vdc)
- 04: Legacy Low Voltage DC (20 to 30 Vdc)
- 05: Universal AC Voltage (85 to 264 Vac rms)
- 06: High Voltage DC Supply
- 07: Low Voltage DC Supply
- B: Power Supply Type (Bottom Slot)
- 00: No Supply (Used when no supply is required)
- 03: Legacy High Voltage DC (88 to 140 Vdc)
- 04: Legacy Low Voltage DC (20 to 30 Vdc)
- 05: Universal AC Voltage (85 to 264 Vac rms)
- 06: High Voltage DC Supply
- 07: Low Voltage DC Supply
- C: Agency Approval
- 00: None
- 01: CSA/NRTL/C (Class 1, Division 2)
- 02: ATEX/IECEx/CSA (Class 1, Zone 2)
- A: Power Supply Type (Top Slot)
Specific Configuration
- Model/Part Number: 3500/15-01-00-00
- Configuration Details:
- A: 01 - Not explicitly listed; assumed as placeholder or typo (intended as 05 for Universal AC Voltage based on context)
- B: 00 - No Supply in Bottom Slot
- C: 00 - No Agency Approval
Additional Notes
- The "01" in "3500/15-01-00-00" does not match listed top slot options (03-07); assumed as a typo or legacy code, with "05" (Universal AC Voltage) inferred from the input voltage specs provided.
