Product Description
Product Details
- Manufacturer: Bently Nevada
- Model/Part Number: 3500/05-02-04-00-00-01

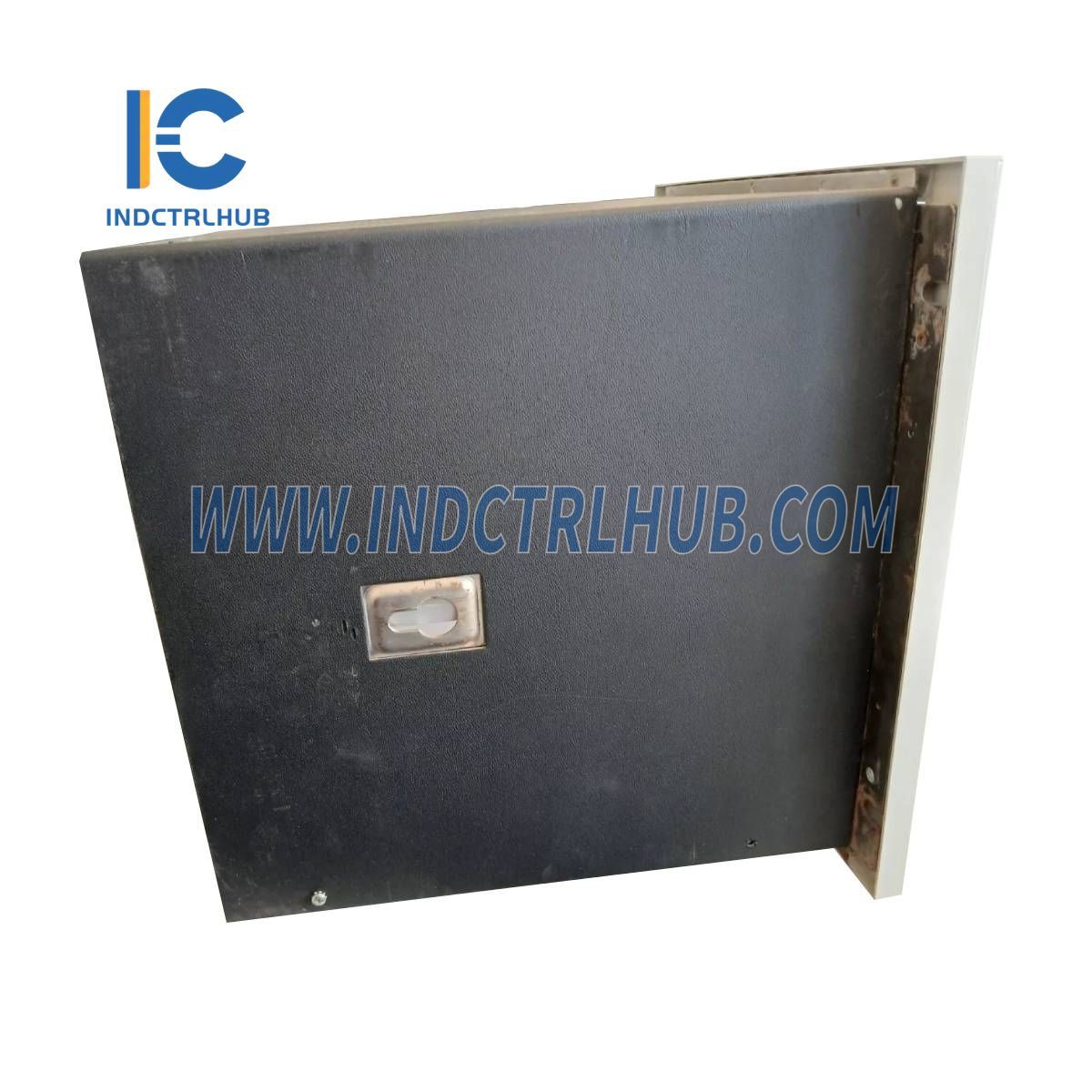

- Description: System Rack
Overview

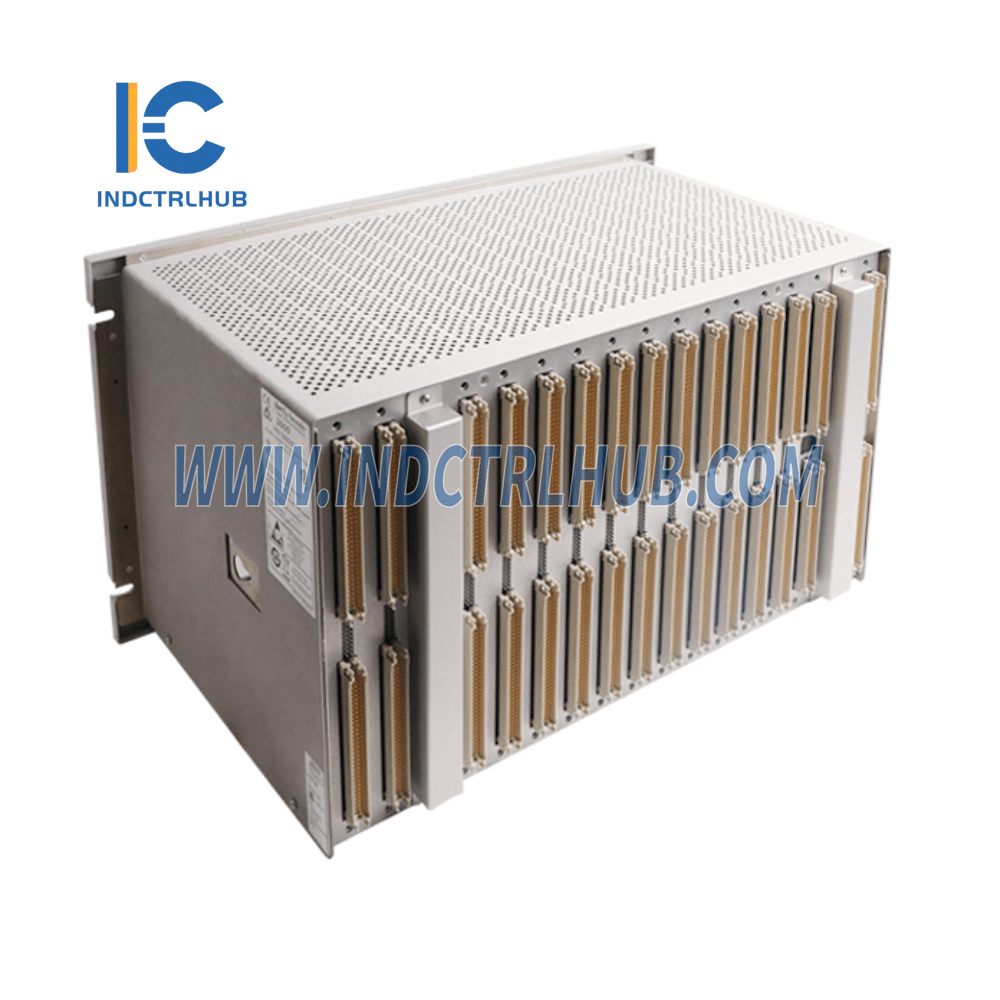

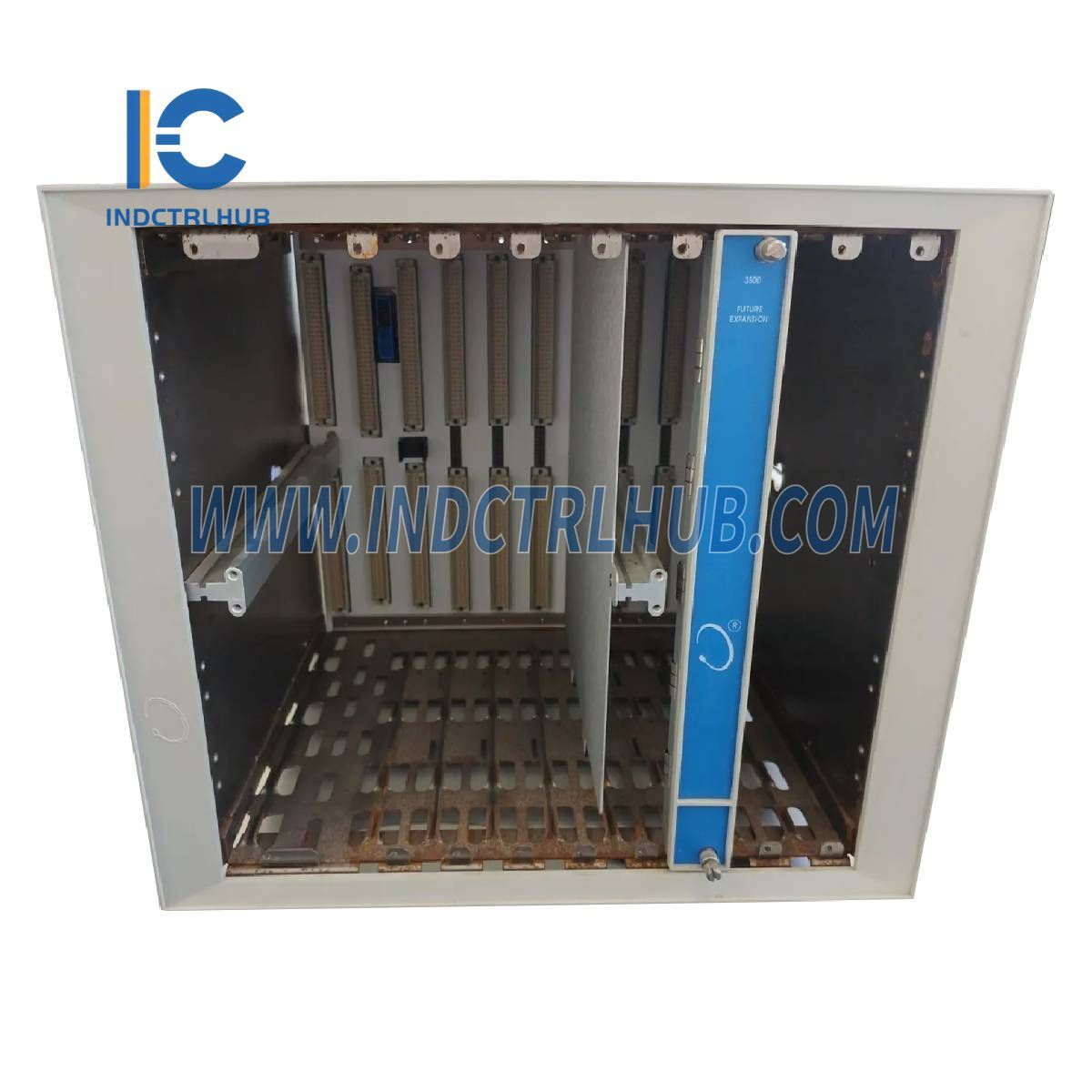

The 3500 System rack is designed to house all 3500 monitor modules and power supplies. It facilitates module communication by keeping them in close proximity and provides mounting space for power supplies to distribute power to each module effectively.
Two rack sizes are available:
- Full-size rack: A 19-inch EIA rack with 14 module slots.
- Mini-rack: A 12-inch rack with 7 module slots.
Ordering Information
The product code format is: 3500/05-AA-BB-CC-DD-EE
-
A: Rack Size
- 01: 19-inch Rack (14 module slots)
- 02: 12-inch Mini-Rack (7 module slots)
-
B: Mounting Options
- 01: Panel Mount, Full-Size Rack
- 02: Rack Mount, Full-Size Rack (fits 19-inch EIA rack)
- 03: Bulkhead Mount (not available for Mini-Rack)
- 04: Panel Mount, Mini-Rack
- 05: Rack Mount, Mini-Rack
-
C: Agency Approval Options
- 00: None
- 01: CSA/NRTL/C (Class 1, Division 2)
- 02: ATEX/IECEx/CSA (Class 1, Zone 2)
-
D: Reserved
- 00: None
-
E: European Compliance
- 01: CE
