Product Description
Product Details
| Manufacturer | Bently Nevada |
|---|---|
| Model/Part Number | 3500/05-02-04-00-00-00 |
| Description | 3500/05 System Rack |
Product Description

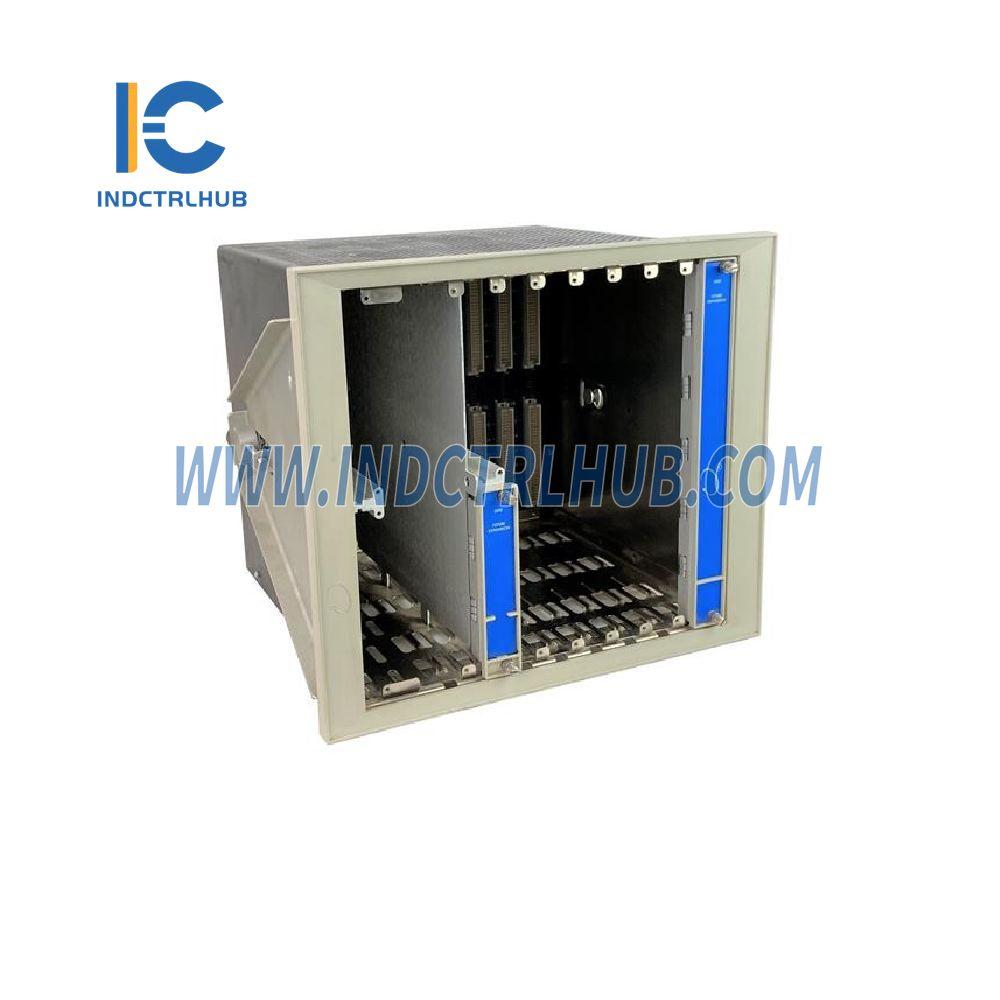

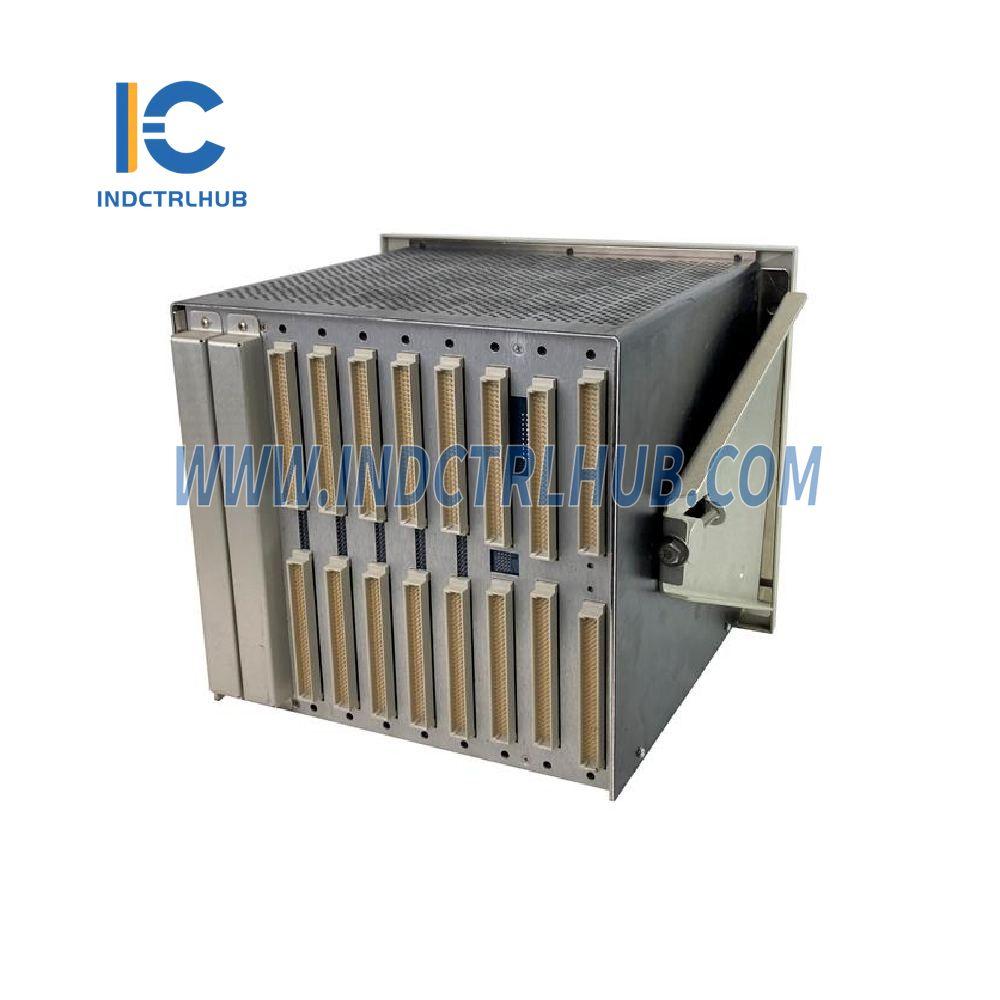

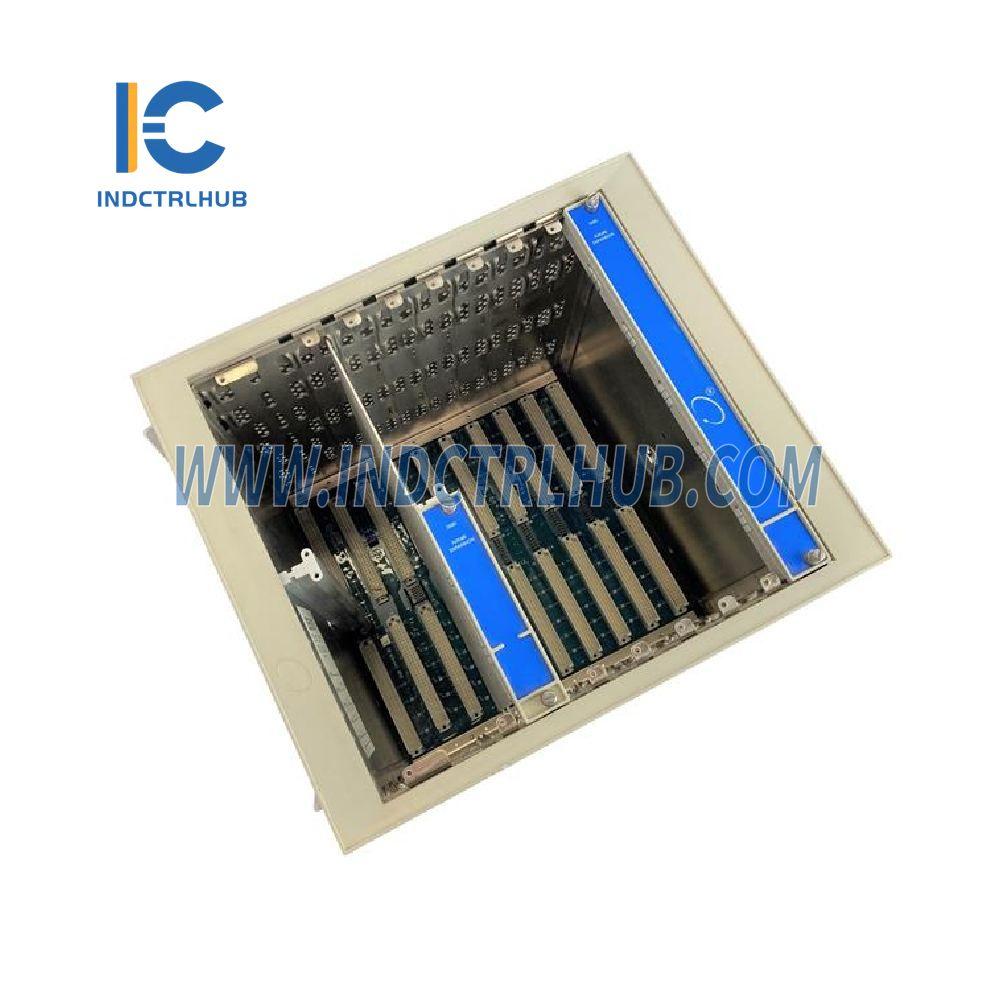

The 3500/05 System Rack is an advanced platform for mounting and integrating Bently Nevada 3500 monitor modules and power supplies. The rack ensures efficient module communication and reliable power distribution.
Available in two configurations:
- Full-Size Rack: 19-inch EIA rack with 14 module slots.
- Mini-Rack: 12-inch rack with 7 module slots.
Technical Specifications
| Feature | Details |
|---|---|
| Rack Size | 19-inch full-size rack (14 module slots) |
| Mounting Options | Panel Mount, Rack Mount, Bulkhead Mount |
| Power Supply Support | Redundant power supplies, 28 VDC, 300 watts each |
| Compliance | EMC Directive 2014/30/EU, LV Directive 2014/35/EU, EN 61000-6-2, EN 61000-6-4, ATEX/IECEx standards |
| Operating Temperature | -20°C to +65°C (-4°F to +149°F) |
| Humidity | Up to 95%, non-condensing |
| Backplane Data Transfer | Up to 2 Mbps |
| Material | High-grade aluminum |
Ordering Information
Part Number: 3500/05-AA-BB-CC-DD-EE
| Code | Option |
|---|---|
| A | Rack Size |
| 01 | 19-inch Rack (14 module slots) |
| 02 | 12-inch Mini-Rack (7 module slots) |
| B | Mounting Options |
| 01 | Panel Mount Option, Full-Size Rack |
| 02 | Rack Mount Option, Full-Size Rack (mounts to 19-inch EIA Rack) |
| 03 | Bulkhead Mount Option (not available for Mini-Rack) |
| 04 | Panel Mount Option, Mini-Rack |
| 05 | Rack Mount Option, Mini-Rack |
| C | Agency Approval Option |
| 00 | None |
| 01 | CSA/NRTL/C (Class 1, Division 2) |
| 02 | ATEX/IECEx/CSA (Class 1, Zone 2) |
| D | Reserved |
| 00 | None |
| E | European Compliance Option |
| 01 | CE |
