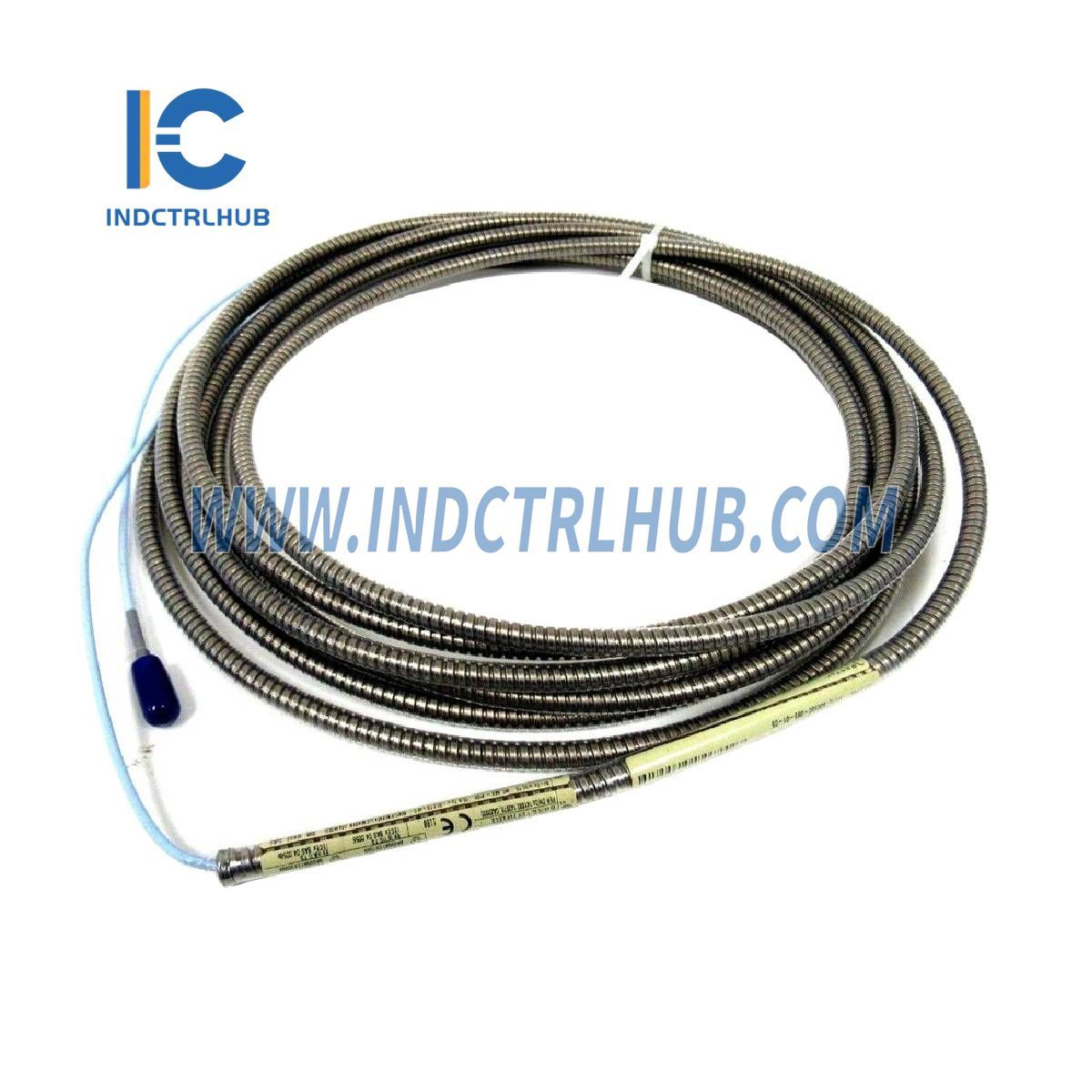

Bently Nevada 330930-065-01-01 3300 NSv Extension Cable

General Information

• Manufacturer: Bently Nevada

• Series: 3300

• Model/Part Number: 330930-065-01-01

• Model Type: 3300 NSv Extension Cable

Electrical

• Proximitor Sensor Input:

• Accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable.

• Extension Cable DC Resistance:

• Center conductor: 0.220 Ω/m (0.067 Ω/ft)

• Shield: 0.066 Ω/m (0.020 Ω/ft)

• Extension Cable Capacitance:

• 69.9 pF/m (21.3 pF/ft) typical

• Extension Cable Material:

• 75 Ω coaxial, fluoroethylene propylene (FEP) insulated.

• Proximitor Sensor Material:

• A380 aluminum

System Length

• Length Options:

• 5 or 7 meters including extension cable

Extension Cable

• Weight:

• 45 g/m (0.5 oz/ft)

• 64 g/m (0.7 oz/ft)

• Temperature Range (Operating and Storage):

• -52°C to +177°C (-62°F to +351°F)

Proximitor Sensor Temperature Range

• Operating Temperature:

• -52°C to +100°C (-62°F to +212°F)

• Storage Temperature:

• -52°C to +105°C (-62°F to +221°F)

• Relative Humidity:

• 100% condensing, non-submersible when connectors are protected.

• Tested to IEC 68-2-3 damp heat.

Extension Cable Model Number Configuration

• A: Cable Length Option:

• 040: 4.0 meters (13.1 feet)

• 045: 4.5 meters (14.8 feet)

• 060: 6.0 meters (19.7 feet)

• 065: 6.5 meters (21.3 feet)

• B: Connector and Cable Option:

• 00: Without stainless steel armor

• 01: With stainless steel armor, with FEP jacket

• 02: With stainless steel armor, without FEP jacket

• 03: Without stainless steel armor, with connector protector

• 04: With stainless steel armor, with FEP jacket, with connector protector

• 05: With stainless steel armor, without FEP jacket, with connector protector

• 06: FluidLoc cable without stainless steel armor

• 07: FluidLoc cable with stainless steel armor, with FEP jacket

• 08: FluidLoc cable with stainless steel armor, without FEP jacket

• 09: FluidLoc without stainless steel armor, with connector protector

• 10: FluidLoc cable with stainless steel armor, with FEP jacket, with connector protector

• 11: FluidLoc cable with stainless steel armor, without FEP jacket, with connector protector

• C: Agency Approval Option:

• 00: Not Required

• 05: Multiple Approvals
