Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
3300 |
|
Model/Part Number |
330910-00-08-50-01-05 |
|
Description |

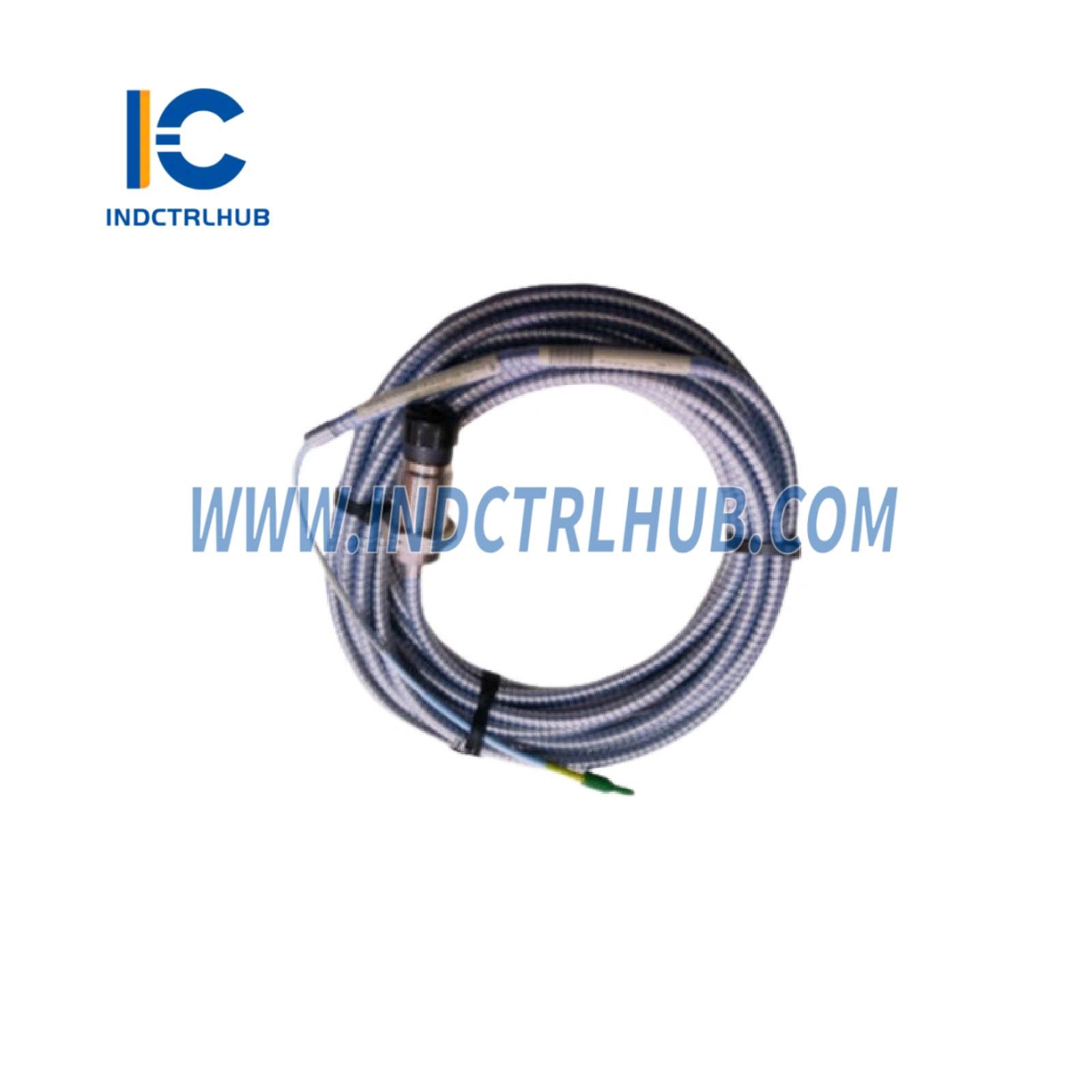

3300 NSv Proximity Probes, Metric |
🔹 Description
The 3300 NSv Proximity Transducer System is designed for applications with tight installation requirements such as centrifugal air compressors, refrigeration compressors, and process gas compressors. The system consists of:
-
One 3300 NSv Probe
-
One 3300 NSv Extension Cable
-
One 3300 XL NSv Proximitor Sensor
🔹 Physical Specifications
|
Property |
Value |
|---|---|
|
System Weight |
Approximately 14 to 150 g (0.5 to 5.3 oz) per probe |
🔹 Ordering Information Breakdown – 330910-00-08-50-01-05
|
Field |
Code |
Description |
|---|---|---|
|
A |
06 |
Unthreaded Length Option: 60 mm (Example) |
|
B |
06 |
Overall Case Length Option: 60 mm (Example) |
|
C |
50 |
Total Length Option: 5.0 meters (16.4 feet) |
|
D |
01 |
Connector and Cable-Type Option: Standard Cable with Miniature Coaxial ClickLoc connector and connector protector |
|
E |
05 |
Agency Approval Option: Multiple Approvals |
🔹 Probe Options
|
Probe Part Number |
Description |
|---|---|
|
330903 |
M8X1 thread, without armor |
|
330904 |
M8X1 thread, with armor |
|
330905 |
M10X1 thread, without armor |
|
330910 |
M10X1 thread, with armor |
