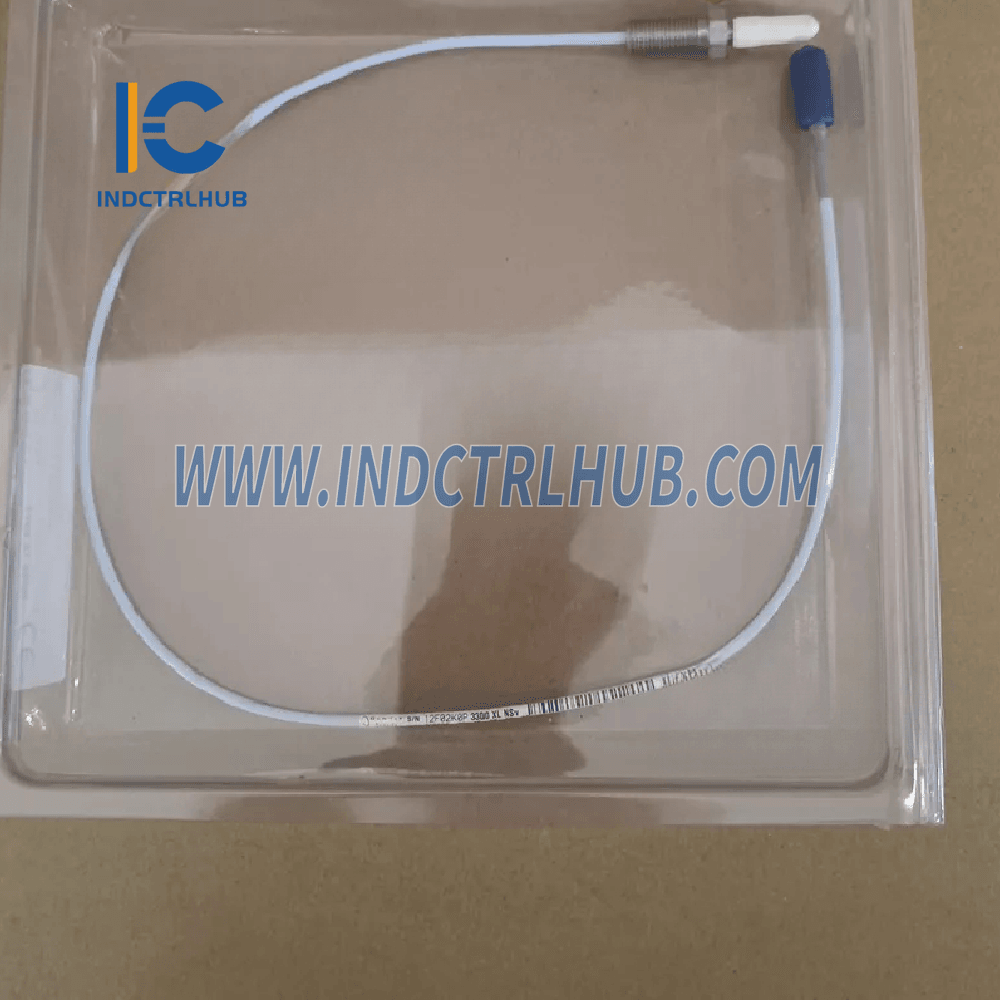

Product Details: Bently Nevada 330906-02-12-05-02-00 3300 NSv Reverse Mount Probe
General Information
- Manufacturer: Bently Nevada
- Model/Part Number: 330906-02-12-05-02-00
- Description: 3300 NSv Reverse Mount Probe with M10X1 threads
Specifications
| Option | Description |
|---|---|
| Thread Size | 3/8-24 UNF threads |
| Total Length (C) | 05: 0.5 meter (20 in) 10: 1.0 meter (39 in) 50: 5.0 meters (16.4 feet) 70: 7.0 meters (23.0 feet) |
| Connector (D) |
02: Miniature coaxial ClickLoc connector, standard cable 12: Miniature coaxial ClickLoc connector, FluidLoc cable |
| Agency Approvals (E) | 00: Not required 05: Multiple Approvals |
-
Stocked Probes: For shorter delivery times, consider stocked probes with part numbers such as:
- 330901-00-24-05-02-00
- 330902-00-50-05-02-00
- 330906-02-12-05-02-00
System Weight (Typical)
| Component | Weight |
|---|---|
| Probe | Approximately 14 to 150 g (0.5 to 5.3 oz) |
| Extension Cable | 45 g/m (0.5 oz/ft) |
| Armored Extension Cable | 64 g/m (0.7 oz/ft) |
| Proximitor Sensor | 255 g (9 oz) |
Thread Engagement Limits
| Thread Size | Maximum Thread Engagement Length |
|---|---|
| 1/4-28 | 0.375 in (9.53 mm) |
| 3/8-24 UNF | 0.563 in (14.3 mm) |
| M8x1 | 12 mm |
| M10x1 | 15 mm |
Environmental Limits
| Component | Operating Temperature | Storage Temperature |
|---|---|---|
| Probe | -52°C to +177°C (-62°F to +351°F) | -52°C to +177°C (-62°F to +351°F) |
| Extension Cable | -52°C to +177°C (-62°F to +351°F) | -52°C to +177°C (-62°F to +351°F) |
| Proximitor Sensor | -52°C to +100°C (-62°F to +212°F) | -52°C to +105°C (-62°F to +221°F) |
- Relative Humidity: 100% condensing, non-submersible when connectors are protected. Tested to IEC 68-2-3 damp heat.
- Note: Exposing the probe to temperatures below -34°C (-30°F) for extended periods may cause premature pressure seal failure.
