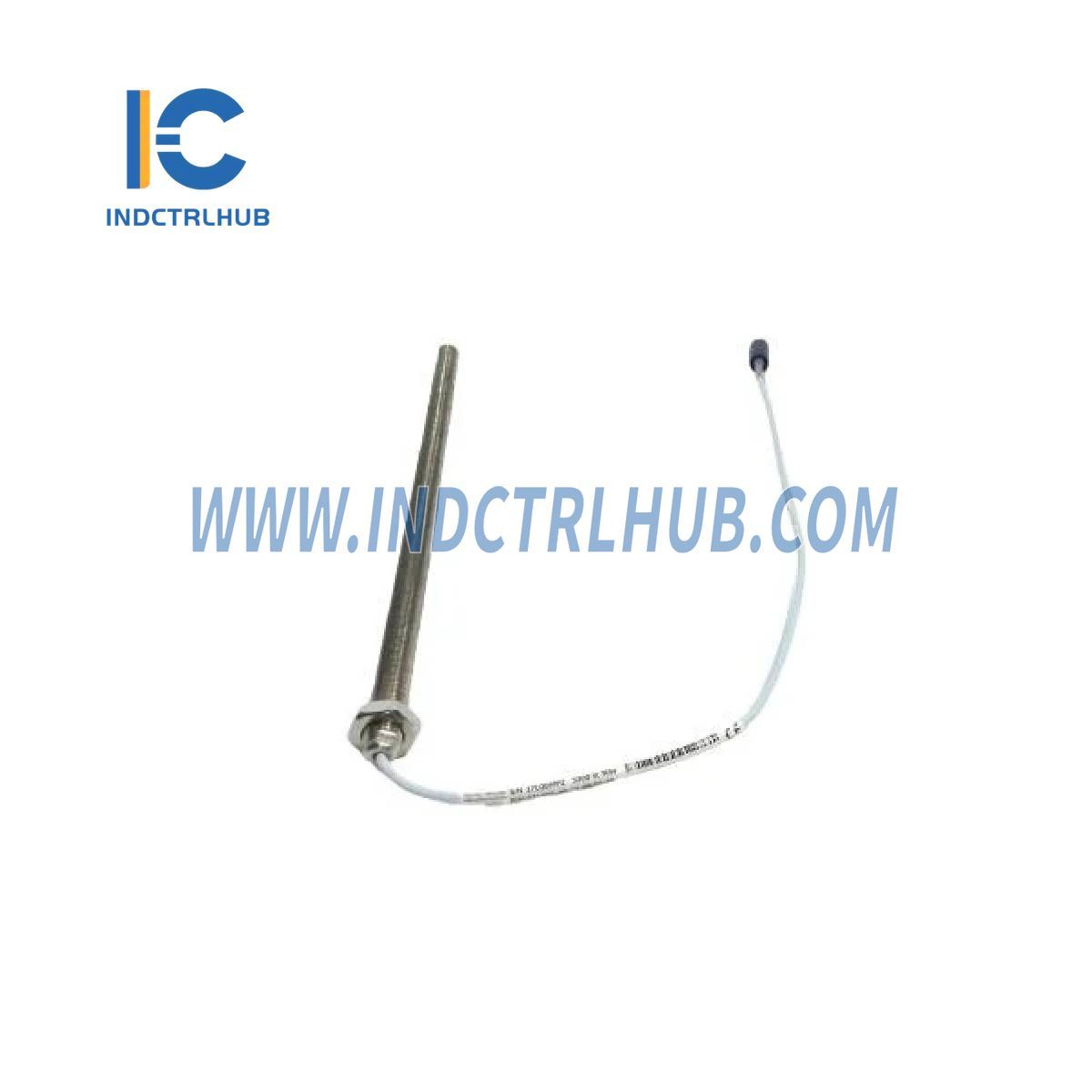

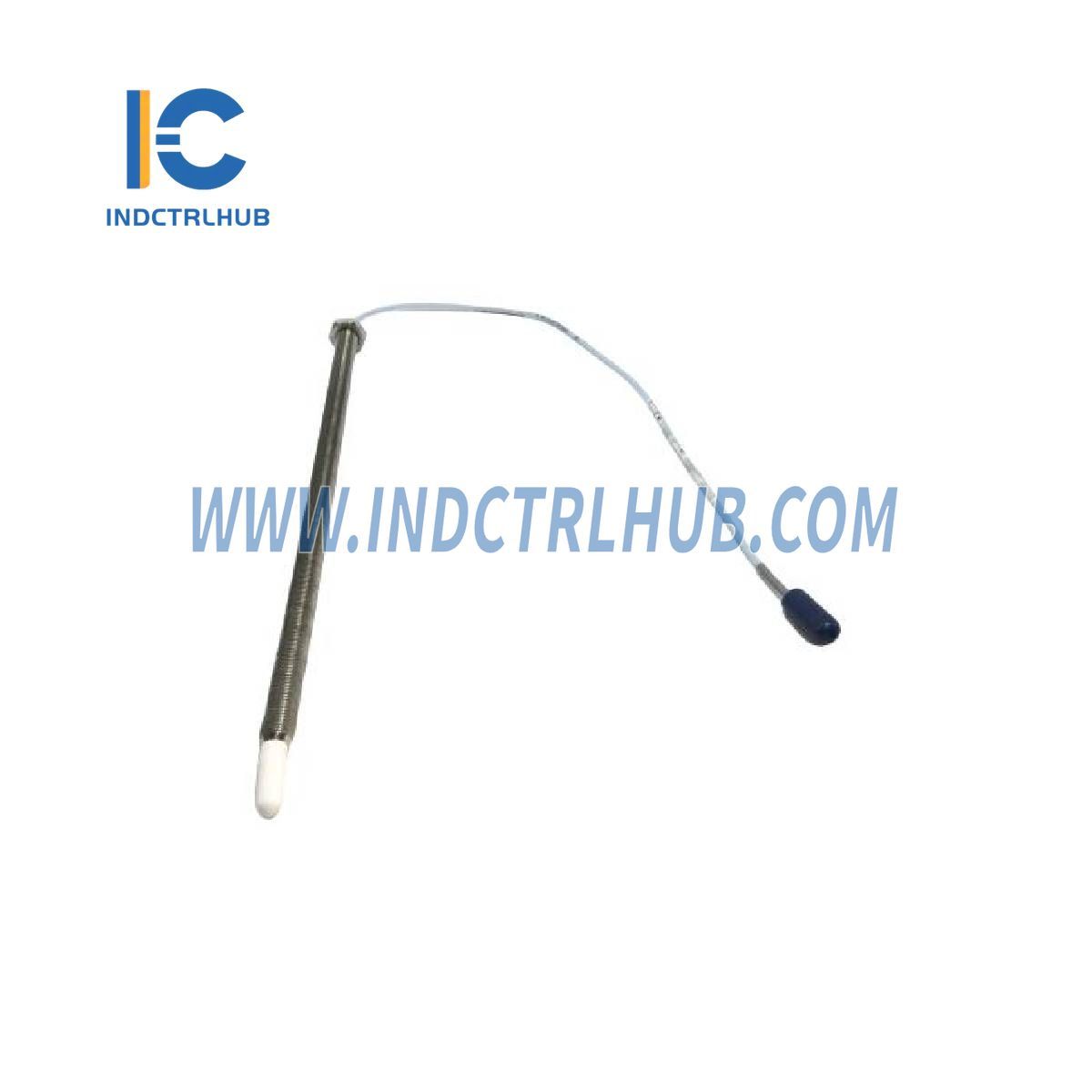

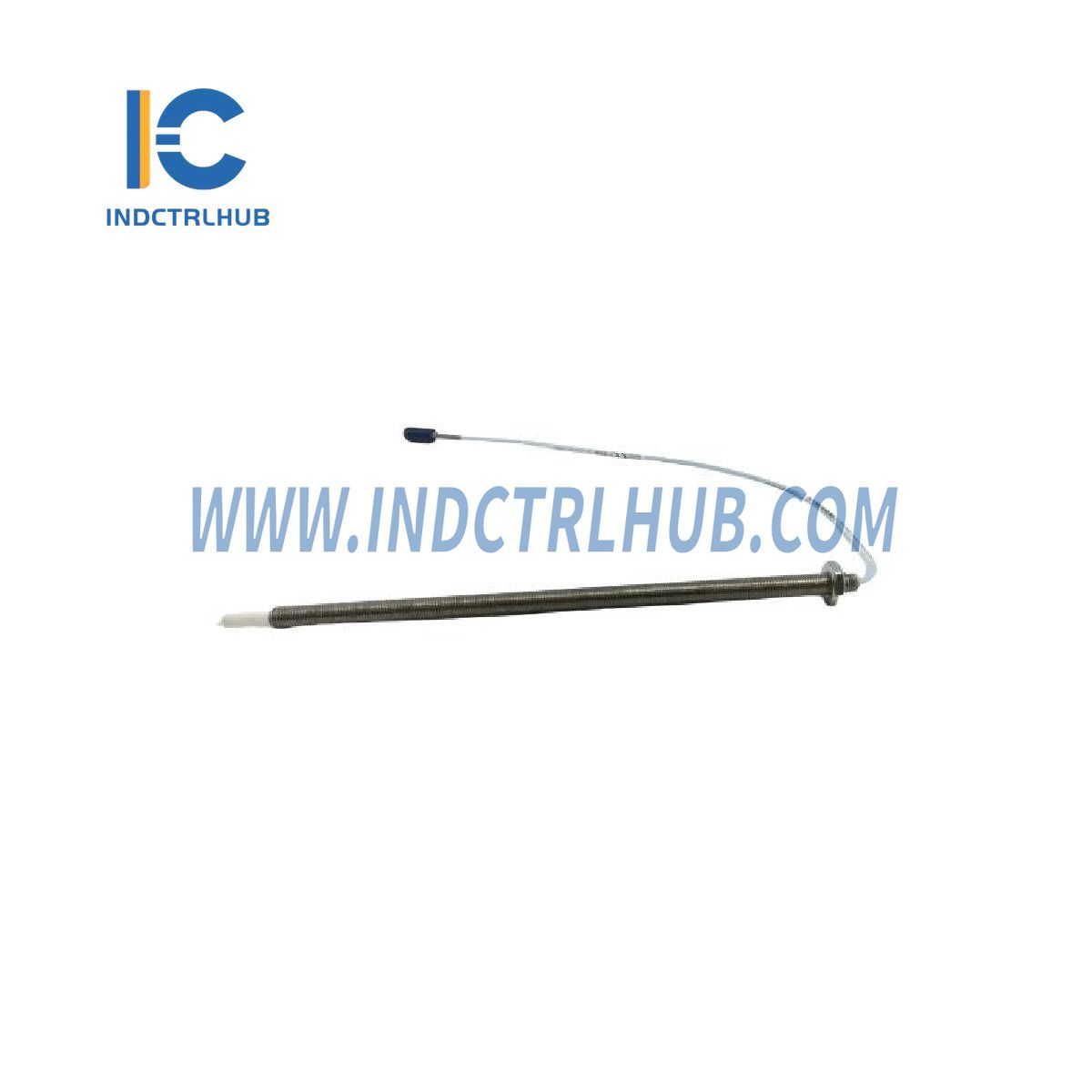

Bently Nevada 330905-00-25-05-02-05 3300 NSv Probe

Bently Nevada 330905-00-25-05-02-05 3300 NSv Probe

  • Manufacturer: Bently Nevada

  • Product No.: 330905-00-25-05-02-05

  • Condition:1000 in stock

  • Product Type: 3300 NSv Probe

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Manufacturer: Bently Nevada

  • Series: 3300

  • Model/Part Number: 330905-00-25-05-02-05

  • Model Type: 3300 NSv Probe, M10X1 thread, without armor

Description

The 3300 XL NSv Proximity Transducer system is designed for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machinery with tight installation requirements. The system consists of the following components:

  • A 3300 NSv probe

  • A 3300 NSv extension cable

  • A 3300 XL NSv Proximitor Sensor

Technical Specifications

Probe DC Resistance

Probe Length (m) Resistance from the Center Conductor to the Outer Conductor (RPROBE) (Ohms)
0.5 4.0 ± 0.5
1.0 4.2 ± 0.5
5.0 5.3 ± 0.7

Output Voltage (mV pp/Gauss)

Gap Proximitor Sensor Probe Extension Cable
0.25 mm (10 mils) 0.006 0.001
1.0 mm (40 mils) 0.007 0.002
1.75 mm (70 mils) 0.008 0.002

Probe Weight

  • Approximately 14 to 150 g (0.5 to 5.3 oz)

Environmental Limits

Temperature Range

  • Operating Temperature: -52°C to +177°C (-62°F to +351°F)

  • Storage Temperature: -52°C to +177°C (-62°F to +351°F)

View full details

Product Description

General Information

  • Manufacturer: Bently Nevada

  • Series: 3300

  • Model/Part Number: 330905-00-25-05-02-05

  • Model Type: 3300 NSv Probe, M10X1 thread, without armor

Description

The 3300 XL NSv Proximity Transducer system is designed for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machinery with tight installation requirements. The system consists of the following components:

  • A 3300 NSv probe

  • A 3300 NSv extension cable

  • A 3300 XL NSv Proximitor Sensor

Technical Specifications

Probe DC Resistance

Probe Length (m) Resistance from the Center Conductor to the Outer Conductor (RPROBE) (Ohms)
0.5 4.0 ± 0.5
1.0 4.2 ± 0.5
5.0 5.3 ± 0.7

Output Voltage (mV pp/Gauss)

Gap Proximitor Sensor Probe Extension Cable
0.25 mm (10 mils) 0.006 0.001
1.0 mm (40 mils) 0.007 0.002
1.75 mm (70 mils) 0.008 0.002

Probe Weight

  • Approximately 14 to 150 g (0.5 to 5.3 oz)

Environmental Limits

Temperature Range

  • Operating Temperature: -52°C to +177°C (-62°F to +351°F)

  • Storage Temperature: -52°C to +177°C (-62°F to +351°F)
