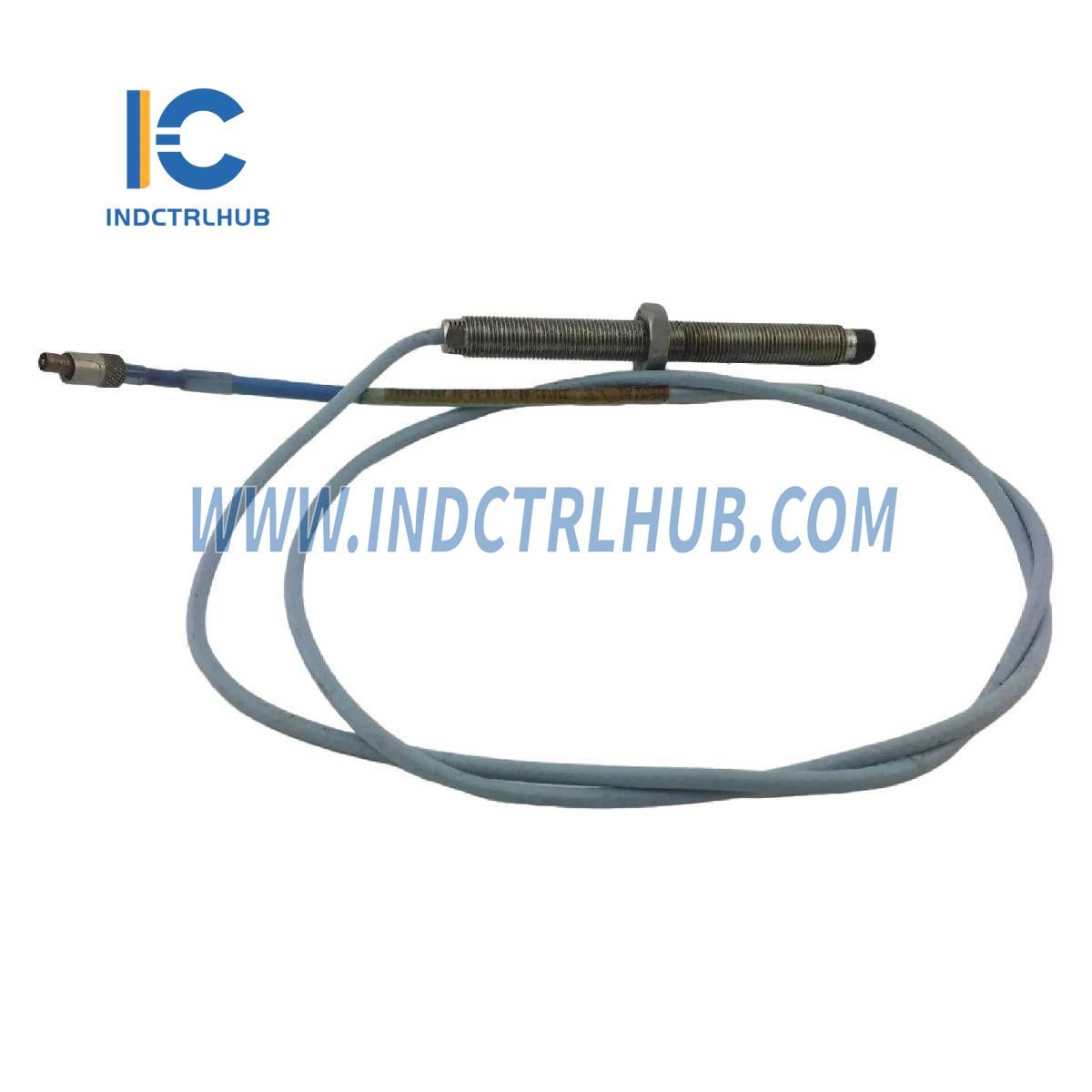

Bently Nevada 330904-08-15-10-02-05 3300 NSv Probe

Manufacturer

Bently Nevada

Series

3300

Model/Part Number

330904-08-15-10-02-05

Model Type

3300 NSv Probe, M8X1 thread, with armor

Probe DC Resistance

See table below for resistance at different probe lengths

Extension Cable DC Resistance

Center conductor: 0.220 Ω/m (0.067 Ω/ft), Shield: 0.066 Ω/m (0.020 Ω/ft)

Extension Cable Capacitance

69.9 pF/m (21.3 pF/ft) typical

Field Wiring

0.2 to 1.5 mm² (16 to 24 AWG) [0.25 to 0.75 mm² (18 to 23 AWG) with ferrules]

Maximum Field Wiring Length

305 meters (1,000 feet)

Linear Range

0.25 mm to 1.75 mm (10 to 70 mils), Linear range begins at 0.25 mm (10 mils)

Recommended Gap Setting

1.0 mm (40 mils)

0.5

4.0 ± 0.5

1.0

4.2 ± 0.5

5.0

5.3 ± 0.7

7.0

5.9 ± 0.9

Probe Tip

Polyphenylene sulfide (PPS)

Probe Case

AISI 304 stainless steel (SST)

Probe Cable

75 Ω coaxial, fluoroethylene propylene (FEP) insulated

Extension Cable

75 Ω coaxial, fluoroethylene propylene (FEP) insulated

Proximitor Sensor

A380 aluminum

Extension Cable Armor

Flexible AISI 302 SST with/without FEP outer jacket

Probe Case to Probe Lead

220 N (50 lb)

Probe Lead to Extension Cable Connectors

220 N (50 lb)

Probe Case to Stainless Steel Armor

220 N (50 lb)

Probe

14 to 150 g (0.5 to 5.3 oz)

Extension Cable

45 g/m (0.5 oz/ft)

Armored Extension Cable

64 g/m (0.7 oz/ft)

Proximitor Sensor

255 g (9 oz)

Operating Temperature

-52°C to +177°C (-62°F to +351°F)

Storage Temperature

-52°C to +177°C (-62°F to +351°F)

330904-08-15-10-02-05

3300 NSv Probe, M8X1 thread, with armor
