Product Description
General Information
-
Manufacturer: Bently Nevada
-
Series: 3300 XL
-

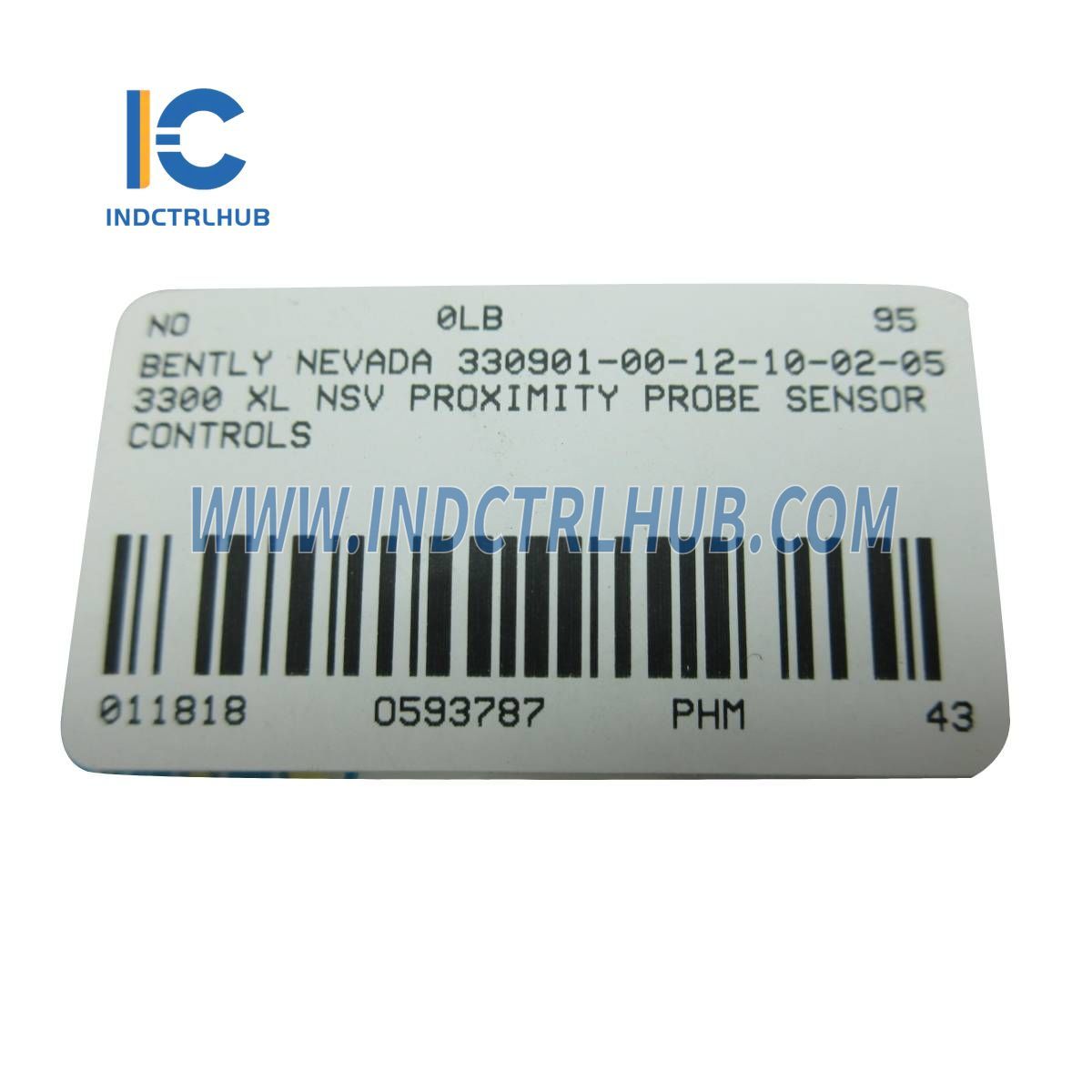

Model/Part Number: 330901-00-12-10-02-05
-
Model Type: 3300 NSv Proximity Probes
Description
The 3300 XL NSv Proximity Transducer System is designed for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machinery with tight installation requirements. The system consists of the following components:
-

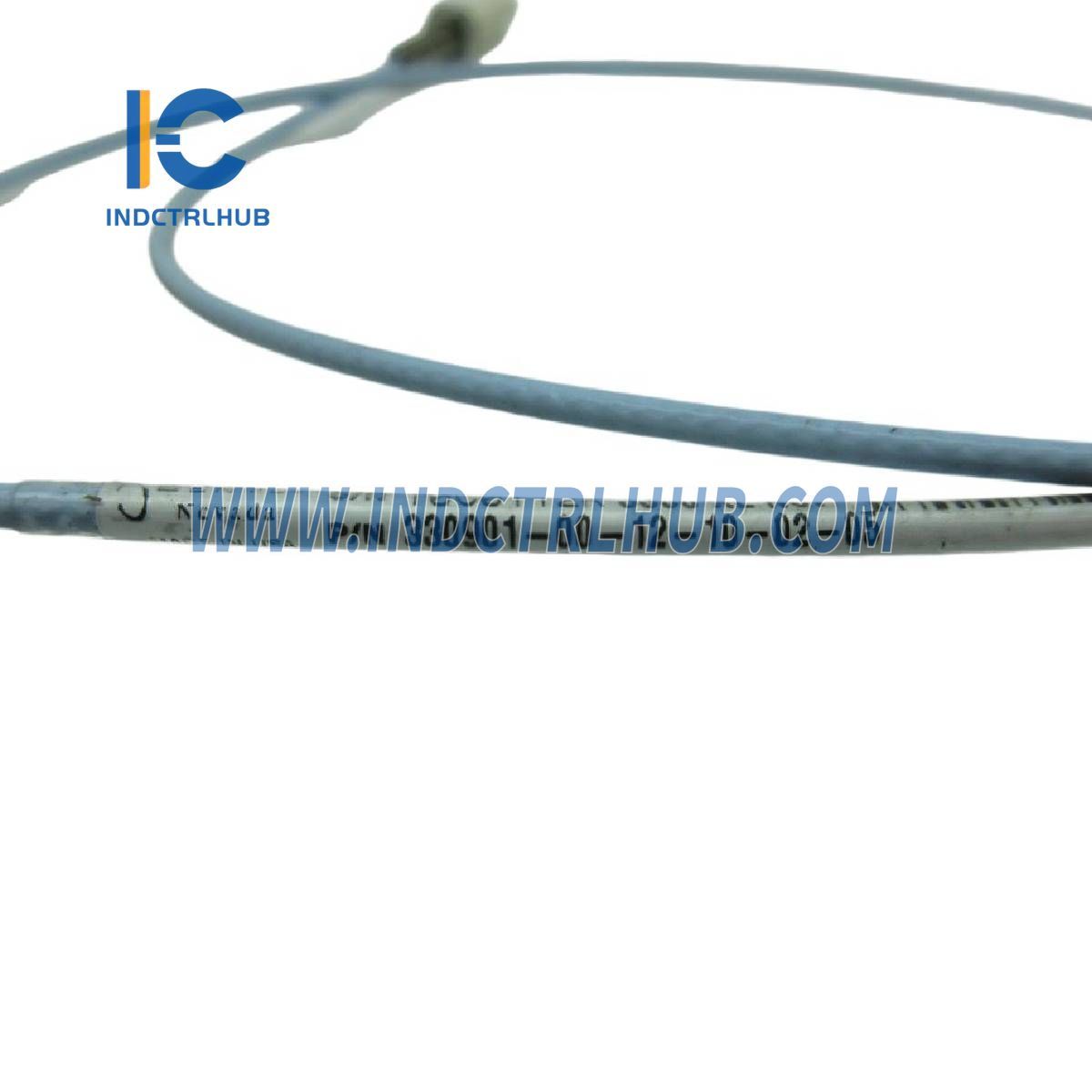

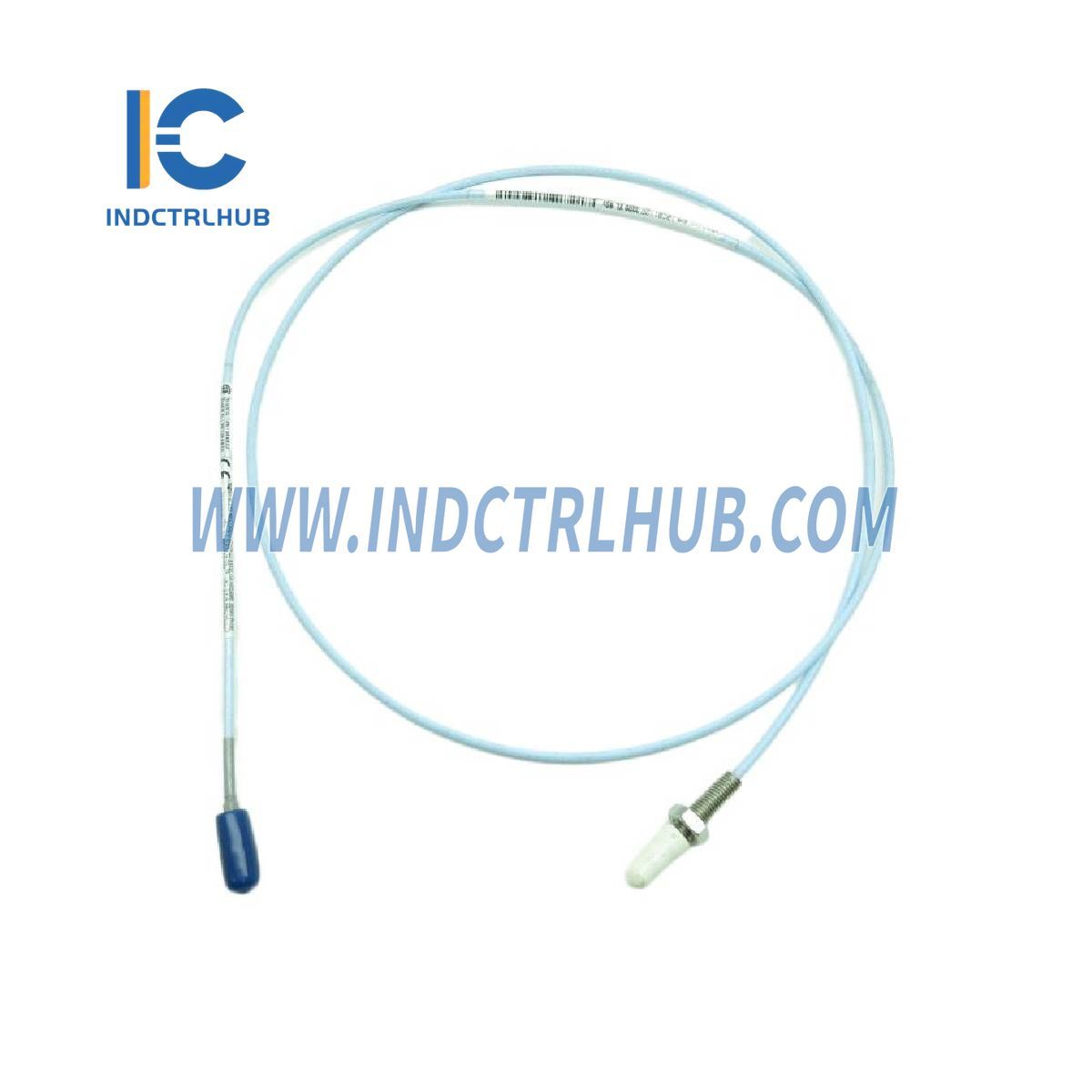

3300 NSv Probe
-
3300 NSv Extension Cable
-
3300 XL NSv Proximitor Sensor
Ordering Information
3300 NSv Proximity Probes:
| Part Number | Description |
|---|---|
| 330901 | 3300 NSv Probe, 1/4-28 UNF thread, without armor |
| 330902 | 3300 NSv Probe, 1/4-28 UNF thread, with armor |
| 330908 | 3300 NSv Probe, 3/8-24 UNF thread, without armor |
| 330909 | 3300 NSv Probe, 3/8-24 UNF thread, with armor |
Options:
-
A: Unthreaded Length Option
-
Maximum unthreaded length: 9.2 inches
-
Minimum unthreaded length: 0.0 inches
-
Order in increments of 0.1 inch
-
B: Overall Case Length Option
-
Maximum case length: 9.9 inches
-
Minimum case length: 0.8 inches
-
Order in increments of 0.1 inch
-
C: Total Length Option
-
05 → 0.5 meters (20 in)
-
10 → 1.0 meter (39 in)
-
50 → 5.0 meters (16.4 feet)
-
70 → 7.0 meters (23.0 feet)
-
D: Connector and Cable-Type Option
-
01 → Miniature coaxial ClickLoc connector with connector protector, standard cable
-
02 → Miniature coaxial ClickLoc connector, standard cable
-
11 → Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
-
12 → Miniature coaxial ClickLoc connector, FluidLoc cable
-
E: Agency Approval Option
-
00 → Not required
-
05 → Multiple Approvals
