Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
3300 XL |
|
Model/Part Number |
330901-00-09-10-02-05 |
|
Description |

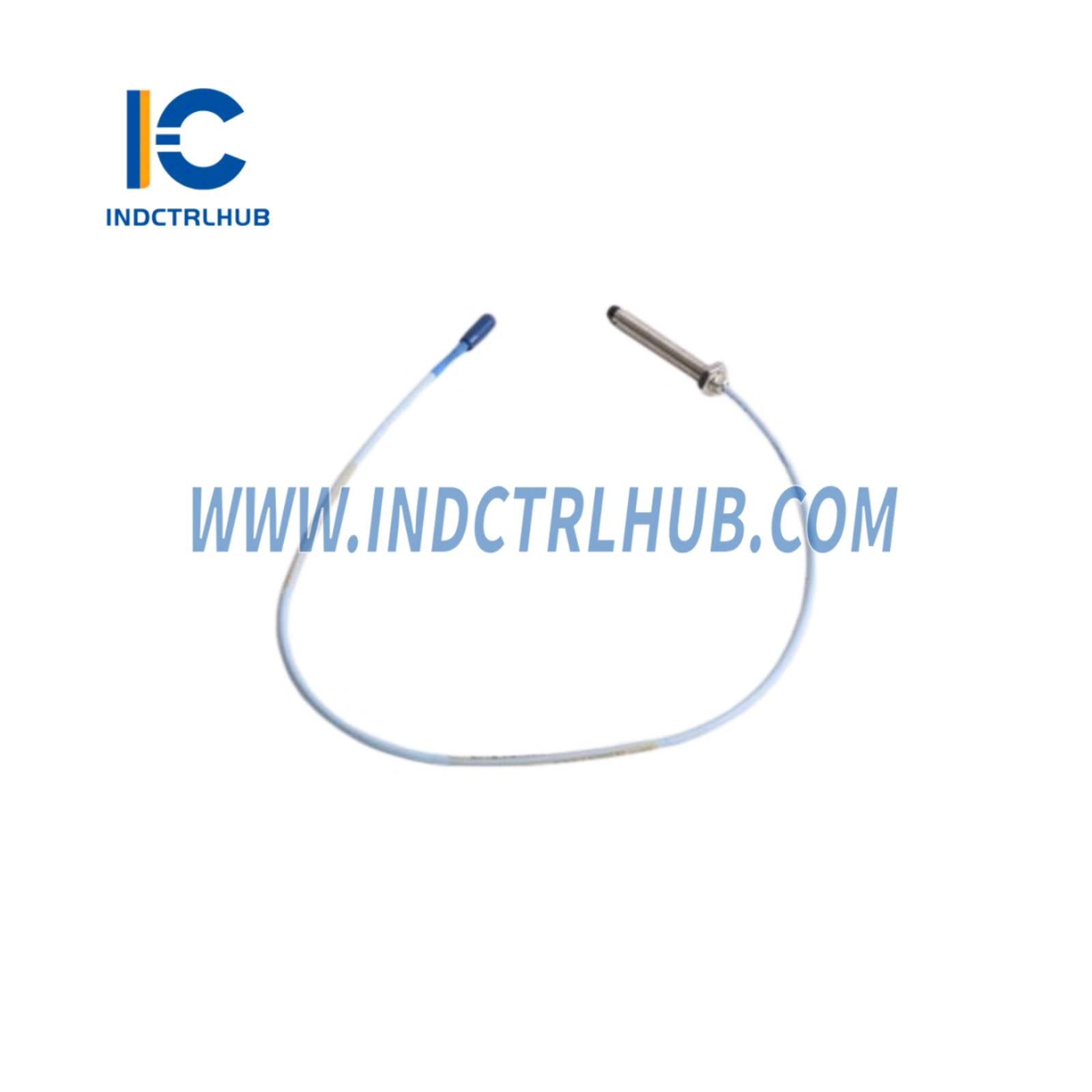

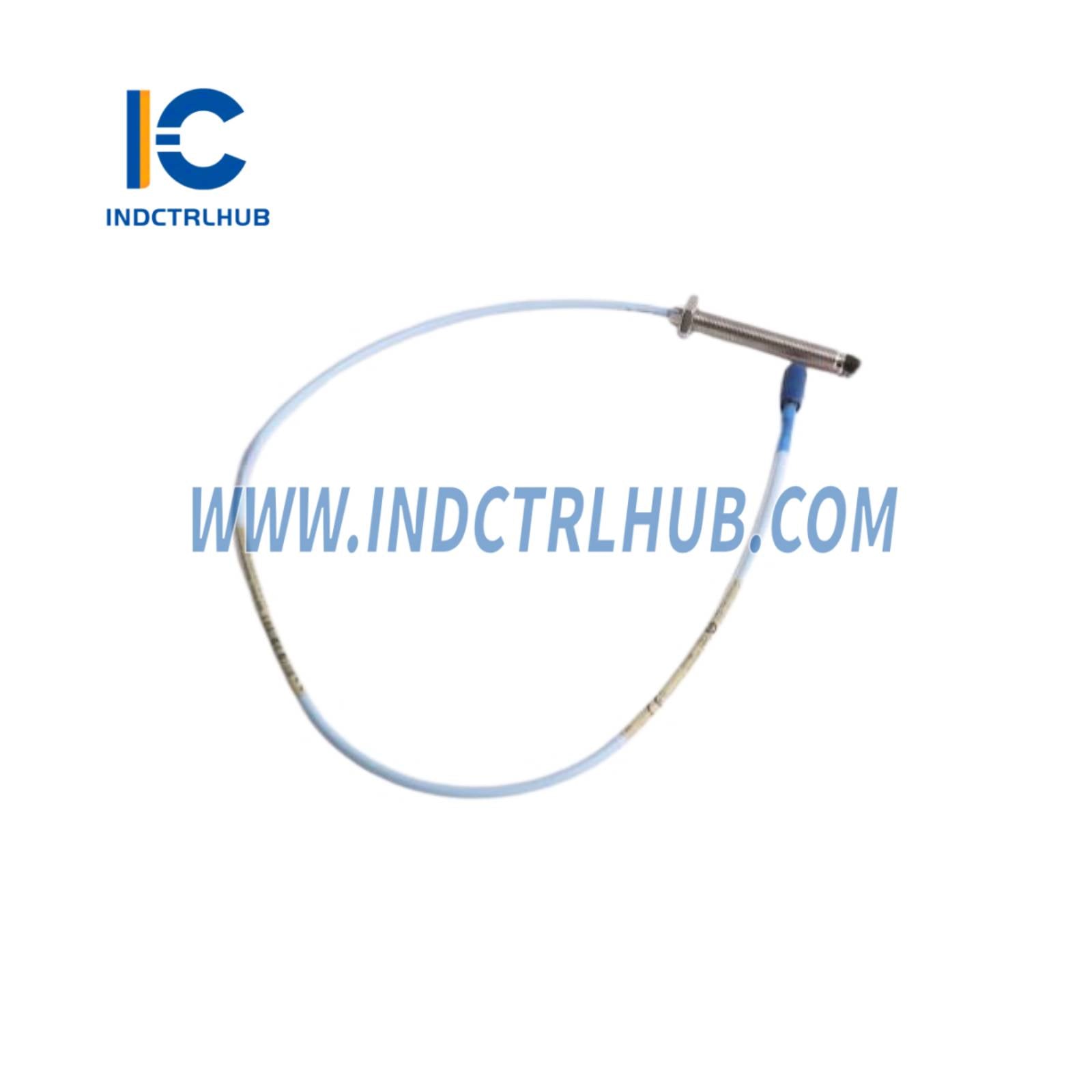

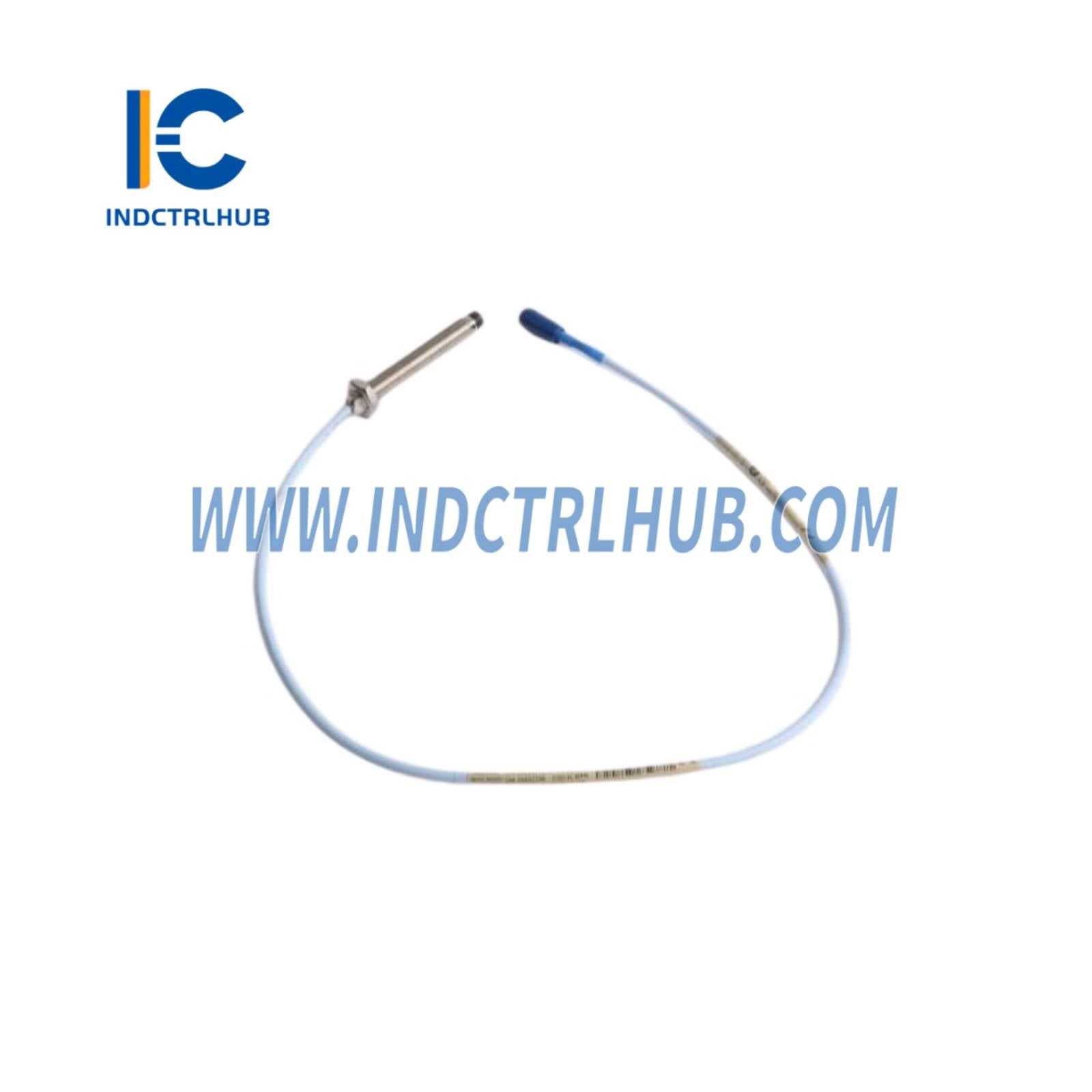

3300 NSv Proximity Probe (1.0 m, 3/8-24 UNF thread, standard cable, no approvals) |
🔹 Description
The 3300 XL NSv Proximity Transducer System is specially designed for machinery with tight installation spaces, such as:
-
Centrifugal air compressors
-
Refrigeration compressors
-
Process gas compressors
The complete system includes:
-
A 3300 NSv proximity probe (this product)
-
A 3300 NSv extension cable
-
A 3300 XL NSv Proximitor Sensor
🔹 Ordering Code Breakdown –
330901-00-09-10-02-05
|
Field |
Code |
Details |
|---|---|---|
|
A: Unthreaded Length |
00 |
0.0 inches (fully threaded) |
|
B: Case Length |
09 |
0.9 inches (total case length) |
|
C: Total Cable Length |
10 |
1.0 meter (39 inches) |
|
D: Connector/Cable Type |
02 |
Miniature coaxial ClickLoc connector, standard cable |
|
E: Agency Approval Option |
05 |
Multiple approvals (CSA, ATEX, IECEx, etc.) |
🔹 Environmental Limits
|
Component |
Operating Temp |
Storage Temp |
|---|---|---|
|
Probe |
-52°C to +177°C (-62°F to +351°F) |
-52°C to +177°C (-62°F to +351°F) |
|
Extension Cable |
-52°C to +177°C (-62°F to +351°F) |
-52°C to +177°C (-62°F to +351°F) |
|
Proximitor Sensor |
-52°C to +100°C (-62°F to +212°F) |
-52°C to +105°C (-62°F to +221°F) |
|
Relative Humidity |
100% condensing (non-submersible, connectors must be protected) |
⚠️ Note: Prolonged exposure below -34°C (-30°F) may lead to premature pressure seal failure in the probe.
🔹 Physical Information
|
Component |
Weight |
|---|---|
|
Probe |
14 to 150 g (0.5 to 5.3 oz), depending on configuration |
🔹 Thread Type
-
This model is 330901, meaning:
-
Thread size: 1/4-28 UNF
-
Without armor (for armored version, refer to 330902 or 330909 depending on thread)
