Product Description
General Information
| Attribute |
Details |
| Manufacturer |
Bently Nevada |
| Series |
3300 |
| Model/Part Number |
330730-080-02-05 |
| Model Type |
Extension Cable |
Description

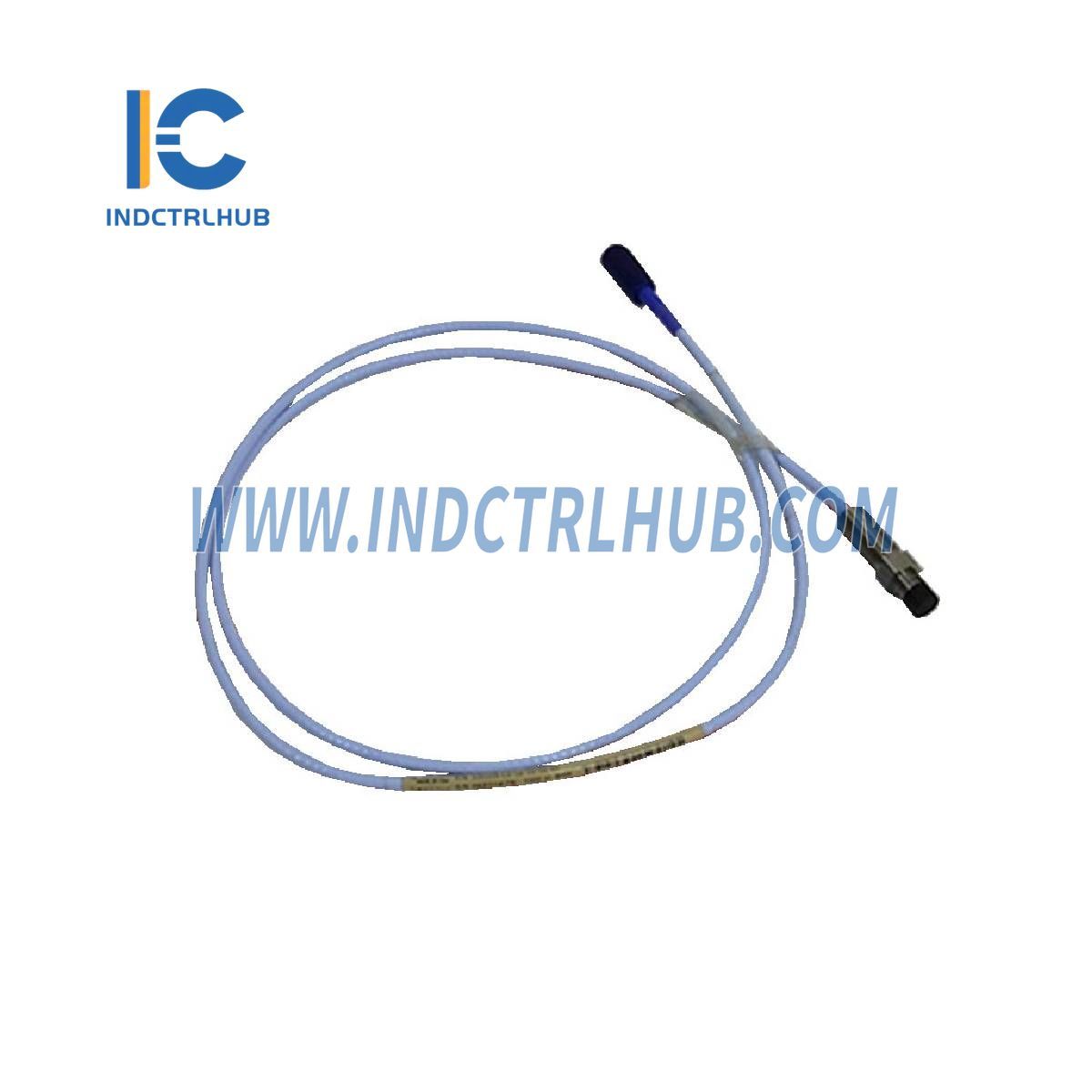

The 3300 Extension Cable is a 75 Ω triaxial, fluoroethylene propylene (FEP) insulated cable designed for use with the 3300 series of Bently Nevada sensors. It provides a reliable connection between the sensor and the associated equipment, with optional armor for additional protection.
Technical Specifications
| Attribute |
Details |
| Cable Material |
75 Ω triaxial, fluoroethylene propylene (FEP) insulated |
| Armor (Optional) |
Flexible AISI 302 SST with FEP outer jacket |
| Tensile Strength |
Maximum rated: 330 N (75 pounds) probe case to probe lead |
|
Maximum rated: 270 N (60 pounds) probe lead to connectors |
| Weight |
45 g/m (0.5 oz/ft) |
| Temperature Range |
Operating and Storage: -52°C to +177°C (-62°F to +351°F) |
Model Options (3300 XL 11 mm Extension Cable)
| Option Category |
Option |
| A: Cable Length Option |
040: 4.0 meters (13.1 feet) |
|
080: 8.0 meters (26.2 feet) |
| B: Connector and Cable Option |
00: Standard cable |
|
01: Armored cable |
|
02: Standard cable with connector protector |
|
03: Armored cable with connector protector |
|
10: FluidLoc cable |
|
11: Armored FluidLoc cable |
|
12: FluidLoc cable with connector protector |
|
13: Armored FluidLoc cable with connector protector |
| C: Agency Approval Option |
00: Not required |
|
05: Multiple Approvals |
