Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
(Not explicitly defined) |
|
Model/Part Number |
330500-AA-00 |
|
Description |

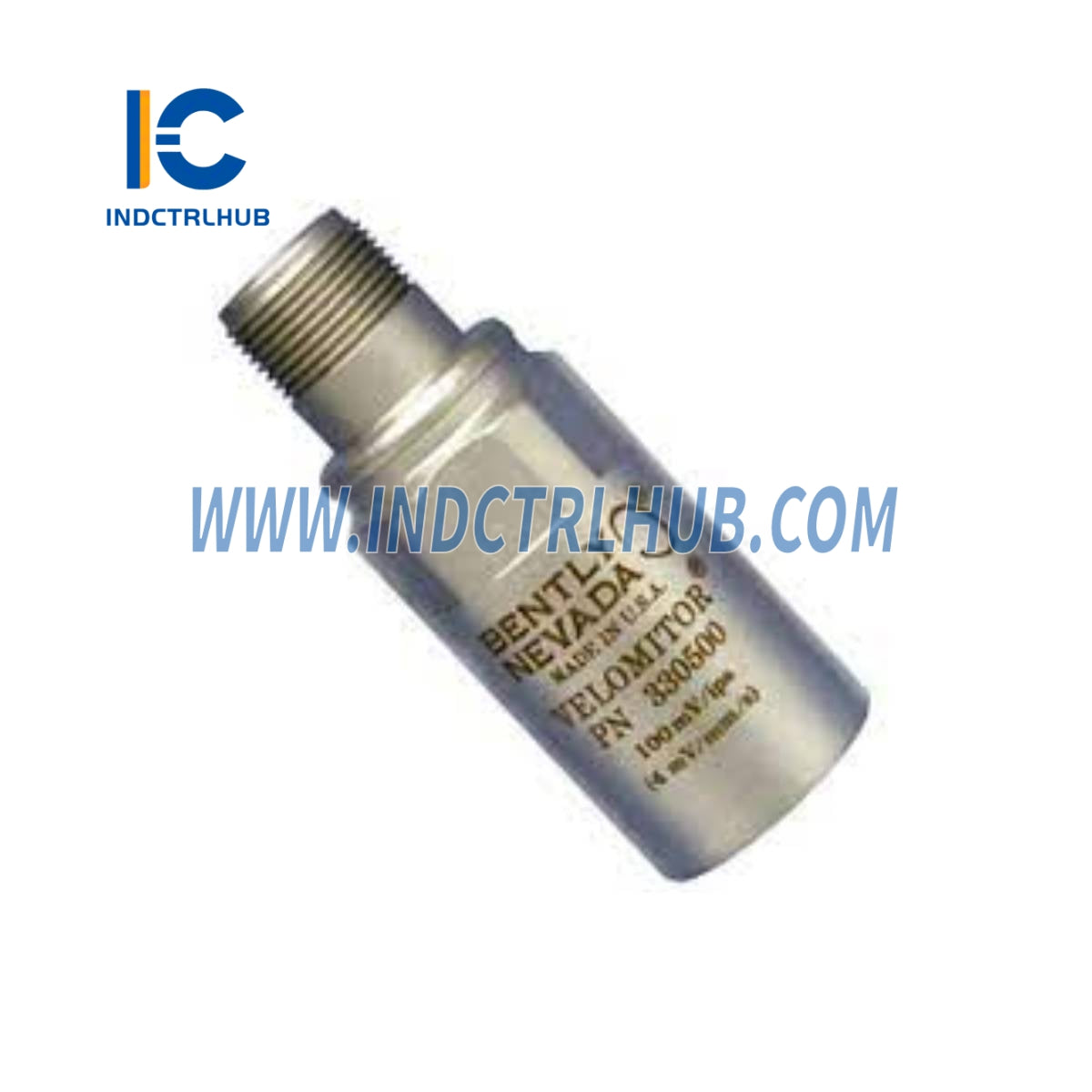

330500 Velomitor Piezo-velocity Sensor |
🔹 Description
The 330500 Velomitor is a piezoelectric velocity sensor used to measure absolute casing, bearing housing, or structural vibration. It is based on a solid-state piezoelectric accelerometer with embedded electronics, converting acceleration to a velocity output signal, ideal for harsh industrial environments.
🔹 Environmental Limits
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-55°C to +121°C (-67°F to +250°F) |
|
Shock Survivability |
5,000 g peak, max |
|
Relative Humidity |
100% non-submerged (hermetically sealed) |
|
Magnetic Field Susceptibility |
<51 mm/s/gauss @ 50–60 Hz |
|
Base Strain Sensitivity |
0.005 in/s/microstrain |
🔹 Physical Specifications
|
Property |
Value |
|---|---|
|
Weight |
142 grams (5.0 oz), typical |
|
Diameter |
25.3 mm (0.995 in) |
|
Height |
63.2 mm (2.49 in) |
🔹 Ordering Information Breakdown – 330500-AA-00
|
Field |
Code |
Description |
|---|---|---|
|
A |
00 |
No mounting thread adapter |
|
B |
00 |
No agency approvals required |
