Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 XL |
|
Model/Part Number |
330180-91-05 |
|
Model Type |

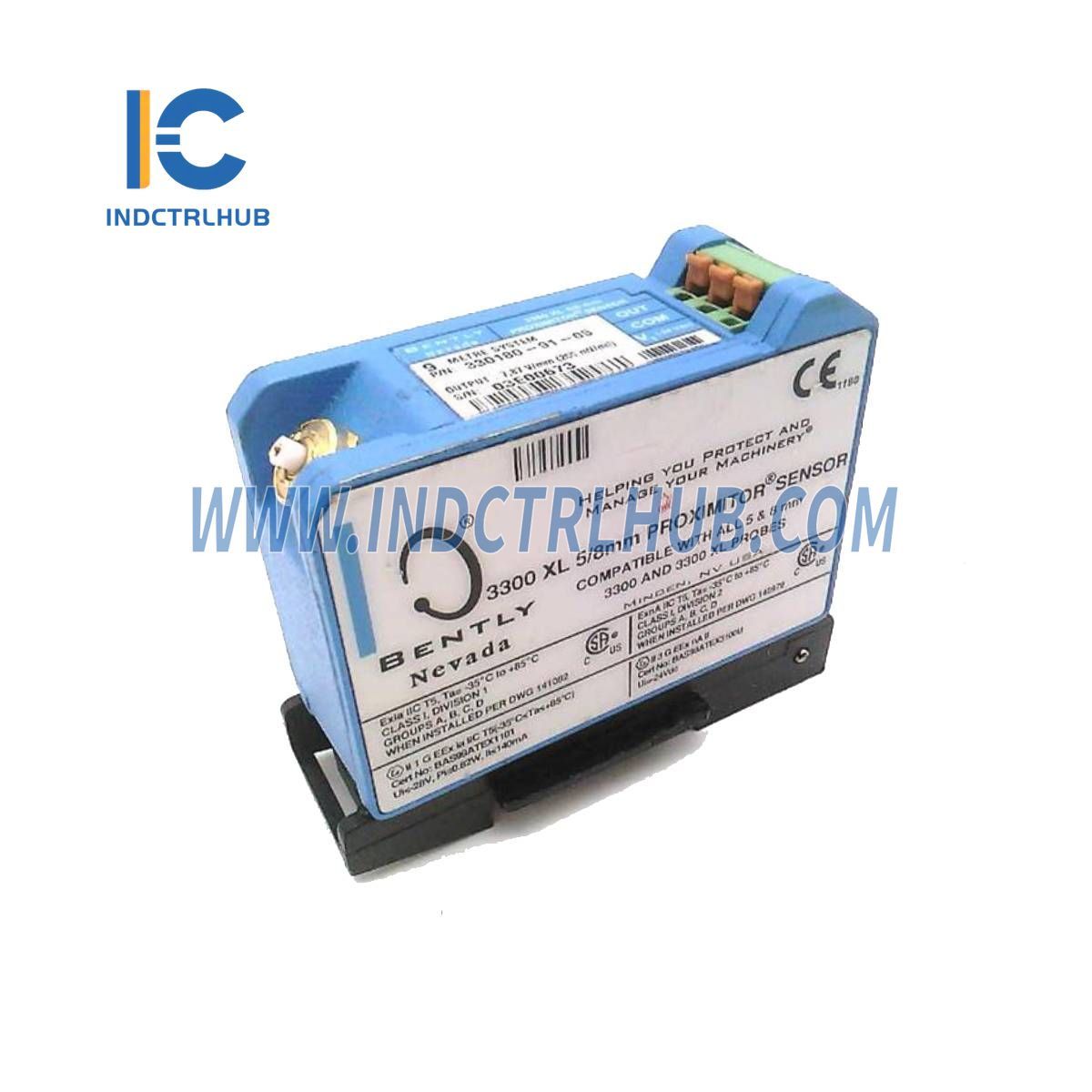

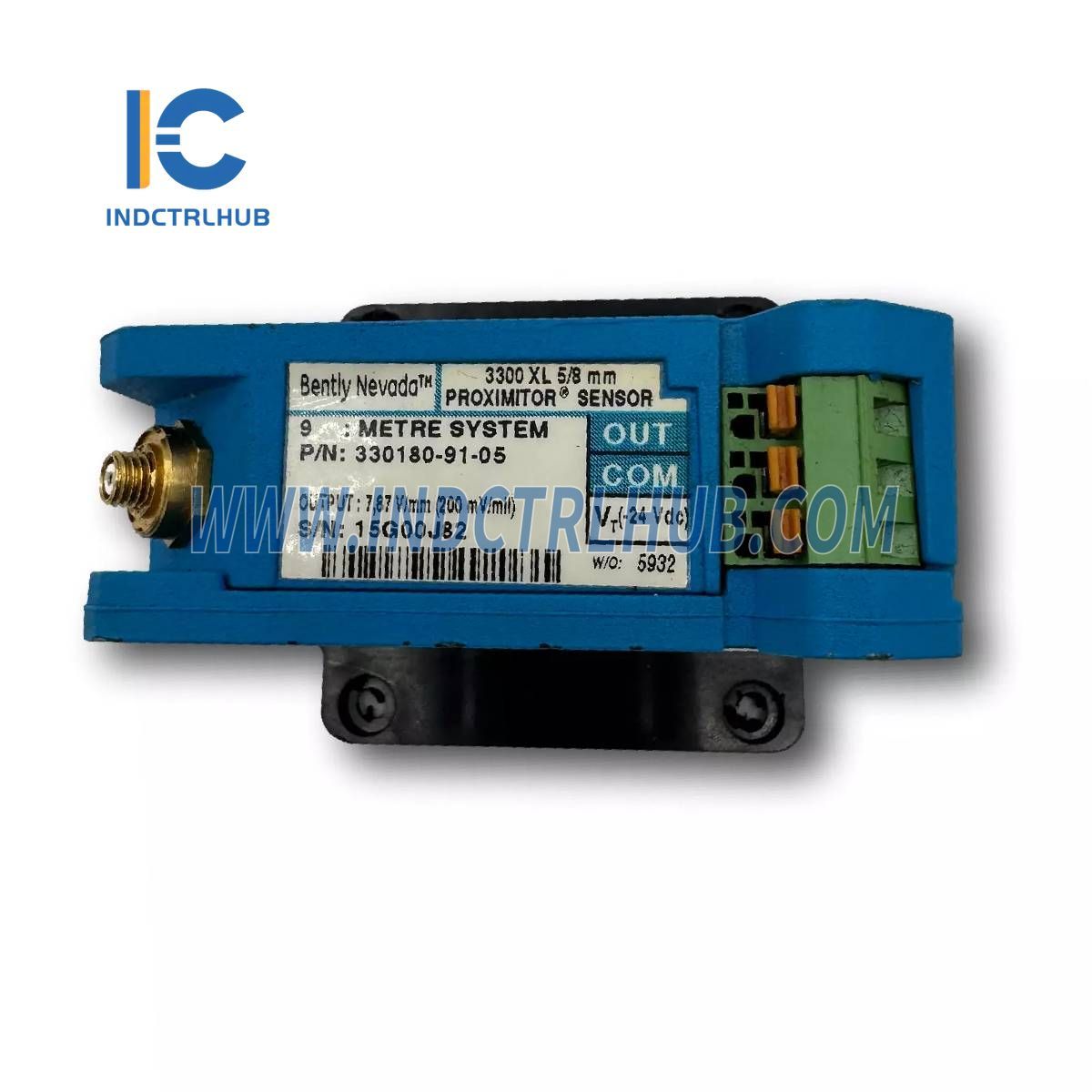

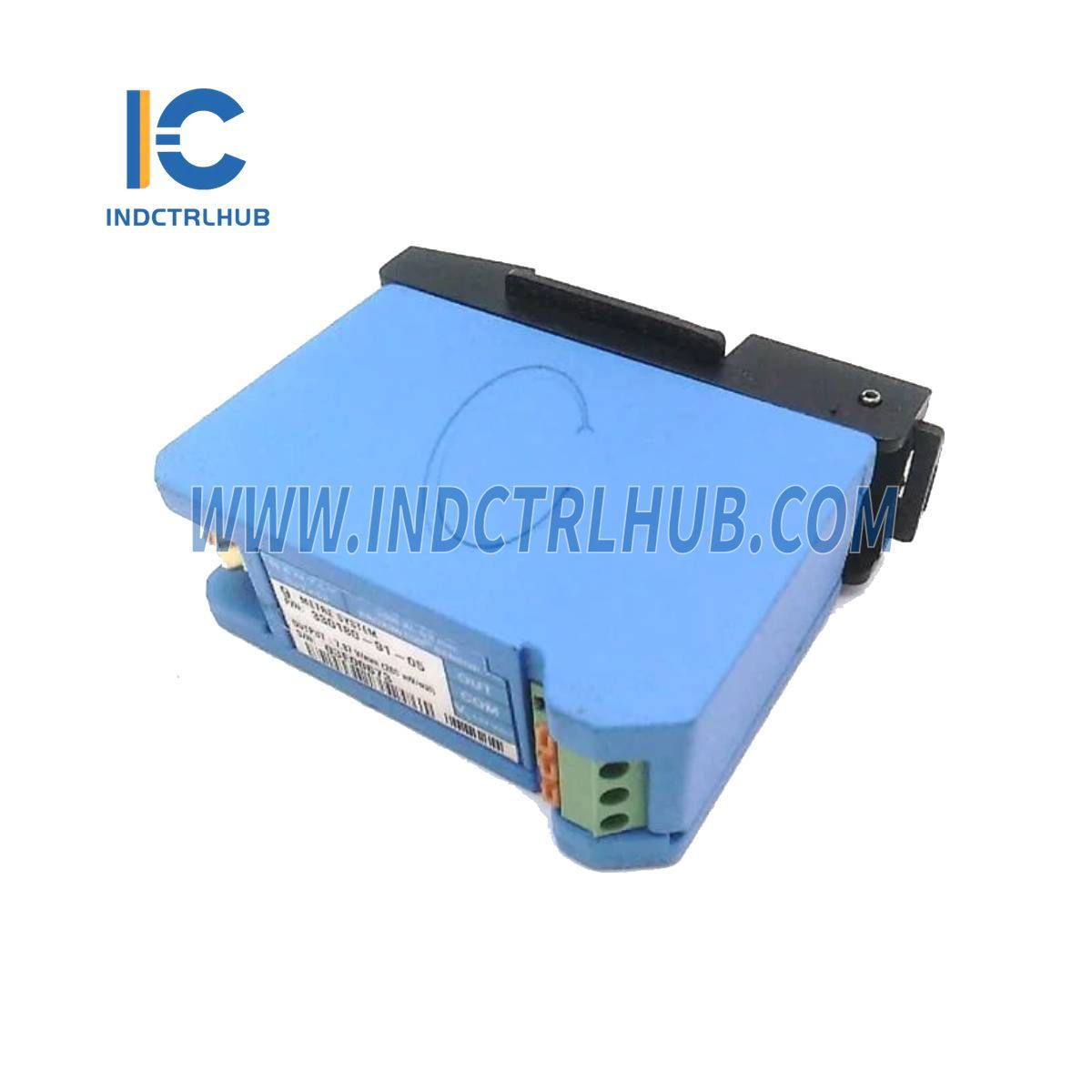

3300 XL Proximitor Sensor |
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
• One 3300 XL 8 mm probe
• One 3300 XL extension cable
• One 3300 XL Proximitor Sensor
Specifications
Proximitor Sensor Input
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable.
Field Wiring
|
Parameter |
Details |
|---|---|
|
Wire Size |
0.2 to 1.5 mm² (16 to 24 AWG) |
|
Recommended Cable |
3-conductor shielded triad cable |
|
Field Wiring Type |
Tinned field wiring |
|
Maximum Length |
305 meters (1,000 feet) |
|
Signal Roll-off Consideration |
See frequency response graphs (Figures 10 & 12) |
Physical Properties
|
Attribute |
Details |
|---|---|
|
Material |
A308 aluminum |
|
Weight |
246 g (8.67 oz) |
Environmental Limits
|
Parameter |
Range |
|---|---|
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
Ordering Information for Proximitor Sensor
|
Model |
System Length & Mounting Option |
|---|---|
|
10 |
1.0 meter (3.3 feet) system length, panel mount |
|
11 |
1.0 meter (3.3 feet) system length, DIN mount |
|
12 |
1.0 meter (3.3 feet) system length, no mounting hardware |
|
50 |
5.0 meters (16.4 feet) system length, panel mount |
|
51 |
5.0 meters (16.4 feet) system length, DIN mount |
|
52 |
5.0 meters (16.4 feet) system length, no mounting hardware |
|
90 |
9.0 meters (29.5 feet) system length, panel mount |
|
91 |
9.0 meters (29.5 feet) system length, DIN mount |
|
92 |
9.0 meters (29.5 feet) system length, no mounting hardware |
Agency Approval Options
|
Code |
Approval Type |
|---|---|
|
00 |
Not required |
|
05 |
CSA, ATEX, IECEx Approvals |
