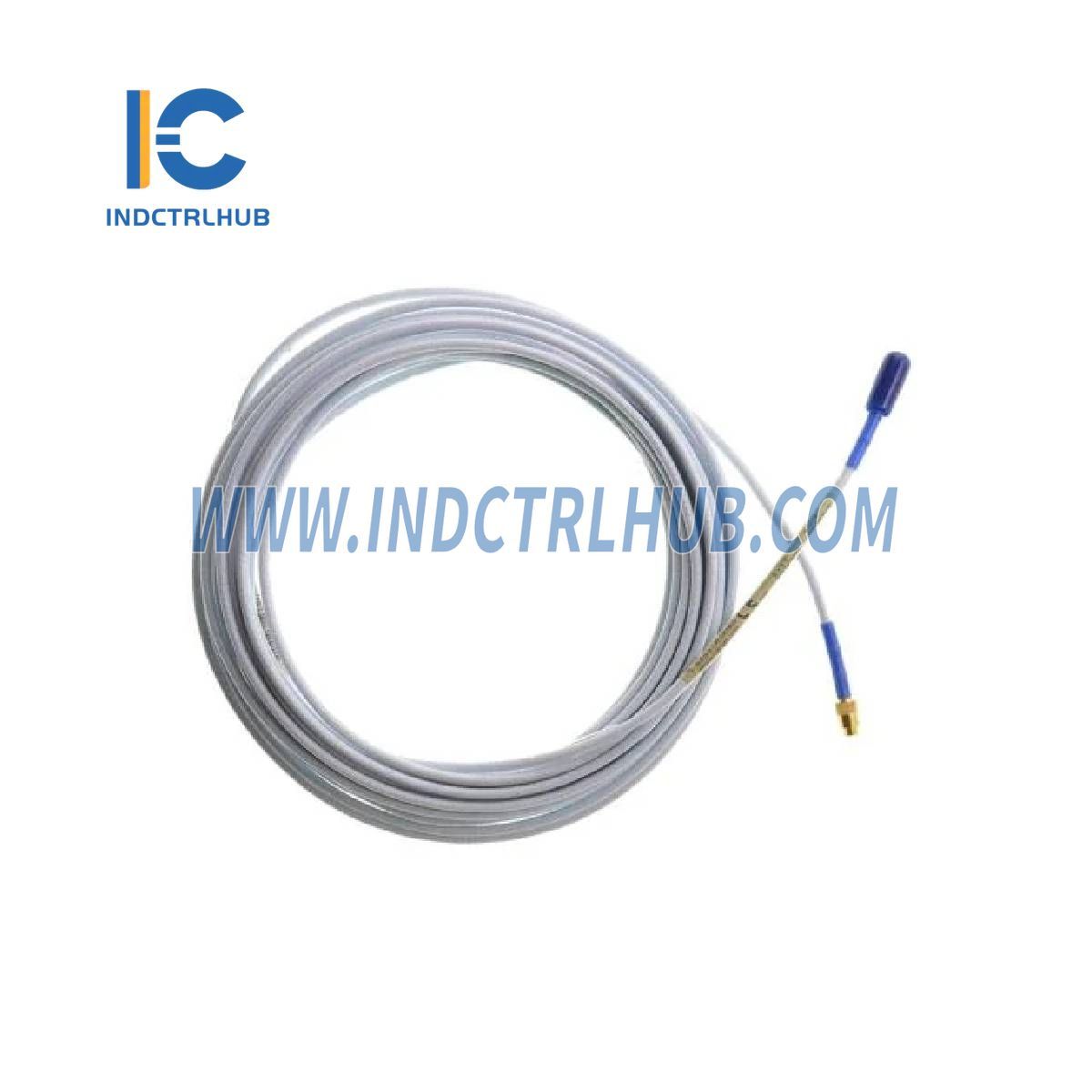

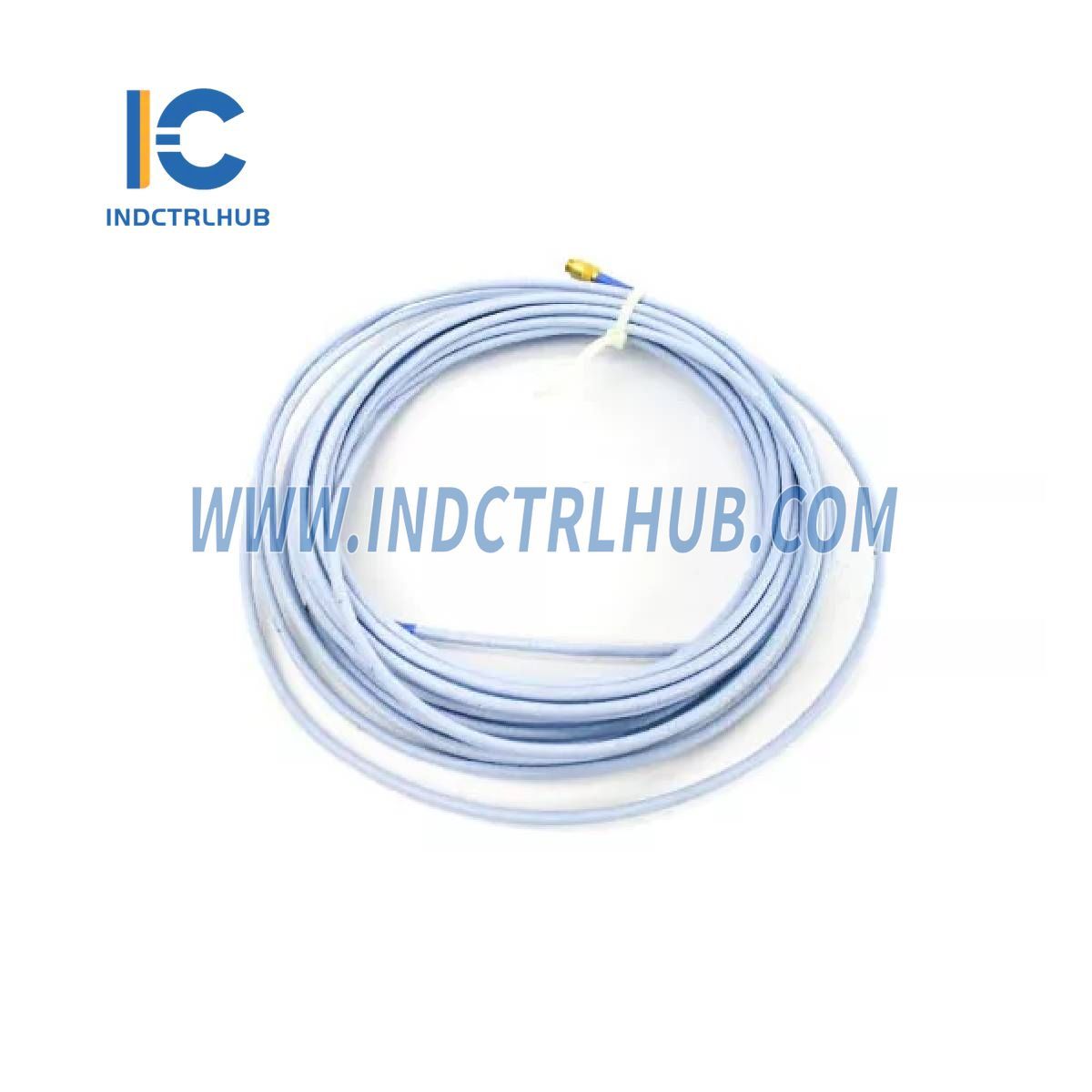

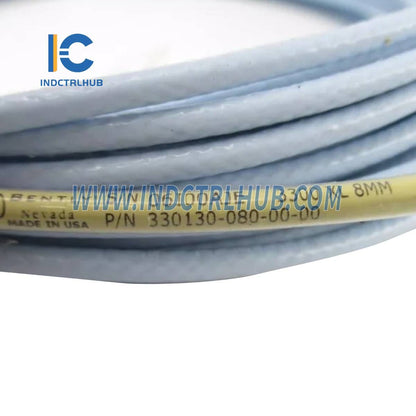

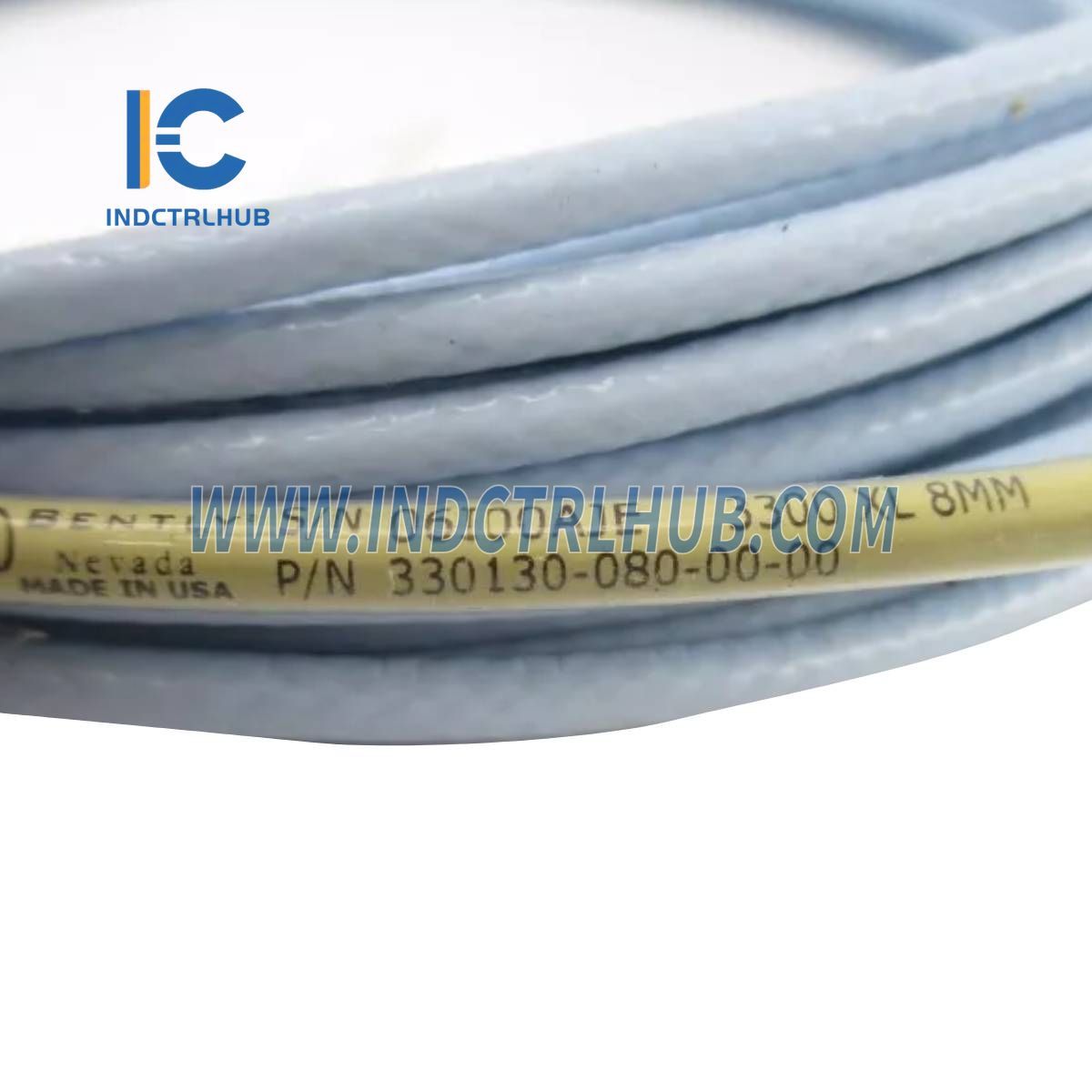

Bently Nevada 330130-080-00-00 3300 XL Standard Extension Cable

Bently Nevada 330130-080-00-00 3300 XL Standard Extension Cable

  • Manufacturer: Bently Nevada

  • Product No.: 330130-080-00-00

  • Condition:1000 in stock

  • Product Type: 3300 XL Standard Extension Cable

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 246g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Attribute

Details

Manufacturer

Bently Nevada

Series

3300

Model/Part Number

330130-080-00-00

Model Type

3300 XL Standard Extension Cable

Electrical Specifications

Attribute

Details

Proximitor Sensor Input

Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable

Extension Cable Capacitance

69.9 pF/m (21.3 pF/ft) typical

Materials & Physical Specifications

Attribute

Details

Extension Cable Material

Standard Cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated  Extended Temperature Range Cable: 75Ω triaxial, perfluoroalkoxy (PFA) insulated

Minimum Cable Bend Radius

25.4 mm (1.0 in)

Connector Material

Gold-plated brass or gold-plated beryllium copper

Maximum Connector Torque

0.565 N•m (5 in•lbf)

System Length

5 or 9 meters (including extension cable) or 1 meter (probe only)

Total System Weight (Typical)

0.7 kg (1.5 lbm)

Probe Weight

323 g/m (11.4 oz)

Extension Cable Weight

34 g/m (0.4 oz/ft)

Armored Extension Cable Weight

103 g/m (1.5 oz/ft)

Proximitor Sensor Weight

246 g (8.67 oz)

Ordering Information

Part Number

Description

330130

3300 XL Standard Extension Cable

Part Number Format:


330130-AAA-BB-CC

Option Code

Description

A: Cable Length Option

030 = 3.0 meters (9.8 feet)  035 = 3.5 meters (13.1 feet)  040 = 4.0 meters (11.5 feet)  045 = 4.5 meters (14.8 feet)  060 = 6.0 meters (19.7 feet)  070 = 7.0 meters (22.9 feet)  075 = 7.5 meters (24.6 feet)  080 = 8.0 meters (26.2 feet)  085 = 8.5 meters (27.9 feet)

B: Connector Protector and Cable Option

00 = Standard cable  01 = Armored cable  02 = Standard cable with connector protector  03 = Armored cable with connector protector  10 = FluidLoc cable  11 = Armored FluidLoc cable  12 = FluidLoc cable with connector protector  13 = Armored FluidLoc cable with connector protector

C: Agency Approval Option

00 = Not required  05 = CSA, ATEX, IECEx Approvals



View full details

Product Description

General Information

Attribute

Details

Manufacturer

Bently Nevada

Series

3300

Model/Part Number

330130-080-00-00

Model Type

3300 XL Standard Extension Cable

Electrical Specifications

Attribute

Details

Proximitor Sensor Input

Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable

Extension Cable Capacitance

69.9 pF/m (21.3 pF/ft) typical

Materials & Physical Specifications

Attribute

Details

Extension Cable Material

Standard Cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated  Extended Temperature Range Cable: 75Ω triaxial, perfluoroalkoxy (PFA) insulated

Minimum Cable Bend Radius

25.4 mm (1.0 in)

Connector Material

Gold-plated brass or gold-plated beryllium copper

Maximum Connector Torque

0.565 N•m (5 in•lbf)

System Length

5 or 9 meters (including extension cable) or 1 meter (probe only)

Total System Weight (Typical)

0.7 kg (1.5 lbm)

Probe Weight

323 g/m (11.4 oz)

Extension Cable Weight

34 g/m (0.4 oz/ft)

Armored Extension Cable Weight

103 g/m (1.5 oz/ft)

Proximitor Sensor Weight

246 g (8.67 oz)

Ordering Information

Part Number

Description

330130

3300 XL Standard Extension Cable

Part Number Format:


330130-AAA-BB-CC

Option Code

Description

A: Cable Length Option

030 = 3.0 meters (9.8 feet)  035 = 3.5 meters (13.1 feet)  040 = 4.0 meters (11.5 feet)  045 = 4.5 meters (14.8 feet)  060 = 6.0 meters (19.7 feet)  070 = 7.0 meters (22.9 feet)  075 = 7.5 meters (24.6 feet)  080 = 8.0 meters (26.2 feet)  085 = 8.5 meters (27.9 feet)

B: Connector Protector and Cable Option

00 = Standard cable  01 = Armored cable  02 = Standard cable with connector protector  03 = Armored cable with connector protector  10 = FluidLoc cable  11 = Armored FluidLoc cable  12 = FluidLoc cable with connector protector  13 = Armored FluidLoc cable with connector protector

C: Agency Approval Option

00 = Not required  05 = CSA, ATEX, IECEx Approvals
