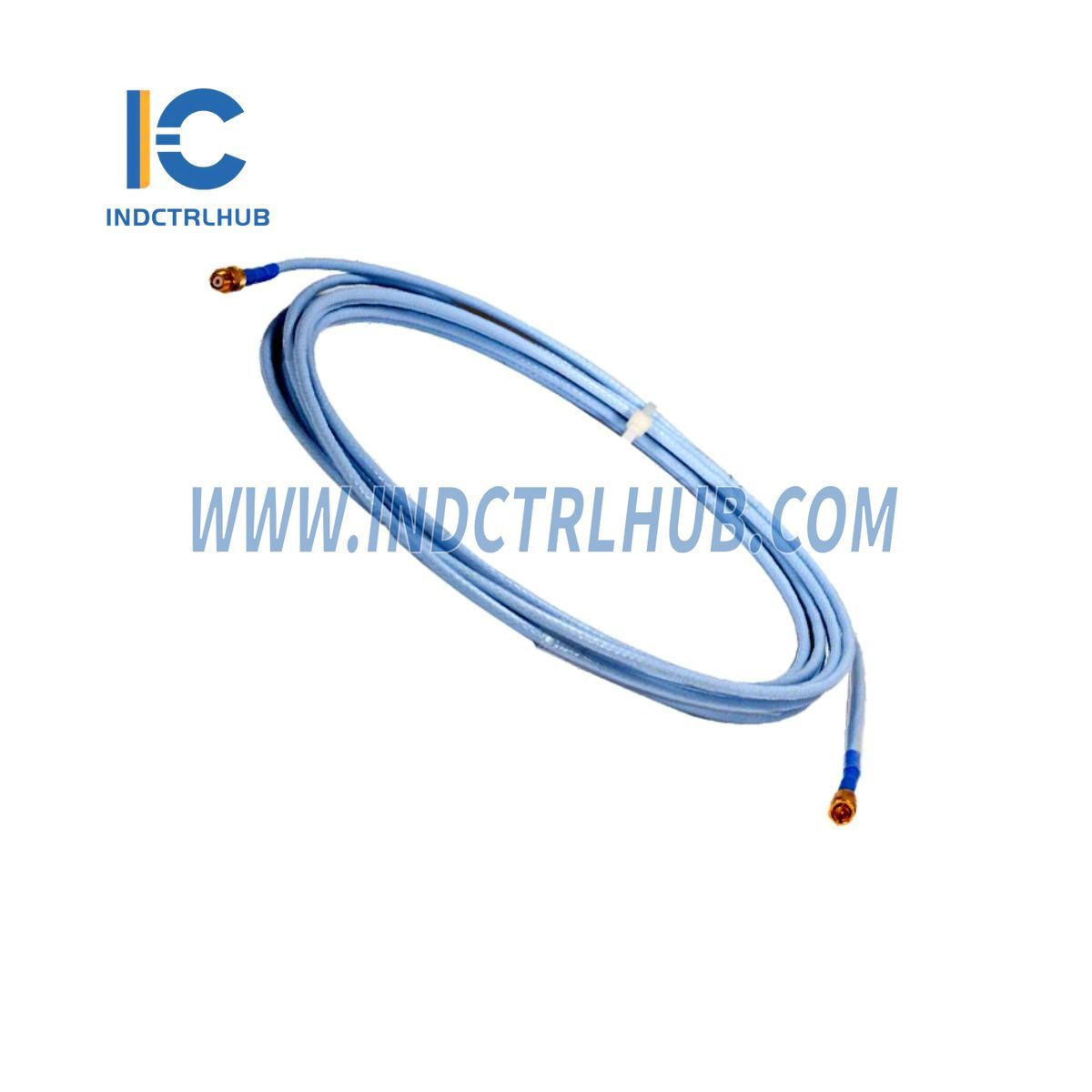

Bently Nevada 330130-08-00-05 Extension Cable

Bently Nevada 330130-08-00-05 Extension Cable

  • Manufacturer: Bently Nevada

  • Product No.: 330130-08-00-05

  • Condition:1000 in stock

  • Product Type: Extension Cable

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Attribute

Details

Manufacturer

Bently Nevada

Series

3300

Model/Part Number

330130-08-00-05

Model Type

3300 XL Standard Extension Cable

Description


The 3300 XL Standard Extension Cable is designed for use with 3300 XL Proximity Transducer Systems, featuring patented TipLoc and CableLoc technologies to ensure a robust bond and superior durability.


Specifications

Attribute

Details

Cable Material

Standard Cable: 75Ω triaxial, FEP insulated  Extended Temp. Range Cable: 75Ω triaxial, PFA insulated

Minimum Cable Bend Radius

25.4 mm (1.0 in)

System Length

5 or 9 meters (including extension cable) or 1 meter (probe only)

Extension Cable Weight

Standard: 34 g/m (0.4 oz/ft)  Armored: 103 g/m (1.5 oz/ft)

Ordering Information

Part Number

Cable Length Option

330130-030

3.0 meters (9.8 feet)

330130-035

3.5 meters (13.1 feet)

330130-040

4.0 meters (11.5 feet)

330130-045

4.5 meters (14.8 feet)

330130-060

6.0 meters (19.7 feet)

330130-070

7.0 meters (22.9 feet)

330130-075

7.5 meters (24.6 feet)

330130-080

8.0 meters (26.2 feet)

330130-085

8.5 meters (27.9 feet)

Connector Protector & Cable Option

Description

00

Standard cable

01

Armored cable

02

Standard cable with connector protector

03

Armored cable with connector protector

10

FluidLoc cable

11

Armored FluidLoc cable

12

FluidLoc cable with connector protector

13

Armored FluidLoc cable with connector protector

Agency Approval Option

Description

00

Not required

05

CSA, ATEX, IECEx Approvals



View full details
