Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |
330130-050-00-00 |
|
Model Type |

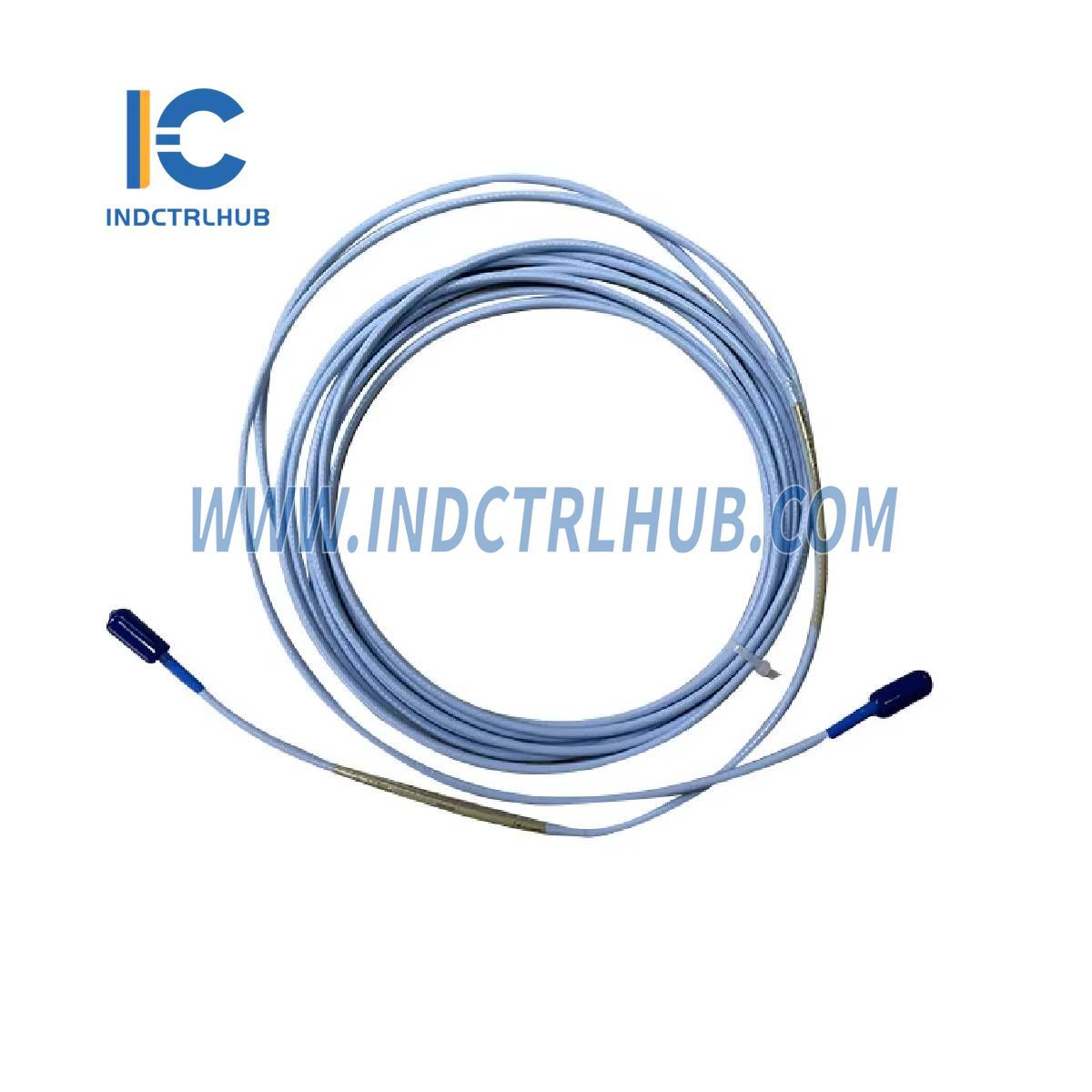

3300 XL Standard Extension Cable |
Electrical Specifications
|
Parameter |
Details |
|---|---|
|
Proximitor Sensor Input |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Connector Material |
Gold-plated brass or gold-plated beryllium copper |
|
Maximum Connector Torque |
0.565 N•m (5 in•lbf) |
Extension Cable Material
|
Cable Type |
Insulation Material |
|---|---|
|
Standard Cable |
75Ω triaxial, fluoroethylene propylene (FEP) insulated |
|
Extended Temperature Range Cable |
75Ω triaxial, perfluoroalkoxy (PFA) insulated |
• Minimum Cable Bend Radius: 25.4 mm (1.0 in)
• Interchangeability: 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components, provided the minimum permissible cable bend radius is observed.
Physical Specifications
|
Parameter |
Value |
|---|---|
|
System Length |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
|
Total System Weight (Typical) |
0.7 kg (1.5 lb) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
Ordering Information
|
Part Number |
Description |
|---|---|
|
330130 |
3300 XL Standard Extension Cable |
Part Number Format:
330130-AAA-BB-CC
|
Option Code |
Description |
|---|---|
|
A: Cable Length Option |
030 = 3.0 meters (9.8 feet) 035 = 3.5 meters (13.1 feet) 040 = 4.0 meters (11.5 feet) 045 = 4.5 meters (14.8 feet) 060 = 6.0 meters (19.7 feet) 070 = 7.0 meters (22.9 feet) 075 = 7.5 meters (24.6 feet) 080 = 8.0 meters (26.2 feet) 085 = 8.5 meters (27.9 feet) |
|
B: Connector Protector and Cable Option |
00 = Standard cable 01 = Armored cable 02 = Standard cable with connector protector 03 = Armored cable with connector protector 10 = FluidLoc cable 11 = Armored FluidLoc cable 12 = FluidLoc cable with connector protector 13 = Armored FluidLoc cable with connector protector |
|
C: Agency Approval Option |
00 = Not required 05 = CSA, ATEX, IECEx Approvals |
