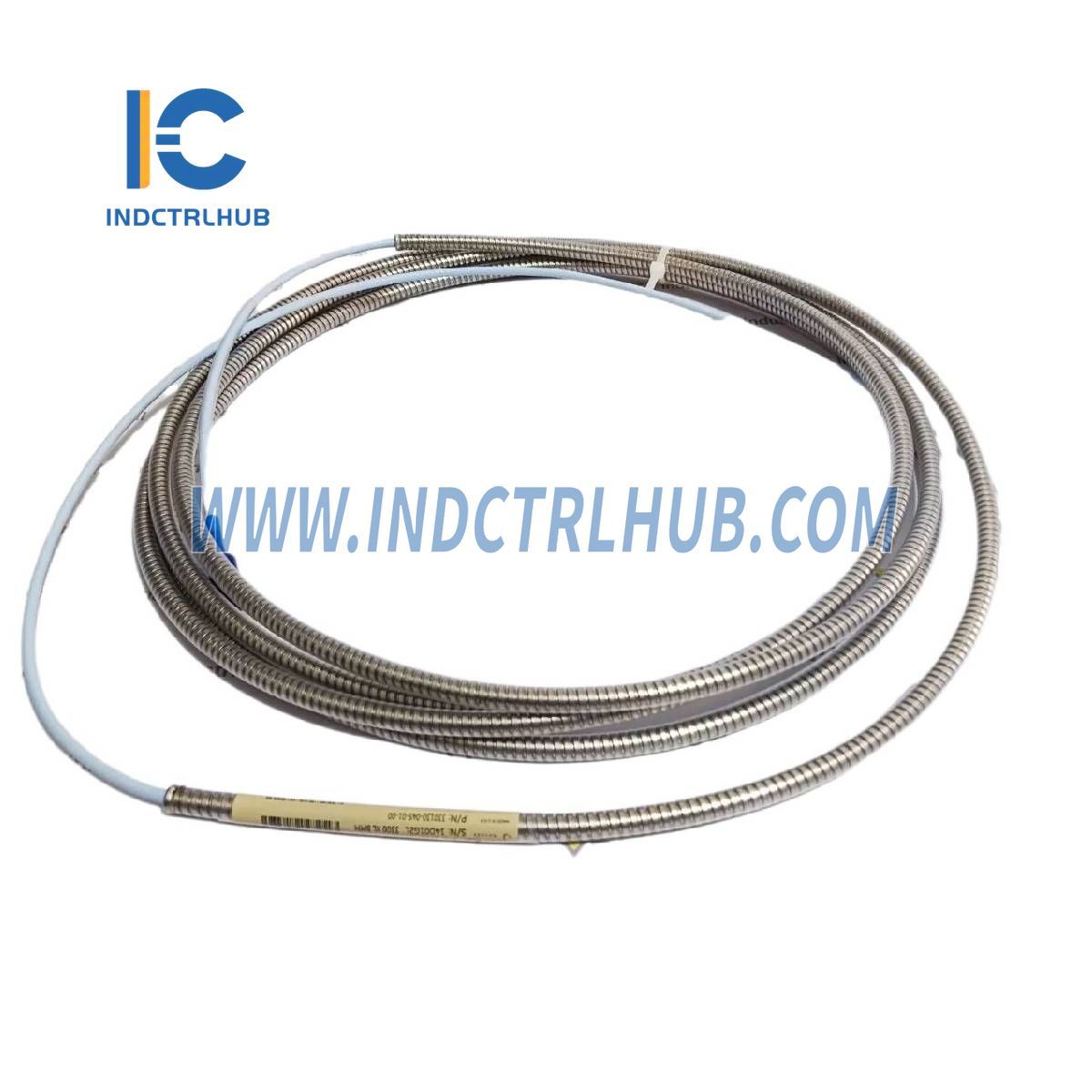

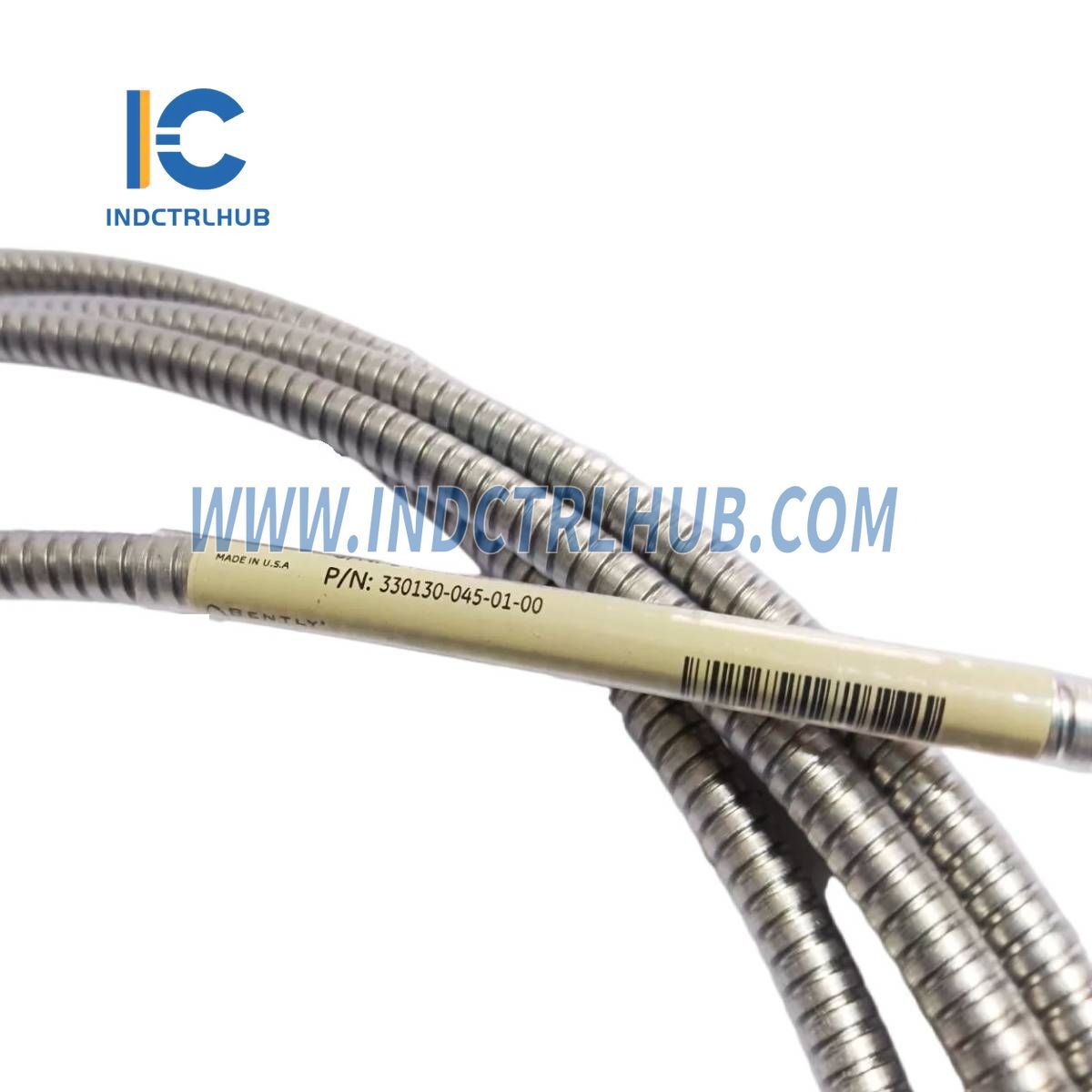

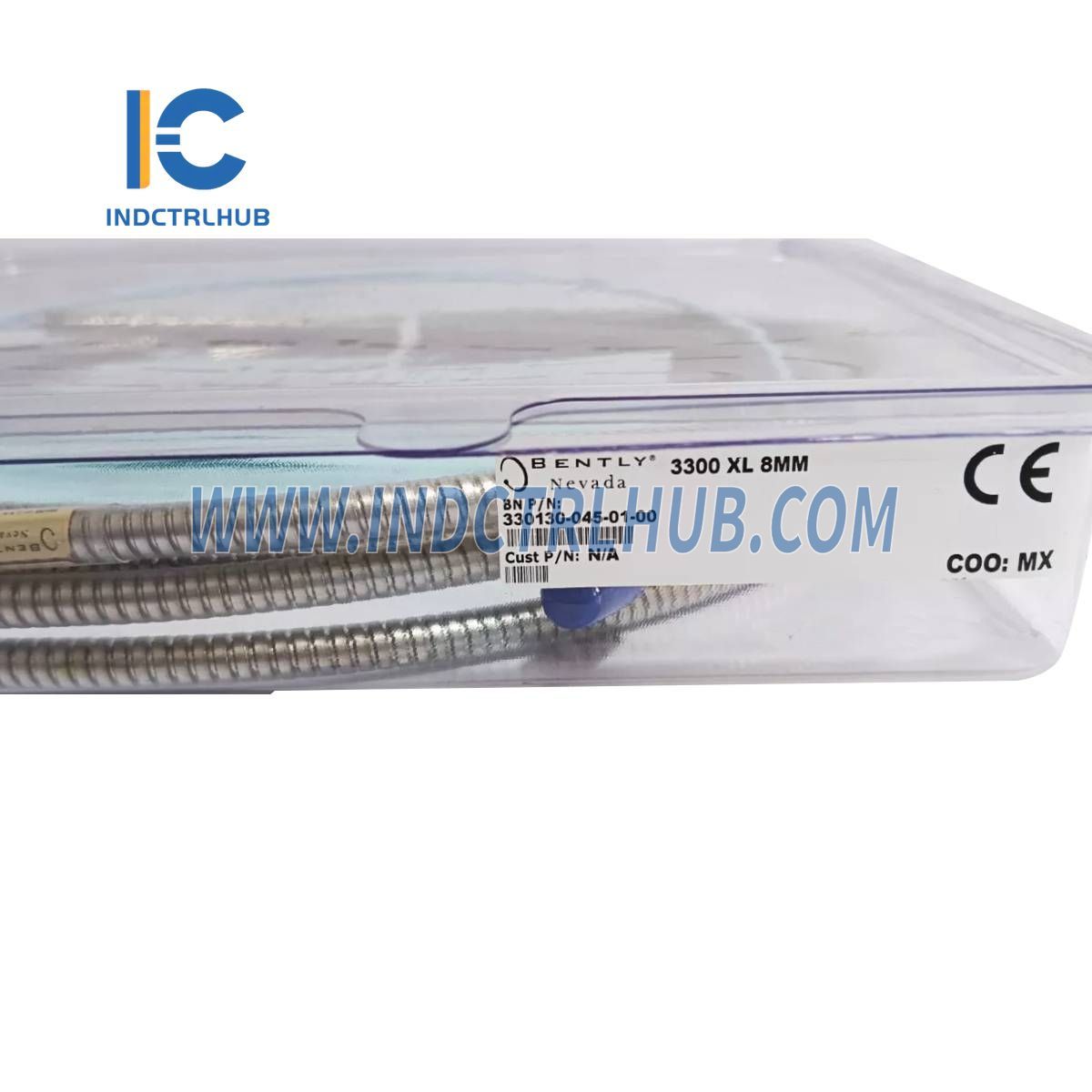

Bently Nevada 330130-045-01-00 Standard Extension Cable

Bently Nevada 330130-045-01-00 Standard Extension Cable

  • Manufacturer: Bently Nevada

  • Product No.: 330130-045-01-00

  • Condition:1000 in stock

  • Product Type: Standard Extension Cable

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Attribute

Details

Manufacturer

Bently Nevada

Series

3300

Model/Part Number

330130-045-01-00

Model Type

3300 XL Standard Extension Cable

Description


The 3300 XL Standard Extension Cable is designed for use with the 3300 XL proximity probe system. It features a patented TipLoc molding method that enhances the bond between the probe tip and body, ensuring a secure connection. The CableLoc design offers 330 N (75 lbf) of pull strength, improving durability and reliability.


Specifications

Attribute

Details

Capacitance

69.9 pF/m (21.3 pF/ft) typical

Tensile Strength

330 N (75 lbf) probe case to probe lead  270 N (60 lbf) at probe lead to extension cable connectors

Extension Cable Material

Standard Cable: 75Ω triaxial, FEP insulated  Extended Temperature Range Cable: 75Ω triaxial, PFA insulated

Minimum Cable Bend Radius

25.4 mm (1.0 in)

System Length

5 or 9 meters (including extension cable) or 1 meter (probe only)

Weight

Extension Cable: 34 g/m (0.4 oz/ft)  Armored Extension Cable: 103 g/m (1.5 oz/ft)

Ordering Information

Part Number

Description

330130-AAA-BB-CC

3300 XL Standard Extension Cable

Cable Length Options (A):

 030 – 3.0 meters (9.8 feet)

 035 – 3.5 meters (13.1 feet)

 040 – 4.0 meters (11.5 feet)

 045 – 4.5 meters (14.8 feet)

 060 – 6.0 meters (19.7 feet)

 070 – 7.0 meters (22.9 feet)

 075 – 7.5 meters (24.6 feet)

 080 – 8.0 meters (26.2 feet)

 085 – 8.5 meters (27.9 feet)


Connector Protector and Cable Options (B):

 00 – Standard cable

 01 – Armored cable

 02 – Standard cable with connector protector

 03 – Armored cable with connector protector

 10 – FluidLoc cable

 11 – Armored FluidLoc cable

 12 – FluidLoc cable with connector protector

 13 – Armored FluidLoc cable with connector protector


Agency Approval Options (C):

 00 – Not required

 05 – CSA, ATEX, IECEx Approvals

View full details

Product Description

General Information

Attribute

Details

Manufacturer

Bently Nevada

Series

3300

Model/Part Number

330130-045-01-00

Model Type

3300 XL Standard Extension Cable

Description


The 3300 XL Standard Extension Cable is designed for use with the 3300 XL proximity probe system. It features a patented TipLoc molding method that enhances the bond between the probe tip and body, ensuring a secure connection. The CableLoc design offers 330 N (75 lbf) of pull strength, improving durability and reliability.


Specifications

Attribute

Details

Capacitance

69.9 pF/m (21.3 pF/ft) typical

Tensile Strength

330 N (75 lbf) probe case to probe lead  270 N (60 lbf) at probe lead to extension cable connectors

Extension Cable Material

Standard Cable: 75Ω triaxial, FEP insulated  Extended Temperature Range Cable: 75Ω triaxial, PFA insulated

Minimum Cable Bend Radius

25.4 mm (1.0 in)

System Length

5 or 9 meters (including extension cable) or 1 meter (probe only)

Weight

Extension Cable: 34 g/m (0.4 oz/ft)  Armored Extension Cable: 103 g/m (1.5 oz/ft)

Ordering Information

Part Number

Description

330130-AAA-BB-CC

3300 XL Standard Extension Cable

Cable Length Options (A):

 030 – 3.0 meters (9.8 feet)

 035 – 3.5 meters (13.1 feet)

 040 – 4.0 meters (11.5 feet)

 045 – 4.5 meters (14.8 feet)

 060 – 6.0 meters (19.7 feet)

 070 – 7.0 meters (22.9 feet)

 075 – 7.5 meters (24.6 feet)

 080 – 8.0 meters (26.2 feet)

 085 – 8.5 meters (27.9 feet)


Connector Protector and Cable Options (B):

 00 – Standard cable

 01 – Armored cable

 02 – Standard cable with connector protector

 03 – Armored cable with connector protector

 10 – FluidLoc cable

 11 – Armored FluidLoc cable

 12 – FluidLoc cable with connector protector

 13 – Armored FluidLoc cable with connector protector


Agency Approval Options (C):

 00 – Not required

 05 – CSA, ATEX, IECEx Approvals
